Legrand Allzy Modular MCB · 1P (SP) · 20 A · 3 M · White · 681127: Elume price today ₹1,061 per pc incl. GST, 33% below the ₹1,594 MRP. Over the last 30 days it ranged from ₹1,060 on 23 Oct to ₹1,061. The average price across the sellers we track is ₹857, ₹204 less than here. The lowest tracked seller lists it at ₹857, ₹204 below it (tell us and we match it).

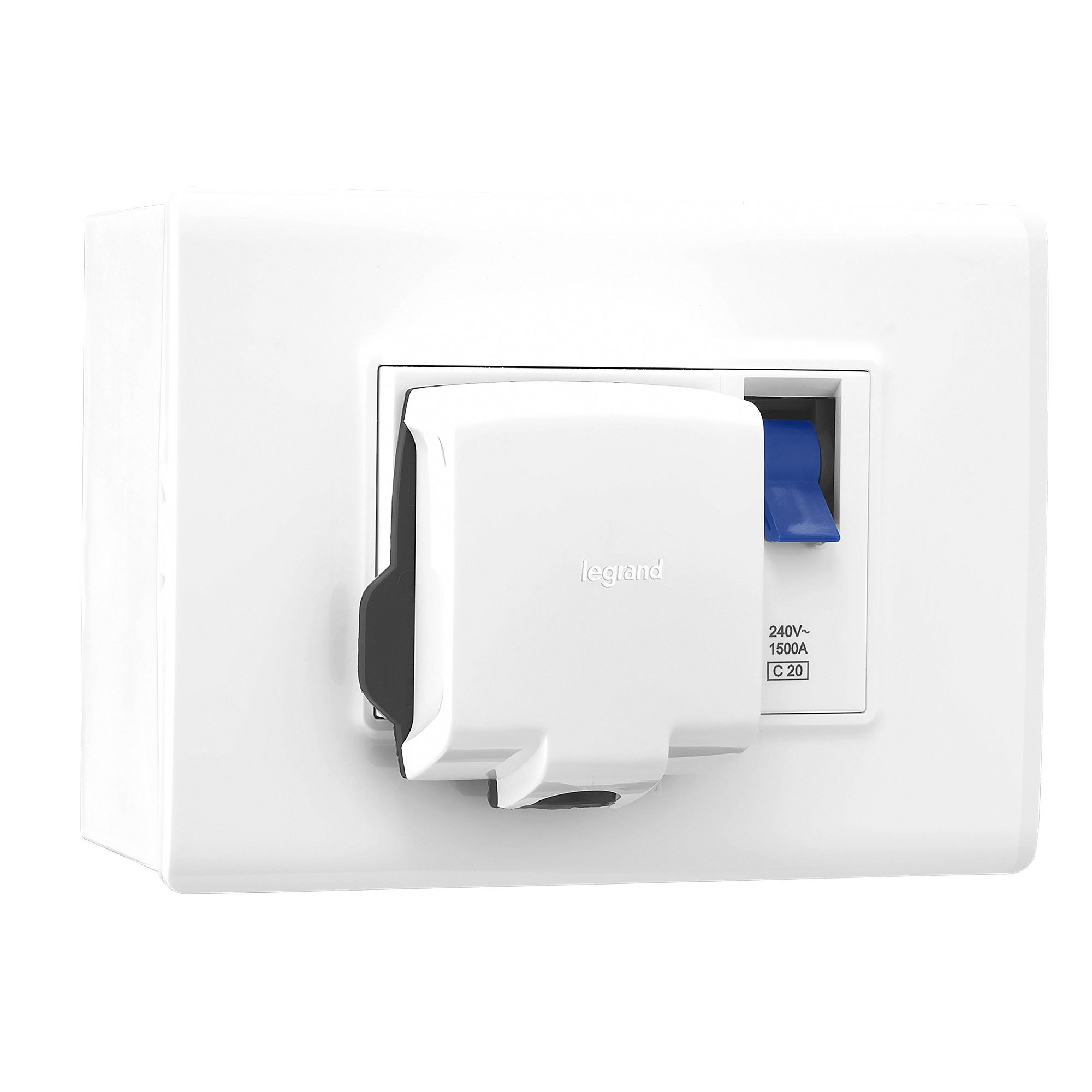

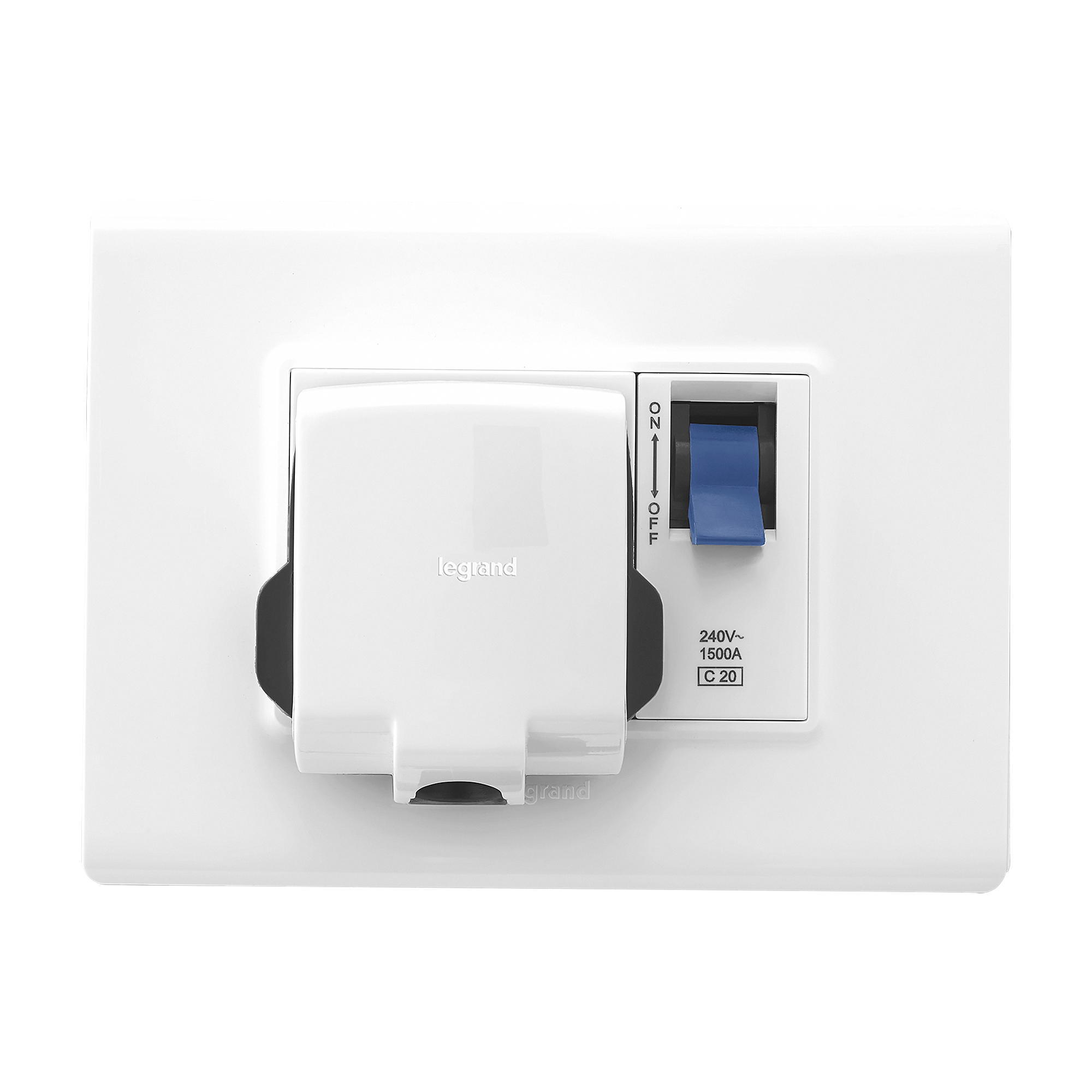

The Allzy range CAT number 681127 is a power unit that includes a 20A single pole (SP) MCB and a 6/16A socket outlet, designed for general use. It features a three-module design in white color and comes pre-mounted in a surface box. The unit has overall dimensions of 121 mm in width, 90 mm in height, and 77 mm in depth, with a weight of 246.2 grams. It is equipped with screw terminals that can accommodate wires with a capacity of 0.75mm² to 6mm², and requires a 4mm flat-blade screwdriver for installation. The MCB is operated with a dolly, and the socket is operated with a plug. The materials used include polycarbonate for the top plate and socket base, PA+PTFE for the shutter, stainless steel for the shutter spring, and brass for the contacts and terminals. The unit is rated for an input of 240V AC and 20A, with a short circuit capacity of 1.5KA, and an output of 240V AC and 6/16A. The product conforms to Indian Standards IS 1293:2019 for the socket and IS 60898-1:2002 for the MCB.
Many 1.5 ton split ACs are put on a dedicated 16A or 20A MCB (C curve is common) with 2.5 or 4 sq mm copper wire, depending on the rated current on the nameplate and the cable run. Follow the AC's installation manual and have a licensed electrician size the MCB to protect the cable, not just the appliance.
The curve sets how fast the MCB trips on a surge: B trips at 3-5 times rated current, C at 5-10 times and D at 10-20 times (IS/IEC 60898-1). B suits lighting and resistive loads, C is the usual choice for homes with ACs, fans, motors and pumps, and D is for high inrush loads like transformers and large motors.

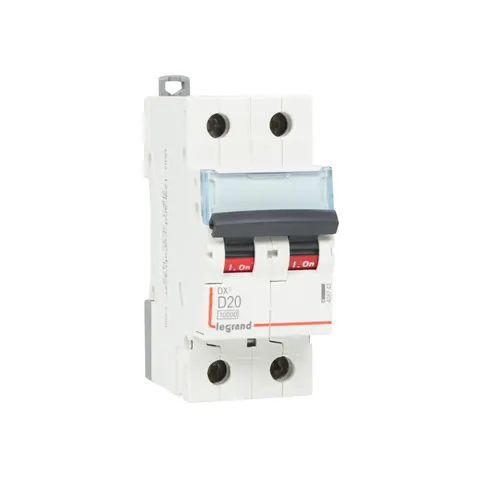

A DP (double pole) MCB switches off both phase and neutral, giving full isolation for high-load or wet-area appliances like geysers, ACs and the main incomer. SP MCBs are fine for normal lighting and socket circuits where only the phase needs protection.
Breaking capacity is the maximum fault current the MCB can safely interrupt; 6kA is adequate for most homes and 10kA is recommended near large transformers, in commercial buildings or industrial sites where prospective fault current is higher. Choosing 10kA does not change how the MCB behaves on normal overloads.
Most modular MCBs mount on a standard 35mm DIN rail and are one module (about 18mm) wide per pole, so they usually physically fit. The front cover cutout height and busbar terminal type can differ between brands, so check the cover alignment before mixing brands in one DB.
No. An MCB protects wiring against overload and short circuit only; protection against shock and earth leakage needs an RCCB or RCBO (typically 30mA) in the same circuit.
