Catalogue / Switchgear / Havells MCB TP C Curve — 10 A
BrandHavells
CategorySwitchgear
SpecificationCircuit Breaker · Execution pole Three Pole (TP) · Type C Curve · Rating 63 A
SKUDHMGCTPF010
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Havells· In stock

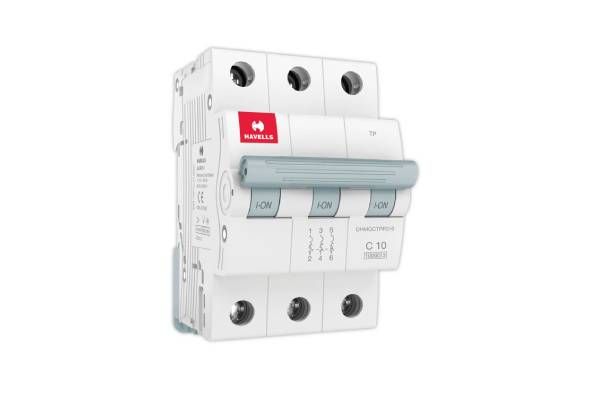

Havells MCB TP C Curve — 10 A
Rating: 10 A
₹936/pc+ 18% GST
₹1,104 incl. GST · MRP ₹1,59141% off
Wholesale · 15+ units
₹889 +GST /pc
Add to cart
Buy now
🚚 Delivered pan-India · 30-day NBFC credit is coming soon — join the waitlist.
Price history
Elume price over time. Market comparison appears once we track this item. Updated regularly.
ElumeMRP
Elume today
₹1,104
MRP
₹1,877
1 price point
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units — ₹1,049/pc on this product
About this product
from havells.com63 A
- Application : Suitable for protection against overload & short circuit for Motor and other Inductive loads
- Rating : 0.5 A to 63 A
- Specification : IS/IEC 60898-1
- Note: Product images are for illustrative purposes and may differ from the actual product
Safety Terminals
To avoid improper cable termination, the safety terminals guide the cable towards the cage terminal for systematic termination
Bi Stable Clip
Every device is provided with a dual position DIN rail clip, so it becomes much easier to change a device from a device bank connected to a bus-bar, without disturbing the existing wiring
Large Cable Terminals
Suitable for copper and aluminum cables, these terminals are compatible with cables upto 35 mm 2 cross section area
Cooler Operation
Grooves provided on outer body, so that when individual poles are placed adjacent to each other in a distribution board it forms a very effective channel for better air circulation, resulting into a cooler operation
Precise hammer action
A hammer directly connectd to the plunger strikes the moving contact arm with a force proportional to the peak current there by forcibly separating the moving contact from the fixed contact much before the latch mechanism operates.this further reduces the opening time of the circuit breaker.
Low power consumption
Consumes less power, thus cost effective and energy saving.
13 Plates Arc Chute for effective arc quenching
The arc extinguishing device comprises of 13 plates arc chute. The arc under the influence of the magnetic field and arc guide is moved into th arc chute where it is rapidly split and quenched.
Trip free mechanism
A circuit-breaker, the moving contacts of which return to and remain in the open position when the automatic opening operation is initiated after the initiation of the closing operation, even if the closing command is maintained.
As published by Havells. Verify critical parameters against the datasheet before specifying.
Technical specifications
Havells Havells MCB TP C Curve — 10 A · DHMGCTPF010
Device typeMiniature circuit breaker (MCB)
Current rating10 A
Reference standardIS/IEC 60898-1
BrandHavells
SKUDHMGCTPF010
Sold asPer pc
TypeC Curve
Rating63 A
Net Quantity1 N
Product rangeCircuit Breaker
Execution poleThree Pole (TP)
Manufactured ByHavells India Ltd.
Country Of OriginIndia
The full range · 9 options
Every option is its own product with live pricing — tap a row to switch.
| Option | Rating | Elume price (ex-GST) | MRP | Off |
|---|---|---|---|---|
| Havells MCB TP C Curve — 40 A | 40 A | ₹1,403 | ₹2,387 | 41% |
| Havells MCB TP C Curve — 63 A | 63 A | ₹1,458 | ₹2,479 | 41% |
| Havells MCB TP C Curve — 2 AParent | 2 A | ₹1,042 | ₹1,771 | 41% |
| Havells MCB TP C Curve — 6 A | 6 A | ₹936 | ₹1,591 | 41% |
| Havells MCB TP C Curve — 10 AViewing | 10 A | ₹936 | ₹1,591 | 41% |
| Havells MCB TP C Curve — 16 A | 16 A | ₹936 | ₹1,591 | 41% |
| Havells MCB TP C Curve — 20 A | 20 A | ₹936 | ₹1,591 | 41% |
| Havells MCB TP C Curve — 25 A | 25 A | ₹936 | ₹1,591 | 41% |
| Havells MCB TP C Curve — 32 A | 32 A | ₹936 | ₹1,591 | 41% |
Know before you buy
Read: Top 10 MCBs & Switchgear in India (2026) →What is the difference between an MCB, an RCCB and an RCBO?
An MCB protects against overload and short circuit (overcurrent). An RCCB protects against earth leakage and electric shock by detecting current imbalance, typically at 30mA, but offers no overcurrent protection. An RCBO combines both functions in one module, giving overcurrent and earth-leakage protection per circuit, saving DIN-rail space.
Should I use a Type AC or Type A RCCB in India?
Type AC detects only AC earth leakage and suits basic resistive and inductive loads. Type A also detects pulsating DC leakage produced by electronics, EV chargers, inverters and LED drivers. Since most Indian homes now run such loads, Type A is the safer choice. Use Type B for solar inverters and variable-frequency drives.
What breaking capacity (kA) do I need for an Indian home?
Breaking capacity is the maximum fault current an MCB can safely interrupt. For most homes located some distance from the transformer, 6kA is adequate. For apartments, boards close to the distribution transformer, and commercial mains, specify 10kA or higher. Always base it on the actual prospective short-circuit current at your board.
