ABB SB200 DC MCB · 2P (DP) · 25 A · C curve · 6 kA · 1SYS252067R02541SYS252067R0254↓ 53% off MRP
BrandABB
CategorySwitchgear
SpecificationMCB · 2P (DP) · 25 A · C curve · 6 kA
Brand SKU1SYS252067R0254
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
ABB· In stock
Visit the ABB store

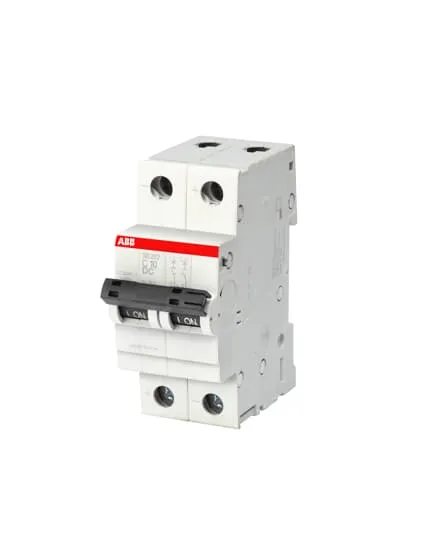

ABB SB200 DC MCB · 2P (DP) · 25 A · C curve · 6 kA · 1SYS252067R0254

Poles: 2
₹1,348/pcincl. GST-53%
₹1,142 + 18% GST · MRP ₹2,856
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,348 /pc incl. GST
Free delivery over ₹4,000

ABB SB200 DC MCB · 2P (DP) · 25 A · C curve · 6 kA · 1SYS252067R0254: Elume price today ₹1,348 per pc incl. GST, 53% below the ₹2,856 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹864, ₹484 less than here.

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
25 May to 22 Nov
₹3,056₹2,489₹1,921₹1,354₹787₹2,856₹1,348₹864
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹1,348
Avg market price
₹864
MRP
₹2,856
Lowest in view · 10 Aug
₹846
Highest in view · 3 Oct
₹1,348
Same key specifications, different brands - matched on spec, never on looks. Tap a product to open it.Full comparison page →
Product
Type
Poles
Rating
Curve
Breaking capacity
Price
MCB · DC
DP
25 A
C
6 kA
₹1,142 +GST /pc
₹1,348 incl. GST
Viewing above ↑
MCB · DC
DP
25 A
C
6 kA
₹1,117 +GST /pc
₹1,318 incl. GST
MCB · DC
DP
25 A
C
-
₹1,337 +GST /pc
₹1,578 incl. GST
MCB · DC
DP
25 A
C
6 kA
₹1,871 +GST /pc
₹2,208 incl. GST
For solar installers
Buying this for a rooftop solar job?
The price above is for a single piece. Send the whole requirement in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹1,281/pc on this product, applied automatically

System pro M compact SB200 DC Miniature Circuit Breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in C-characteristics, different configurations (1P, 2P), breaking capacities (up to 6 kA at 240/415 V AC) and rated curre

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB SB200 DC MCB · 2P (DP) · 25 A · C curve · 6 kA · 1SYS252067R0254 · 1SYS252067R0254
Device typeMiniature circuit breaker (MCB)
Poles2P (DP)
Rated current25 A
Trip curveC curve
Breaking capacity6 kA
Service breaking capacity (Ics)6000 kA
Operational current (Ie)25 A
Impulse withstand (Uimp)4 kV
Width2 modules (35 mm)
Terminal capacityrigid: 25 mm²
Ingress protectionIP20
Reference standardIS/IEC 60947-2
Net weight0.25 kg
Country of originIndia
Current rating25 A
BrandABB
Brand SKU1SYS252067R0254
ELINEMMJ6MPFDR
Sold asPer pc
Ratings as published by ABB (abb.com product data; Product name; shop.in.abb.com listing for 1SYS252067R0254, 23 Sep 2026). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
Which MCB rating do I need for a 1.5 ton split AC?

Many 1.5 ton split ACs are put on a dedicated 16A or 20A MCB (C curve is common) with 2.5 or 4 sq mm copper wire, depending on the rated current on the nameplate and the cable run. Follow the AC's installation manual and have a licensed electrician size the MCB to protect the cable, not just the appliance.

What is the difference between B, C and D curve MCBs?

The curve sets how fast the MCB trips on a surge: B trips at 3-5 times rated current, C at 5-10 times and D at 10-20 times (IS/IEC 60898-1). B suits lighting and resistive loads, C is the usual choice for homes with ACs, fans, motors and pumps, and D is for high inrush loads like transformers and large motors.

Should I use SP or DP MCB for my geyser or AC?

A DP (double pole) MCB switches off both phase and neutral, giving full isolation for high-load or wet-area appliances like geysers, ACs and the main incomer. SP MCBs are fine for normal lighting and socket circuits where only the phase needs protection.

Is 6kA or 10kA breaking capacity better for home?

Breaking capacity is the maximum fault current the MCB can safely interrupt; 6kA is adequate for most homes and 10kA is recommended near large transformers, in commercial buildings or industrial sites where prospective fault current is higher. Choosing 10kA does not change how the MCB behaves on normal overloads.

Will this MCB fit in my existing DB of another brand?

Most modular MCBs mount on a standard 35mm DIN rail and are one module (about 18mm) wide per pole, so they usually physically fit. The front cover cutout height and busbar terminal type can differ between brands, so check the cover alignment before mixing brands in one DB.

Does an MCB protect against electric shock?

No. An MCB protects wiring against overload and short circuit only; protection against shock and earth leakage needs an RCCB or RCBO (typically 30mA) in the same circuit.
