Legrand Allzy 1-way Switch · 20 A · 1 M · White · 681107: Elume price today ₹121 per pc incl. GST, 33% below the ₹180 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹98, ₹23 less than here. The lowest tracked seller lists it at ₹98, ₹23 below it (tell us and we match it).

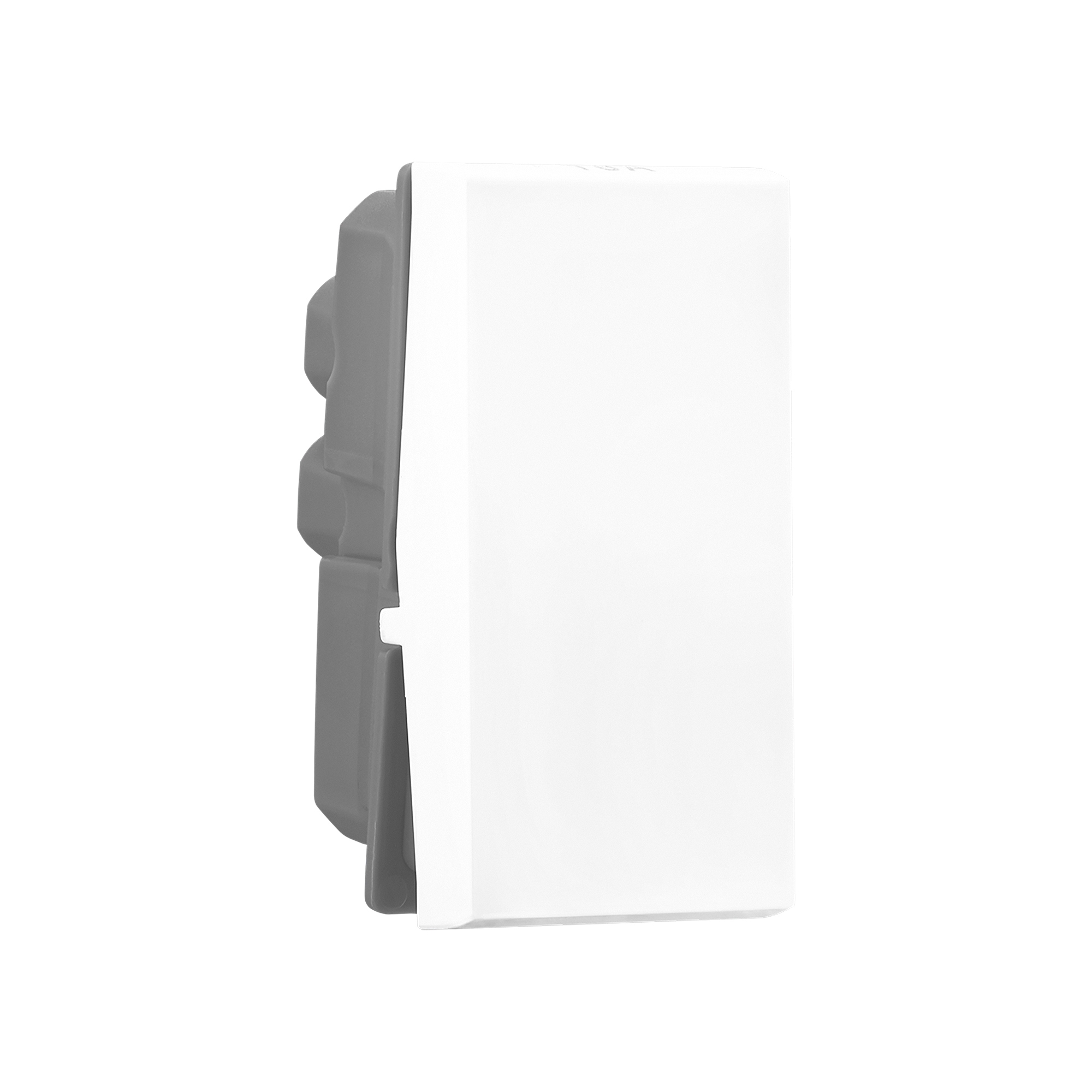

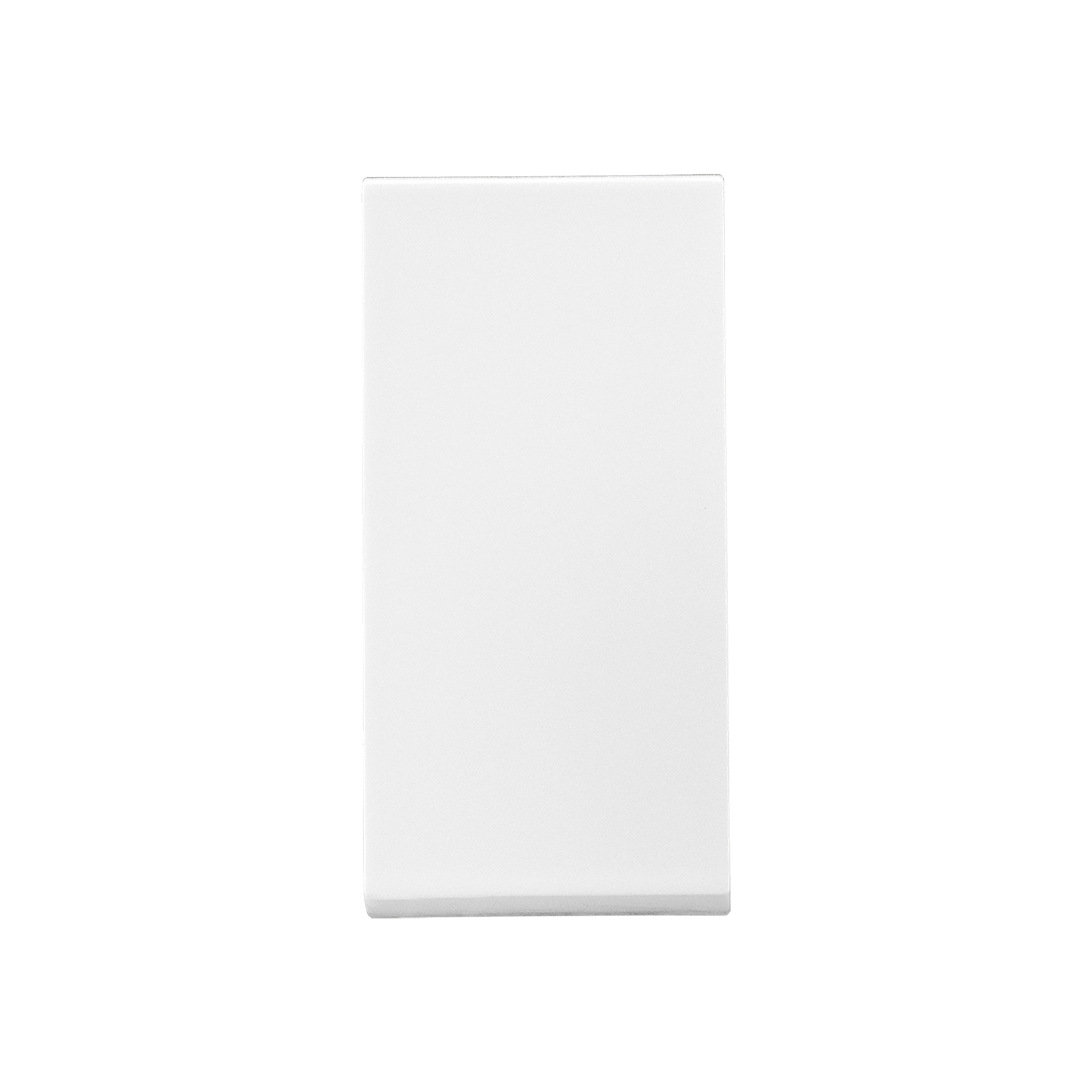

The Allzy range CAT number 681107 is a 20A 1-way single pole switch designed for general lighting control. It features a single module with a white color and can be mounted both flush and surface-mounted. The switch has overall dimensions of 22.5 mm in width, 45 mm in height, and 39 mm in depth, with a weight of 15.1 grams. It is equipped with screw terminals that can accommodate wires with a capacity of 2.5mm² to 6mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and is made from durable materials including polycarbonate for the rocker, polypropylene for the base, and brass for the contact and pivot terminals. It is rated for 230V AC and 20A current, with a self-extinguishing capability of 850°C for 30 seconds. The product conforms to Indian Standard IS 3854:1997.
6A switches are for lights, fans and small sockets. Use a 16A switch for heavy appliances such as an AC, geyser, microwave or room heater, usually paired with a 16A socket on a 2.5-4 sq mm circuit.
Modular switches generally fit only the plates and frames of the same brand and series, because the clip design and module width differ. If you are replacing only switches, check the series of your existing plates first.
A 1-way switch controls a light from one place. A 2-way switch is used in pairs to control the same light from two places, such as the top and bottom of a staircase or both ends of a corridor.
A standard switch takes 1 module. Larger items like 16A sockets, fan regulators and some USB chargers take 2 modules, so count modules before choosing the plate size.
Some switches have a built-in neon or LED indicator that glows when on or off, which helps locate them in the dark. Check the product details; otherwise a separate indicator module can be added.
Switches for household use in India are made to IS 3854 and should carry the ISI mark. Look for flame-retardant polycarbonate housings and silver alloy contacts for a longer life.
