Legrand Lyncus 1-way Switch · 20 A · 1 M · White · 677212: Elume price today ₹239 per pc incl. GST, 34% below the ₹360 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹193, ₹46 less than here. The lowest tracked seller lists it at ₹193, ₹46 below it (tell us and we match it).

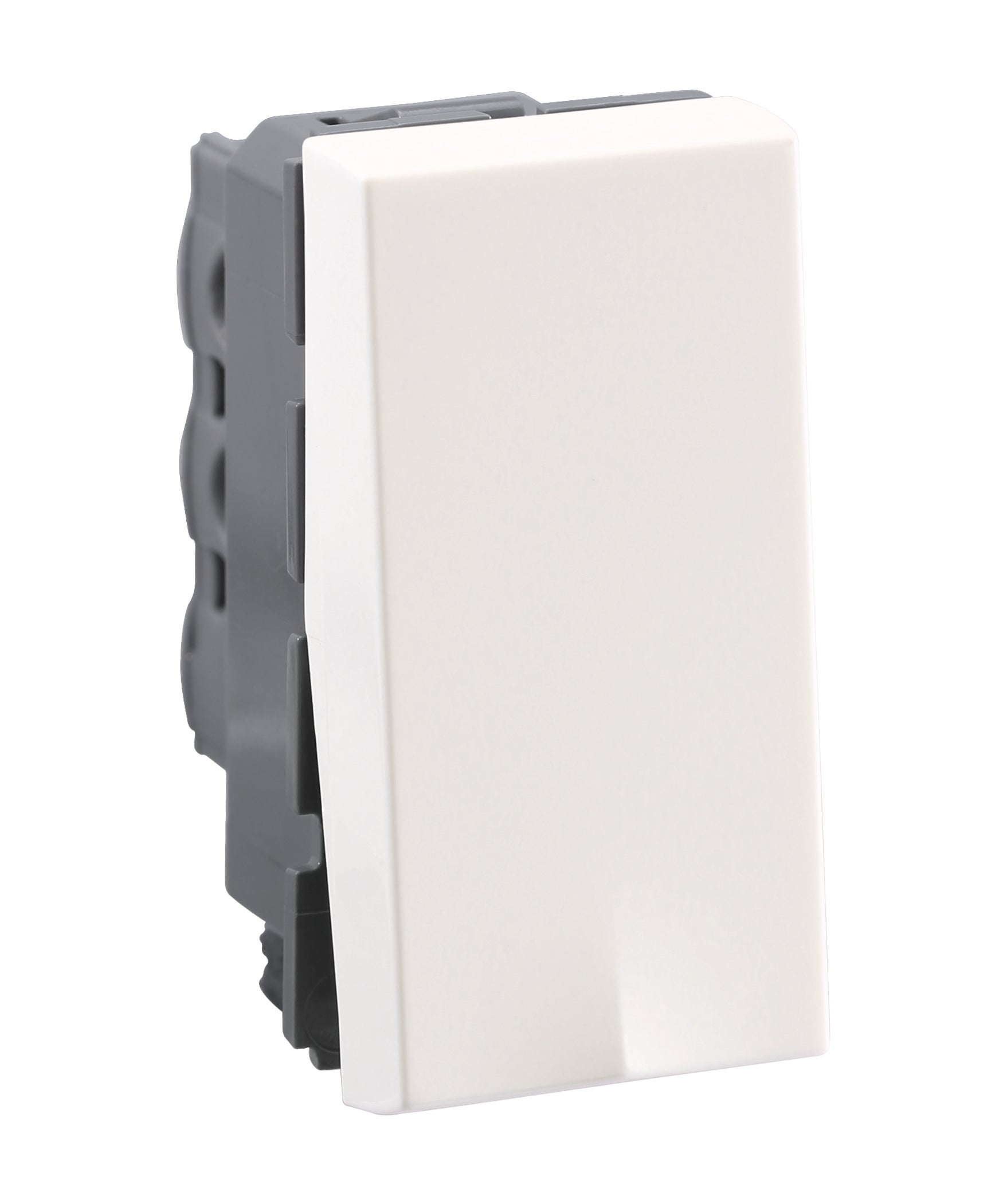

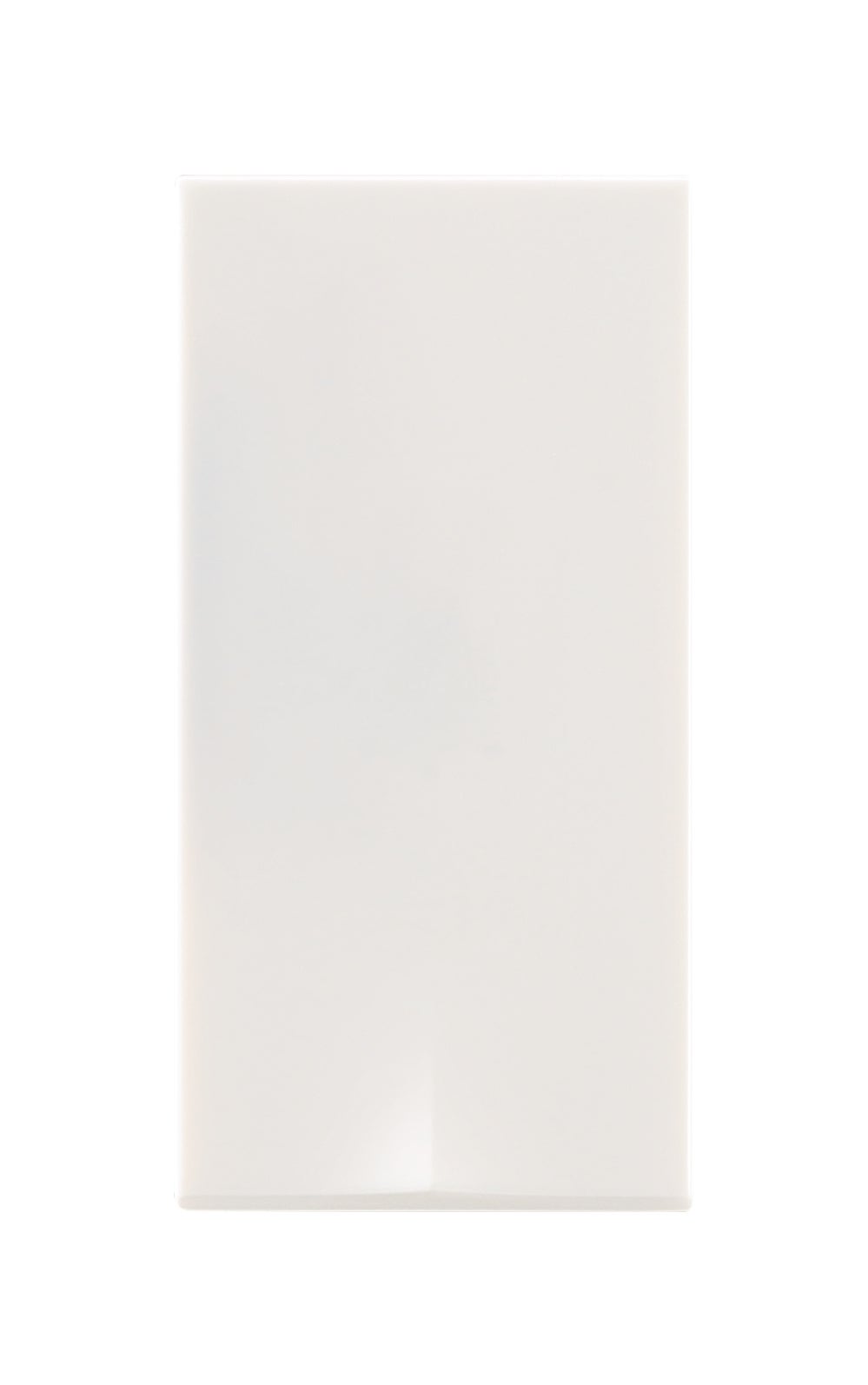

The Lyncus range CAT number 677212 is a 20A switch designed for general lighting control mechanisms. This one-way switch is a single pole type, featuring a sleek square design and is available in a white color, making it suitable for modern interiors. It is versatile in its mounting options, allowing for both flush and surface-mounted installations. The switch is composed of a single module and has overall dimensions of 22.5 mm in width, 45 mm in height, and 40 mm in depth, with a weight of 19 grams. The connection terminals are equipped with screws, supporting a capacity of 2.5mm² to 6mm², and require a 10 mm stripping length. The switch operates with a rocker mechanism and is constructed from high-quality materials including a polycarbonate rocker, polycarbonate upper base, polypropylene basket, polycarbonate plunger, brass tip and pivot terminals, brass screws without plating, stainless steel rocker spring, polypropylene transmitter, and a silver contact tip. Electrically, it operates at a voltage of 230V AC and a current of 20A, with a self-extinguishing feature rated at 850°C for 30 seconds. The switch conforms to the IS: 3854 standard, ensuring its reliability and safety in u
6A switches are for lights, fans and small sockets. Use a 16A switch for heavy appliances such as an AC, geyser, microwave or room heater, usually paired with a 16A socket on a 2.5-4 sq mm circuit.
Modular switches generally fit only the plates and frames of the same brand and series, because the clip design and module width differ. If you are replacing only switches, check the series of your existing plates first.
A 1-way switch controls a light from one place. A 2-way switch is used in pairs to control the same light from two places, such as the top and bottom of a staircase or both ends of a corridor.
A standard switch takes 1 module. Larger items like 16A sockets, fan regulators and some USB chargers take 2 modules, so count modules before choosing the plate size.
Some switches have a built-in neon or LED indicator that glows when on or off, which helps locate them in the dark. Check the product details; otherwise a separate indicator module can be added.
Switches for household use in India are made to IS 3854 and should carry the ISI mark. Look for flame-retardant polycarbonate housings and silver alloy contacts for a longer life.
