Legrand Lyncus 1-way Switch · with Indicator · 6 A · 1 M · White · 677202: Elume price today ₹140 per pc incl. GST, 34% below the ₹212 MRP. The price has held steady for the last 30 days.

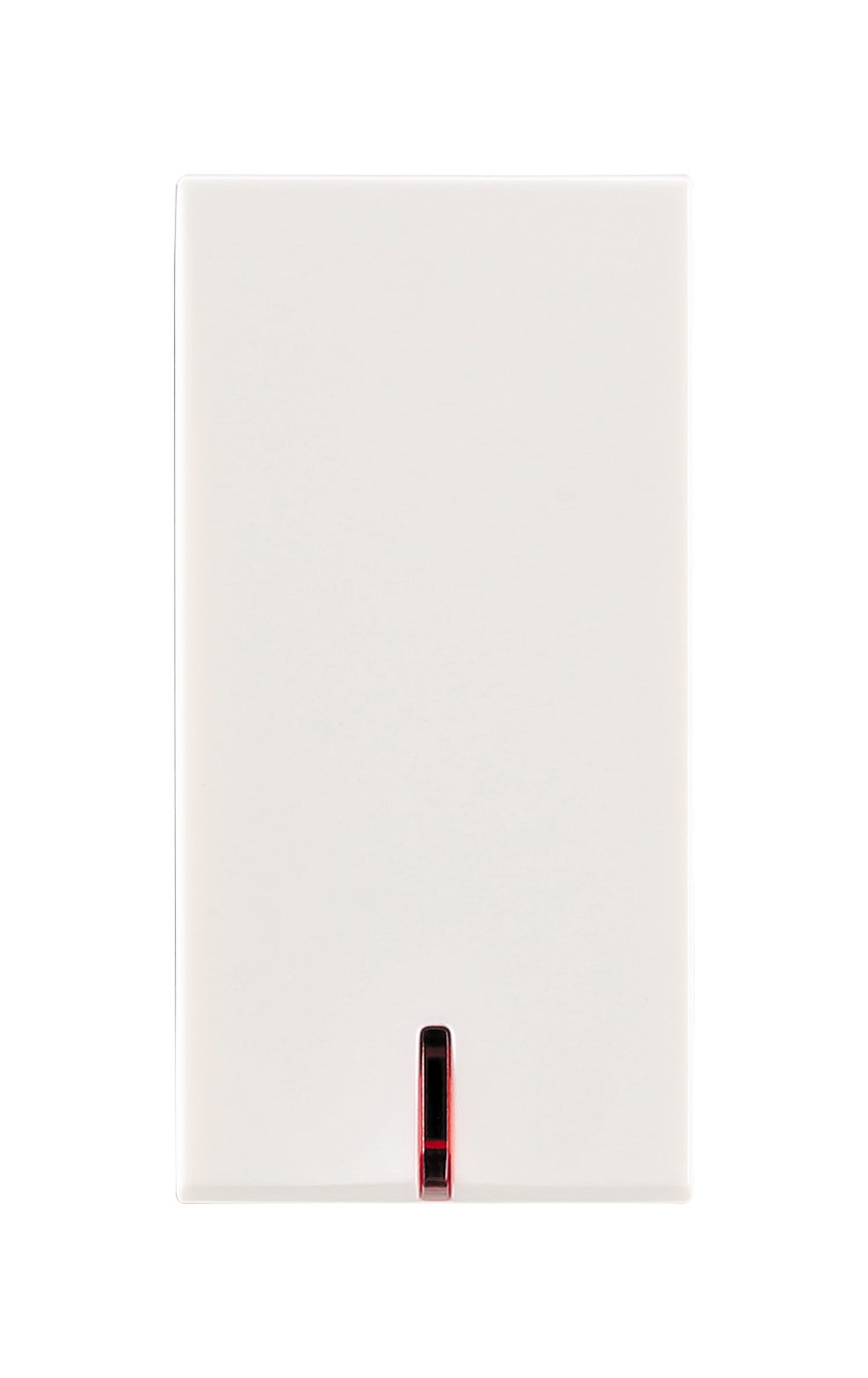

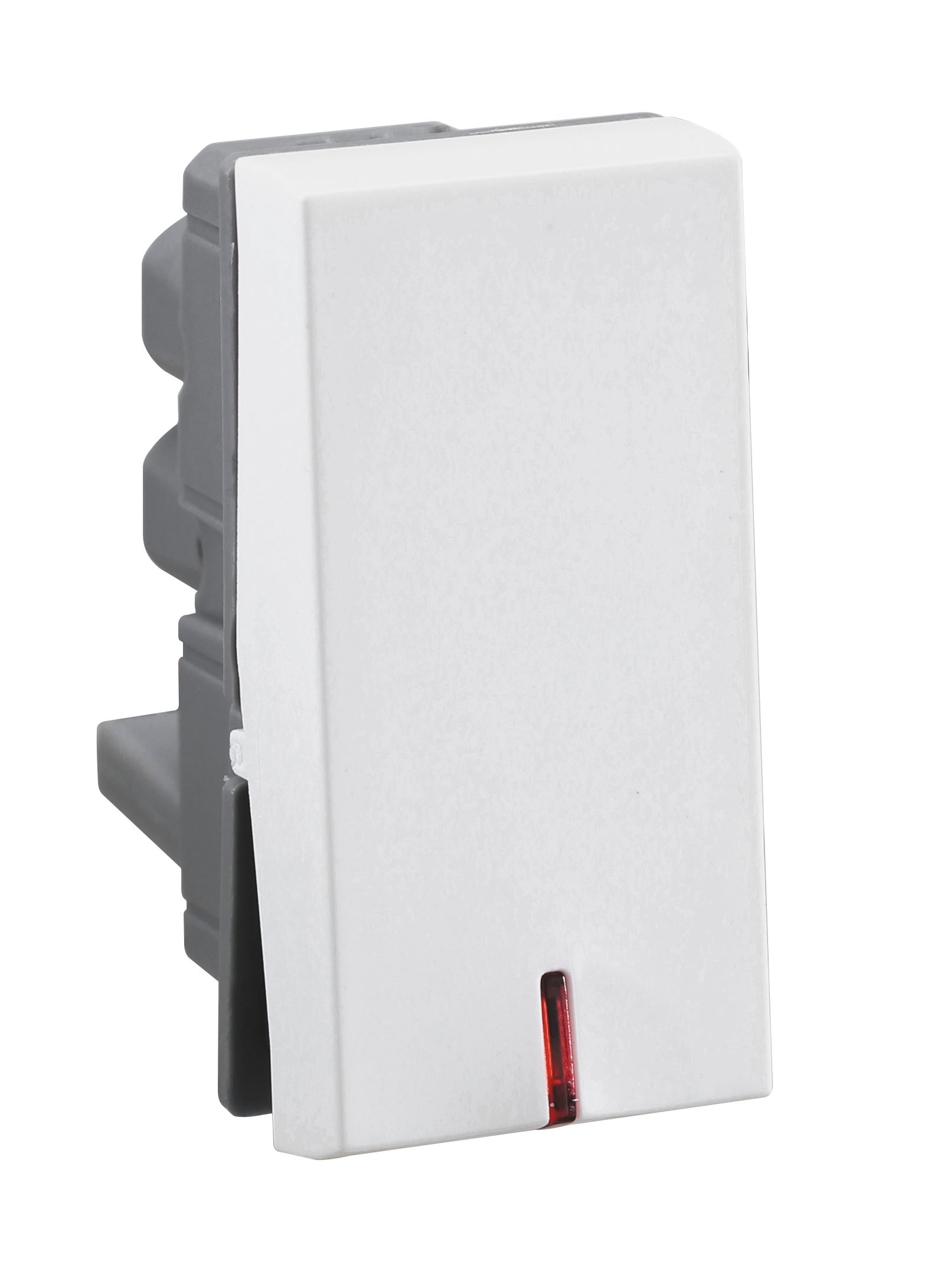

The Lyncus range product with CAT number 677202 is a 6A Switch 1W1M IND White, designed for general lighting control mechanisms. This one-way switch with an indicator is a single pole switch that occupies one module. It is available in a white color and can be mounted both flush and surface-mounted, making it versatile for various installation needs. The switch has compact overall dimensions of 22.5 mm in width, 45 mm in height, and 33.6 mm in depth, with a lightweight design of 16.2 grams. The connection terminals are equipped with screws, supporting a capacity of 0.75mm² to 1.5mm², and require a 10 mm stripping length. The switch is operated using a rocker mechanism, ensuring ease of use. The material characteristics include a polycarbonate rocker and lens, a polypropylene base, brass contact terminals and pivot terminals, steel screws with zinc plating, a stainless steel rocker spring, and a silver contact tip. The switch operates at a voltage of 230V AC and a current of 6A, with a self-extinguishing capability at 850°C for 30 seconds, ensuring safety and reliability. The product conforms to IS: 3854 standards, guaranteeing high quality and performance. This switch is part of Le
6A switches are for lights, fans and small sockets. Use a 16A switch for heavy appliances such as an AC, geyser, microwave or room heater, usually paired with a 16A socket on a 2.5-4 sq mm circuit.
Modular switches generally fit only the plates and frames of the same brand and series, because the clip design and module width differ. If you are replacing only switches, check the series of your existing plates first.
A 1-way switch controls a light from one place. A 2-way switch is used in pairs to control the same light from two places, such as the top and bottom of a staircase or both ends of a corridor.
A standard switch takes 1 module. Larger items like 16A sockets, fan regulators and some USB chargers take 2 modules, so count modules before choosing the plate size.
Some switches have a built-in neon or LED indicator that glows when on or off, which helps locate them in the dark. Check the product details; otherwise a separate indicator module can be added.
Switches for household use in India are made to IS 3854 and should carry the ISI mark. Look for flame-retardant polycarbonate housings and silver alloy contacts for a longer life.
