Legrand Arteor Fan Step Regulator · 2 M · White · 573468: Elume price today ₹1,290 per pc incl. GST, 36% below the ₹2,004 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹1,042, ₹248 less than here.

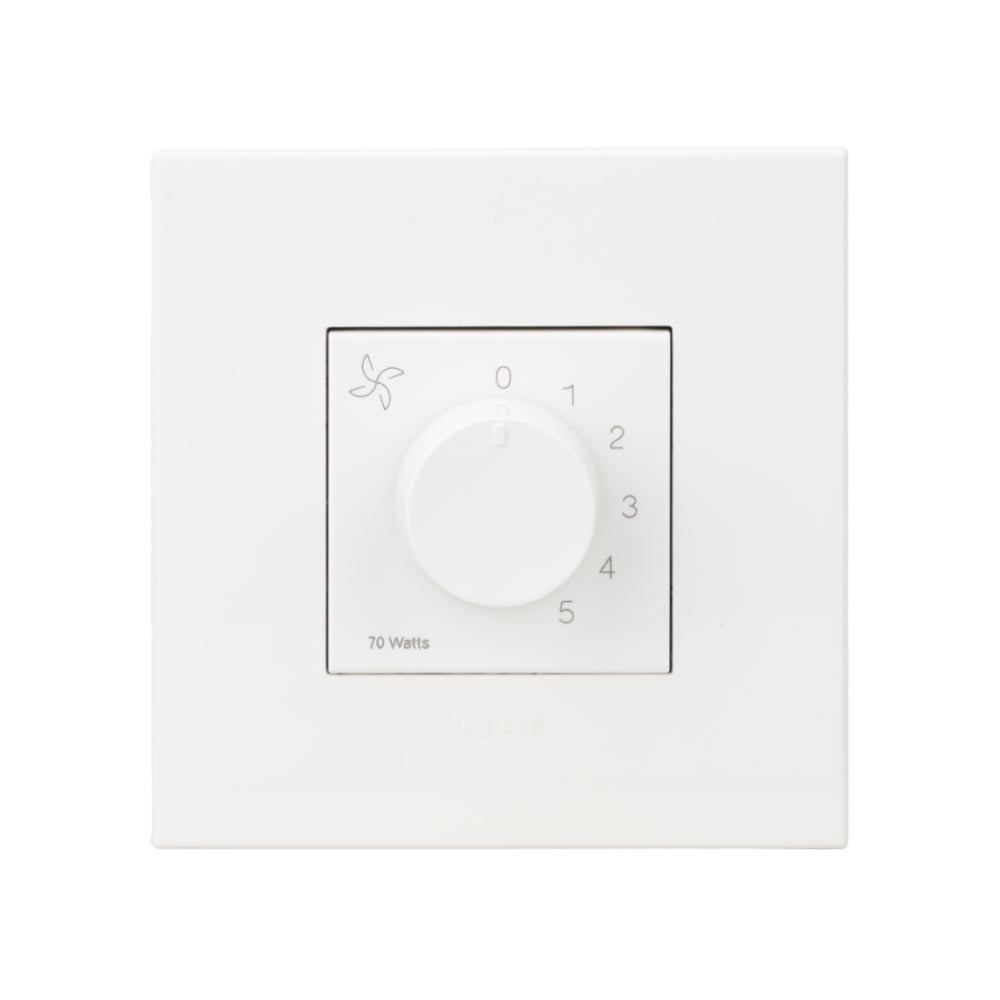

The Arteor range product with CAT number 573468 is a Fan Step Regulator designed for controlling fan speed with a power rating of 70W. It features a 2-module (2M) configuration in a white square design, offering 5-step speed control through a knob operation. The regulator is suitable for both flush and surface mounting, with compact dimensions of 45 mm width, 45 mm height, and 57.7 mm depth, and weighs 50.4 grams. It is constructed with high-quality materials, including a polycarbonate top plate and knob, and a polypropylene base, ensuring durability. The regulator operates at 240V AC and is self-extinguishing at 850°C for 30 seconds, conforming to Legrand standards. This product is ideal for local markets, particularly for power-saving and high-speed ceiling fans.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.
Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
