Legrand Mylinc Fan Step Regulator · 100 W · 2 M · White · 675530: Elume price today ₹610 per pc incl. GST, 47% below the ₹1,146 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹493, ₹117 less than here. The lowest tracked seller lists it at ₹493, ₹117 below it (tell us and we match it).

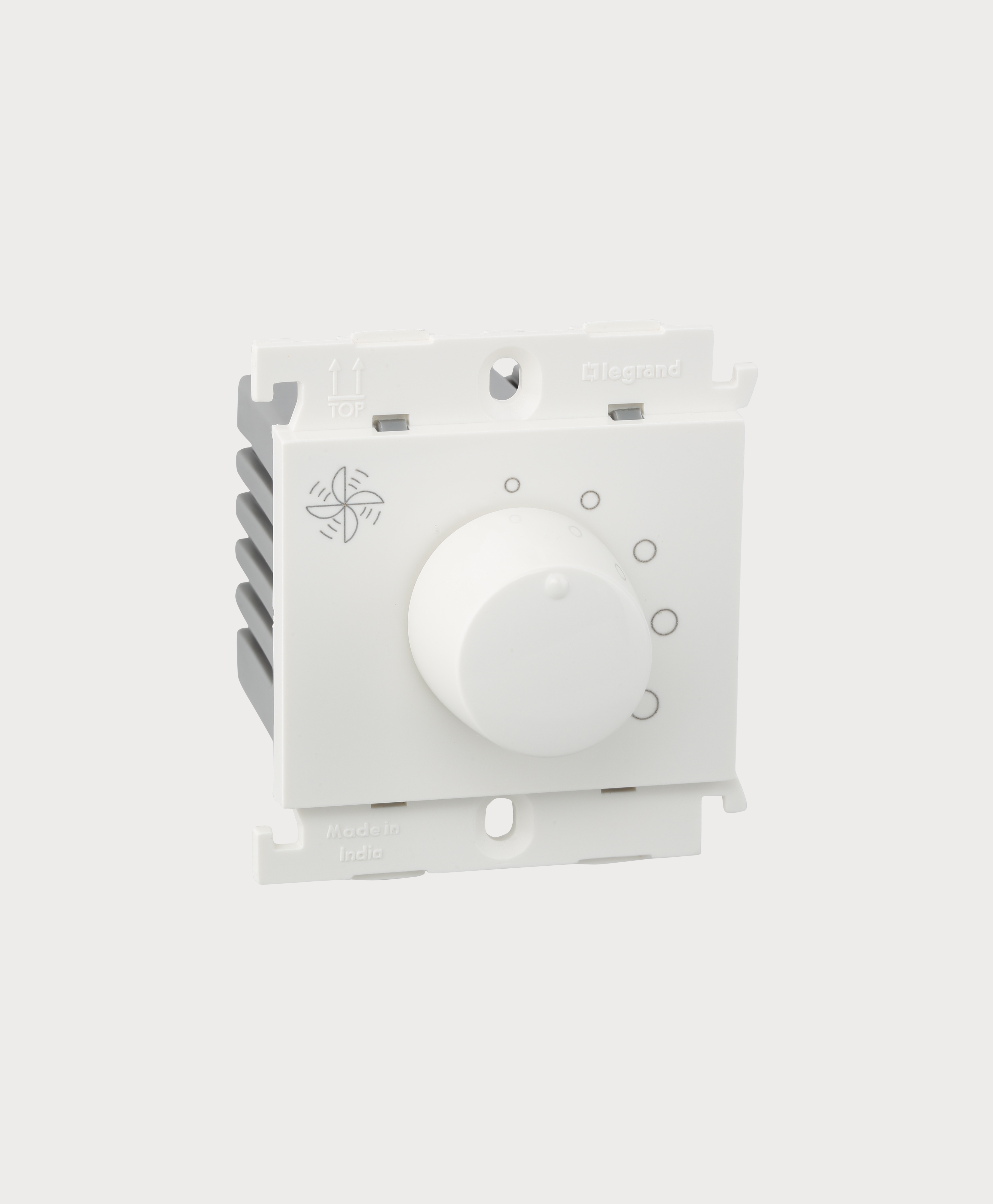

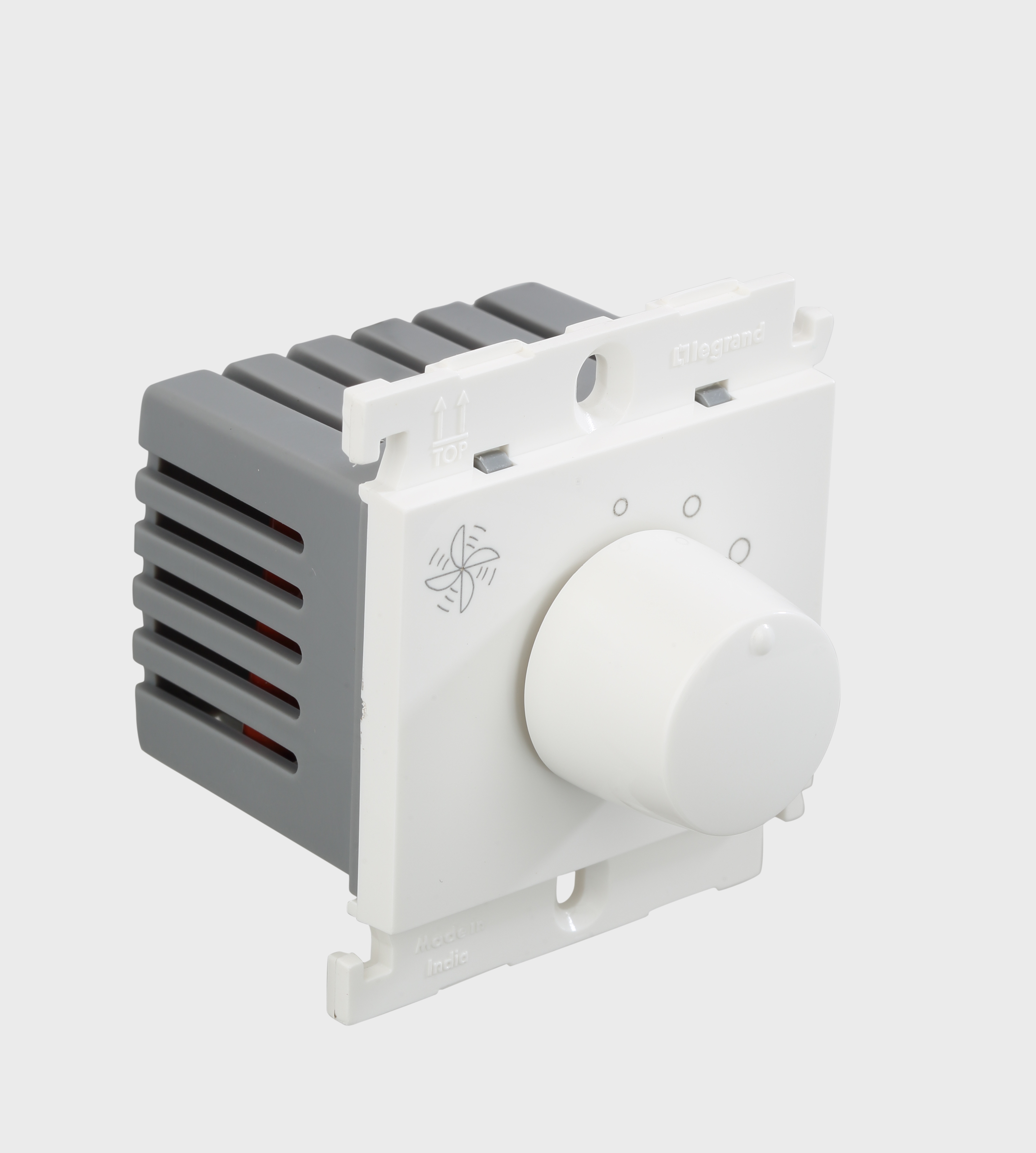

The Mylinc range product with CAT number 675530 is a Fan Step Regulator designed for controlling fan speed. It is a 2-module device in white color, offering 4-step speed control through a knob-operated mechanism. Suitable for both flush and surface mounting, it has compact dimensions of 51.6 mm width, 57.2 mm height, and 64 mm depth, with a weight of 41.2 grams. The regulator operates at 240V AC with a power rating of 100W and features self-extinguishing properties at 650°C for 30 seconds. Made from durable materials such as acrylonitrile butadiene styrene (ABS) for the top plate and knob, and polypropylene for the base, it conforms to IS: 11037 standards, ensuring safety and reliability.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.
Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
