Legrand Allzy Fan Regulator · with 360° Rotation · 100 W · 2 M · White · 681141: Elume price today ₹471 per pc incl. GST, 33% below the ₹708 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹381, ₹90 less than here. The lowest tracked seller lists it at ₹381, ₹90 below it (tell us and we match it).

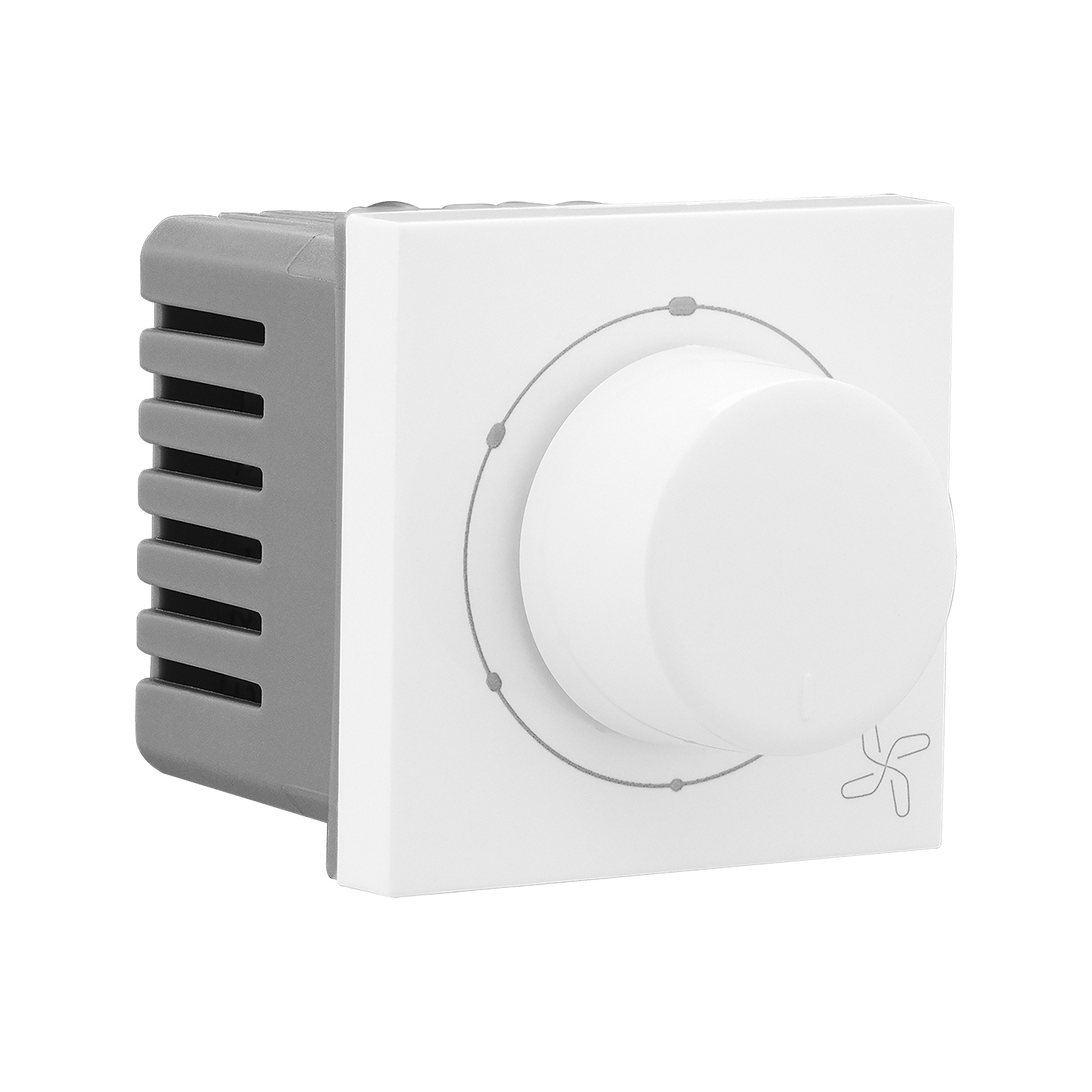

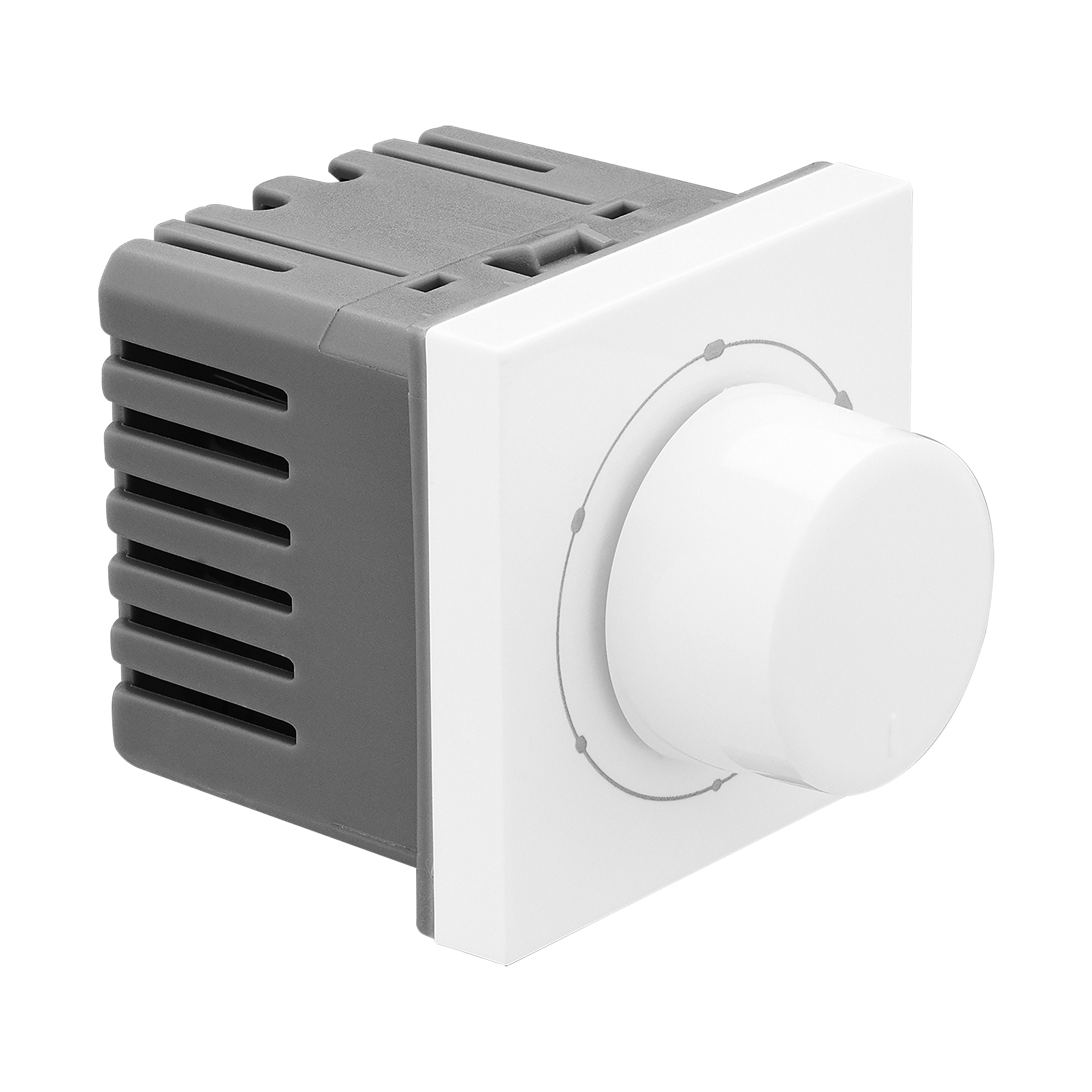

The Allzy range CAT number 681141 is a Fan Regulator designed for controlling ceiling fans. It features a two-module design in white color and can be mounted both flush and surface-mounted. The regulator offers 5 steps in a 360-degree rotation and is knob-operated in both clockwise and anticlockwise directions. It has overall dimensions of 45 mm in width, 45 mm in height, and 58 mm in depth, with a weight of 46.82 grams. The regulator is capacitor-based and operates at a voltage of 240V AC with a power rating of 100W. The materials used include polycarbonate for the top plate and knob, and polypropylene for the base. It is self-extinguishing at 850°C for 30 seconds and conforms to IS 11037 standards with an ISI mark.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.
Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
