Schneider EasyLogic EM6400NG+ POP Energy Meter · 1P/3P · 5 A · Class 1 active energyMETSEEM6400NGPOCL1↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Specification1P/3P · 5 A · Class 1 active energy· Class 2 reactive energy· Class 5P total current harmonic distortion THD (I)· Class 5P total voltage harmonic distortion THD (U) · -
Brand SKUMETSEEM6400NGPOCL1
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider EasyLogic EM6400NG+ POP Energy Meter · 1P/3P · 5 A · Class 1 active energy

NEW added this week
₹19,251/pcincl. GST-1%
₹16,314 + 18% GST · MRP ₹19,445
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹19,251 /pc incl. GST
Free pan-India delivery

Schneider EasyLogic EM6400NG+ POP Energy Meter · 1P/3P · 5 A · Class 1 active energy: Elume price today ₹19,251 per pc incl. GST, 1% below the ₹19,445 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹20,806₹20,080₹19,355₹18,629₹17,903₹19,445₹19,251
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹19,251
MRP
₹19,445
Lowest in view · 17 Oct
₹19,251
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹18,288/pc on this product

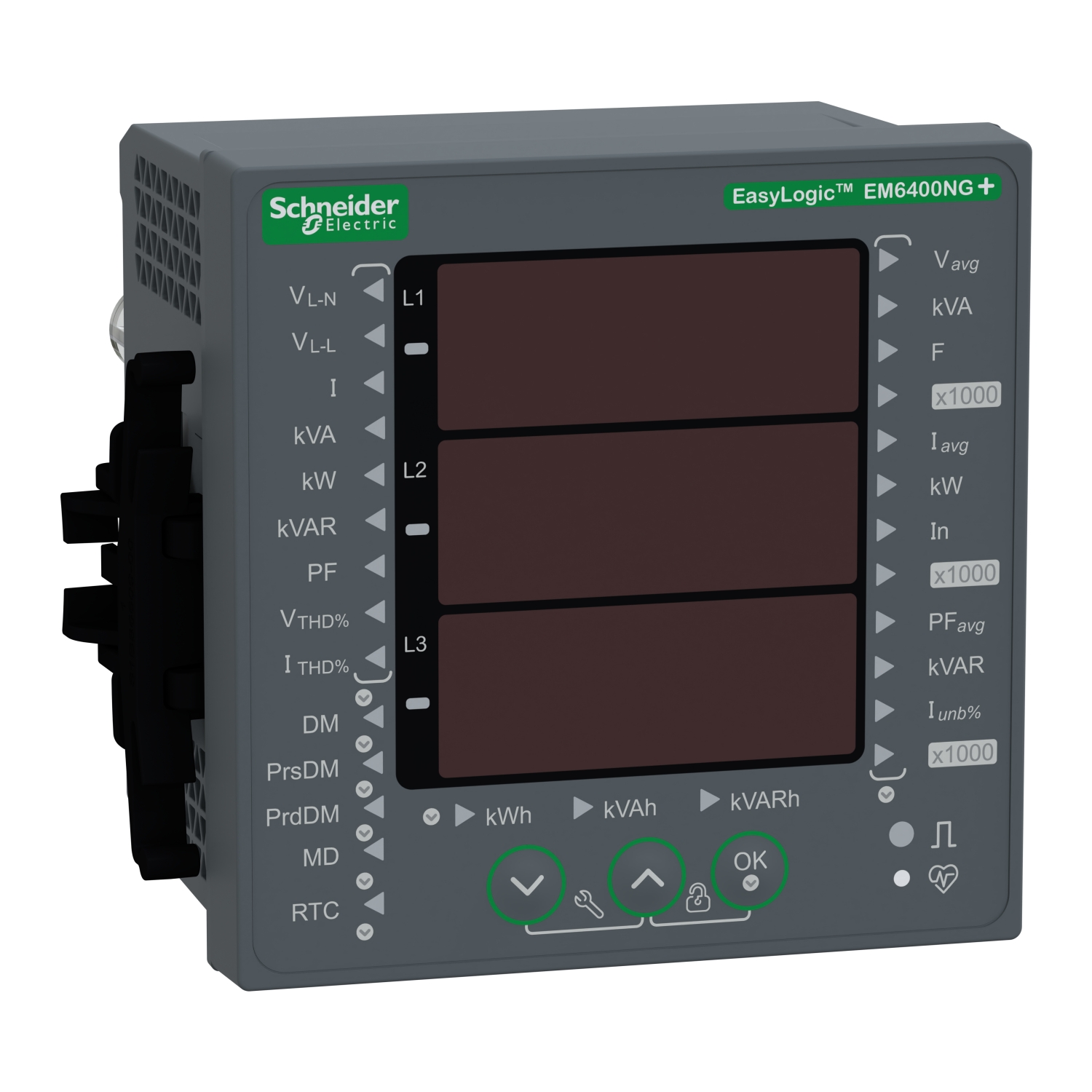

EM6400NG provide measurements of THD and individual harmonics (complying with IEC61557-12) helps in monitoring the power quality. It enables the users to capture abnormalities in the system with date and time stamp. Further to facilitate the readings, the EM6400NG has a large LED display for simultaneous monitoring of multiple electrical parameters. Cyber security features to enable safe and secure Digital India. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure active, reactive energy and quality. This meter can be used in billing and load management. Communication is assured by 1 pulse output. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, multi parameter measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 90 mm in depth ; for 600 g.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EasyLogic EM6400NG+ POP Energy Meter · 1P/3P · 5 A · Class 1 active energy · METSEEM6400NGPOCL1
Rated current5 A
Ingress protectionIP51 front:· IP30 body:
Reference standardIEC 61010-1:ed. 3
Net weight0.6 kg
BrandSchneider
Brand SKUMETSEEM6400NGPOCL1
ELINEG2G32DD6P
Sold asPer pc
RangeEasyLogic
SignalCurrent 0...12 A (impedance 0.3 MOhm)6 x · Voltage (impedance 5 MOhm)4 x
MaterialPolycarbonate
Display type7 segments LED
Product nameEM6400NG+ POP
Metering typeAverage voltage Vavg · Peak demand power PM, QM, SM · Demand power P, Q, S · Apparent power S, S1, S2, S3 · Unbalance current · Power factor and displacement PF (signed, four quadrant) · Calculated neutral current · Active, reactive, apparent energy (signed, four quadrant) · Active power P, P1, P2, P3 · Voltage U21, U32, U13, V1, V2, V3 · Phase currents · Average current Iavg · Peak demand current
Mounting modeFlush-mounted
Sampling rate64 samples/cycle
Accuracy classClass 1 active energy conforming to IEC 62053-21 · Class 2 reactive energy conforming to IEC 62053-23 · Class 5P total current harmonic distortion THD (I) conforming to IEC 61557-12 · Class 5P total voltage harmonic distortion THD (U) conforming to IEC 61557-12
Data recordingEnergy consumption logs
Display colourRed
Display digits12 digit(s) - 14.2 mm in height
Output voltage5...40 V DC@20 mA
type of network3P · 1P + N · 2P + N · 3P + N · 2P
Demand intervalsConfigurable from 1 to 60 min
Flame retardanceV-0 conforming to UL 94
Impulse duration20 ms
Local signallingGreen LED: activity · Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Mounting supportFramework
Network frequency50 Hz · 60 Hz
Number of outputs1 pulse
Tightening torqueCurrent circuit: 0.9…1 N.m Philips No 2 screwdriver · Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver · Control circuit: 0.9…1 N.m Philips No 2 screwdriver · Communication: 0.9…1 N.m Philips No 2 screwdriver
Device applicationPower monitoring
[In] rated current5 A · 1 A
Measurement current5…6000 mA
Measurement voltage35…480 V AC 45...65 Hz between phases · 35…277 V AC 45...65 Hz between phase and neutral · 35…600 V AC 45...65 Hz between phases · 35…347 V AC 45...65 Hz between phase and neutral · 600…999000 V AC 45...65 Hz with external VT
Type of measurementCurrent · Voltage · Frequency · Apparent energy · Apparent power · Active and reactive energy · Active and reactive power
Measurement accuracyCurrent +/- 0.5 % · Voltage +/- 0.5 % · Power +/- 0.5 % · Frequency +/- 0.05 % · Power factor +/- 0.01
Measurement categoryCategory III 480 V · Category II 480…600 V
Type of installationIndoor installation
Communication of dataEnergy metering · Net energy · Reading of time-stamped measurements and events · Total energy
Installation categoryIII
Wire stripping lengthCurrent circuit: 3.68 mm · Voltage circuit: 7 mm · Control circuit: 7 mm · Communication: 7 mm
Power quality analysistotal harmonic distortion
Connections - terminalsCurrent circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) · Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Communication: screw clamp terminals 0.33…3.31 mm² cable(s)
Tamperproof of settingsProtected by access code
Messages display capacity3 fields of 4 characters
Product or component typeEnergy meter
[Us] rated supply voltage40...300 V AC 45...65 Hz · 40...300 V DC
Communication port support-
Communication port protocol-
Electrical insulation classClass II
Frequency measurement range45…65 Hz
Maximum power consumption in W2 W at 277 V
Maximum power consumption in VA6 VA at 277 V between phase and neutral
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
