Schneider EasyLogic Power Meter · 1P/3P · 1 A · Class 1 active energy · Class 2 re · IP51 · METSEPM1110HCL1METSEPM1110HCL1↓ 1% off MRP1 / 2
BrandSchneider
CategoryIndustrial Control
Specification1P/3P · 1 A · Class 1 active energy· Class 2 re · Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Brand SKUMETSEPM1110HCL1
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider EasyLogic Power Meter · 1P/3P · 1 A · Class 1 active energy · Class 2 re · IP51 · METSEPM1110HCL1

NEW added this week
₹15,334/pcincl. GST-1%
₹12,995 + 18% GST · MRP ₹15,489
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹15,334 /pc incl. GST
Free pan-India delivery

Schneider EasyLogic Power Meter · 1P/3P · 1 A · Class 1 active energy · Class 2 re · IP51 · METSEPM1110HCL1: Elume price today ₹15,334 per pc incl. GST, 1% below the ₹15,489 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹16,573₹15,995₹15,417₹14,839₹14,261₹15,489₹15,334
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹15,334
MRP
₹15,489
Lowest in view · 17 Oct
₹15,334
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹14,567/pc on this product

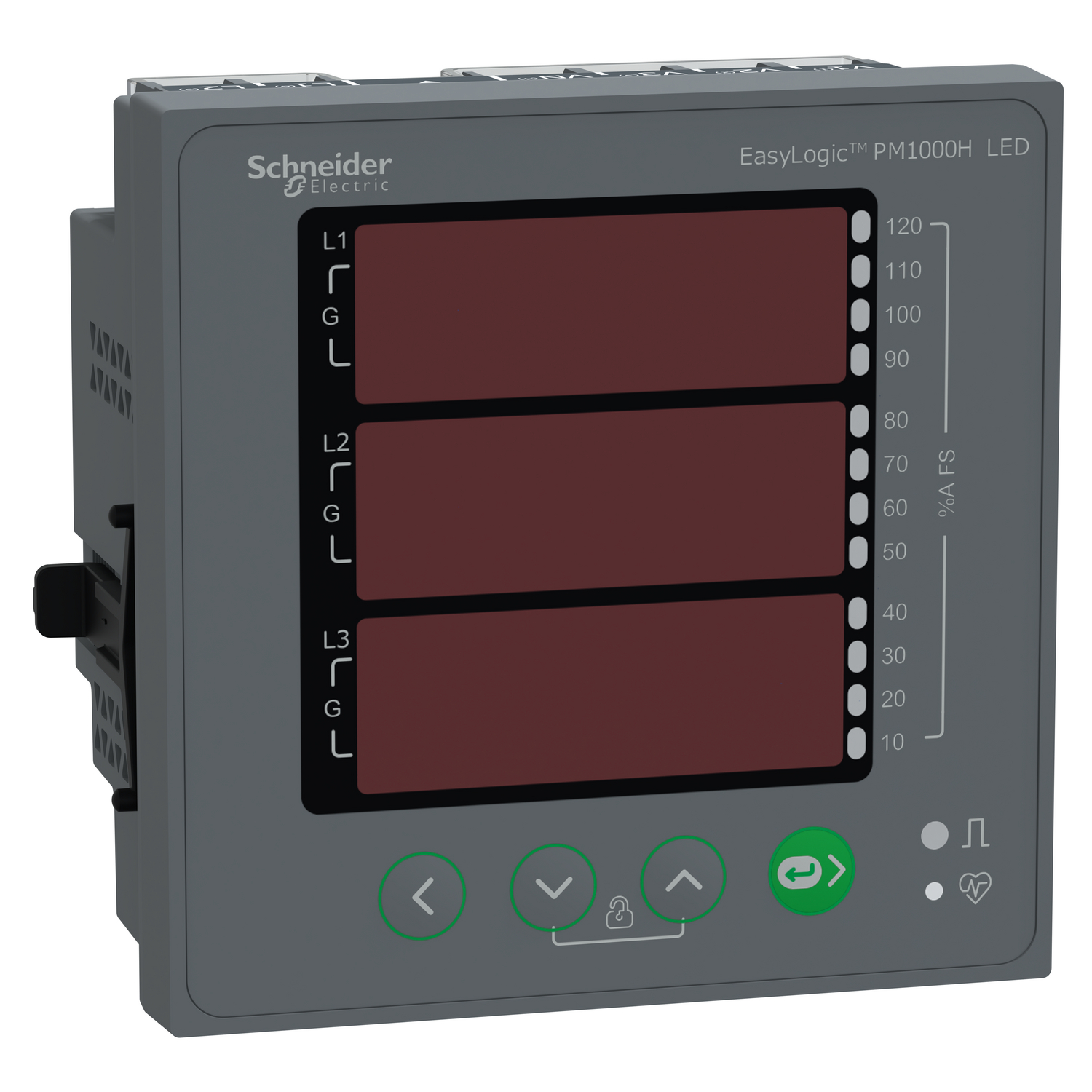

EasyLogic meters PM1110H are advanced replacements for multiple analog meters, making them ideal for stand-alone metering in various applications. Such as custom panels, switchboards, switchgear, genset panels, motor control centers, power factor improvement panels, and OEM panel boards. The meter is associated with a Class 1.0 active energy accuracy level, ensuring good measurements per IEC standards. Same for reactive energy with Class 2.0. The display can simultaneously show three power parameters (Watt, Watt per hour, VoltAmps, VA per hour, va reactif, var per hour). Plus record demand values for power, energy, or reactive energy with selectable parameters and intervals. This meter series measure essential electrical parameters in several panels types, boards, for cost management. Similarly for network management, the meter support THD power quality analysis, demand, power factor, phase angle and more. The device can be connected from 432VAC to 528VAC, 480VAC volts between phases, without needing voltage transformers. Compliant with measurement category III. The meters feature an easy-to-read display with 8-segment alphanumeric LEDs, showing three concurrent values and auto-scr

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EasyLogic Power Meter · 1P/3P · 1 A · Class 1 active energy · Class 2 re · IP51 · METSEPM1110HCL1 · METSEPM1110HCL1
Rated current1 A
Ingress protectionIP51 front:· IP30 body:
Reference standardIEC 61010-1:ed. 3
BrandSchneider
Brand SKUMETSEPM1110HCL1
ELINEPCH2KF4JR
Sold asPer pc
DepthOutside : 13 mm · Panel : 49 mm
RangeEasyLogic
Width96 mm
Height96 mm
SignalVoltage (impedance 5 MOhm)4 x · Current 0.005...10 A (impedance 0.3 MOhm)6 x
StandardsIEC 61010-1:ed. 3 · UL 61010-1:ed. 3
Display type8 segments LED
Metering typeActive power P, P1, P2, P3 · Apparent power S, S1, S2, S3 · Reactive power Q, Q1, Q2, Q3 · Active, reactive, apparent energy (signed, four quadrant) · Demand power P, Q, S · Unbalance current · Unbalance voltage
Mounting modeFlush-mounted · Vertical
Sampling rate32 samples/cycle
Accuracy classClass 1 active energy conforming to IEC 62053-21 · Class 2 reactive energy conforming to IEC 62053-23
Display colourRed
Display digits12 digit(s) - 14.2 mm in height
type of network3P · 2P + N · 1P + N · 3P + N · 2P
Demand intervals1 s
Local signallingGreen LED: activity · Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Mounting supportFramework
Counter functionsON hour counting · ON-load hour counting · Power interruption
Network frequency50 Hz · 60 Hz
Tightening torqueCurrent circuit: 0.9…1 N.m Philips No 2 screwdriver · Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver · Control circuit: 0.9…1 N.m Philips No 2 screwdriver · Communication: 0.5…0.6 N.m Philips no 1 screwdriver
Device applicationEnergy monitoring
[In] rated current1 A · 5 A
Measurement current5…6000 mA
Measurement voltage46…277 V AC 50...60 Hz between phase and neutral · 80…480 V AC 50...60 Hz between phases · 100…999000 V AC 50...60 Hz with external VT
Type of measurementPower factor per phase · Power factor average · Power · Energy · Active power demand · Reactive power demand · Apparent power demand · Phase unbalance · Phase angle · RPM
Measurement accuracyPower factor +/- 0.01 · Reactive power +/- 2 % · Active power +/- 1 % · Apparent power +/- 1 % · Active energy +/- 1 % · Reactive energy +/- 2 % · Apparent energy +/- 1 % · Harmonic distortion (I THD & U THD) +/- 5 %
Measurement categoryCategory III 480 V
Overvoltage categoryIII
Type of installationIndoor installation · Must be permanently connected and fixed
Communication of dataReading of measurements
Wire stripping lengthCurrent circuit: 3.68 mm for terminal connection · Voltage circuit: 7 mm · Control circuit: 7 mm · Communication: 6 mm
Power quality analysistotal harmonic distortion
Product certificationsCE conforming to IEC 61010-1 · CULus conforming to UL 61010-1 · CULus conforming to CSA C22.2 No 61010-1
Connections - terminalsCurrent circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) · Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s)
Tamperproof of settingsProtected by access code
Messages display capacity3 fields of 4 characters
Product or component typePower meter
[Us] rated supply voltage48...277 V AC 45...65 Hz · 48...277 V DC
Communication port supportScrew connector: RS485
Communication port protocolModbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Electrical insulation classClass II · Double insulation
Frequency measurement range45…65 Hz
Electromagnetic compatibilityElectrostatic discharge conforming to IEC 61000-4-2 · Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 · Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 · Surge immunity test conforming to IEC 61000-4-5 · Conducted RF disturbances conforming to IEC 61000-4-6 · Magnetic field at power frequency conforming to IEC 61000-4-8 · Voltage d
Maximum power consumption in W2 W at 240 V
Maximum power consumption in VA4 VA at 240 V between phase and neutral
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
