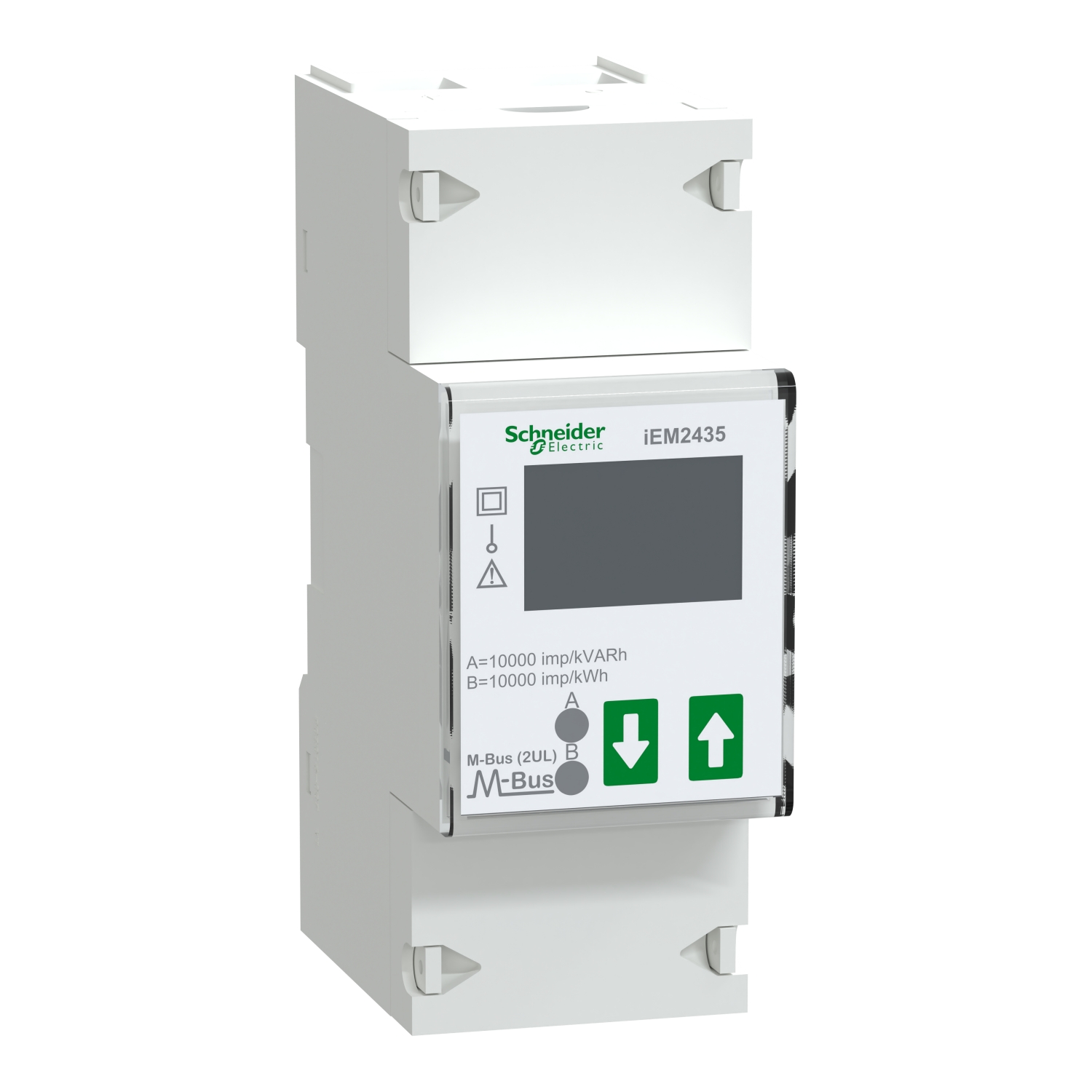

Schneider Acti9 iEM2435 Energy Meter · Class 1 active energy · Class 2 reactive energyA9MEM2435↓ 1% off MRP1 / 2
BrandSchneider
CategoryIndustrial Control
SpecificationClass 1 active energy· Class 2 reactive energy· Class B active energy· Class B · M-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds - 2 wires, insulation 3750 V
Brand SKUA9MEM2435
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 iEM2435 Energy Meter · Class 1 active energy · Class 2 reactive energy

NEW added this week
₹24,545/pcincl. GST-1%
₹20,801 + 18% GST · MRP ₹24,793
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹24,545 /pc incl. GST
Free pan-India delivery

Schneider Acti9 iEM2435 Energy Meter · Class 1 active energy · Class 2 reactive energy: Elume price today ₹24,545 per pc incl. GST, 1% below the ₹24,793 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹26,529₹25,603₹24,678₹23,752₹22,827₹24,793₹24,545
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹24,545
MRP
₹24,793
Lowest in view · 17 Oct
₹24,545
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹23,318/pc on this product

The Acti9 iEM2400 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering. This product family can be used to monitor power consumption for each sector, unit or workshop and manage electrical installation for building management. It feature a 7-characters/digits display and red LED indicator to display measured electrical parameters. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 100A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is M-Bus with 2-wire terminal support, no additional communication ports. You will have the possibility to switch between 2 tariffs via the communication bus. Product dimensions are as follows: width 35.8 mm, depth 63 mm, height 96.71 mm and product weight 220 g. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to t

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iEM2435 Energy Meter · Class 1 active energy · Class 2 reactive energy · A9MEM2435
Poles1P+N
Ingress protectionIP51 front panel:· IP20 casing:
Reference standardIEC 62052-11
ColourWhite
BrandSchneider
Brand SKUA9MEM2435
ELINEHDRDM4D9M
Sold asPer pc
Depth63 mm
RangeActi9
Width35.8 mm
Height96.7 mm
familyActi9 iEM2000
StandardsIEC 62052-11 · IEC 62053-21 · IEC 62053-23 · IEC 62052-31
9 mm pitches4
Display typeLCD display
Metering typeActive and reactive energy
Mounting modeClip-on
Rated current100 A
Rated voltage230 V
Sampling rate32 samples/cycle
Accuracy classClass 1 active energy conforming to IEC 62053-21 · Class 2 reactive energy conforming to IEC 62053-23 · Class B active energy conforming to EN 50470-1 · Class B active energy conforming to EN 50470-3
Display digits7
Technology typeElectronic
Impulse duration5...32 ms
Local signallingRed LED: metering and activity 10000, 2000, 1000, 100, 10, 1, 0.1 or 0.01 imp/kWh
Mounting supportDIN rail
Pollution degree2
Device short nameiEM2435
Network frequency50 Hz · 60 Hz
Poles description1P + N
Relative humidity0…75 % operation · 0…95 % storage
Device applicationSub billing · Multi-tariff
Operating altitude<= 2000 m
Analogue input typeDirect input
Measurement current0.25…100 A
Type of measurementActive and reactive energy · Active and reactive power · Apparent power · Power factor · Current · Voltage · Frequency
Information displayedTariff (2)
Maximum value measured99999.99 kWh · 999999.9 kWh
Product certificationsMID conforming to EN 50470-1 · MID conforming to EN 50470-3 · CE
Connections - terminalsPower circuit: screw clamp terminals (bottom) 25 mm² cable(s) · Communication: screw clamp terminals (top) 2.5 mm² cable(s)
IP degree of protectionIP51 front panel: conforming to IEC 60529 · IP20 casing:
Product or component typeEnergy meter
[Us] rated supply voltage195...253 V AC 50 Hz
Communication port supportScrew terminals: M-Bus
Communication port protocolM-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds - 2 wires, insulation 3750 V
Frequency measurement range45…66 Hz
Maximum power consumption in W1 W per phase
Maximum power consumption in VA10 VA at 240 V AC
Ambient air temperature for storage-40…80 °C
Ambient air temperature for operation-40…70 °C
[Uimp] rated impulse withstand voltage6 kV 1.2/50 µs
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Is Schneider Acti9 iEM2435 Energy Meter · Class 1 active energy · Class 2 reactive energy genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
