Schneider Acti9 IHP Time Switch · CCT15443CCT15443↓ 1% off MRP1 / 3
BrandSchneider
CategoryIndustrial Control
SpecificationActi 9 IHP 2C w (24h/7d) programmable time switch
Brand SKUCCT15443
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

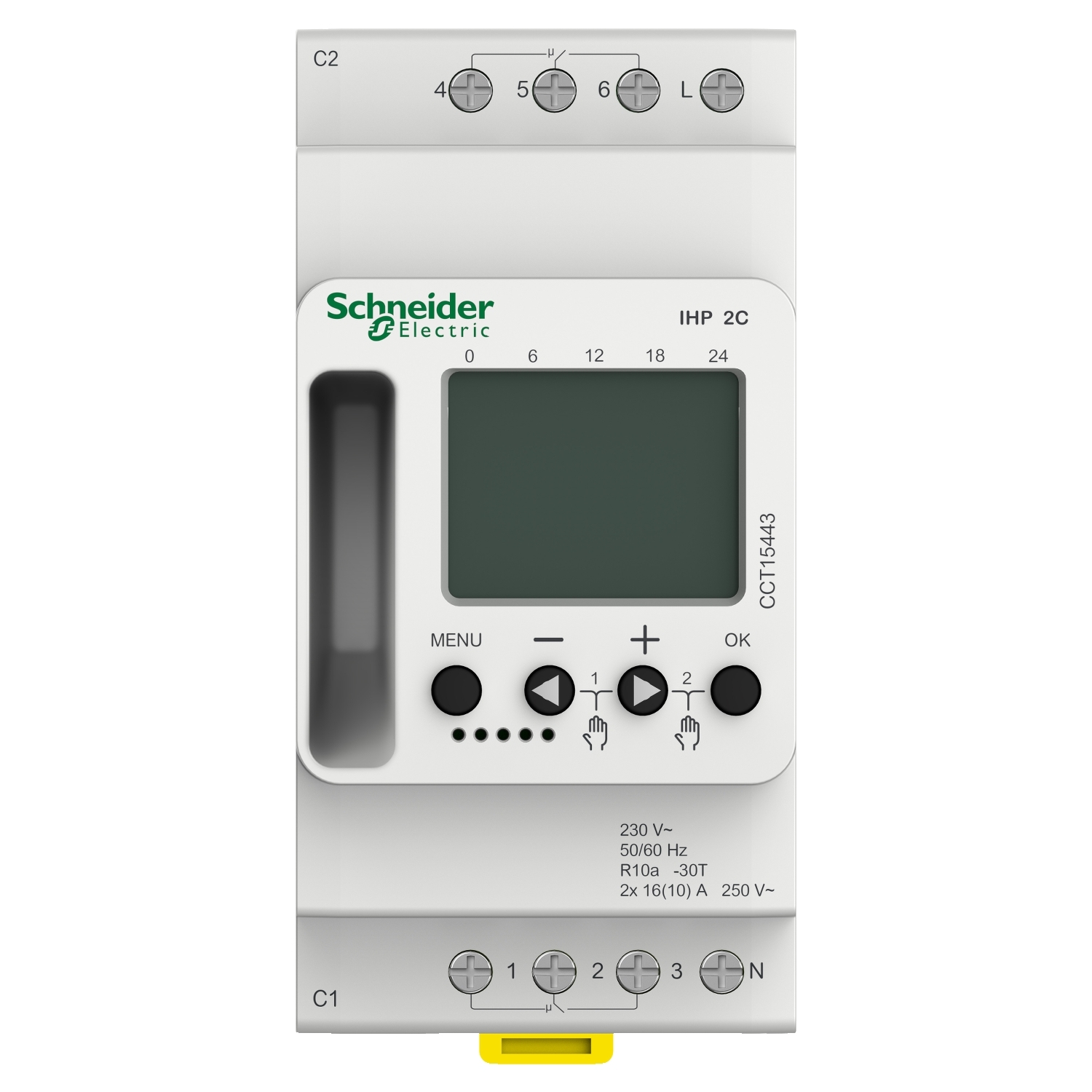

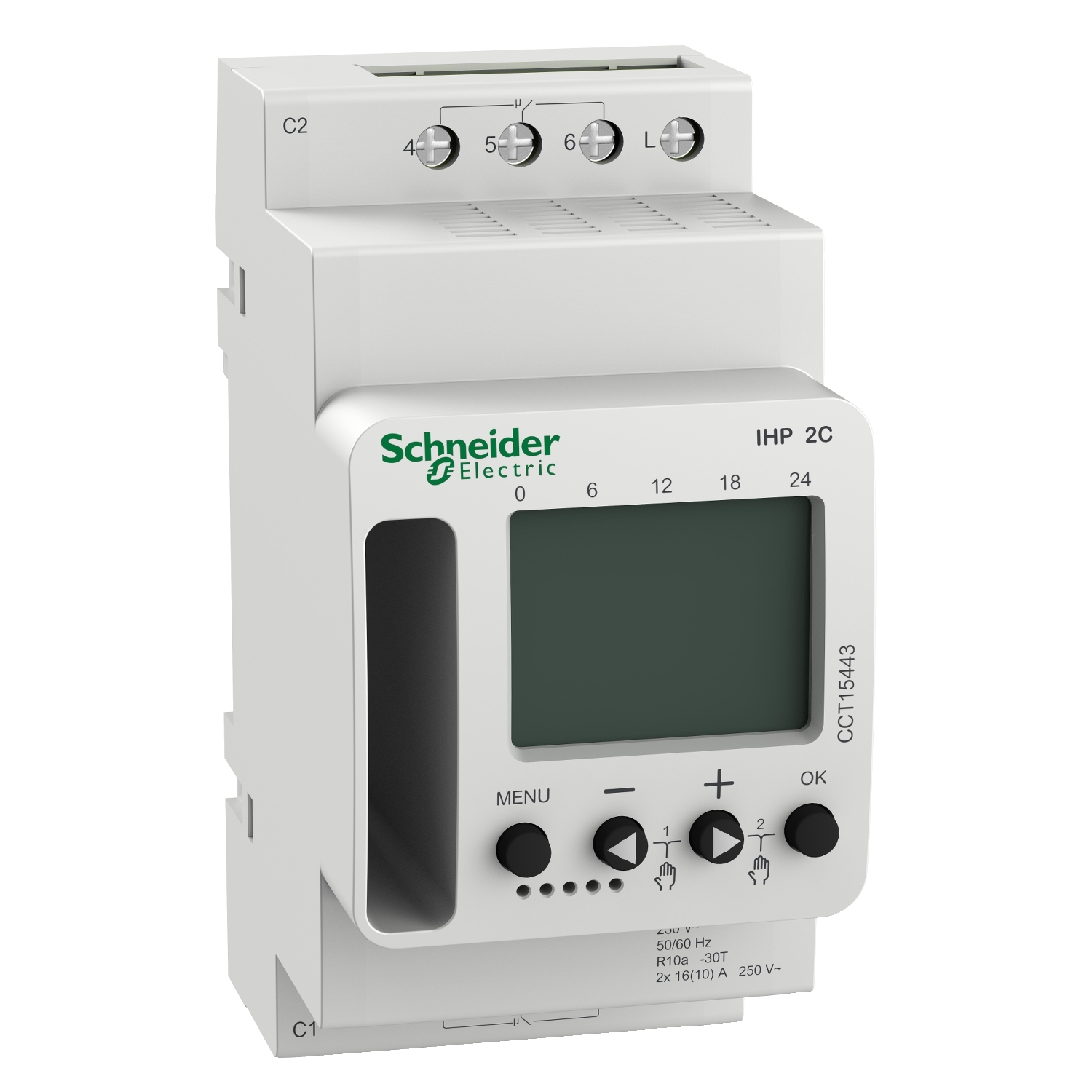

Schneider Acti9 IHP Time Switch · CCT15443

NEW added this week
₹23,279/pcincl. GST-1%
₹19,728 + 18% GST · MRP ₹23,514
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹23,279 /pc incl. GST
Free pan-India delivery

Schneider Acti9 IHP Time Switch · CCT15443: Elume price today ₹23,279 per pc incl. GST, 1% below the ₹23,514 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹25,160₹24,282₹23,405₹22,527₹21,649₹23,514₹23,279
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹23,279
MRP
₹23,514
Lowest in view · 17 Oct
₹23,279
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹22,115/pc on this product

IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 2 channel output User manual holder on product left side allows to reach document easily

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 IHP Time Switch · CCT15443 · CCT15443
Ingress protectionIP20
Reference standardEN 60730-2-7:2010
Net weight0.13 kg
BrandSchneider
Brand SKUCCT15443
ELINE7R4GKDPDD
Sold asPer pc
Depth66.7 mm
Width45 mm
Height92.6 mm
MarkingCE
Accuracy+/- 0.25 s/day 25 °C
FunctionNone
Load typeincandescent lamp: 2600 W · halogen lamp: 2600 W · non-corrected fluorescent tube: 2600 VA · serial-compensated fluorescent tube: 2600 VA · parallel compensated fluorescent lamp: 400 VA (48 µF) · compact fluorescent lamp: 400 W · = 2 W LED lamp: 200 W
StandardsEN 60730-2-7:2010
Updated byNone
Backup time10 years time and program saving
Colour tintWhite
Output typeDry contact
Product nameActi9 IHP
User languageEnglish · French · German · Dutch · Italian · Spanish · Portuguese · Danish · Norwegian · Swedish · Finnish
contacts typeC/O
Cycle duration24 hours + 7 days
Time changeoverAutomatic
Type of settingWeekly programming
Mounting supportTH35 DIN rail conforming to EN 60715
range of productActi9
Device short nameIHP
Relative humidity90 %, non-condensing
Device applicationBuilding
Function availableCode lock function · Holiday schedules · Automatic winter/summer time changeover · On/off permanent switching · Manual operation · On/off switching times · Switch preselection
Number of channels2
control button type4 push-buttons
Absence for holidaysYes
Overvoltage categoryClass 3
Connections - terminals2 x 0.5…2.5 mm² screw terminals solid or flexible · 1 x 2.5 mm² screw terminals solid or flexible with sleeve
IP degree of protectionIP20
Maximum switching current10 A - 250 V AC pf = 0.6 · 16 A - 250 V AC pf = 1
Minimum interval duration1 min
Minimum switching current10 mA 230 V AC · 100 mA 24 V AC/DC
Product or component typeProgrammable digital time switch
Electrical insulation classClass II
Maximum number of switchings56
Maximum power consumption in W0.5 W standby
[Ue] rated operational voltage230 V AC +10 % -15 % at 50/60 Hz
Ambient air temperature for operation-30…55 °C
ambient air temp for storage/transportation-30…70 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
