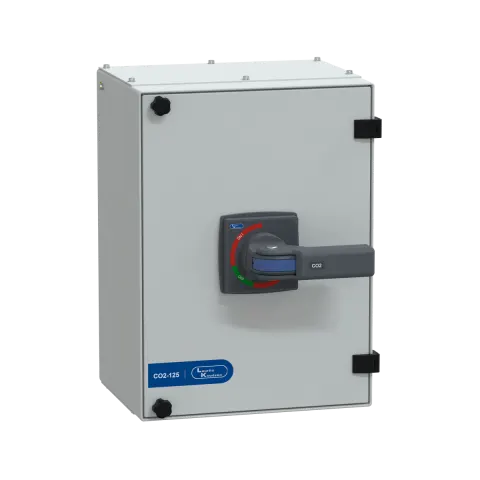

Lauritz Knudsen AU Changeover Switch · 3P (TP) · 63 A · 415 V AC · AUCL03063050: Elume price today ₹23,532 per pc incl. GST, 42% below the ₹40,699 MRP. The price has held steady for the last 30 days.
Lauritz Knudsen AU Changeover Switch · 3P (TP) · 63 A · 415 V AC is a changeover switch from Lauritz Knudsen. It transfers a load between two supplies, typically mains and generator, with a mechanical interlock so both are never connected at once. Key ratings: Poles 3P (TP), Rated current 63 A, Rated voltage 415 V AC, Phase Three phase. It is built to IEC 60947-6.
Use a changeover switch rated at least equal to your main incomer, with poles matching the supply (2 pole for single-phase, 4 pole for three-phase) so the neutral is also switched. This prevents generator power feeding back into the grid, which is dangerous for line workers, and installation should be done by a licensed electrician.
An on-load changeover switch is designed to transfer between mains and generator while current is flowing, while an off-load type must only be operated after the load is switched off. On-load types are safer and more convenient for most homes and shops; check the load rating on the product.
A manual changeover needs someone to operate the handle when power fails, while an ATS (automatic transfer switch) senses mains failure and switches to the generator automatically, often also starting the DG set. ATS is used where unattended or quick changeover is needed.
The centre OFF position ensures the load is fully disconnected from both sources before connecting to the other, so mains and generator can never be connected together. It is also used to isolate the load safely for maintenance.
The pole configuration of this changeover switch is 3 Pole. For generator backup, switching the neutral as well (2 pole on single-phase, 4 pole on three-phase) is the usual recommended practice.
Yes, a changeover switch is often used to select between inverter output and mains, or to bypass the inverter during servicing. Size it for the circuits it will carry and make sure inverter output and mains are never paralleled.
