Legrand Allzy Bell Push Switch · 1-way · with Indicator · 6 A · 2 M · Matt Black · 681214: Elume price today ₹174 per pc incl. GST, 34% below the ₹264 MRP. Today's price is the lowest of the last 30 days (high ₹175). The average price across the sellers we track is ₹141, ₹33 less than here. The lowest tracked seller lists it at ₹141, ₹33 below it (tell us and we match it).

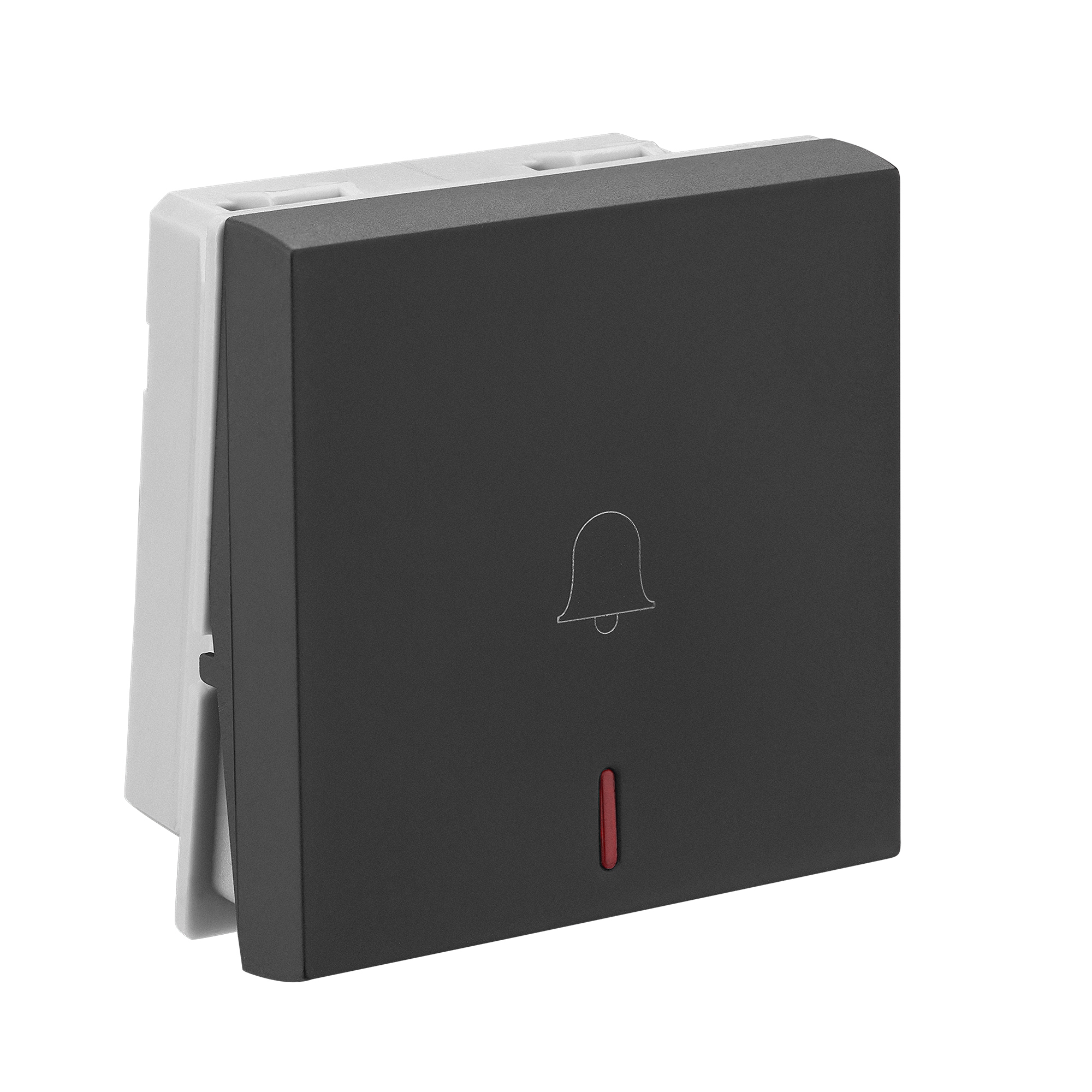

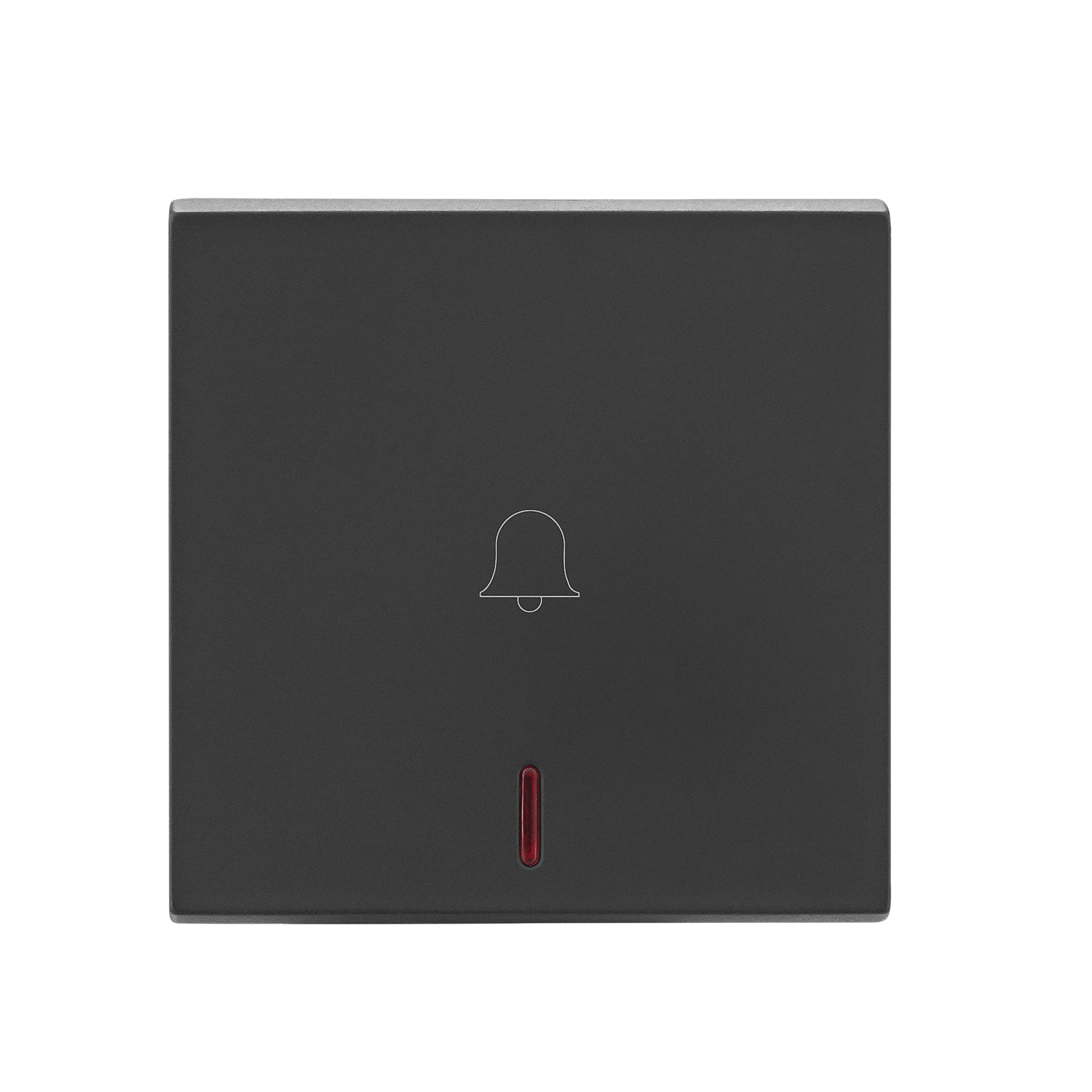

The Allzy range CAT number 681214 is a 6A Bell Push 1 Way SP 2M with an indicator in matt black, designed for general lighting control. This single-pole, one-way switch features a bell symbol and occupies two modules. It can be mounted both flush and surface-mounted, providing flexibility in installation. The overall dimensions are 45 mm in width, 45 mm in height, and 45 mm in depth, with a weight of 23.7 grams. The connection is facilitated through terminals with screws, supporting a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and includes an electronic LED indicator. Material characteristics include a polycarbonate rocker and lens, polypropylene base and transmitter, brass contact and pivot terminals, steel screws with zinc plating, stainless steel rocker spring, polycarbonate plunger, and a bi-metal (Cu+AgNi) contact tip. Electrically, it supports a voltage of 230V AC and a current of 6A, with self-extinguishing properties at 850°C for 30 seconds. The switch conforms to the Indian standard IS 3854:1997, ensuring high quality and reliability.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
