Legrand Lyncus Bell Push Switch · 6 A · 2 M · White · 677222: Elume price today ₹202 per pc incl. GST, 33% below the ₹302 MRP. Over the last 30 days it ranged from ₹201 on 23 Oct to ₹202. The average price across the sellers we track is ₹163, ₹39 less than here. The lowest tracked seller lists it at ₹163, ₹39 below it (tell us and we match it).

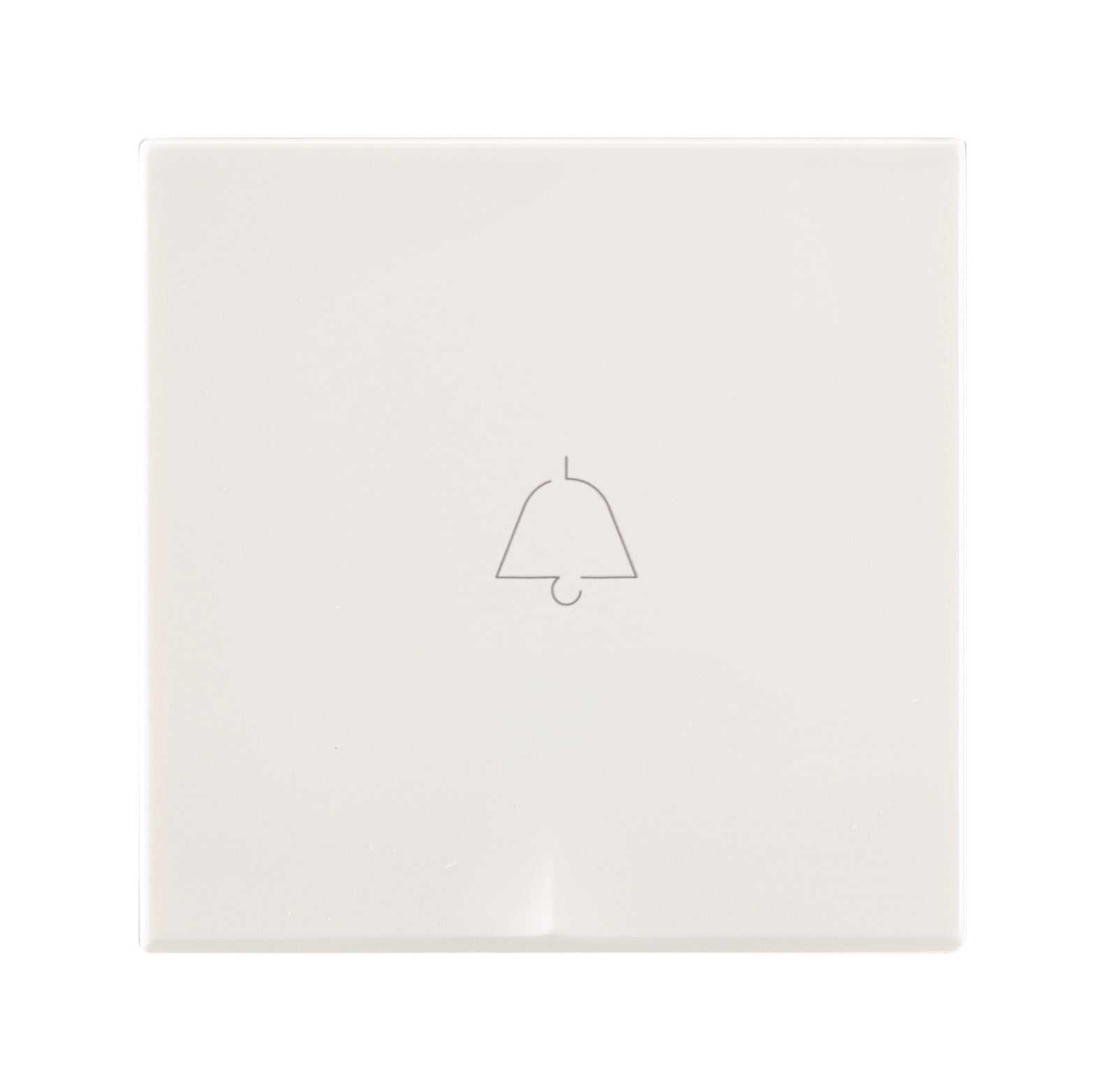

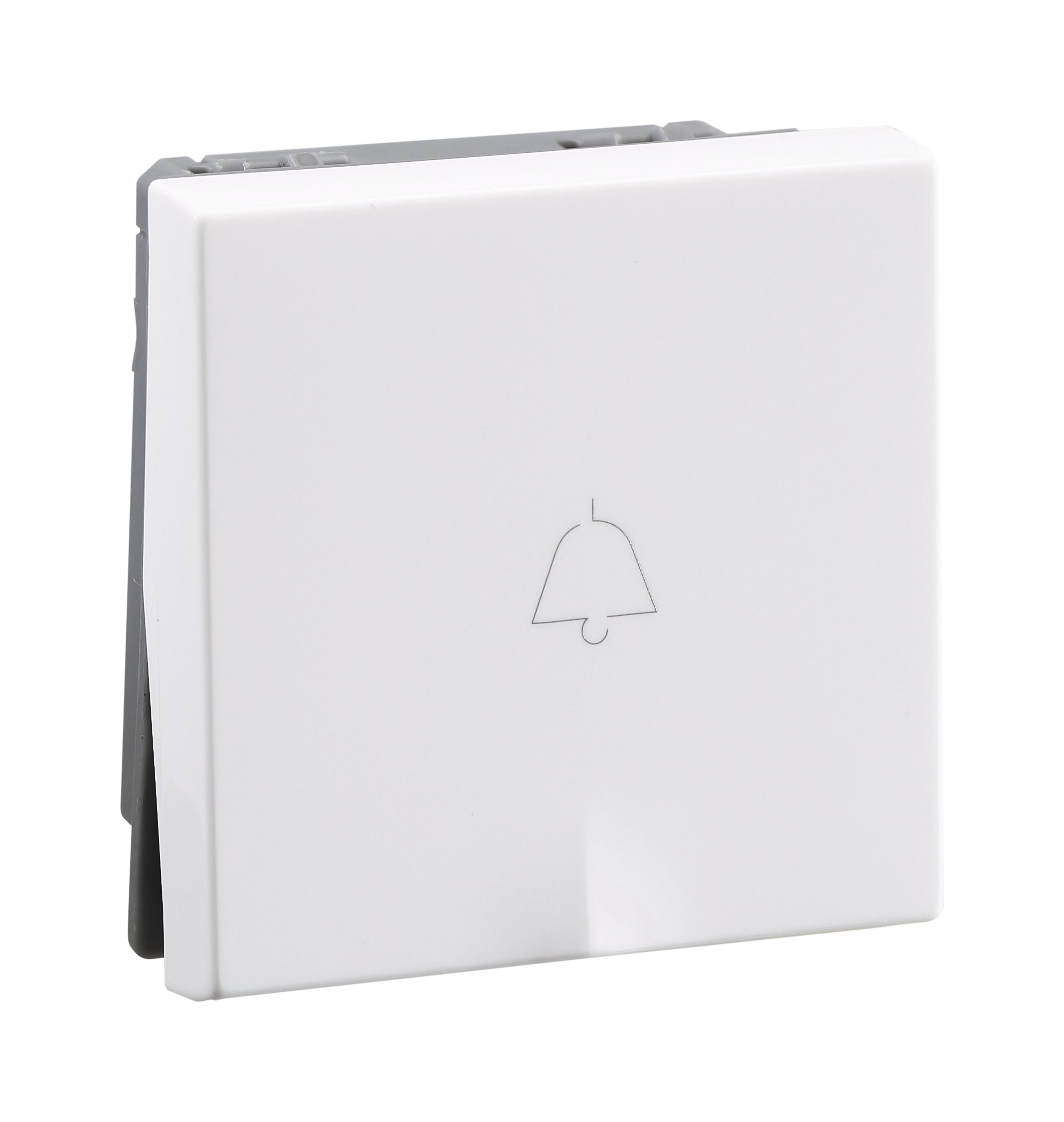

The Lyncus range CAT number 677222 refers to a 6A Bell Push 1W2M in White color, designed for general lighting control. It is a one-way bell push switch with a single pole and bell symbol, suitable for both flush and surface mounting. The switch has overall dimensions of 45 mm in width, 45 mm in height, and 33.6 mm in depth, with a weight of 21.5 grams. The connection is made with screws, supporting a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver. The switch operates with a rocker mechanism and is constructed from materials including polycarbonate, polypropylene, brass, and stainless steel. It operates at 230V AC with a current rating of 6A and is self-extinguishing at 850°C for 30 seconds. The product conforms to IS: 3854 standards.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
