Legrand Myrius NextGen Bell Push Switch · 1-way · with Indicator · 6 A · 2 M · Charcoal Grey · 679423: Elume price today ₹455 per pc incl. GST, 36% below the ₹706 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹368, ₹87 less than here. The lowest tracked seller lists it at ₹368, ₹87 below it (tell us and we match it).

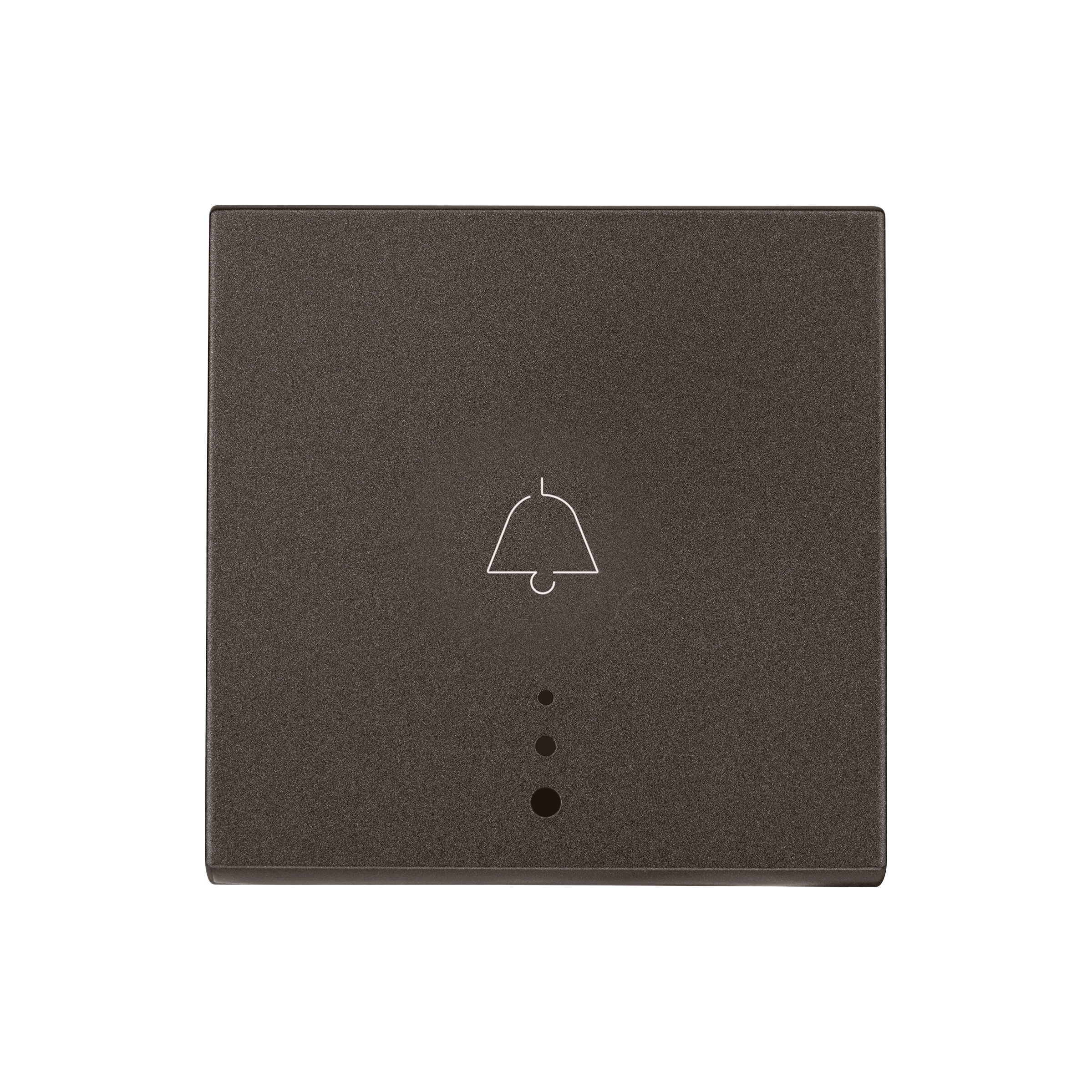

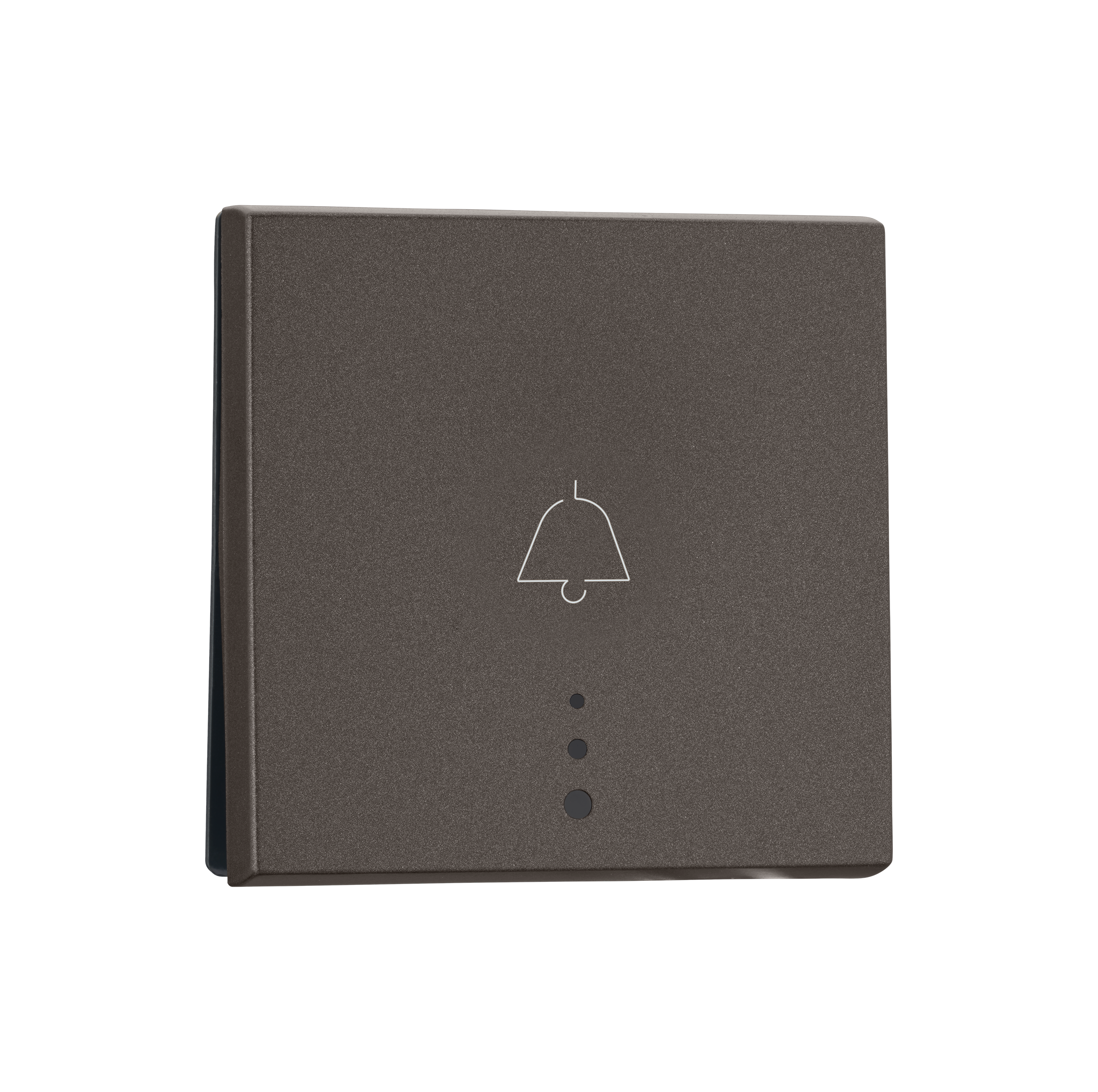

The Myrius range product with CAT number 679423 refers to the "6A Bell Push 1 Way 2M IND Charcoal Grey." It is a general lighting control mechanism designed as a one-way bell push switch with a square indicator and single-pole functionality. The switch is compatible with both flush and surface-mounted installations and occupies 2 modules. It has dimensions of 45.1 mm (width), 45.1 mm (height), and 37.8 mm (depth), with a weight of 24.2 grams. The terminal connection is screw-based, supporting wire capacities from 0.75mm² to 1.5mm², with a stripping length of 10 mm. The switch operates with a rocker mechanism and is constructed using high-quality materials such as polycarbonate for the rocker, base, lens, and plunger, brass for the contact and pivot terminals, stainless steel for the rocker spring, and silver for the contact tip. It supports 230V AC voltage and 6A current, with self-extinguishing properties rated at 850°C/30s. The product conforms to IS: 3854 standards.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
