Legrand Arteor Fan Step Regulator · 100 W · 2 M · White · 573463: Elume price today ₹1,210 per pc incl. GST, 36% below the ₹1,876 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹978, ₹232 less than here. The lowest tracked seller lists it at ₹978, ₹232 below it (tell us and we match it).

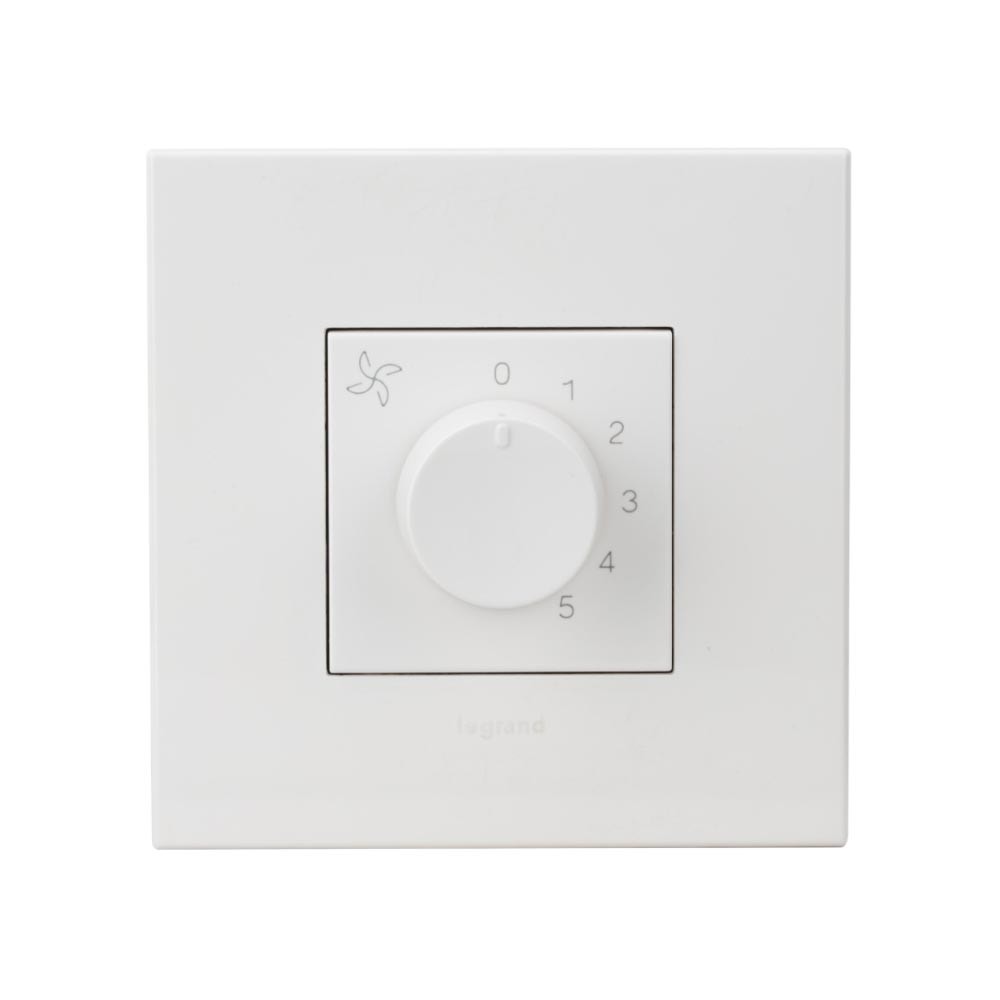

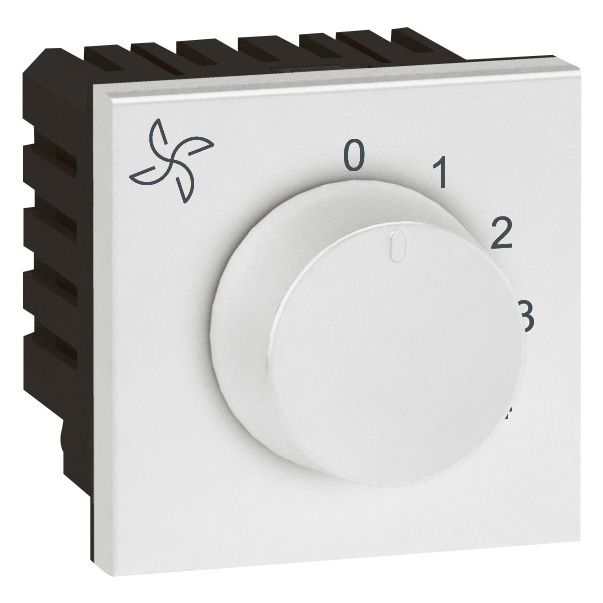

The Arteor range product with CAT number 573463 is a Fan Step Regulator designed for controlling fans. It is a 100W, 2-module device available in white color with a square design. The regulator offers 5 operational steps and supports both flush and surface mounting. It features screw terminals for connection and is knob-operated. The product is made of high-quality polycarbonate material, with a white top plate and knob, and a grey base. It operates at 240V AC and conforms to IS 11037 standards, ensuring safety and reliability. The dimensions are 45 mm in width, 45 mm in height, and 57 mm in depth, with a weight of 52.3 grams.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.

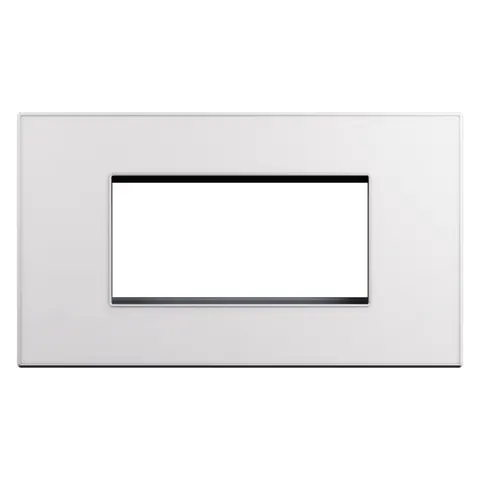

Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
