Schneider Easy TeSys LC1E Power Contactor · 3P · 38 A AC-3 · 1 NO aux · 24 V DC coilLC1E3810BD↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Brand SKULC1E3810BD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

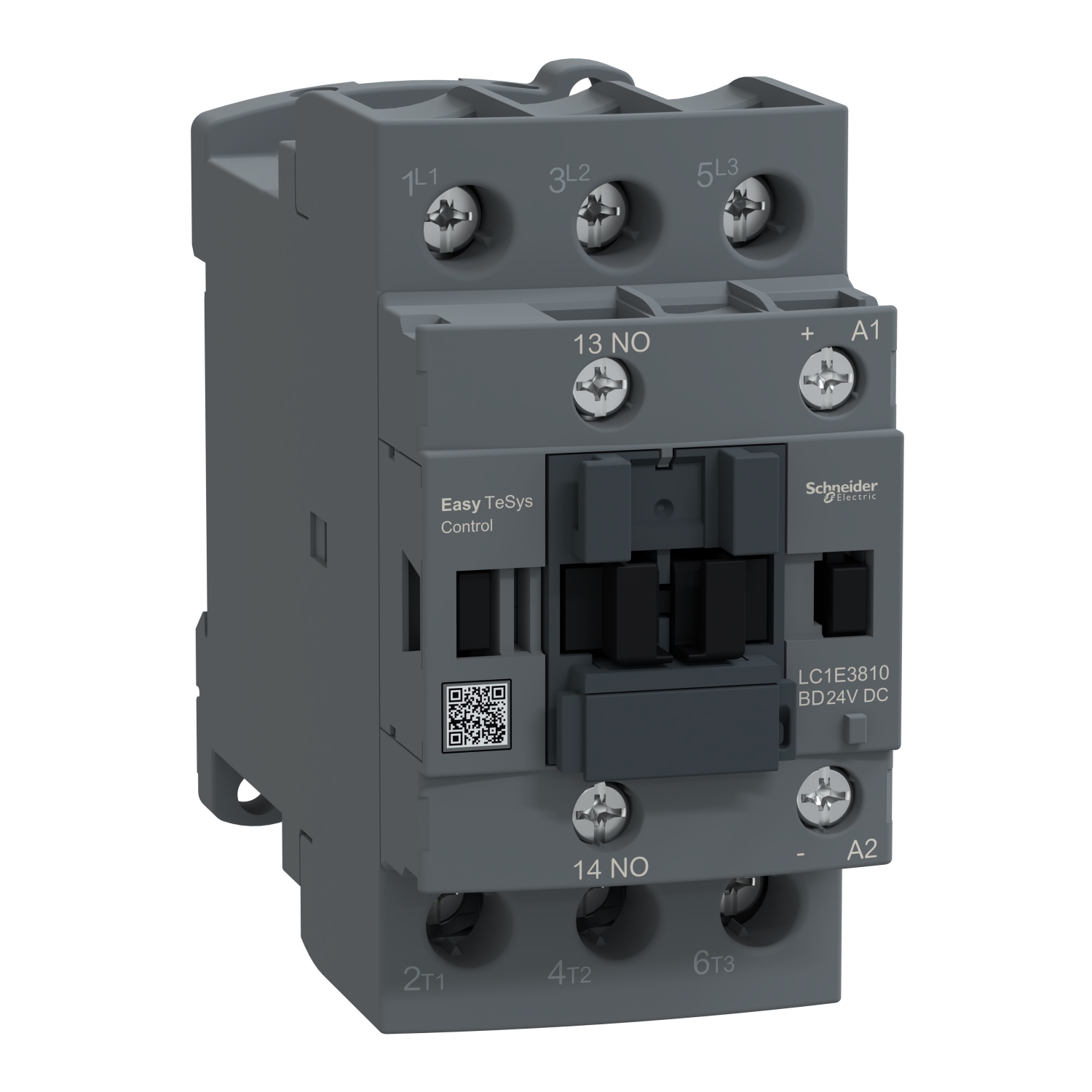

Schneider Easy TeSys LC1E Power Contactor · 3P · 38 A AC-3 · 1 NO aux · 24 V DC coil

NEW added this week
₹12,325/pcincl. GST-1%
₹10,445 + 18% GST · MRP ₹12,449
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹12,325 /pc incl. GST
Free pan-India delivery

Schneider Easy TeSys LC1E Power Contactor · 3P · 38 A AC-3 · 1 NO aux · 24 V DC coil: Elume price today ₹12,325 per pc incl. GST, 1% below the ₹12,449 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹13,320₹12,856₹12,391₹11,927₹11,462₹12,449₹12,325
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹12,325
MRP
₹12,449
Lowest in view · 17 Oct
₹12,325
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹11,709/pc on this product

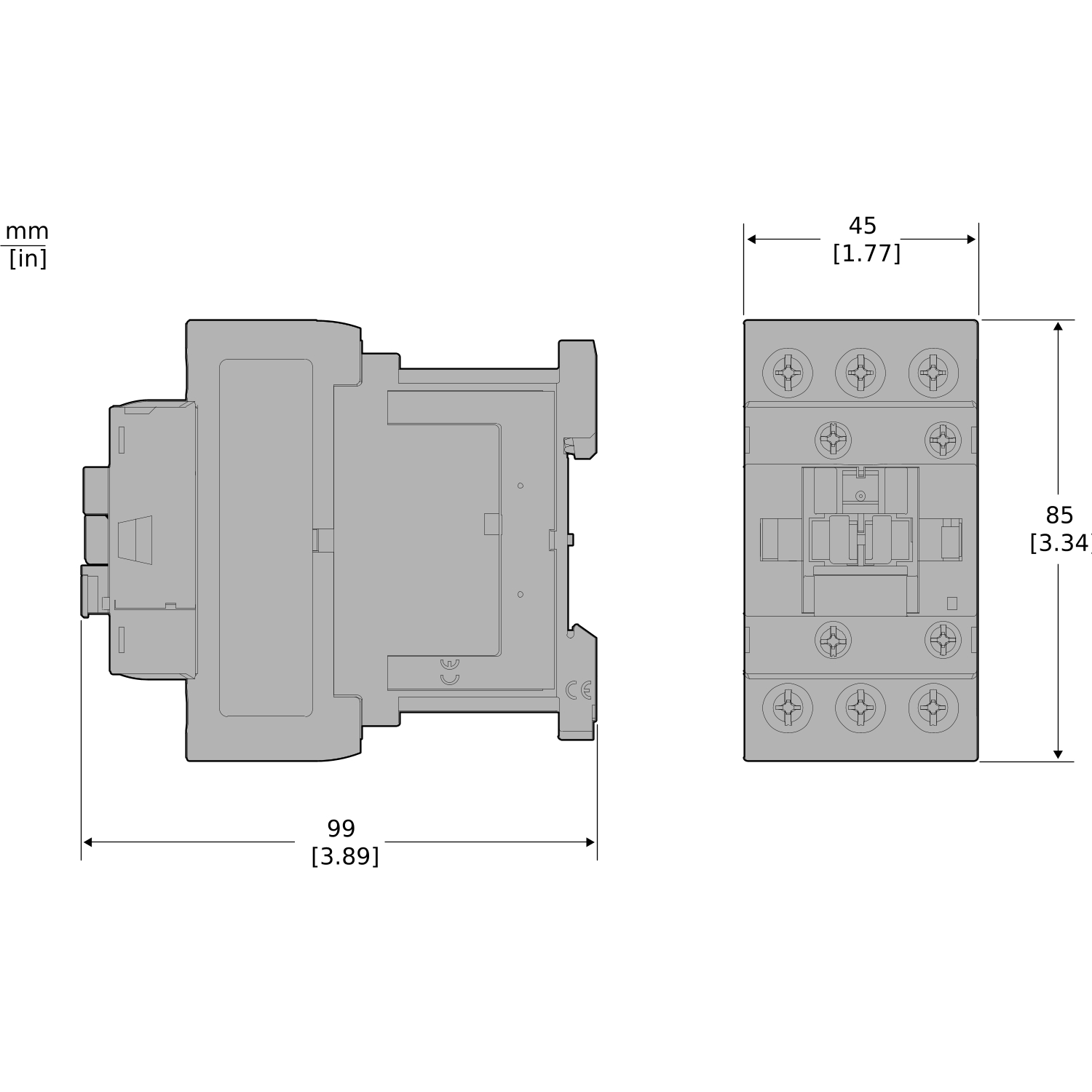

Easy TeSys Control contactor 3 poles for motor applications up to 38A 18.5kW@440V. It provides a 24V DC coil, 1NO built-in auxiliary contacts, power and control connections by screw clamp terminals. It provides standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 8 Mcycles mechanical durability. The dimension is 84mm x 1mm x 86mm (HxWxD), clipping on DIN rail or fixing by screw. It can cover -5°C to 55°C working temperature, no derating up to 3000m altitude. Multi-standards certified (IEC,CE,EAC) and Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Easy TeSys LC1E Power Contactor · 3P · 38 A AC-3 · 1 NO aux · 24 V DC coil · LC1E3810BD
Poles3P
Rated current38 A
Ingress protectionIP20
Reference standardEN/IEC 60947-1
coil voltage24 V DC
Net weight0.55 kg
BrandSchneider
Brand SKULC1E3810BD
ELINEC6HH6FKCM
Sold asPer pc
RangeEasy TeSys
StandardsEN/IEC 60947-1 · EN/IEC 60947-4-1 · EN/IEC 60947-5-1 · GB/T 14048.1 · GB/T 14048.4 · GB/T 14048.5
Time constant28 ms
Motor power kW9 kW at 220/230 V AC 50/60 Hz · 18.5 kW at 380/400 V AC 50/60 Hz · 18.5 kW at 415/440 V AC 50/60 Hz · 18.5 kW at 500 V AC 50/60 Hz · 18.5 kW at 660/690 V AC 50/60 Hz · 18.5 kW at 440 V AC 50/60 Hz
Operating time53...72 ms on closing · 16...24 ms on opening
Mounting supportPlate · DIN rail
Pollution degree3
Range of productEasy TeSys Control
Average impedance2.5 mOhm - Ith 50 A 50 Hz for power circuit
Device short nameLC1E
Inrush power in W6 W (at 20 °C)
Poles description3P
Tightening torquePower circuit: 2.5 N.m · Control circuit: 1.7 N.m
Operating altitude3000 m without derating
Control circuit typeDC
Overvoltage categoryIII
Protective treatmentTH conforming to IEC 60068-2-30 test Db
Utilisation categoryAC-3 · AC-3e · AC-1
Contactor applicationMotor control · Resistive load
Electrical durability900000 cycles AC-3 at Ue <= 440 V · 350000 cycles AC-1 at Ue <= 440 V
Insulation resistance> 10 MOhm for auxiliary contact circuit
Mechanical durability8000000 cycles
Associated fuse rating63 A gG at <= 690 V coordination type 1 for power circuit · 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1
Maximum operating rate1800 cyc/h 60 °C
Product certificationsCB Scheme · CCC · CE · EAC
Connections - terminalsPower circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible without cable end · Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible with cable end · Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end · Power circuit: screw
IP degree of protectionIP20 conforming to IEC 60529
Rated breaking capacity323 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition3 NO
Minimum switching current5 mA for auxiliary contact circuit
Minimum switching voltage17 V for auxiliary contact circuit
Product or component typeContactor
Irms rated making capacity494 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Power dissipation per pole2.9 W AC-3 · 5 W AC-1
[Uc] control circuit voltage24 V DC
Auxiliary contact composition1 NO
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5…55 °C):operational DC · 0.1...0.25 Uc (-5…55 °C):drop-out DC
Hold-in power consumption in W6 W at 20 °C
[Ie] rated operational current38 A (at <55 °C) at <= 440 V AC AC-3 for power circuit · 38 A (at <55 °C) at <= 440 V AC AC-3e for power circuit · 50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV coil not connected to the power circuit conforming to IEC 60947
[Icw] rated short-time withstand current310 A 40 °C - 10 s for power circuit · 150 A 40 °C - 60 s for power circuit · 60 A 40 °C - 600 s for power circuit
[Ith] conventional free air thermal current50 A (at 55 °C) for power circuit
Permissible ambient air temperature around the device-20…70 °C at Uc · -60…80 °C storage · -5…55 °C operation
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
