Schneider TeSys LRD Thermal Overload Relay · 23…32 A · IP20 · LRD3353LRD3353↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Specification23…32 A
Brand SKULRD3353
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

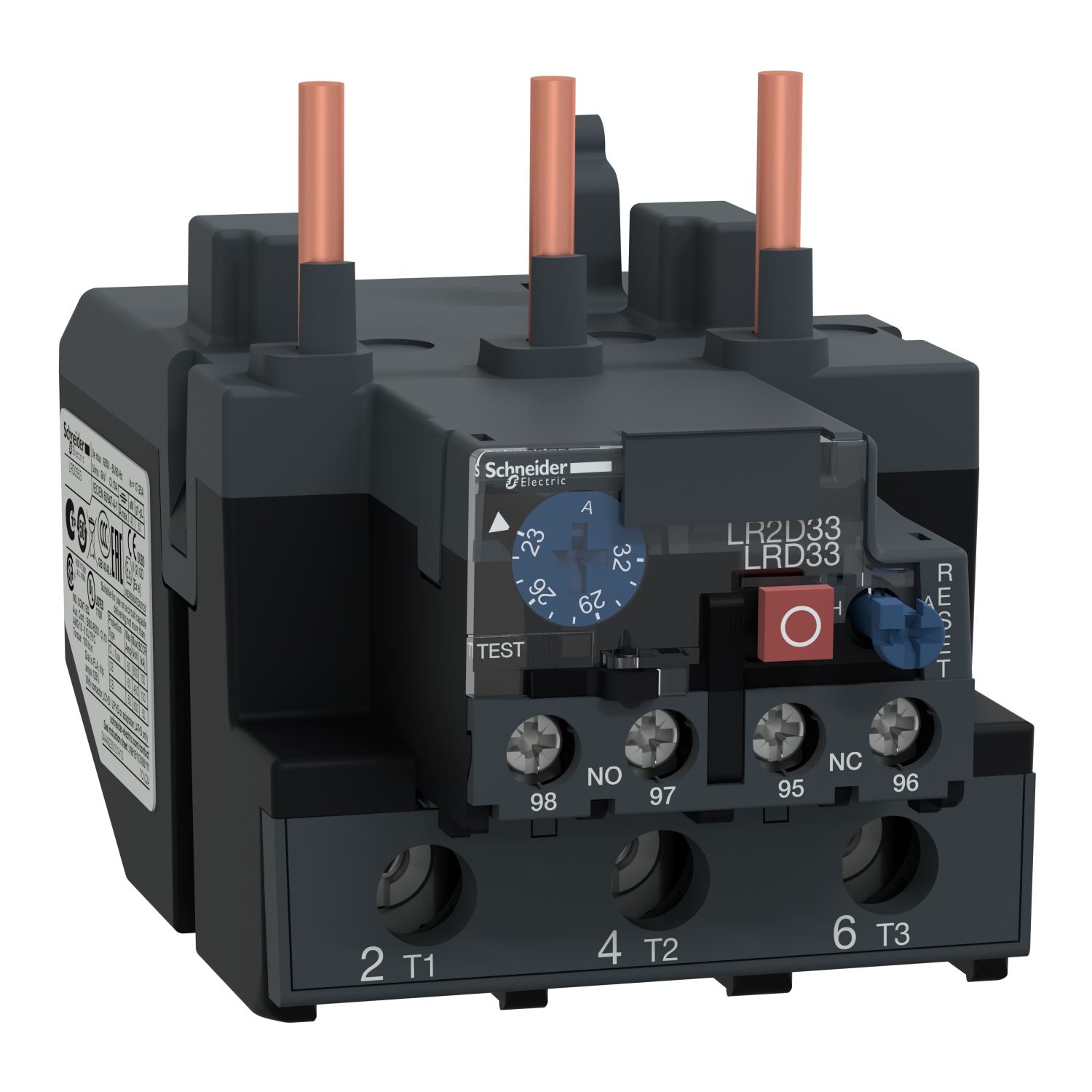

Schneider TeSys LRD Thermal Overload Relay · 23…32 A · IP20 · LRD3353

NEW added this week
₹10,344/pcincl. GST-1%
₹8,766 + 18% GST · MRP ₹10,449
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹10,344 /pc incl. GST
Free pan-India delivery

Schneider TeSys LRD Thermal Overload Relay · 23…32 A · IP20 · LRD3353: Elume price today ₹10,344 per pc incl. GST, 1% below the ₹10,449 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹11,180₹10,790₹10,400₹10,010₹9,620₹10,449₹10,344
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹10,344
MRP
₹10,449
Lowest in view · 17 Oct
₹10,344
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹9,827/pc on this product

TeSys LRD thermal overload relay, 32A/1000V, thermal setting range 23-32A, tripping class 10A, for protection of 3-phase motors 15kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LRD Thermal Overload Relay · 23…32 A · IP20 · LRD3353 · LRD3353
Ingress protectionIP20
Reference standardEN/IEC 60947-4-1
Net weight0.51 kg
BrandSchneider
Brand SKULRD3353
ELINE92GFR24GK
Sold asPer pc
Depth115 mm
RangeTeSys
Width70 mm
Height81 mm
StandardsEN/IEC 60947-4-1 · EN/IEC 60947-5-1 · UL 60947-4-1 · UL 60947-5-1 · CSA C22.2 No 60947-4-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.4 · GB/T 14048.5 · EN 50495
Control typeRed push-button: stop · Blue push-button: reset
Network typeAC · DC
Product nameTeSys LRD · TeSys Deca
Flame retardanceV1 conforming to UL 94
Mounting supportPlate, with specific accessories · Rail, with specific accessories · Under contactor
Device short nameLRD
Network frequency0...400 Hz
Relay applicationMotor protection
Tightening torqueControl circuit: 1.7 N.m - on screw clamp terminals · Power circuit: 9 N.m - on screw clamp terminals
Climatic withstandconforming to IACS E10
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Dielectric strength2.2 kV at 50 Hz conforming to IEC 60947-1
Permissible current0.72 A at 500 V AC-15 for signalling circuit · 0.06 A at 440 V DC-13 for signalling circuit
Mechanical robustnessVibrations: 6 Gn conforming to IEC 60068-2-6 · Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Product compatibilityLC1D80 · LC1D95
Associated fuse rating4 A gG for signalling circuit · 4 A BS for signalling circuit
Product certificationsIEC · UL · CSA · CCC · EAC · ATEX INERIS · UKCA
Thermal overload classClass 10A conforming to IEC 60947-4-1
Connections - terminalsPower circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end · Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end · Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²
IP degree of protectionIP20 conforming to IEC 60529
Temperature compensation-20…60 °C
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
Product or component typeDifferential thermal overload relay
Auxiliary contact composition1 NO + 1 NC
[Ui] rated insulation voltagePower circuit: 1000 V conforming to IEC 60947-4-1 · Power circuit: 600 V conforming to CSA · Power circuit: 600 V conforming to UL
[Ue] rated operational voltage1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Ambient air temperature for storage-60…70 °C
Thermal protection adjustment range23…32 A
Ambient air temperature for operation-20…60 °C without derating conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current5 A for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
