Legrand Lyncus Rotary LED Dimmer · 50 W · 1 M · White · 677304: Elume price today ₹1,960 per pc incl. GST, 34% below the ₹2,956 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹1,584, ₹376 less than here. The lowest tracked seller lists it at ₹1,584, ₹376 below it (tell us and we match it).

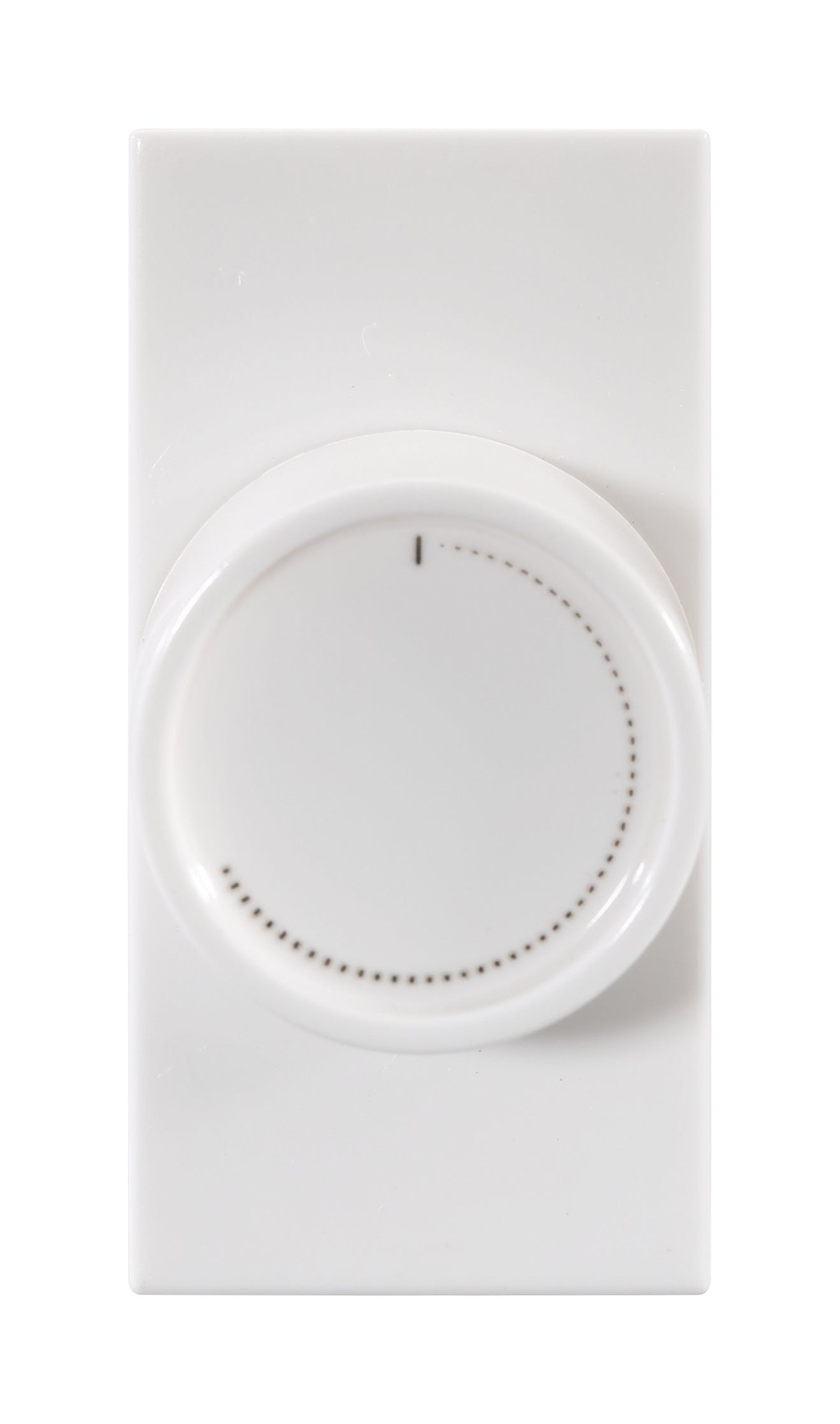

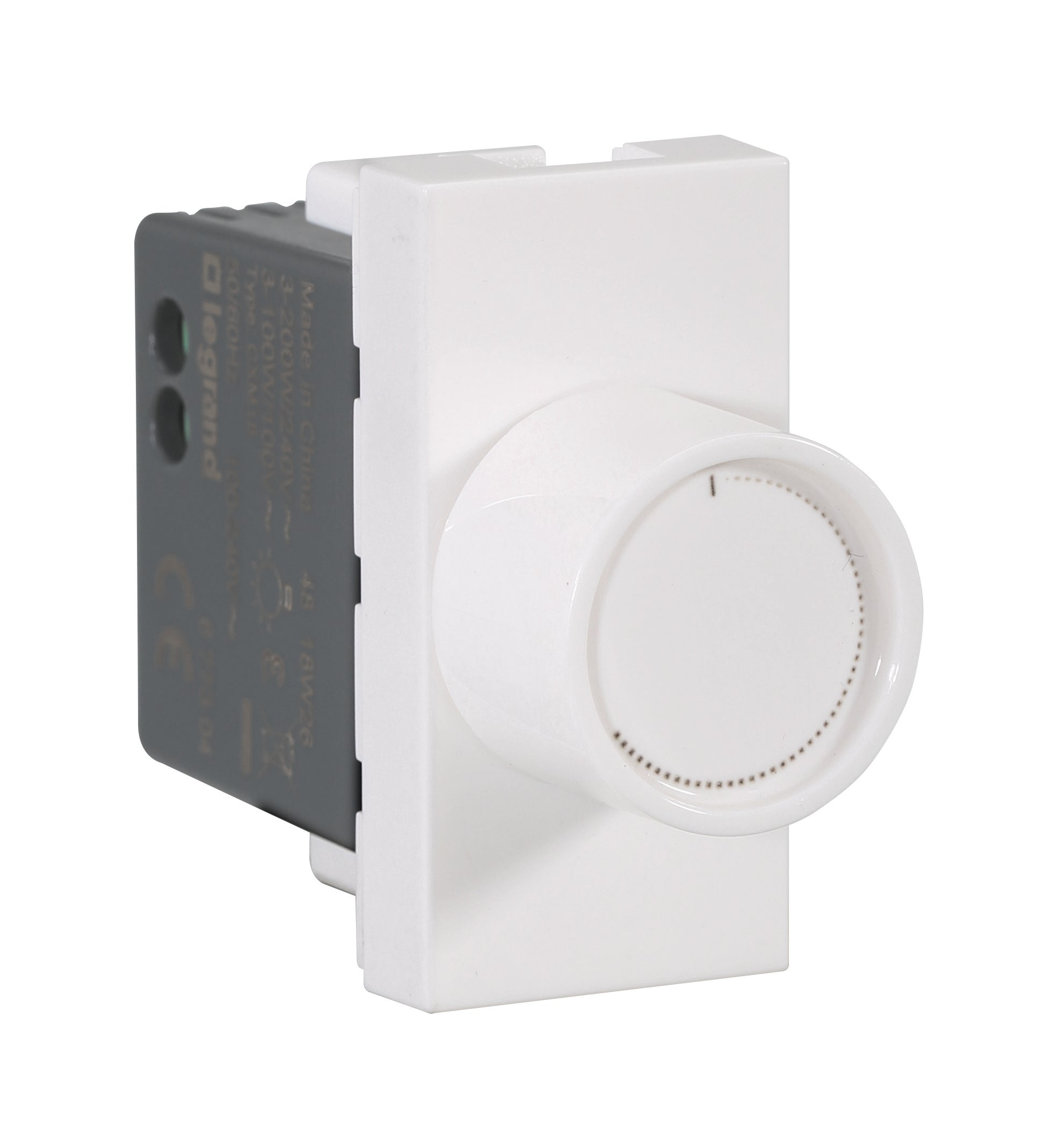

The Lyncus range product with catalog number 677304 is a Rotary LED Dimmer designed for dimming various types of lighting lamps, including incandescent, LED, CFL, and halogen. It is a single-module device available in two color options: White and Chic Grey. The dimmer is suitable for both flush box and surface box mounting, ensuring versatile installation options. It features knob-operated functionality for seamless operation without predefined steps. The device has compact dimensions, with a width of 22.5 mm, height of 45 mm, and depth of 57 mm, weighing only 29 grams. The connection is facilitated through screw terminals, ensuring secure and reliable wiring. Constructed with durable polycarbonate material for the top plate, knob, and base, the dimmer is built to last. Electrically, it supports a voltage range of 100V to 240V and offers dimming capabilities for loads ranging from 3W to 50W, accommodating up to 8 lamps. The product conforms to Legrand standards, ensuring quality and reliability.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.
Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
