Legrand Lyncus Rotary Dimmer · 400 W · 1 M · White · 677236: Elume price today ₹532 per pc incl. GST, 34% below the ₹800 MRP. Today's price is the lowest of the last 30 days (high ₹533). The average price across the sellers we track is ₹430, ₹102 less than here. The lowest tracked seller lists it at ₹430, ₹102 below it (tell us and we match it).

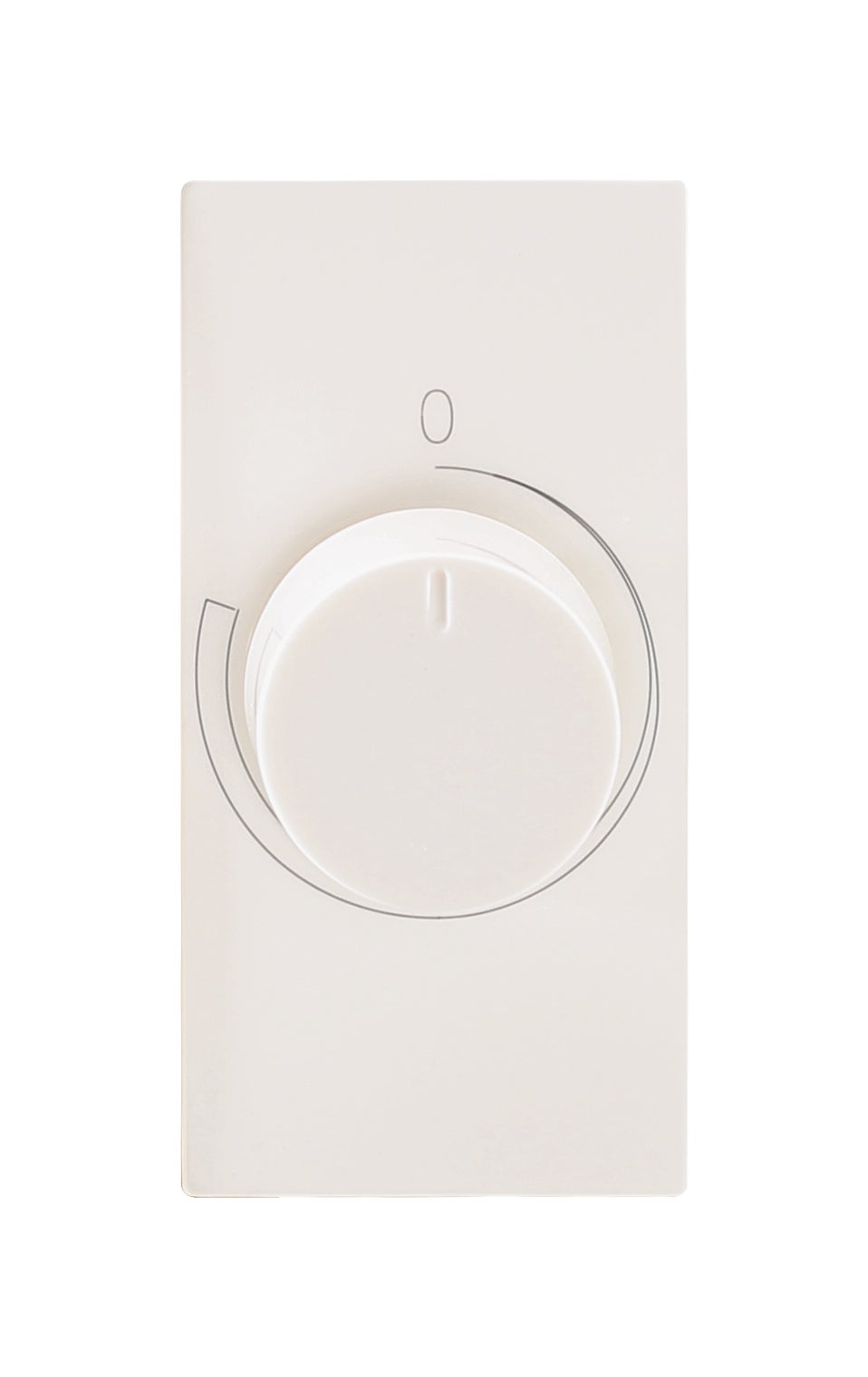

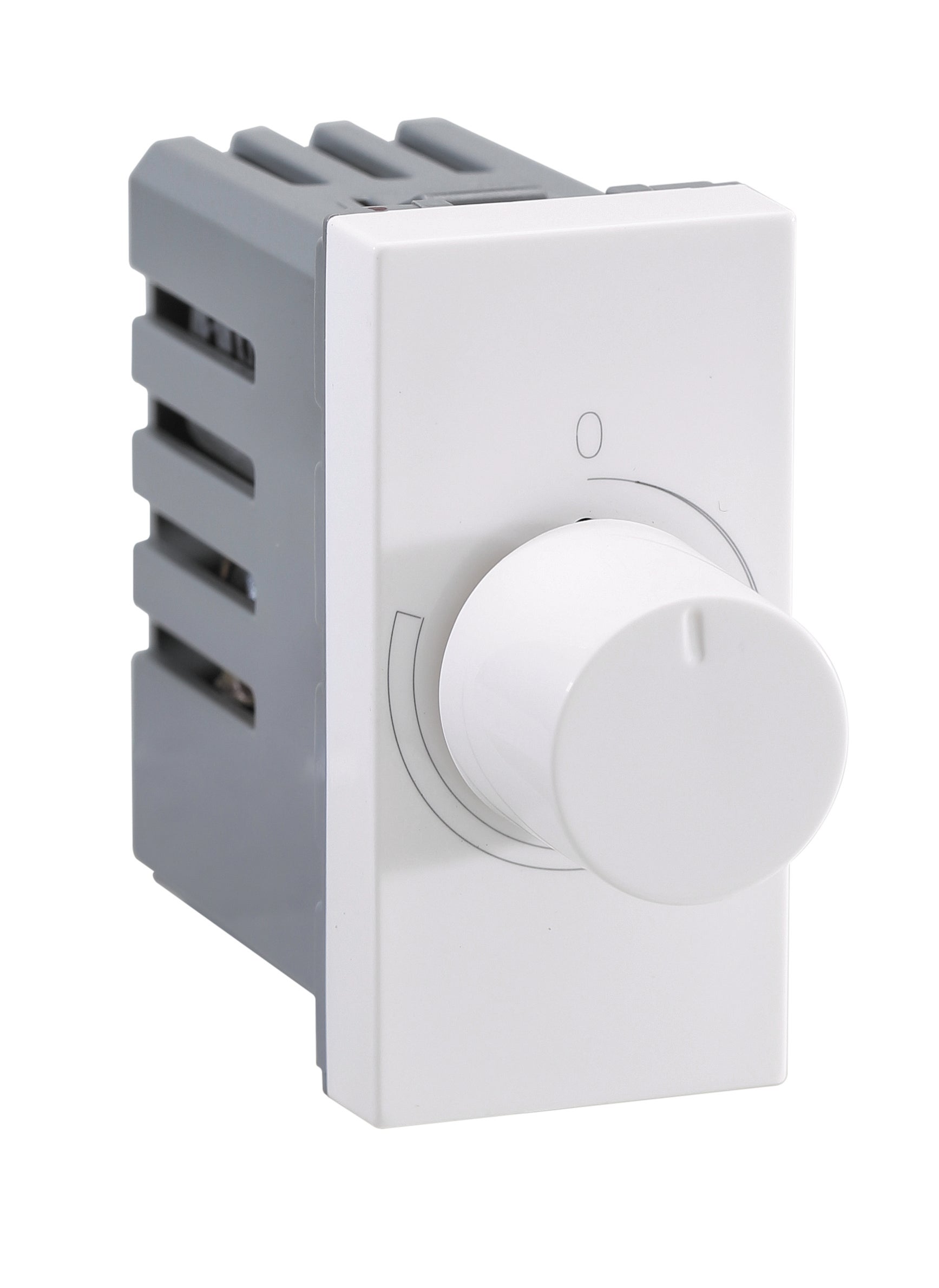

The Lyncus range product with catalog number 677236 is a Rotary Dimmer designed for light dimming of incandescent lamps. It is a phase control dimmer with a stepless operation, allowing precise adjustment of lighting levels. The dimmer occupies 1 module and is available in two color options: White and Chic Grey. It is suitable for both flush box and surface box mounting, making it versatile for various installation scenarios. The product features a rotary knob for operation and is constructed with durable polycarbonate material for the top plate, knob, and base. It incorporates an electronic mechanism and is self-extinguishing at 850°C for enhanced safety. The dimmer operates at a voltage of 240V AC and supports a maximum load of 400W. It conforms to Legrand's test standards, ensuring reliability and performance. Compact in design, its dimensions are 22.5 mm in width, 45 mm in height, and 57 mm in depth, with a weight of 37 grams.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.
Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
