Legrand Allzy Rotary Dimmer · 400 W · 1 M · White · 681143: Elume price today ₹416 per pc incl. GST, 33% below the ₹622 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹336, ₹80 less than here. The lowest tracked seller lists it at ₹336, ₹80 below it (tell us and we match it).

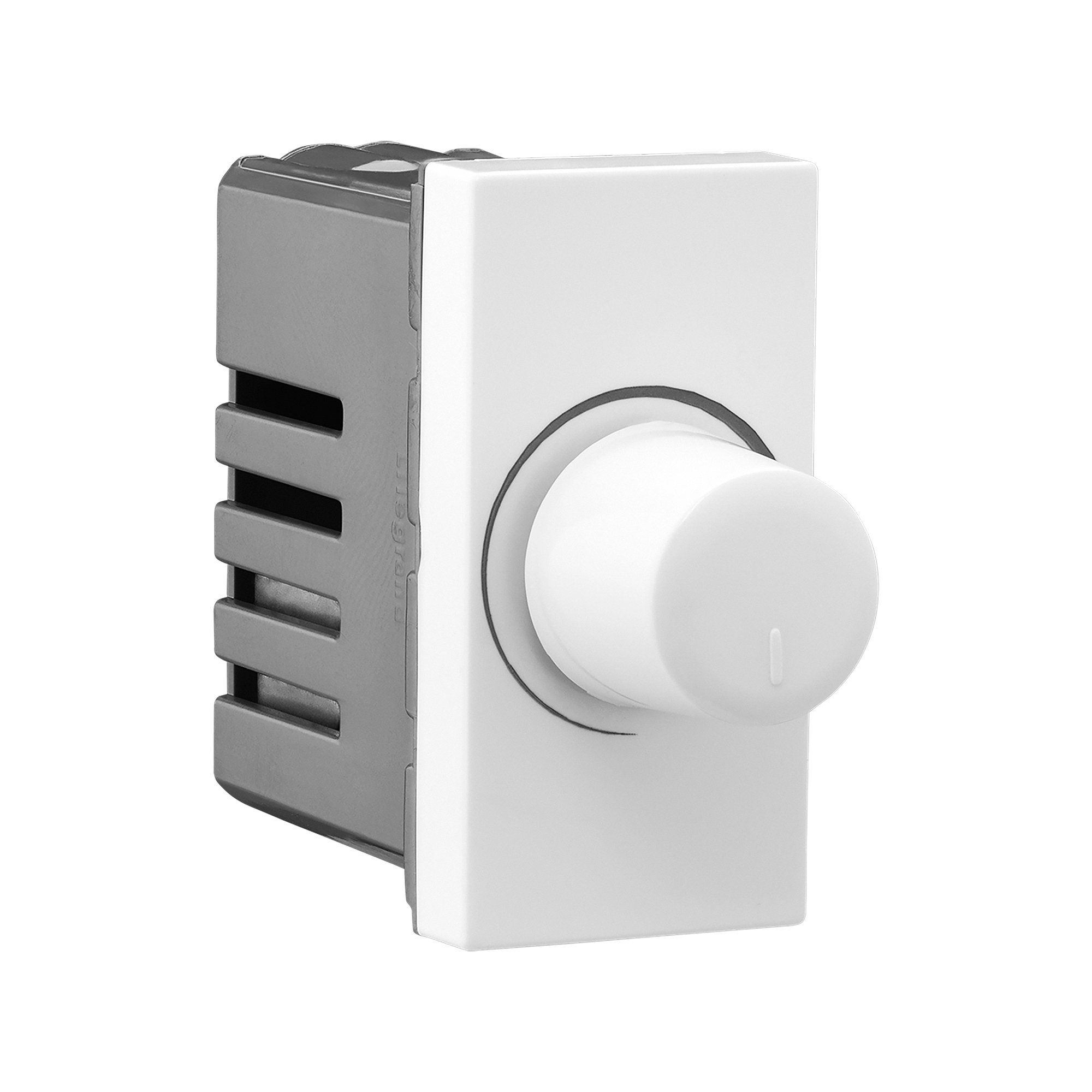

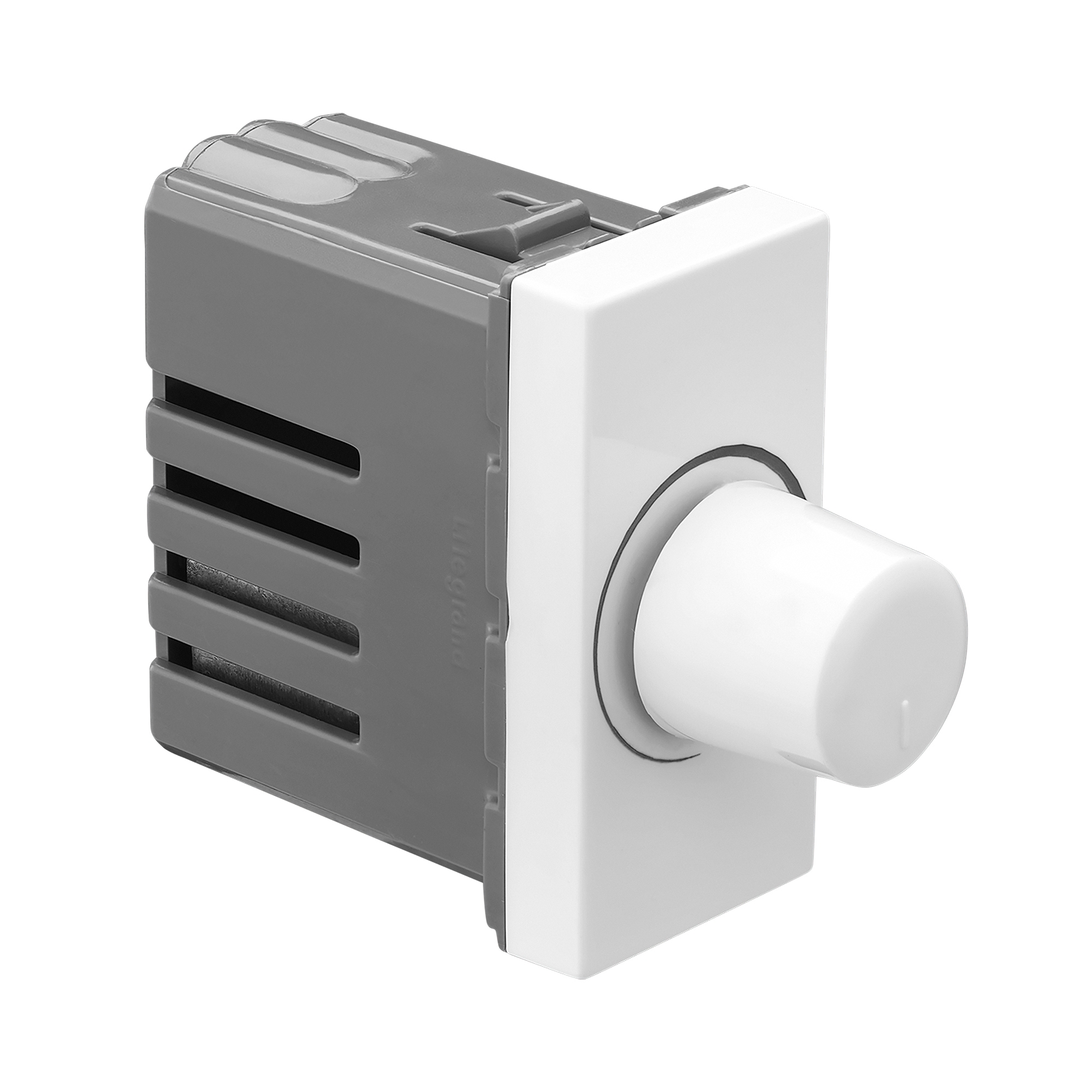

The Allzy range CAT number 681143 is a Rotary Dimmer designed for light dimming of incandescent and halogen lamps. It features a one-module design in white color and can be mounted both flush and surface-mounted. The dimmer operates with a rotary knob and offers stepless dimming control. It has overall dimensions of 22.5 mm in width, 45 mm in height, and 58 mm in depth, with a weight of 34.64 grams. The dimmer is made from polycarbonate material for the top plate, knob, and base, and it includes an electronic mechanism. It operates at a voltage of 240V AC and supports up to 400W. The product is self-extinguishing at 850°C for 30 seconds and conforms to Legrand test standards.
Electronic step regulators save energy at lower speeds and give fixed speed steps, while old resistive rotary regulators waste power as heat. Most modern modular regulators are electronic step type.
Most BLDC fans do not work with a normal fan regulator and are controlled by their own remote, or by a compatible regulator specified by the fan maker. Connect a BLDC fan through a plain on/off switch unless the fan maker says otherwise.
Some electronic regulators can cause a humming sound in certain induction fans at lower speeds. Trying a different regulator type or a fan-specific regulator usually solves it.
No. Use a dimmer designed for LED loads, and only with lights marked dimmable. Using a fan regulator or a non-matching dimmer causes flicker and can damage the LED driver.
Each fan should have its own regulator. Connecting two fans to one regulator can overload it and is not recommended.
Most modular fan regulators take 2 modules, though some compact ones take 1. Check the module count before choosing the plate.
