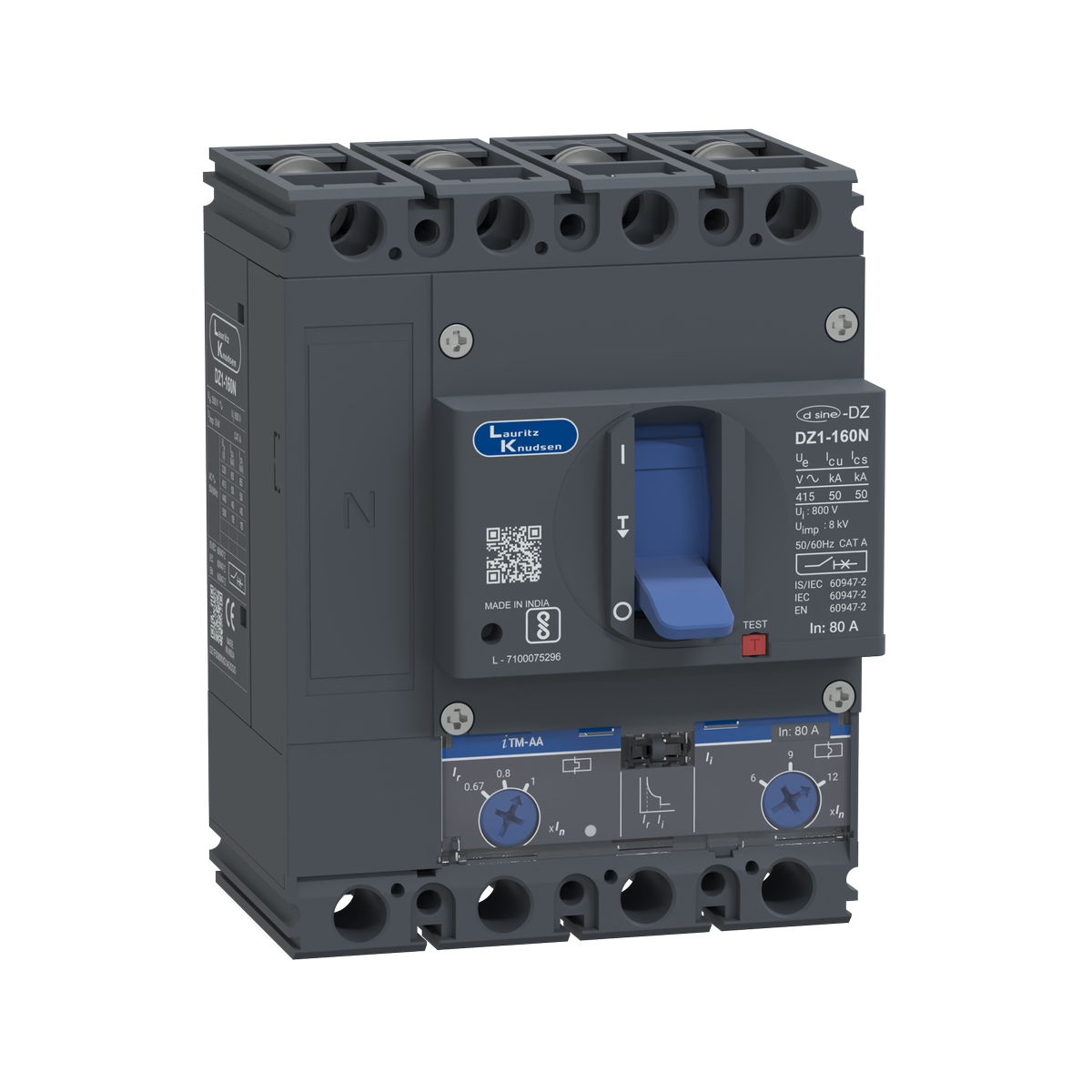

Lauritz Knudsen DZ1N MCCB · 4P (FP) · 80 A · 50 kA · Thermal-magnetic release · DZ1F0080NXD1AOOOO: Elume price today ₹27,490 per pc incl. GST, 14% below the ₹32,130 MRP. The price has held steady for the last 30 days.
Lauritz Knudsen DZ1N MCCB · 4P (FP) · 80 A · 50 kA · Thermal-magnetic release is an MCCB from Lauritz Knudsen. It protects feeders and sub-mains against overload and short circuit and is the incomer or outgoing breaker of a panel. Key ratings: Poles 4P (FP), Rated current 80 A, Breaking capacity 50 kA, Release Thermal-Magnetic, Rated voltage 415 V AC, Ingress protection IP40.
MCBs typically go up to 63A or 125A, so MCCBs are used for higher currents (roughly 16A to 1600A), as main incomers of buildings, panels and sub-panels, or where higher breaking capacity and adjustable settings are needed. MCCBs are covered by IS/IEC 60947-2.
Icu is the ultimate breaking capacity the MCCB can interrupt once, while Ics is the service breaking capacity it can interrupt and still remain usable. Choose an MCCB whose Icu exceeds the prospective fault current at the installation point; for critical feeders, a higher Ics (ideally 100% of Icu) is preferred.
The release type of this MCCB is Thermal-Magnetic. Thermal-magnetic releases are simpler and suit most feeders, while microprocessor (electronic) releases give finer adjustable settings, earth fault protection options and better selectivity for main incomers and critical loads.
Use 3 pole where only the phases need switching, and 4 pole where the neutral must also be isolated, such as generator changeover systems, incomers with unbalanced single-phase loads or where local rules require neutral isolation. Your panel designer or electrician should decide based on the earthing system.
Many MCCBs have an adjustable overload setting (for example 0.8 to 1 times the frame rating, or wider on electronic releases), and some allow short-circuit adjustment too. Fixed-release MCCBs cannot be adjusted, so check the release type before buying.
Common add-ons include auxiliary and trip alarm contacts, shunt trip and undervoltage releases, rotary handles for door mounting, motor operators for remote switching, and terminal spreaders or extended terminals for larger cables. Accessories are usually specific to the brand and frame size.
