Lauritz Knudsen AU MCB · 3P (TP) · 80 A · C curve · 15 kA · AU15S30803C: Elume price today ₹9,380 per pc incl. GST, 36% below the ₹14,600 MRP. The price has held steady for the last 30 days.

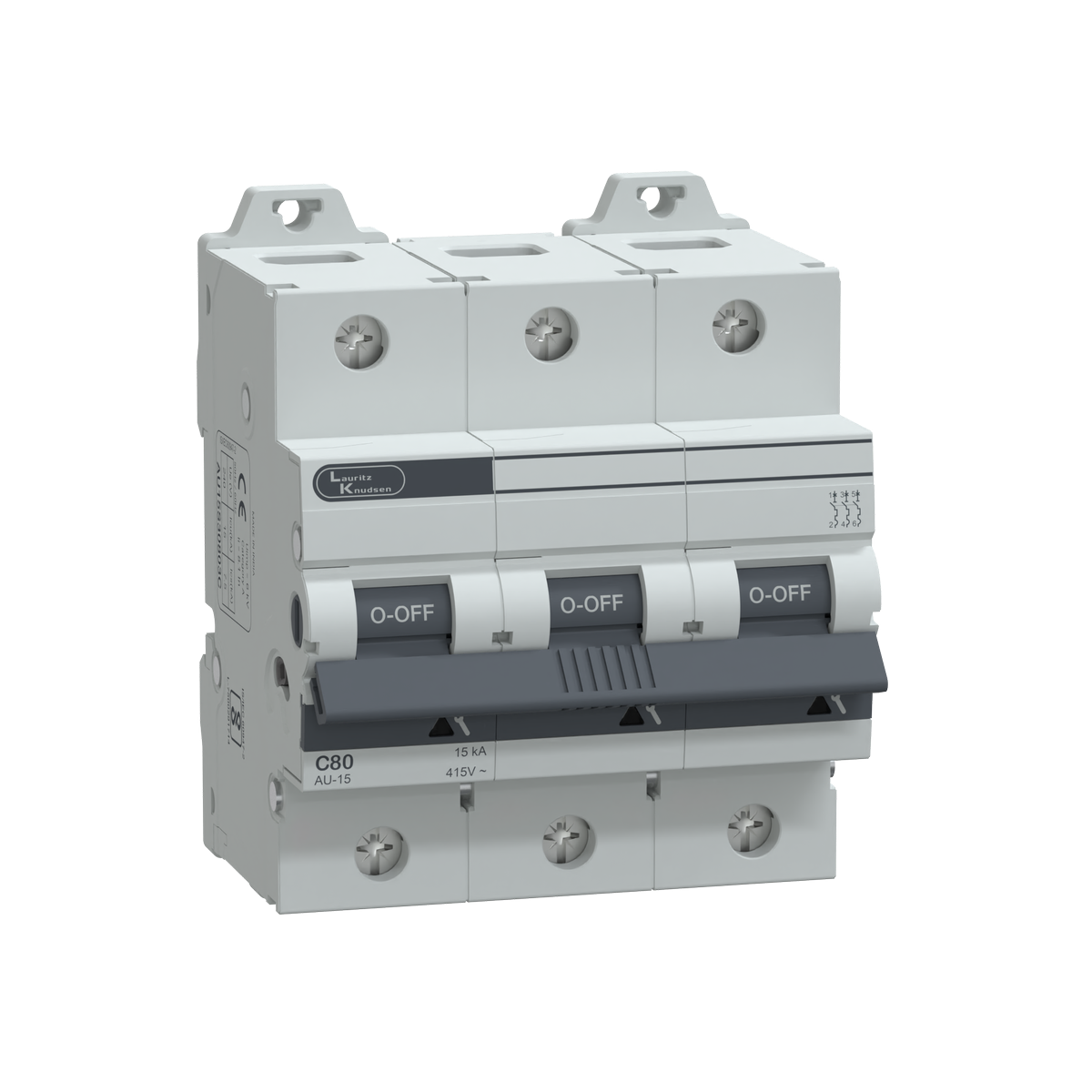

Lauritz Knudsen AU MCB · 3P (TP) · 80 A · C curve · 15 kA is an MCB from Lauritz Knudsen. It protects a final circuit against overload and short circuit and is the standard outgoing device in a distribution board. Key ratings: Poles 3P (TP), Rated current 80 A, Trip curve C curve, Breaking capacity 15 kA, Rated voltage 415 V, Width 4.5 M. It is built to IS/IEC 60947-2, EN 60947-2.
Many 1.5 ton split ACs are put on a dedicated 16A or 20A MCB (C curve is common) with 2.5 or 4 sq mm copper wire, depending on the rated current on the nameplate and the cable run. Follow the AC's installation manual and have a licensed electrician size the MCB to protect the cable, not just the appliance.
The curve sets how fast the MCB trips on a surge: B trips at 3-5 times rated current, C at 5-10 times and D at 10-20 times (IS/IEC 60898-1). B suits lighting and resistive loads, C is the usual choice for homes with ACs, fans, motors and pumps, and D is for high inrush loads like transformers and large motors.
The tripping curve of this MCB is C Curve. C is the general-purpose choice for mixed household loads, B suits lighting and resistive circuits, and D is for equipment with heavy inrush current.
A DP (double pole) MCB switches off both phase and neutral, giving full isolation for high-load or wet-area appliances like geysers, ACs and the main incomer. SP MCBs are fine for normal lighting and socket circuits where only the phase needs protection.
Breaking capacity is the maximum fault current the MCB can safely interrupt; 6kA is adequate for most homes and 10kA is recommended near large transformers, in commercial buildings or industrial sites where prospective fault current is higher. Choosing 10kA does not change how the MCB behaves on normal overloads.
Most modular MCBs mount on a standard 35mm DIN rail and are one module (about 18mm) wide per pole, so they usually physically fit. The front cover cutout height and busbar terminal type can differ between brands, so check the cover alignment before mixing brands in one DB.
No. An MCB protects wiring against overload and short circuit only; protection against shock and earth leakage needs an RCCB or RCBO (typically 30mA) in the same circuit.
