Legrand Allzy Modular MCB · 1P (SP) · 10 A · 1 M · White · 681157: Elume price today ₹359 per pc incl. GST, 33% below the ₹538 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹290, ₹69 less than here. The lowest tracked seller lists it at ₹290, ₹69 below it (tell us and we match it).

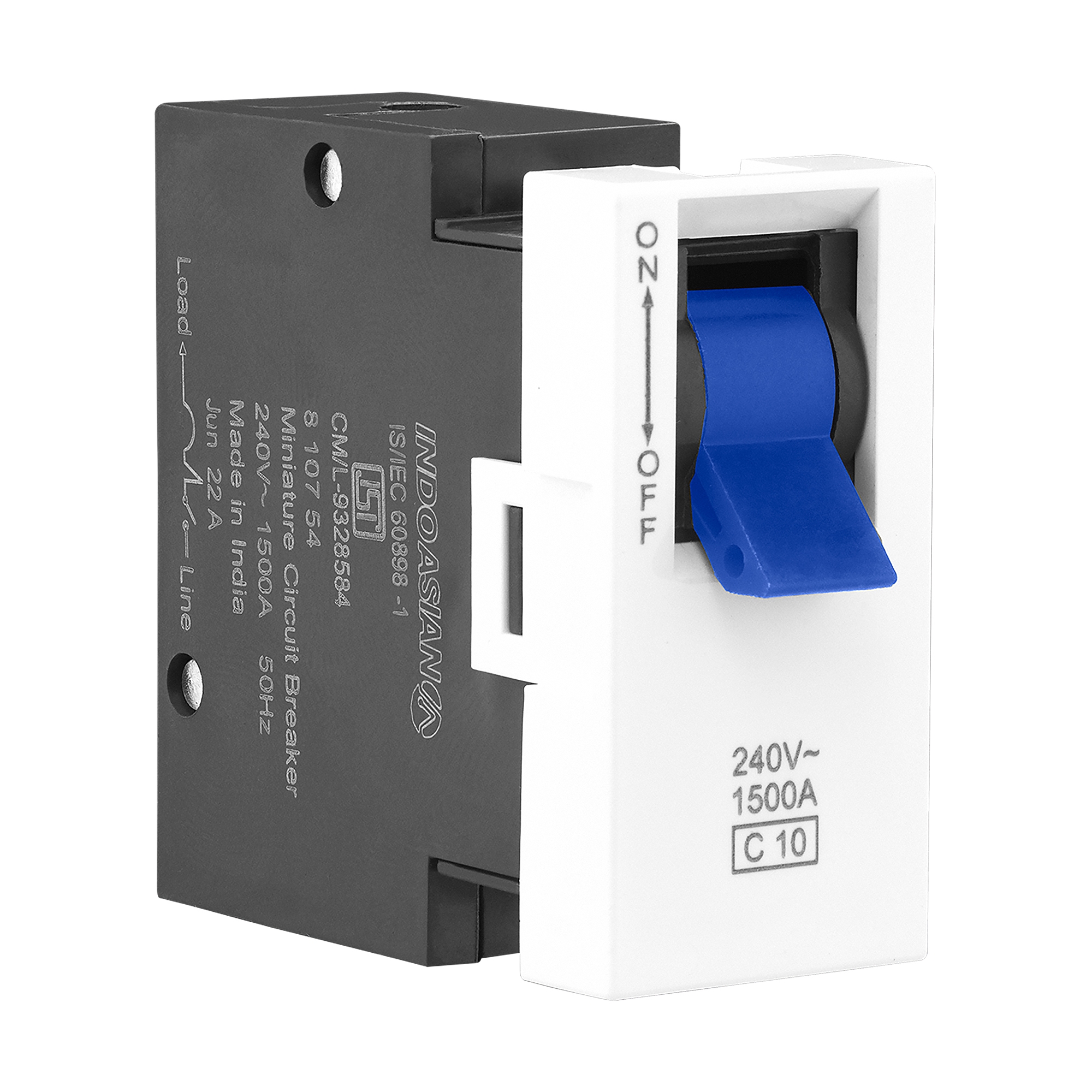

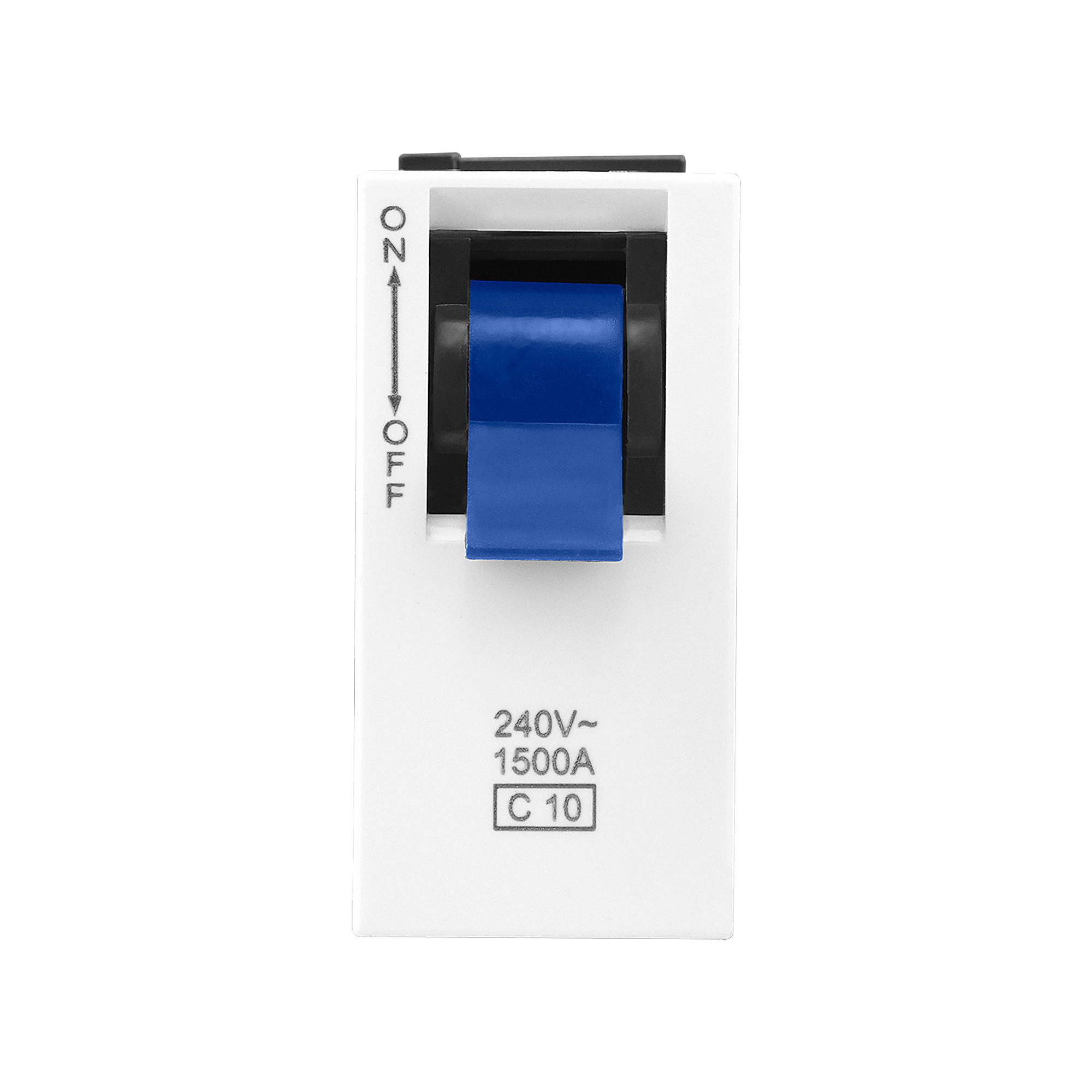

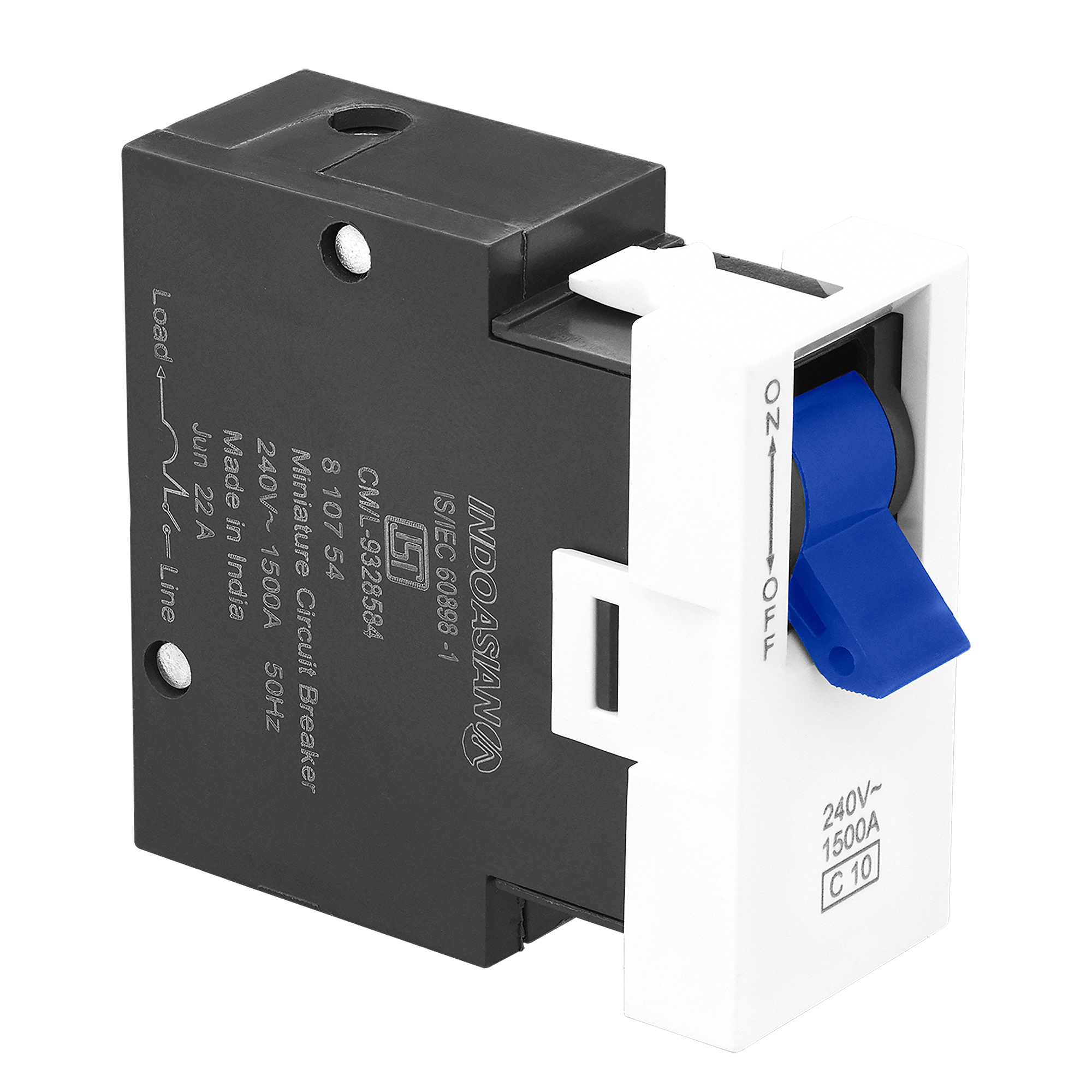

The Allzy range CAT number 681157 is a 10A Modular MCB SP 1M designed for overload and short circuit protection. This single-pole MCB features a C curve characteristic and is available in white and matt black colors. It can be mounted both flush and surface-mounted, offering flexibility in installation. The overall dimensions of the MCB are 22.5 mm in width, 45 mm in height, and 41 mm in depth, with a weight of 58 grams. The connection is facilitated through terminals with screws, supporting a capacity of 1.5mm² to 6mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a dolly (knob) mechanism. Material characteristics include a nylon dolly with 30% glass field, PBT bottom and top covers, a polycarbonate top plate, and brass screws and terminals with silver plating. Electrically, it supports a voltage of 240V AC, a current of 10A, and a short circuit capacity of 1.5KA. The MCB is marked with ratings, voltage, short circuit capacity, ON-OFF indication, connection diagram, manufacturing country, traceability, and ISI marking. It conforms to IS 60898-1:2002 standards, ensuring high quality and reliability.
Many 1.5 ton split ACs are put on a dedicated 16A or 20A MCB (C curve is common) with 2.5 or 4 sq mm copper wire, depending on the rated current on the nameplate and the cable run. Follow the AC's installation manual and have a licensed electrician size the MCB to protect the cable, not just the appliance.
The curve sets how fast the MCB trips on a surge: B trips at 3-5 times rated current, C at 5-10 times and D at 10-20 times (IS/IEC 60898-1). B suits lighting and resistive loads, C is the usual choice for homes with ACs, fans, motors and pumps, and D is for high inrush loads like transformers and large motors.
A DP (double pole) MCB switches off both phase and neutral, giving full isolation for high-load or wet-area appliances like geysers, ACs and the main incomer. SP MCBs are fine for normal lighting and socket circuits where only the phase needs protection.
Breaking capacity is the maximum fault current the MCB can safely interrupt; 6kA is adequate for most homes and 10kA is recommended near large transformers, in commercial buildings or industrial sites where prospective fault current is higher. Choosing 10kA does not change how the MCB behaves on normal overloads.
Most modular MCBs mount on a standard 35mm DIN rail and are one module (about 18mm) wide per pole, so they usually physically fit. The front cover cutout height and busbar terminal type can differ between brands, so check the cover alignment before mixing brands in one DB.
No. An MCB protects wiring against overload and short circuit only; protection against shock and earth leakage needs an RCCB or RCBO (typically 30mA) in the same circuit.
