Legrand Mylinc External DND & MMR Control Unit · with Bell Push · 2 M · Matt Grey · 676342: Elume price today ₹311 per pc incl. GST, 47% below the ₹582 MRP. Over the last 30 days it ranged from ₹310 on 23 Oct to ₹311. The average price across the sellers we track is ₹251, ₹60 less than here. The lowest tracked seller lists it at ₹251, ₹60 below it (tell us and we match it).

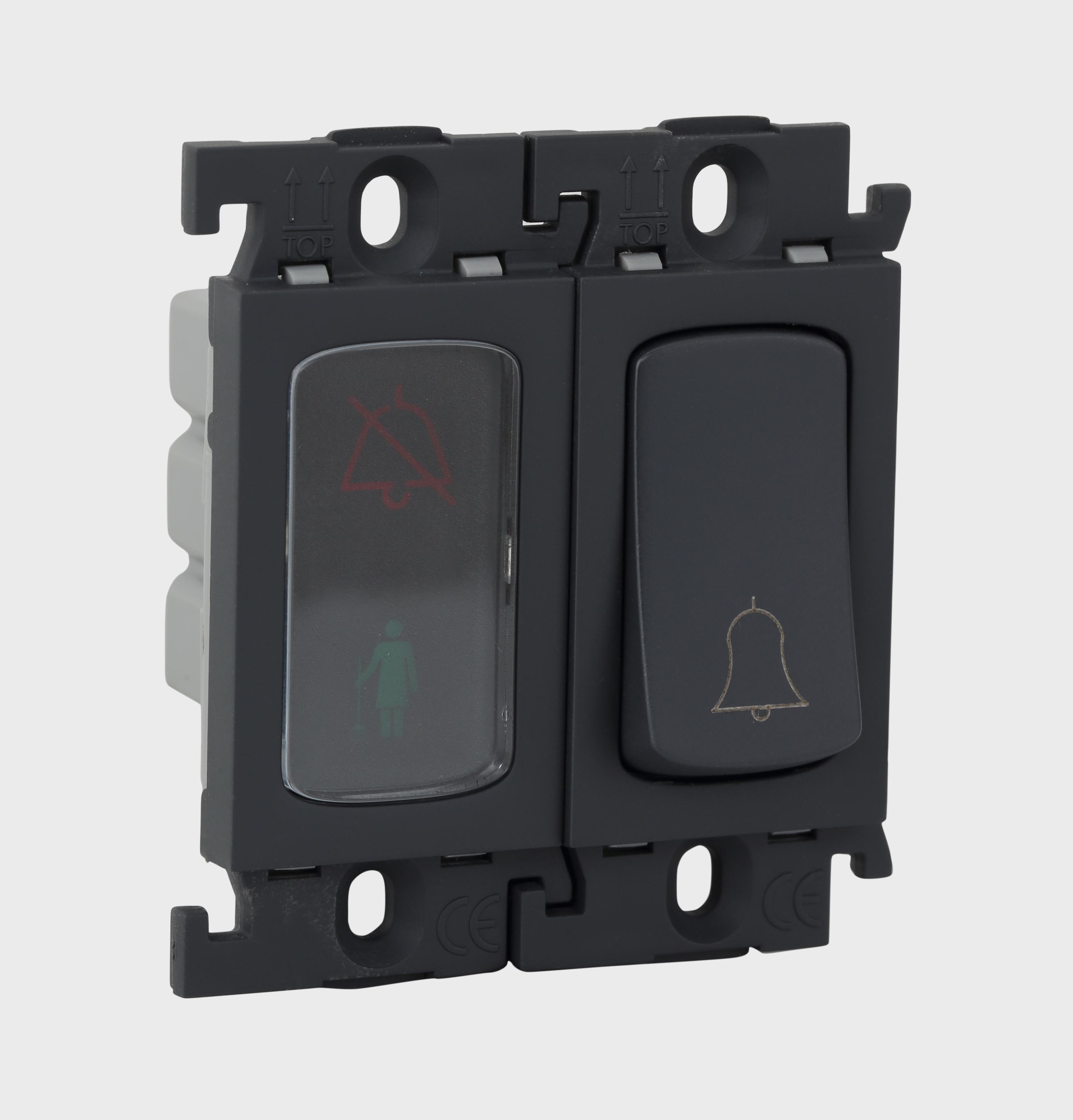

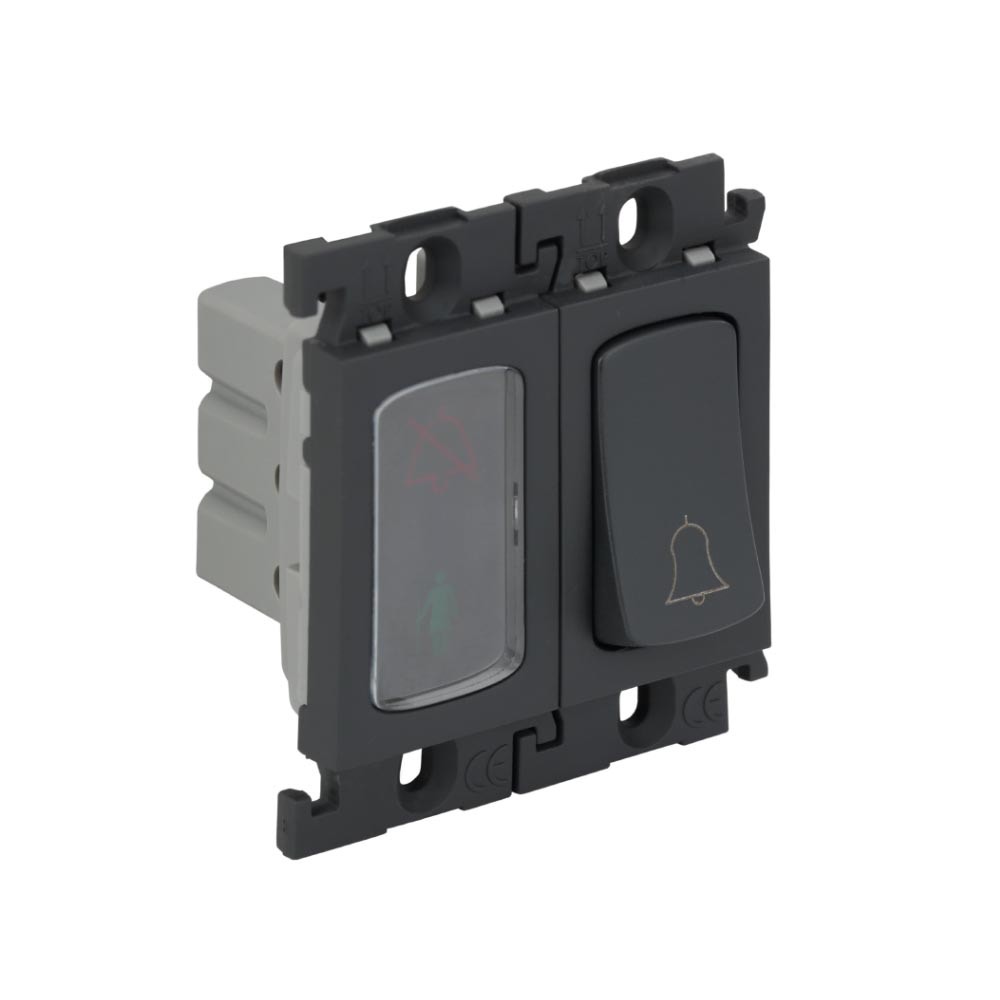

The Mylinc range product with CAT number 676342 is an external control unit designed for DND (Do Not Disturb) and MMR (Make My Room) functions, primarily for hospitality and hotel applications. It is a one-way single-pole switch with rocker toggling operation, featuring 1+1 modules in grey color. The unit is suitable for flush and surface mounting and has dimensions of 52 mm width, 57.2 mm height, and 35 mm depth, weighing 38 grams. It supports a voltage of 230V AC with a current rating of 6A and is constructed using high-quality materials such as polycarbonate for the rocker and front cover, polypropylene for the base, and brass for the contact and pivot terminals. The product is self-extinguishing at 850°C for 30 seconds and conforms to Legrand standards, ensuring safety and reliability.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
