Legrand Allzy External DND & CMR Control Unit · with Bell Push · 2 M · White · 681149: Elume price today ₹324 per pc incl. GST, 33% below the ₹484 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹262, ₹62 less than here.

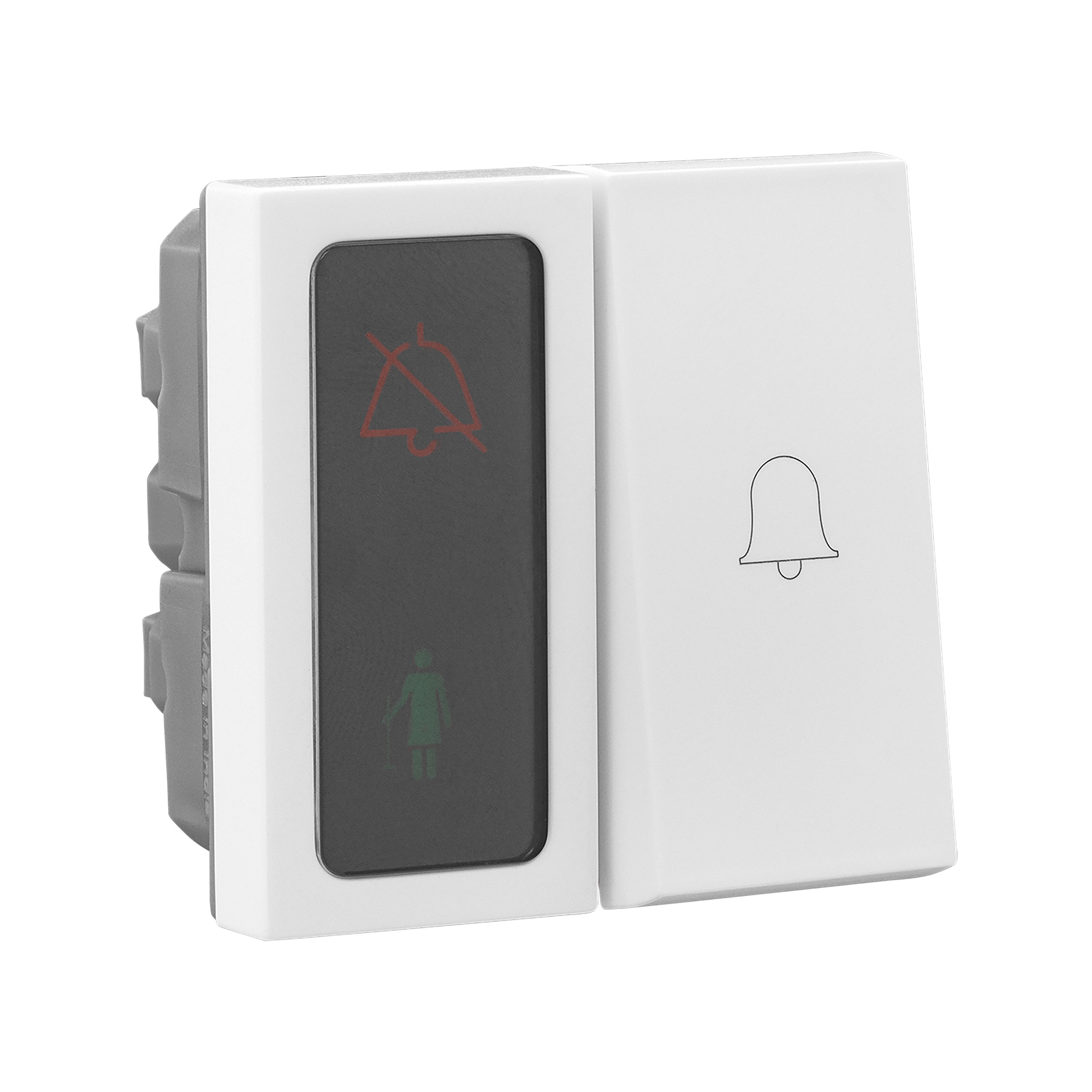

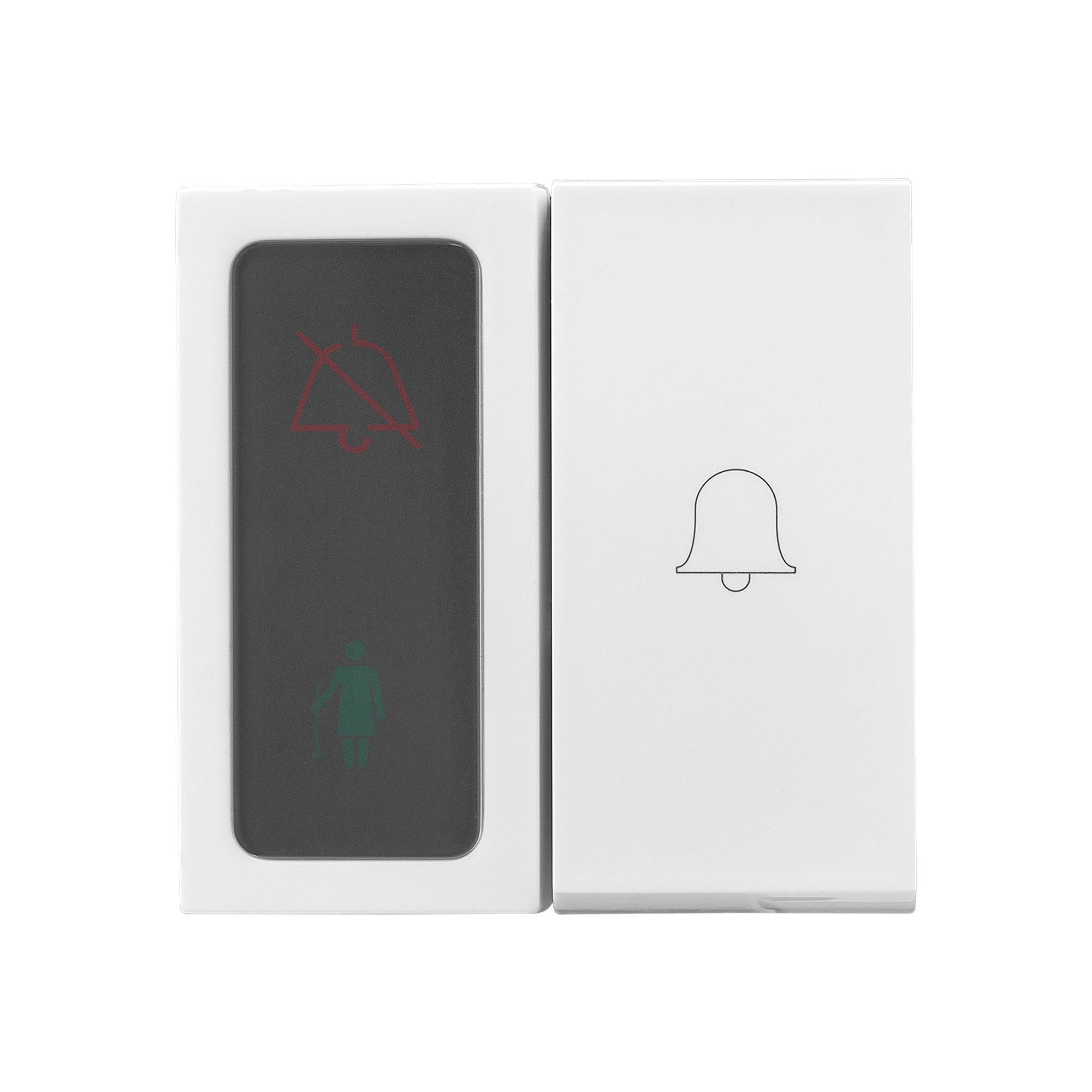

The Allzy range CAT number 681149 is a DND External Unit SP 1+1M White, designed for hospitality and hotel functions, specifically for indication purposes. This one-way switch with an indicator unit features a single pole and comes in a white color. It can be mounted both flush and surface-mounted, providing flexibility in installation. The unit consists of two modules, each measuring 22.5mm in width, 45mm in height, and with depths of 42mm and 37.8mm respectively, and weighs 27.2 grams. The connection is made through screw terminals with a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and includes an LED indicator for electronic signaling. The materials used include polycarbonate for the rocker, lens, and front cover, polypropylene for the base and transmitter, and brass for the contact and pivot terminals. The unit is designed to be self-extinguishing at 850°C for 30 seconds and operates at 230V AC with a current rating of 6A. It conforms to Legrand's company standards, ensuring high quality and reliability.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
