Legrand Arteor Advance Classic Modular MCB · 16 A · 1 M · Matt White · AC628MWAC628MW↓ 7% off MRP1 / 2
BrandLegrand
CategorySwitchgear
SpecificationMiniature circuit breaker · 16 A · 1 M · 240 V AC · Matt White
Brand SKUAC628MW
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
Legrand· In stock
Visit the Legrand store

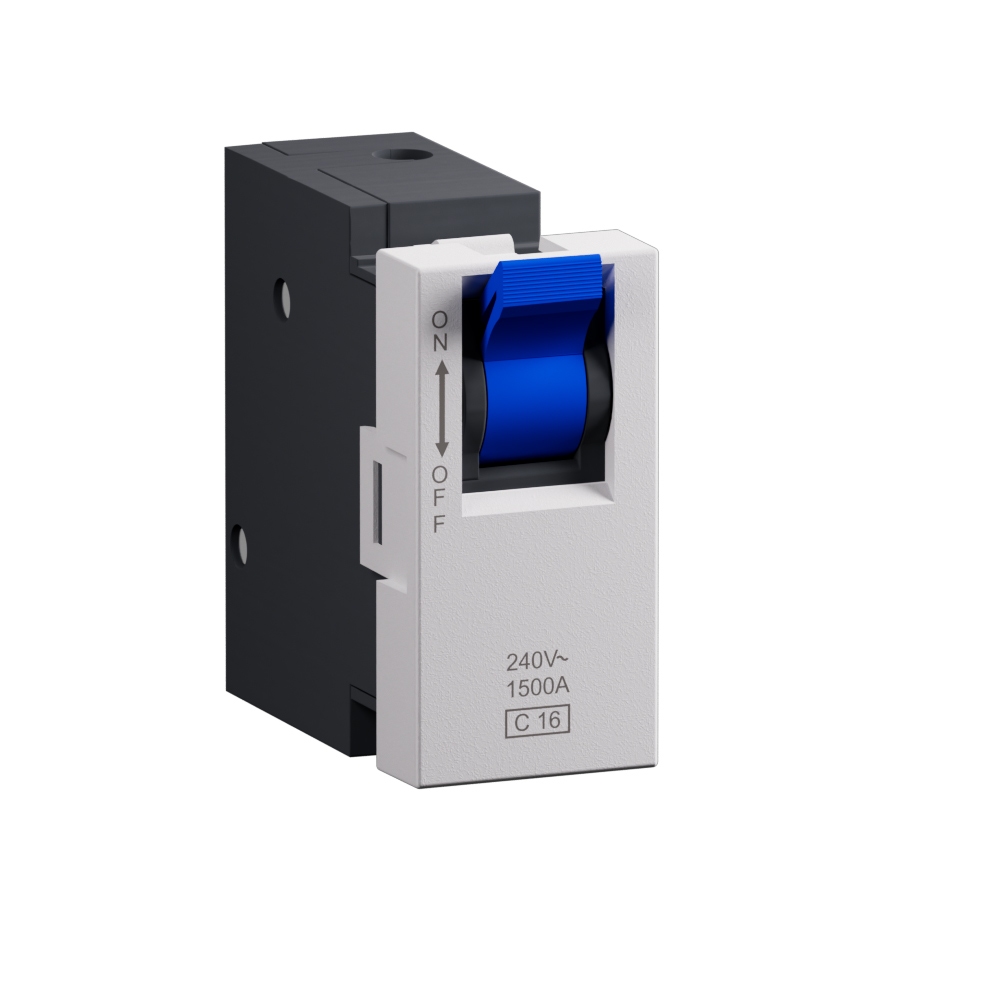

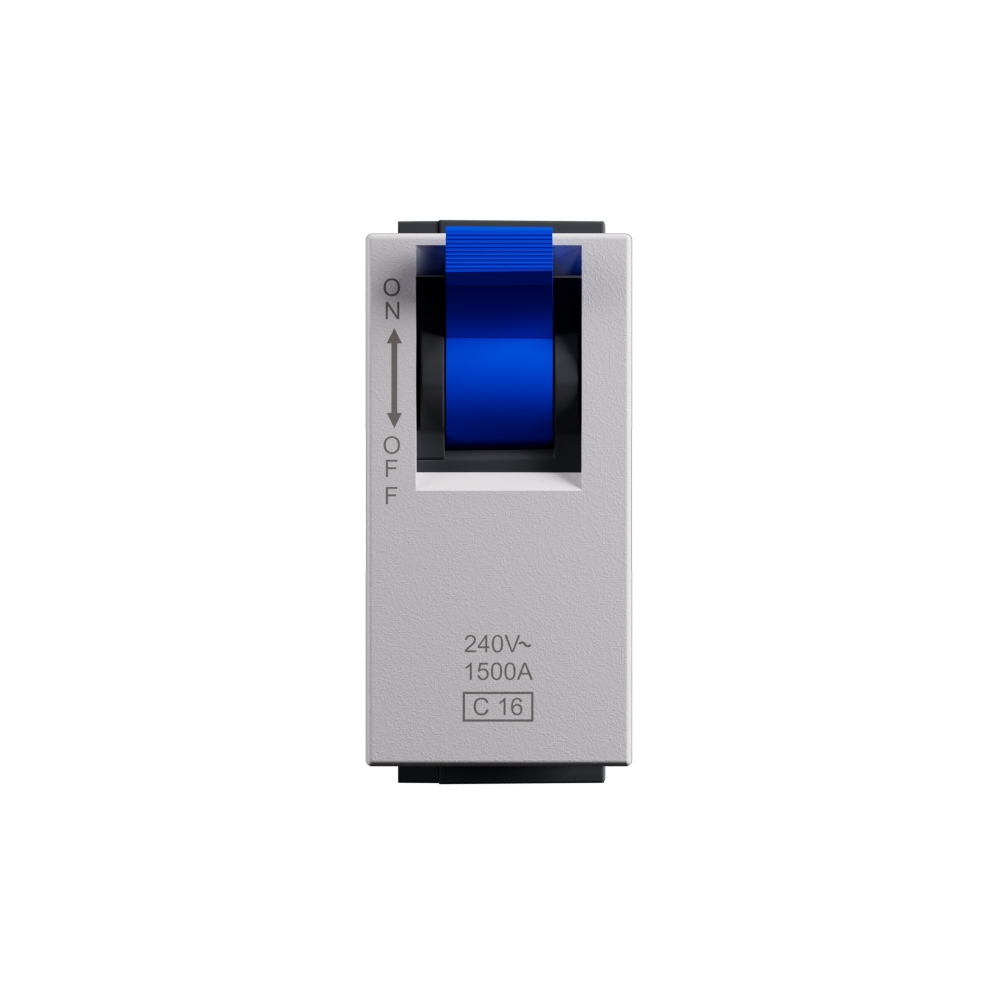

Legrand Arteor Advance Classic Modular MCB · 16 A · 1 M · Matt White · AC628MW

Colour: Matt White
₹783/pcincl. GST-7%
₹664 + 18% GST · MRP ₹846
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹783 /pc incl. GST
Free delivery over ₹4,000

Legrand Arteor Advance Classic Modular MCB · 16 A · 1 M · Matt White · AC628MW: Elume price today ₹783 per pc incl. GST, 7% below the ₹846 MRP. Today's price is the lowest of the last 30 days (high ₹784). The average price across the sellers we track is ₹633, ₹150 less than here. The lowest tracked seller lists it at ₹633, ₹150 below it (tell us and we match it).

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
24 Aug to 22 Nov
₹1,132₹995₹858₹720₹583₹846₹783₹633
24 Aug11 Sep29 Sep17 Oct4 Nov22 Nov
Elume today
₹783
Avg market price
₹633
MRP
₹846
Lowest in view · 7 Oct
₹627
Highest in view · 23 Oct
₹784
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹767/pc on this product, applied automatically

Legrand Arteor Advance-Classic-16A-MCB-1 Module-Matt White

As published by Legrand. Verify critical parameters against the datasheet before specifying.
Legrand Legrand Arteor Advance Classic Modular MCB · 16 A · 1 M · Matt White · AC628MW · AC628MW
Device typeMiniature circuit breaker (MCB)
SeriesArteor Advance Classic
Rated current16 A
Rated voltage240 V AC
Country of originIndia
ColourMatt White
Module size1 M
Current rating16 A
Reference standardIS/IEC 60898-1
BrandLegrand
Brand SKUAC628MW
ELINE22DRP494R
Sold asPer pc
ColorMatt White
Warranty2 years warranty provided by the manufacturer from date of purchase
Product CodeAC628MW
Product features• Overload and short circuit protection • Single Module Mechanism • Current : 16A • Short Circuit Capacity - 1.5KA • Switch with Dolly ( Knob) • Flush and Surface -mounted• Screw terminals
Product Width (mm)22.5
Product Technical specifications6.1 Material Characteristics Dolly (Knbb) : Nylon +30% glass field Bottom Cover : PBT Top Cover :PBT Top plate : Polycarbonate Screws : Brass with silver plating Terminal : Brass with silver plating 6.2 Electricals Characteristics Voltage :240V AC Current : 16A Short Circuit Capacity - 1.5KA .6.3 MarkingRating ,Voltage , Short circuit capacity, ON-OFF indication ,Connection diagram, Manufacturing country ,tracebiIity and ISI Marking
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
Which MCB rating do I need for a 1.5 ton split AC?

Many 1.5 ton split ACs are put on a dedicated 16A or 20A MCB (C curve is common) with 2.5 or 4 sq mm copper wire, depending on the rated current on the nameplate and the cable run. Follow the AC's installation manual and have a licensed electrician size the MCB to protect the cable, not just the appliance.

What is the difference between B, C and D curve MCBs?

The curve sets how fast the MCB trips on a surge: B trips at 3-5 times rated current, C at 5-10 times and D at 10-20 times (IS/IEC 60898-1). B suits lighting and resistive loads, C is the usual choice for homes with ACs, fans, motors and pumps, and D is for high inrush loads like transformers and large motors.

Should I use SP or DP MCB for my geyser or AC?

A DP (double pole) MCB switches off both phase and neutral, giving full isolation for high-load or wet-area appliances like geysers, ACs and the main incomer. SP MCBs are fine for normal lighting and socket circuits where only the phase needs protection.

Is 6kA or 10kA breaking capacity better for home?

Breaking capacity is the maximum fault current the MCB can safely interrupt; 6kA is adequate for most homes and 10kA is recommended near large transformers, in commercial buildings or industrial sites where prospective fault current is higher. Choosing 10kA does not change how the MCB behaves on normal overloads.

Will this MCB fit in my existing DB of another brand?

Most modular MCBs mount on a standard 35mm DIN rail and are one module (about 18mm) wide per pole, so they usually physically fit. The front cover cutout height and busbar terminal type can differ between brands, so check the cover alignment before mixing brands in one DB.

Does an MCB protect against electric shock?

No. An MCB protects wiring against overload and short circuit only; protection against shock and earth leakage needs an RCCB or RCBO (typically 30mA) in the same circuit.
