Catalogue / Switchgear / Havells Digital Weekly Time Switch
BrandHavells
CategorySwitchgear
SpecificationEnergy Saver · Imported By Havells India Ltd. · Wire Size 1 mm² - 4 mm² · Tightening Torque 0.5 Nm · Supply Voltage Tolerance ±10% · Supply Terminals A1 - A2
SKUDHTJW01016
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Havells· In stock

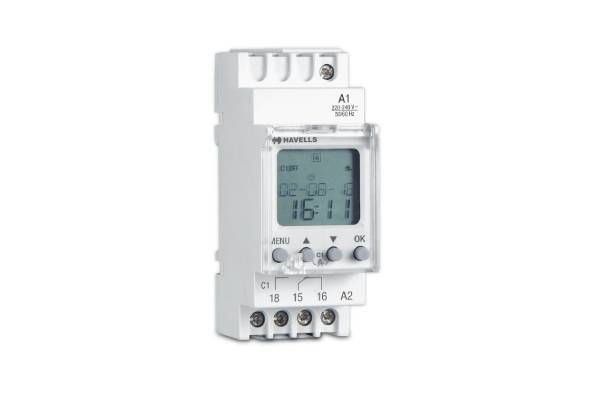

Havells Digital Weekly Time Switch
₹1,876/pc+ 18% GST
₹2,214 incl. GST · MRP ₹3,19041% off
Wholesale · 15+ units
₹1,782 +GST /pc
Add to cart
Buy now
🚚 Delivered pan-India · 30-day NBFC credit is coming soon — join the waitlist.
Price history
Elume price over time. Market comparison appears once we track this item. Updated regularly.
ElumeMRP
Elume today
₹2,214
MRP
₹3,764
1 price point
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units — ₹2,103/pc on this product
About this product
from havells.com- Application : Suitable for Residential and Commercial use.
- Range : 16 A
- Specification : IEC 60730-1/IEC 60730-2-7
- Note: Product images are for illustrative purposes and may differ from the actual product
3 Year Power Reserve
To ensure that the current date and time settings are maintained and the set program is followed even during power failure.
Daily and Weekly Program
The user can now easily set weekly program based on their requirements. Additional days of the week with same program settings can be set using the OK button.
Holiday Program
This allows time switch to not carry out any program during the set time period. When the holiday period ends, the time switch resumes switching according to earlier program settings. This enables consumer to easily manage the vacation period.
Pulse Program
Time signals and switching times can be quickly and easily programmed at the required time using the Pulse setting. The user can set the hour,minute and the duration of the pulse using the arrow keys.
Manual Control
Press “arrow” keys simultaneously the output state of channel 1 switches to MANUAL.
Reset Setting
The device can be reset and restored to factory settings.This can be done by pressing the four keys simultaneouly for 3 seconds.
As published by Havells. Verify critical parameters against the datasheet before specifying.
Technical specifications
Havells Havells Digital Weekly Time Switch · DHTJW01016
Device typeMiniature circuit breaker (MCB)
Reference standardIS/IEC 60898-1
BrandHavells
SKUDHTJW01016
Sold asPer pc
ProgramWeekly, daily
MountingDin rail mounting
StandardIEC 60730-1/IEC 60730-2-7
Frequency50 Hz/60 Hz
Wire Size1 mm² - 4 mm²
Dimensions90 mm × 36 mm × 65 mm
Imported ByHavells India Ltd.
Net Contents1 N Main Unit
Net Quantity1 N
Data Read OutLCD display
Power Reserve3 Years
Product rangeEnergy Saver
Electrical Life10 to power of 5
Mechanical Life10 to power of 6
Operating ModesManual, automatic, holiday
Supply TerminalsA1 - A2
Country Of OriginChina
Operating Voltage220 V AC - 240 V AC
Power Consumption1 W
Program FunctionsON/OFF
Summer Wintertimeoff, automatic changeover
Tightening Torque0.5 Nm
Number Of Channels1
Number Of Programs52
Supply Voltage Tolerance±10%
Maximum Switching Capacity2300 W
Know before you buy
Read: Top 10 MCBs & Switchgear in India (2026) →What is the difference between an MCB, an RCCB and an RCBO?
An MCB protects against overload and short circuit (overcurrent). An RCCB protects against earth leakage and electric shock by detecting current imbalance, typically at 30mA, but offers no overcurrent protection. An RCBO combines both functions in one module, giving overcurrent and earth-leakage protection per circuit, saving DIN-rail space.
Should I use a Type AC or Type A RCCB in India?
Type AC detects only AC earth leakage and suits basic resistive and inductive loads. Type A also detects pulsating DC leakage produced by electronics, EV chargers, inverters and LED drivers. Since most Indian homes now run such loads, Type A is the safer choice. Use Type B for solar inverters and variable-frequency drives.
What breaking capacity (kA) do I need for an Indian home?
Breaking capacity is the maximum fault current an MCB can safely interrupt. For most homes located some distance from the transformer, 6kA is adequate. For apartments, boards close to the distribution transformer, and commercial mains, specify 10kA or higher. Always base it on the actual prospective short-circuit current at your board.
