Catalogue / Switchgear / Havells 24 Hours Analog Time switch
BrandHavells
CategorySwitchgear
SpecificationEnergy Saver · Imported By Havells India Ltd. · Width 54.5 mm · Weight 0.2 kg · Type Of Contact Changeover contact · Time Accuracy ≤1 s/day Quartz · Shortest Switching Time 30 minu
SKUDHTED30016
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Havells· In stock

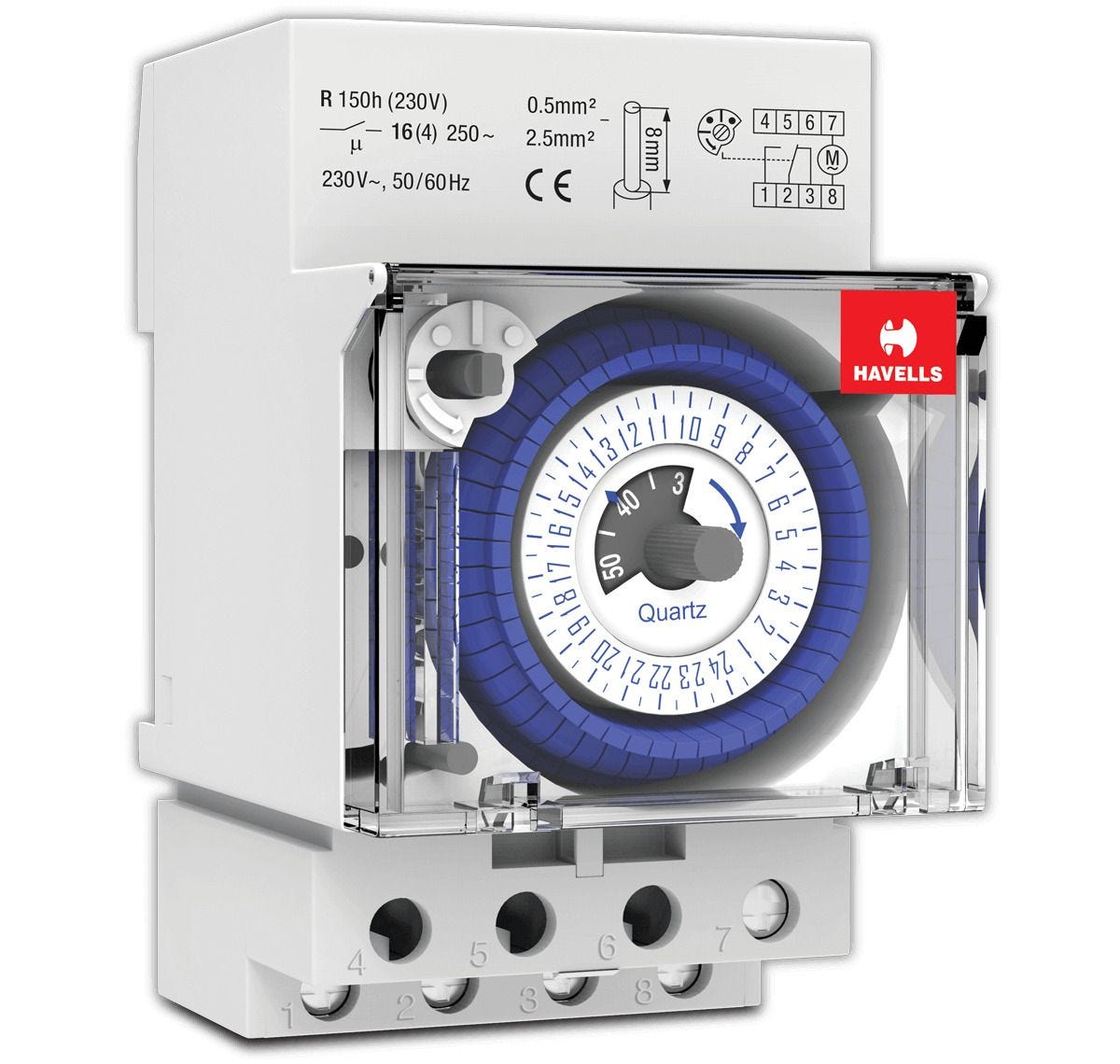

Havells 24 Hours Analog Time switch
₹1,768/pc+ 18% GST
₹2,086 incl. GST · MRP ₹3,00641% off
Wholesale · 15+ units
₹1,680 +GST /pc
Add to cart
Buy now
🚚 Delivered pan-India · 30-day NBFC credit is coming soon — join the waitlist.
Price history
Elume price over time. Market comparison appears once we track this item. Updated regularly.
ElumeMRP
Elume today
₹2,086
MRP
₹3,547
1 price point
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units — ₹1,982/pc on this product
About this product
from havells.com- Application : Suitable for Residential and Commercial use.
- Range : 16 A
- Specification : IEC 60730-1/IEC 60730-2-7
- Note: Product images are for illustrative purposes and may differ from the actual product
24 Hour Line Description
This ensures that the day and night Programes are not mixed up.Letters on the clock makes it clear when the the time is 8:00 am and when 8:00 pm.
Permanent ON/AUTO/OFF
Program can be set permanently ON or Off depending on the needs of the user.
Cover Sealing
Sealable cover to prevent unauthorized access so that there is no tampering with program settings.
Set Time
For current time setting move clock setting arm slowly in the clock wise direction.
Set Switching Times
For ON time setting move programming bits towards the dial as in Picture 2 and for OFF time setting move programming bits away from the dial as in Picture 1.
As published by Havells. Verify critical parameters against the datasheet before specifying.
Technical specifications
Havells Havells 24 Hours Analog Time switch · DHTED30016
Device typeMiniature circuit breaker (MCB)
Reference standardIS/IEC 60898-1
BrandHavells
SKUDHTED30016
Sold asPer pc
Width54.5 mm
Weight0.2 kg
Imported ByHavells India Ltd.
Net Contents1 N Main Unit
Net Quantity1 N
Power Reserve150 hours
Product rangeEnergy Saver
Time Accuracy≤1 s/day Quartz
Electrical Life10 to power of 5
Mechanical Life10 to power of 6
Rated Frequency50 Hz/60 Hz
Type Of ContactChangeover contact
Country Of OriginChina
Installation TypeDIN Rail
Operating Voltage220 V AC - 240 V AC
Power Consumption5 VA
Program FunctionsON/OFF
Ambient Temperature-25 °C to +40 °C
Degree Of ProtectionIP 20
Shortest Switching Time30 minutes
Maximum Switching Capacity16 A
Number Of Memory Locations48
Know before you buy
Read: Top 10 MCBs & Switchgear in India (2026) →What is the difference between an MCB, an RCCB and an RCBO?
An MCB protects against overload and short circuit (overcurrent). An RCCB protects against earth leakage and electric shock by detecting current imbalance, typically at 30mA, but offers no overcurrent protection. An RCBO combines both functions in one module, giving overcurrent and earth-leakage protection per circuit, saving DIN-rail space.
Should I use a Type AC or Type A RCCB in India?
Type AC detects only AC earth leakage and suits basic resistive and inductive loads. Type A also detects pulsating DC leakage produced by electronics, EV chargers, inverters and LED drivers. Since most Indian homes now run such loads, Type A is the safer choice. Use Type B for solar inverters and variable-frequency drives.
What breaking capacity (kA) do I need for an Indian home?
Breaking capacity is the maximum fault current an MCB can safely interrupt. For most homes located some distance from the transformer, 6kA is adequate. For apartments, boards close to the distribution transformer, and commercial mains, specify 10kA or higher. Always base it on the actual prospective short-circuit current at your board.
