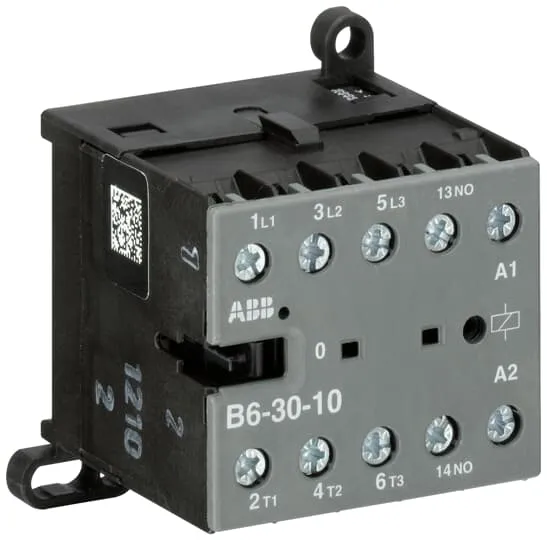

ABB B6-30-10-80 Mini Contactor 220-240 V 40-450 Hz · GJL1211001R8100GJL1211001R8100↓ 51% off MRP
BrandABB
CategorySwitchgear
SpecificationThe B6-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching
Brand SKUGJL1211001R8100
AvailabilityOut of stock
DeliveryPan-India · 7 working days
ABB· Out of stock
Visit the ABB store

ABB B6-30-10-80 Mini Contactor 220-240 V 40-450 Hz · GJL1211001R8100

₹1,365/pcincl. GST-51%
₹1,157 + 18% GST · MRP ₹2,793
Out of stock

We list this so you can see the spec and our price, but it cannot be ordered right now. Email info@elumenuvo.com and we will source it for you.

💳 30 Day credit facility available launching soon - join waitlist.

ABB B6-30-10-80 Mini Contactor 220-240 V 40-450 Hz · GJL1211001R8100: Elume price today ₹1,365 per pc incl. GST, 51% below the ₹2,793 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
25 May to 22 Nov
₹2,989₹2,544₹2,099₹1,654₹1,209₹2,793₹1,365
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹1,365
MRP
₹2,793
Lowest in view · 10 Aug
₹1,300
Highest in view · 3 Oct
₹1,365
For panel builders
Buying this for a panel?
The price above is for a single piece. Send the whole BOM in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹1,297/pc on this product, applied automatically

ABB B6-30-10-80 Mini Contactor 220-240 V 40-450Hz is a switchgear device from ABB. Key ratings: Rated current 20 A.

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB B6-30-10-80 Mini Contactor 220-240 V 40-450 Hz · GJL1211001R8100 · GJL1211001R8100
Rated current20 A
Device typeMiniature circuit breaker (MCB)
Current rating20 A
Reference standardIS/IEC 60898-1
BrandABB
Brand SKUGJL1211001R8100
ELINEPC9CH9R3C
Sold asPer pc
Ratings as published by ABB (Product name). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
How do I choose a contactor for my motor?

Select by the contactor's AC-3 current (or kW) rating at your supply voltage, which should be at least the motor's full-load current from the nameplate. Do not go by the higher AC-1 rating, which applies only to resistive loads (contactors are covered by IS/IEC 60947-4-1).

What is the difference between AC-1 and AC-3 rating?

AC-1 is for non-inductive or slightly inductive loads like heaters, while AC-3 is for starting and stopping squirrel cage motors. The same contactor has a much lower AC-3 rating than AC-1, and AC-4 (inching or plugging) is even more demanding.

Does a contactor protect the motor?

No. A contactor only switches the motor on and off; overload protection needs a thermal overload relay and short-circuit protection needs an MPCB, MCB, MCCB or fuses upstream.

Why is my contactor humming or chattering?

Common causes are low or fluctuating control voltage, a wrong coil voltage, dust or rust on the magnet faces, or a broken shading ring. Check the supply at the coil terminals first, then clean or replace the contactor if needed.

How many auxiliary contacts does this have and can I add more?

Most contactors have built-in auxiliary contacts (NO and/or NC) for holding and interlocking circuits, and many allow add-on auxiliary blocks on the front or side. Check the contact configuration and add-on compatibility in the product details.

How many contactors do I need for a star-delta starter?

A star-delta starter uses three contactors (main, delta and star), a star-delta timer and an overload relay. The main and delta contactors are typically sized at about 58% of the motor current and the star contactor smaller, as per the manufacturer's selection table.
