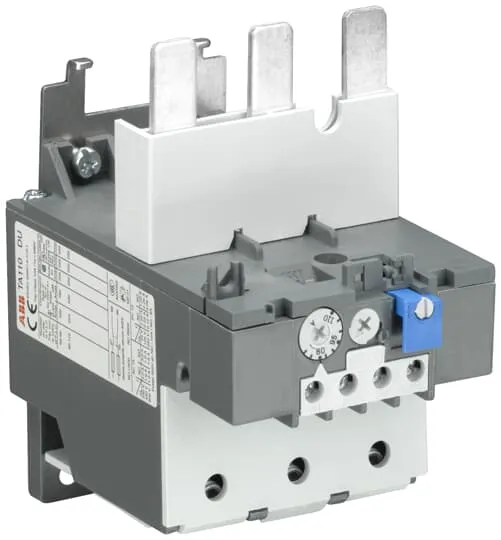

ABB TA110DU-90M Thermal Overload Relay 65-90 A · 1SAZ411201R20011SAZ411201R2001↓ 53% off MRP
BrandABB
CategorySwitchgear
SpecificationTA110DU-90M Thermal Overload Relay Trip class 10A, 65.0-90.0A
Brand SKU1SAZ411201R2001
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
ABB· In stock
Visit the ABB store

ABB TA110DU-90M Thermal Overload Relay 65-90 A · 1SAZ411201R2001

₹10,730/pcincl. GST-53%
₹9,093 + 18% GST · MRP ₹22,733
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹10,730 /pc incl. GST
Free pan-India delivery

ABB TA110DU-90M Thermal Overload Relay 65-90 A · 1SAZ411201R2001: Elume price today ₹10,730 per pc incl. GST, 53% below the ₹22,733 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹8,175, ₹2,555 less than here.

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
25 May to 22 Nov
₹24,324₹19,849₹15,373₹10,897₹6,422₹22,733₹10,730₹8,175
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹10,730
Avg market price
₹8,175
MRP
₹22,733
Lowest in view · 10 Aug
₹6,905
Highest in view · 3 Oct
₹10,730
For panel builders
Buying this for a panel?
The price above is for a single piece. Send the whole BOM in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹10,194/pc on this product, applied automatically

ABB TA110DU-90M Thermal Overload Relay 65... 90 A is a thermal overload relay from ABB. Key ratings: Poles 3P (TP), Rated current 90 A, Setting range 65... 90 A, AC-1 rating 90 A, Rated voltage Auxiliary Circuit 440 V DC, Width 4.5 M (80 mm). It is built to IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1.

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB TA110DU-90M Thermal Overload Relay 65-90 A · 1SAZ411201R2001 · 1SAZ411201R2001
Device typeThermal overload relay
Poles3P (TP)
Rated current90 A
Rated voltageAuxiliary Circuit 440 V DC
FrequencyAuxiliary Circuit 50 Hz
Operational current (Ie)90 A
Setting range65 ... 90 A
Insulation voltage (Ui)690 V
Impulse withstand (Uimp)Auxiliary Circuit 6 kV
Width4.5 modules (80 mm)
Terminal capacityFlexible 1x 16 ... 35 mm²
Ingress protectionIP20
Reference standardIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
Net weight0.75 kg
Current rating90 A
BrandABB
Brand SKU1SAZ411201R2001
ELINEM96F64PM7
Sold asPer pc
Ratings as published by ABB (abb.com product data; Product name). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
What should I set the overload relay to?

Set it to the motor's full-load current from the nameplate, not higher. In a star-delta starter where the relay is in the phase winding circuit, it is set to about 0.58 times the full-load current.

Will this overload relay fit my contactor?

Most overload relays are designed to mount directly on specific contactor sizes of the same brand and range. For other brands or sizes, a separate mounting kit or panel mounting is needed, so check the compatibility list.

Does it protect against single phasing?

Most modern thermal overload relays have differential (single phasing) sensitivity and trip faster when one phase is lost, which helps protect three-phase motors. For full phase failure and phase reversal protection, a phase monitoring relay is also recommended.

What is trip class 10 and class 20?

Trip class indicates the maximum time to trip from cold at 7.2 times the set current: class 10 trips within 10 seconds and class 20 within 20 seconds (IS/IEC 60947-4-1). Class 10 suits normal motors, while class 20 or 30 is used for heavy-starting loads like crushers and fans with large inertia.

What is the difference between manual and auto reset?

In manual reset, someone must press the reset button after a trip, while auto reset lets the relay reset itself once it cools. Manual reset is generally safer, since the motor will not restart unexpectedly.
