ABB ESB63-40N-06 Installation Contactor · 1SAE351111R06401SAE351111R0640↓ 51% off MRP
BrandABB
CategorySwitchgear
SpecificationContactor · 4P (FP) · 63 A · 220 V DC
Brand SKU1SAE351111R0640
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
ABB· In stock
Visit the ABB store

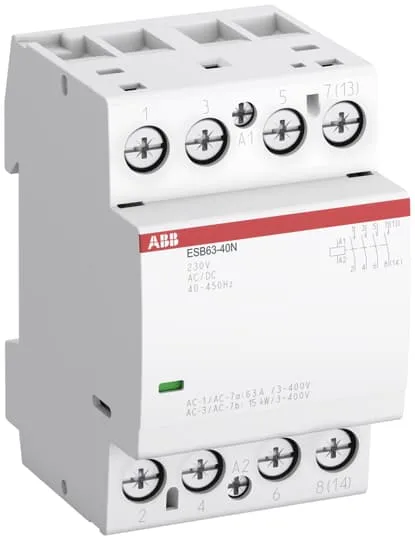

ABB ESB63-40N-06 Installation Contactor · 1SAE351111R0640

₹8,285/pcincl. GST-51%
₹7,021 + 18% GST · MRP ₹16,884
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹8,285 /pc incl. GST
Free pan-India delivery

ABB ESB63-40N-06 Installation Contactor · 1SAE351111R0640: Elume price today ₹8,285 per pc incl. GST, 51% below the ₹16,884 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹7,970, ₹315 less than here.

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
25 May to 22 Nov
₹18,066₹15,089₹12,112₹9,135₹6,158₹16,884₹8,285₹7,970
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹8,285
Avg market price
₹7,970
MRP
₹16,884
Lowest in view · 10 Aug
₹6,621
Highest in view · 3 Oct
₹8,285
For panel builders
Buying this for a panel?
The price above is for a single piece. Send the whole BOM in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹7,871/pc on this product, applied automatically

The ESB63..N installation contactors are used to control single and three-phase loads up to 63 A and can be operated by AC or DC. These contactors are made for use in household applications as well as in industrial environments. The following benefits are provided: Hum-free operation, low power consumption and integrated overvoltage protection. Various contact combinations and accessories are avai

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB ESB63-40N-06 Installation Contactor · 1SAE351111R0640 · 1SAE351111R0640
Device typeContactor
Poles4P (FP)
Rated current63 A
Rated voltage220 V DC
FrequencyControl Circuit 400 Hz
Insulation voltage (Ui)500 V
Impulse withstand (Uimp)6 kV
Width3 modules (54 mm)
Terminal capacityFlexible with Ferrule 1x 1.5 ... 16 mm²
Ingress protectionIP20
Reference standardIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Net weight0.405 kg
Country of originGermany
Current rating63 A
BrandABB
Brand SKU1SAE351111R0640
ELINEMDHF3D24R
Sold asPer pc
Ratings as published by ABB (abb.com product data, datasheet 2CDC103051C0201; shop.in.abb.com listing for 1SAE351111R0640, 23 Sep 2026; Product name). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
How do I choose a contactor for my motor?

Select by the contactor's AC-3 current (or kW) rating at your supply voltage, which should be at least the motor's full-load current from the nameplate. Do not go by the higher AC-1 rating, which applies only to resistive loads (contactors are covered by IS/IEC 60947-4-1).

What is the difference between AC-1 and AC-3 rating?

AC-1 is for non-inductive or slightly inductive loads like heaters, while AC-3 is for starting and stopping squirrel cage motors. The same contactor has a much lower AC-3 rating than AC-1, and AC-4 (inching or plugging) is even more demanding.

Does a contactor protect the motor?

No. A contactor only switches the motor on and off; overload protection needs a thermal overload relay and short-circuit protection needs an MPCB, MCB, MCCB or fuses upstream.

Why is my contactor humming or chattering?

Common causes are low or fluctuating control voltage, a wrong coil voltage, dust or rust on the magnet faces, or a broken shading ring. Check the supply at the coil terminals first, then clean or replace the contactor if needed.

How many auxiliary contacts does this have and can I add more?

Most contactors have built-in auxiliary contacts (NO and/or NC) for holding and interlocking circuits, and many allow add-on auxiliary blocks on the front or side. Check the contact configuration and add-on compatibility in the product details.

How many contactors do I need for a star-delta starter?

A star-delta starter uses three contactors (main, delta and star), a star-delta timer and an overload relay. The main and delta contactors are typically sized at about 58% of the motor current and the star contactor smaller, as per the manufacturer's selection table.
