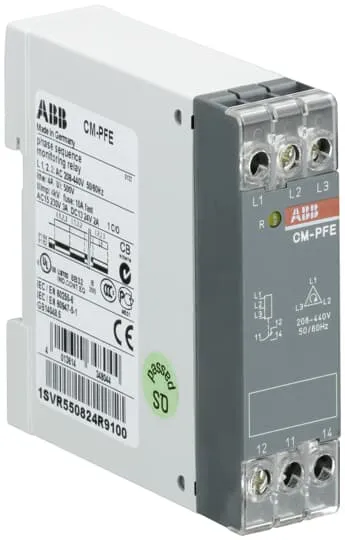

ABB CM-PFE Phase sequence monitoring relay 1c/o · L1-L2-L3=208-440 V AC · 1SVR550824R91001SVR550824R9100↓ 5% off MRP
BrandABB
CategorySwitchgear
SpecificationPhase sequence relay CM-PFE, width 22.5mm, measuring range L1-L2-L3=208-440VAC, powered by measuring circuit, 1 c/o (closed circuit principle)
Brand SKU1SVR550824R9100
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
ABB· In stock
Visit the ABB store

ABB CM-PFE Phase sequence monitoring relay 1c/o · L1-L2-L3=208-440 V AC · 1SVR550824R9100

₹9,611/pcincl. GST-5%
₹8,145 + 18% GST · MRP ₹10,092
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹9,611 /pc incl. GST
Free pan-India delivery

ABB CM-PFE Phase sequence monitoring relay 1c/o · L1-L2-L3=208-440 V AC · 1SVR550824R9100: Elume price today ₹9,611 per pc incl. GST, 5% below the ₹10,092 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹7,689, ₹1,922 less than here.

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
25 May to 22 Nov
₹10,798₹9,621₹8,445₹7,268₹6,091₹10,092₹9,611₹7,689
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹9,611
Avg market price
₹7,689
MRP
₹10,092
Lowest in view · 10 Aug
₹6,549
Highest in view · 3 Oct
₹10,092
For panel builders
Buying this for a panel?
The price above is for a single piece. Send the whole BOM in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹9,130/pc on this product, applied automatically

The CM-PFE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 208-440 V AC and has a 1 c/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PFE monitors th phase loss and phase sequence. The corresponding threshold values are fixed. The relay is suitable for monitoring of three phase mains.

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB CM-PFE Phase sequence monitoring relay 1c/o · L1-L2-L3=208-440 V AC · 1SVR550824R9100 · 1SVR550824R9100
Device typeRelay
Rated voltage440 V AC
FrequencySupply Circuit 50/60 Hz
Insulation voltage (Ui)Input Circuit / Output Circuit 600 V
Impulse withstand (Uimp)Input Circuit 6 kV
Width1.5 modules (22.5 mm)
Terminal capacityFlexible with Ferrule 2x 0.75 ... 1.5 mm²
Ingress protectionIP50
Reference standardIEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508
Net weight0.068 kg
BrandABB
Brand SKU1SVR550824R9100
ELINEHKF2H3MD3
Sold asPer pc
Ratings as published by ABB (abb.com product data, datasheet 2CDC112231D0201; Product name). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
What is the difference between on-delay and off-delay timers?

An on-delay timer switches its output after the set time once it receives power or a start signal, while an off-delay timer holds its output on for the set time after the signal is removed. Multifunction timers offer both and other modes such as cyclic and interval.

Which timer do I need for a star-delta starter?

A dedicated star-delta timer has a built-in short dead time between star and delta changeover to prevent a short circuit across contactors. The star time is set to suit how fast the motor reaches near full speed, often a few seconds to around 15 seconds.

What does a phase failure relay protect against?

A phase monitoring relay detects phase loss, phase reversal (wrong sequence) and often phase unbalance or under/over voltage, and trips the contactor coil to protect three-phase motors. It is especially useful for pumps, compressors and lifts where wrong rotation or single phasing can cause damage.

Can I use a timer to run a water pump automatically?

A cyclic or programmable timer can switch a pump contactor on and off at set intervals, but for tank level control a level controller relay with probes or a float switch is more reliable. The pump also needs proper motor protection like an MPCB or overload relay.

Do these mount on DIN rail?

Most modern timers and monitoring relays are DIN rail mounted (35mm), while some older or plug-in types use an 8-pin or 11-pin socket base. Check the mounting type and whether the base is included.
