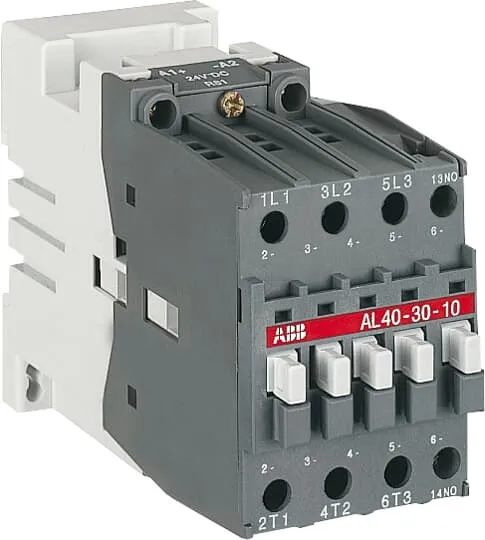

ABB AL40-30-10 24 V DC Contactor · 1SBL323001R81101SBL323001R8110↓ 53% off MRP
BrandABB
CategorySwitchgear
SpecificationAL40 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary con
Brand SKU1SBL323001R8110
AvailabilityOut of stock
DeliveryPan-India · 7 working days
ABB· Out of stock
Visit the ABB store

ABB AL40-30-10 24 V DC Contactor · 1SBL323001R8110

₹11,151/pcincl. GST-53%
₹9,450 + 18% GST · MRP ₹23,625
Out of stock

We list this so you can see the spec and our price, but it cannot be ordered right now. Email info@elumenuvo.com and we will source it for you.

💳 30 Day credit facility available launching soon - join waitlist.

ABB AL40-30-10 24 V DC Contactor · 1SBL323001R8110: Elume price today ₹11,151 per pc incl. GST, 53% below the ₹23,625 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
25 May to 22 Nov
₹25,279₹20,914₹16,550₹12,186₹7,821₹23,625₹11,151
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹11,151
MRP
₹23,625
Lowest in view · 10 Aug
₹8,410
Highest in view · 3 Oct
₹11,151
For panel builders
Buying this for a panel?
The price above is for a single piece. Send the whole BOM in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹10,593/pc on this product, applied automatically

ABB AL40-30-10 24V DC Contactor (ABB article 1SBL323001R8110) belongs to ABB's AL Contactors range, listed under Contactors upto 100A. AL40 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. AL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs. Sold by Elume with a GST invoice and delivery across India.

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB AL40-30-10 24 V DC Contactor · 1SBL323001R8110 · 1SBL323001R8110
Device typeMiniature circuit breaker (MCB)
Poles3-pole
Reference standardIS/IEC 60898-1
BrandABB
Brand SKU1SBL323001R8110
ELINE74G47CHHK
Sold asPer pc
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
How do I choose a contactor for my motor?

Select by the contactor's AC-3 current (or kW) rating at your supply voltage, which should be at least the motor's full-load current from the nameplate. Do not go by the higher AC-1 rating, which applies only to resistive loads (contactors are covered by IS/IEC 60947-4-1).

What is the difference between AC-1 and AC-3 rating?

AC-1 is for non-inductive or slightly inductive loads like heaters, while AC-3 is for starting and stopping squirrel cage motors. The same contactor has a much lower AC-3 rating than AC-1, and AC-4 (inching or plugging) is even more demanding.

Does a contactor protect the motor?

No. A contactor only switches the motor on and off; overload protection needs a thermal overload relay and short-circuit protection needs an MPCB, MCB, MCCB or fuses upstream.

Why is my contactor humming or chattering?

Common causes are low or fluctuating control voltage, a wrong coil voltage, dust or rust on the magnet faces, or a broken shading ring. Check the supply at the coil terminals first, then clean or replace the contactor if needed.

How many auxiliary contacts does this have and can I add more?

Most contactors have built-in auxiliary contacts (NO and/or NC) for holding and interlocking circuits, and many allow add-on auxiliary blocks on the front or side. Check the contact configuration and add-on compatibility in the product details.

How many contactors do I need for a star-delta starter?

A star-delta starter uses three contactors (main, delta and star), a star-delta timer and an overload relay. The main and delta contactors are typically sized at about 58% of the motor current and the star contactor smaller, as per the manufacturer's selection table.
