Legrand Allzy 1-way Switch · with Indicator · 6 A · 1 M · Matt Black · 681202: Elume price today ₹83 per pc incl. GST, 32% below the ₹122 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹67, the same as here. The lowest tracked seller lists it at ₹67, ₹16 below it (tell us and we match it).

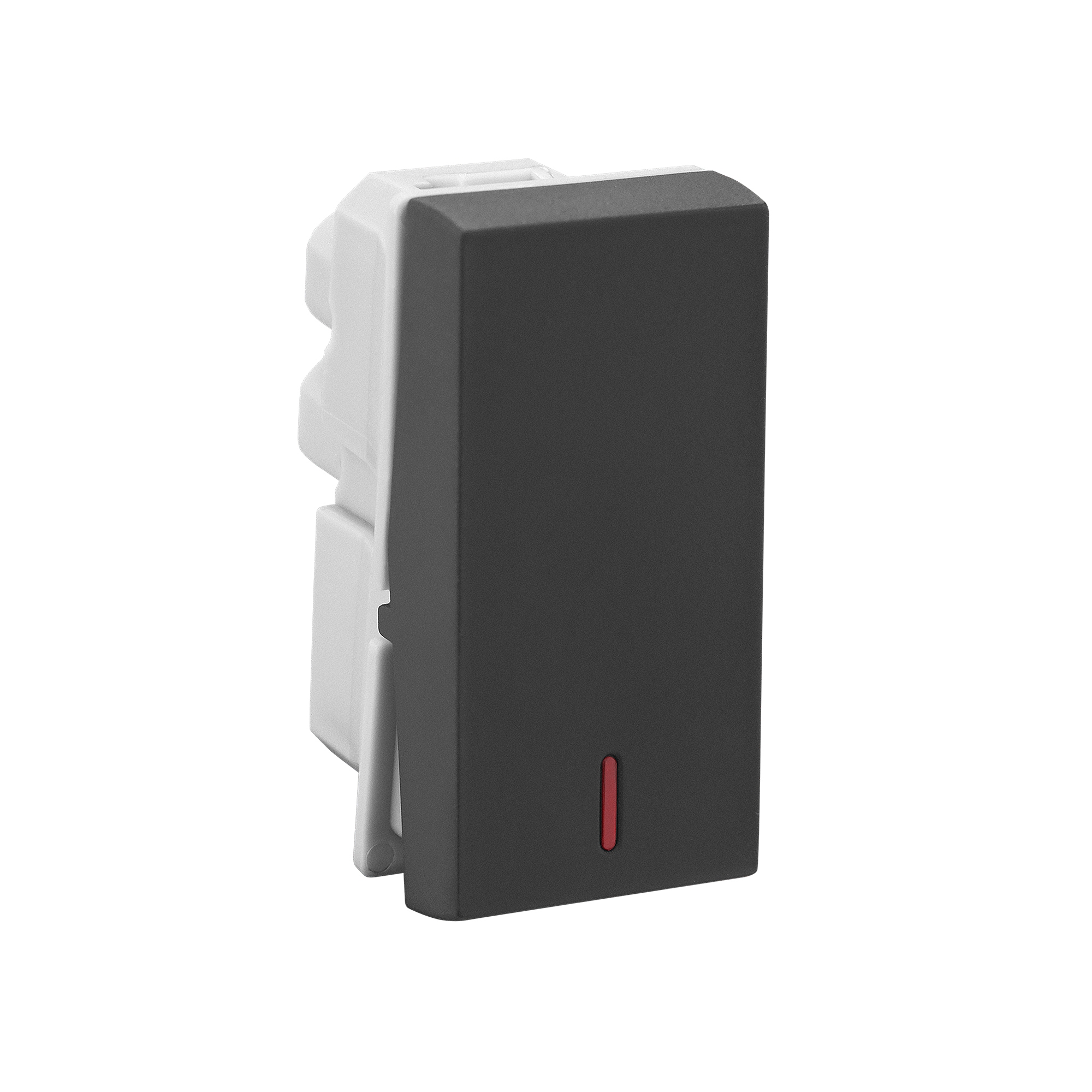

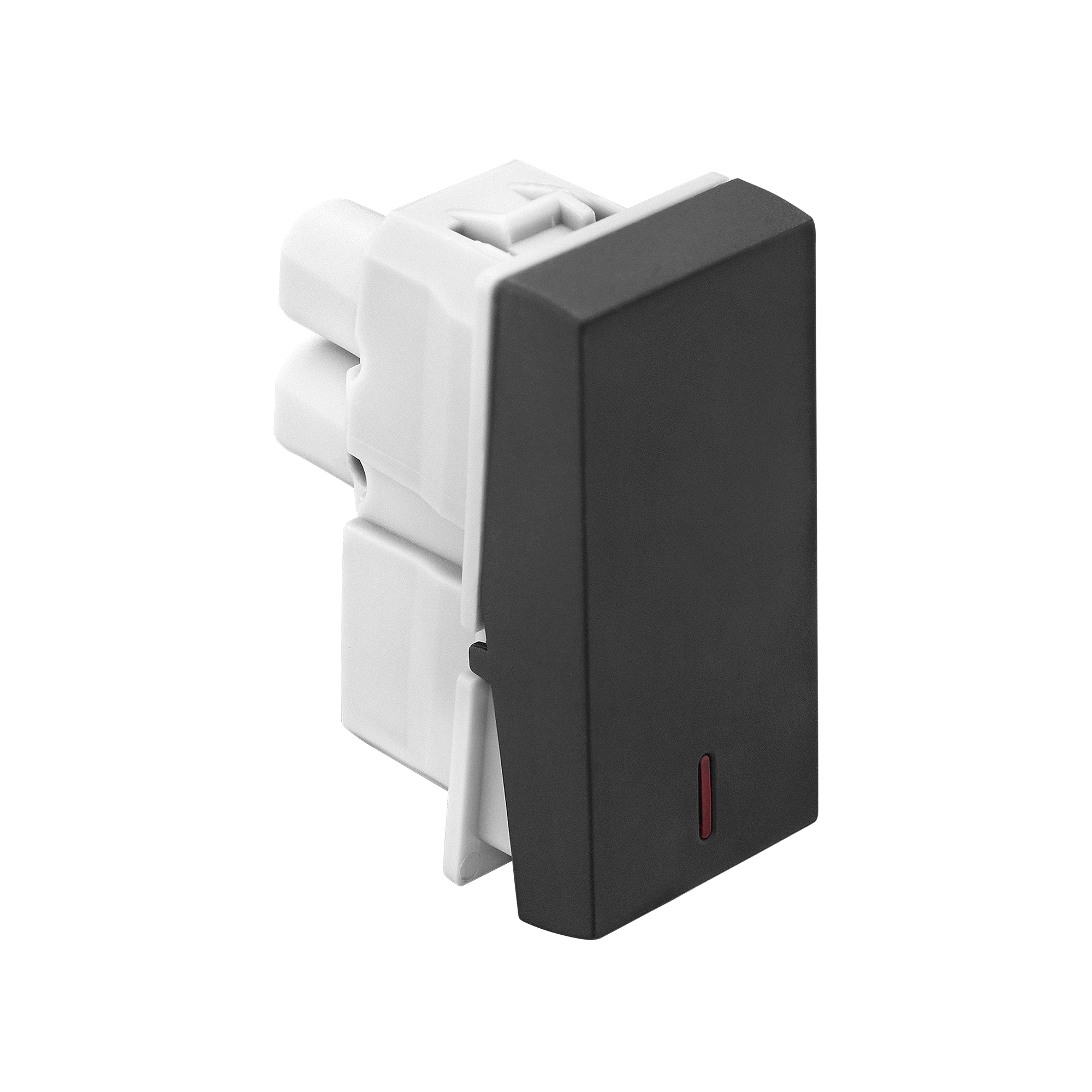

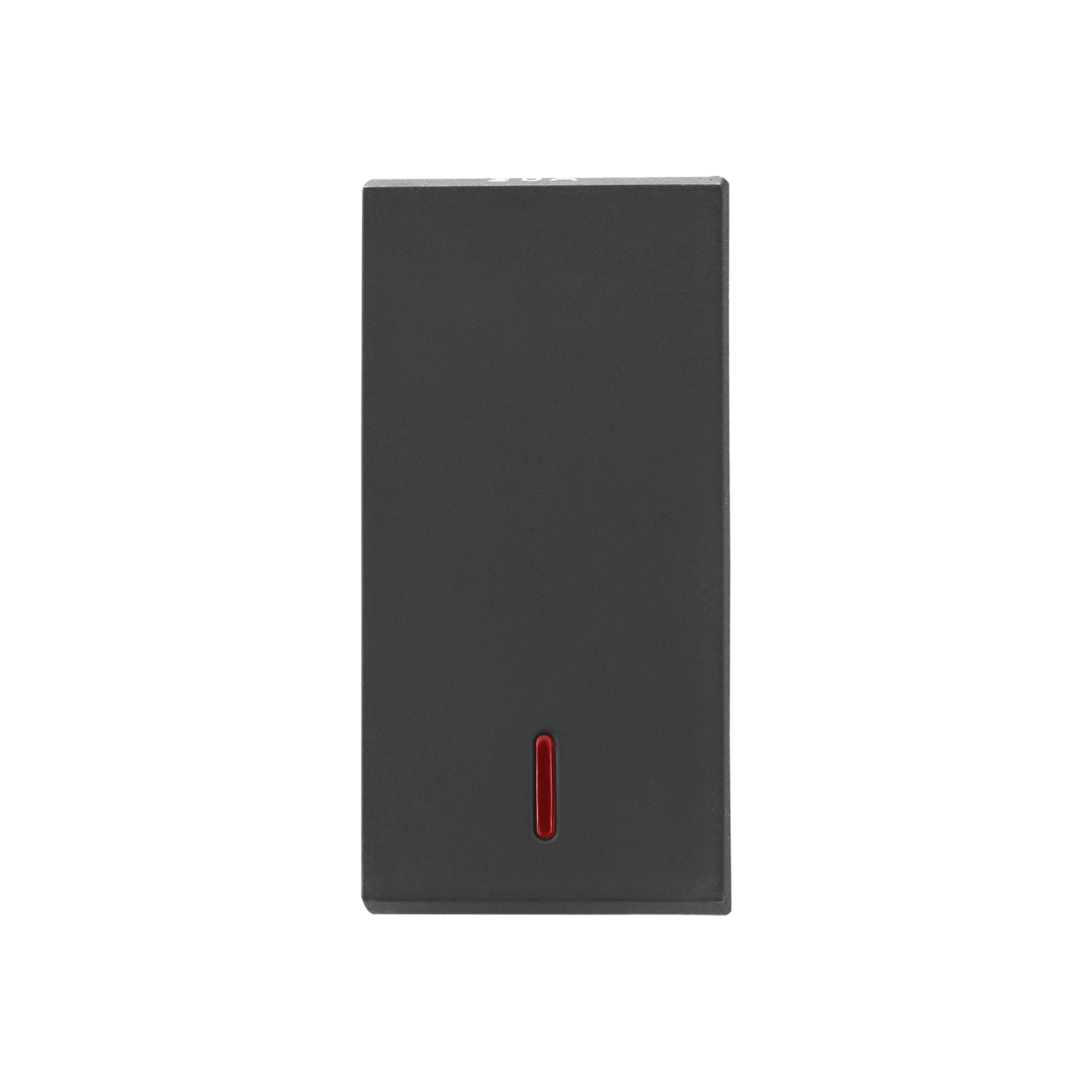

The Allzy range CAT number 681202 is a 6AX Switch 1 Way SP 1M with an indicator in matt black, designed for general lighting control. This single-pole, one-way switch occupies one module and can be mounted both flush and surface-mounted, offering installation flexibility. The overall dimensions are 22.5 mm in width, 45 mm in height, and 45 mm in depth, with a weight of 16.6 grams. The connection is facilitated through terminals with screws, supporting a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and includes an electronic LED indicator. Material characteristics include a polycarbonate rocker and lens, polypropylene base and transmitter, brass contact and pivot terminals, steel screws with zinc plating, stainless steel rocker spring, polycarbonate plunger, and a bi-metal (Cu+AgNi) contact tip. Electrically, it supports a voltage of 230V AC and a current of 6AX, with self-extinguishing properties at 850°C for 30 seconds. The switch conforms to the Indian standard IS 3854:1997, ensuring high quality and reliability.
6A switches are for lights, fans and small sockets. Use a 16A switch for heavy appliances such as an AC, geyser, microwave or room heater, usually paired with a 16A socket on a 2.5-4 sq mm circuit.
Modular switches generally fit only the plates and frames of the same brand and series, because the clip design and module width differ. If you are replacing only switches, check the series of your existing plates first.
A 1-way switch controls a light from one place. A 2-way switch is used in pairs to control the same light from two places, such as the top and bottom of a staircase or both ends of a corridor.
A standard switch takes 1 module. Larger items like 16A sockets, fan regulators and some USB chargers take 2 modules, so count modules before choosing the plate size.
Some switches have a built-in neon or LED indicator that glows when on or off, which helps locate them in the dark. Check the product details; otherwise a separate indicator module can be added.
Switches for household use in India are made to IS 3854 and should carry the ISI mark. Look for flame-retardant polycarbonate housings and silver alloy contacts for a longer life.
