Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B102BDSR3B102BD↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Specification10 I O · 24 V DC · clock · display
Brand SKUSR3B102BD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

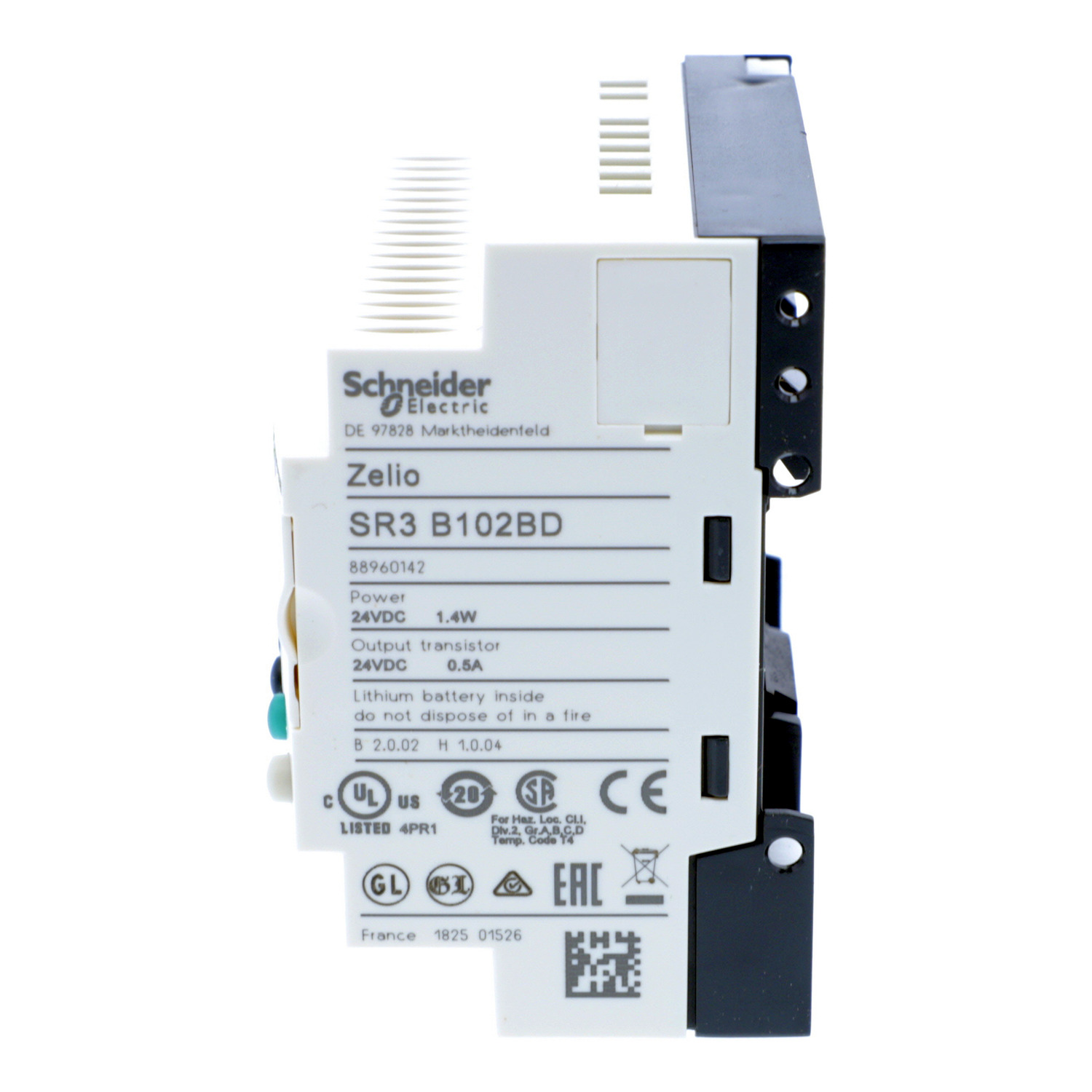

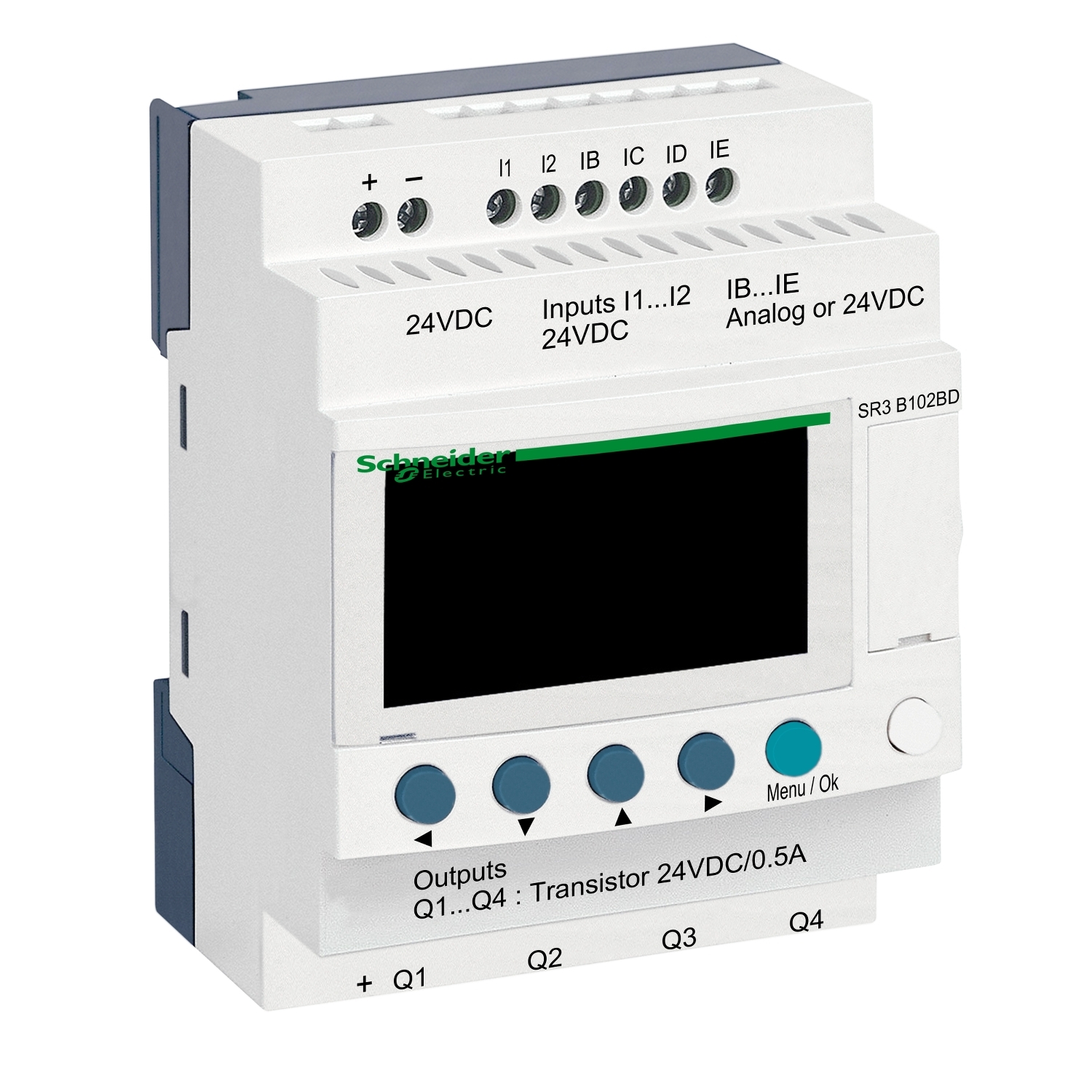

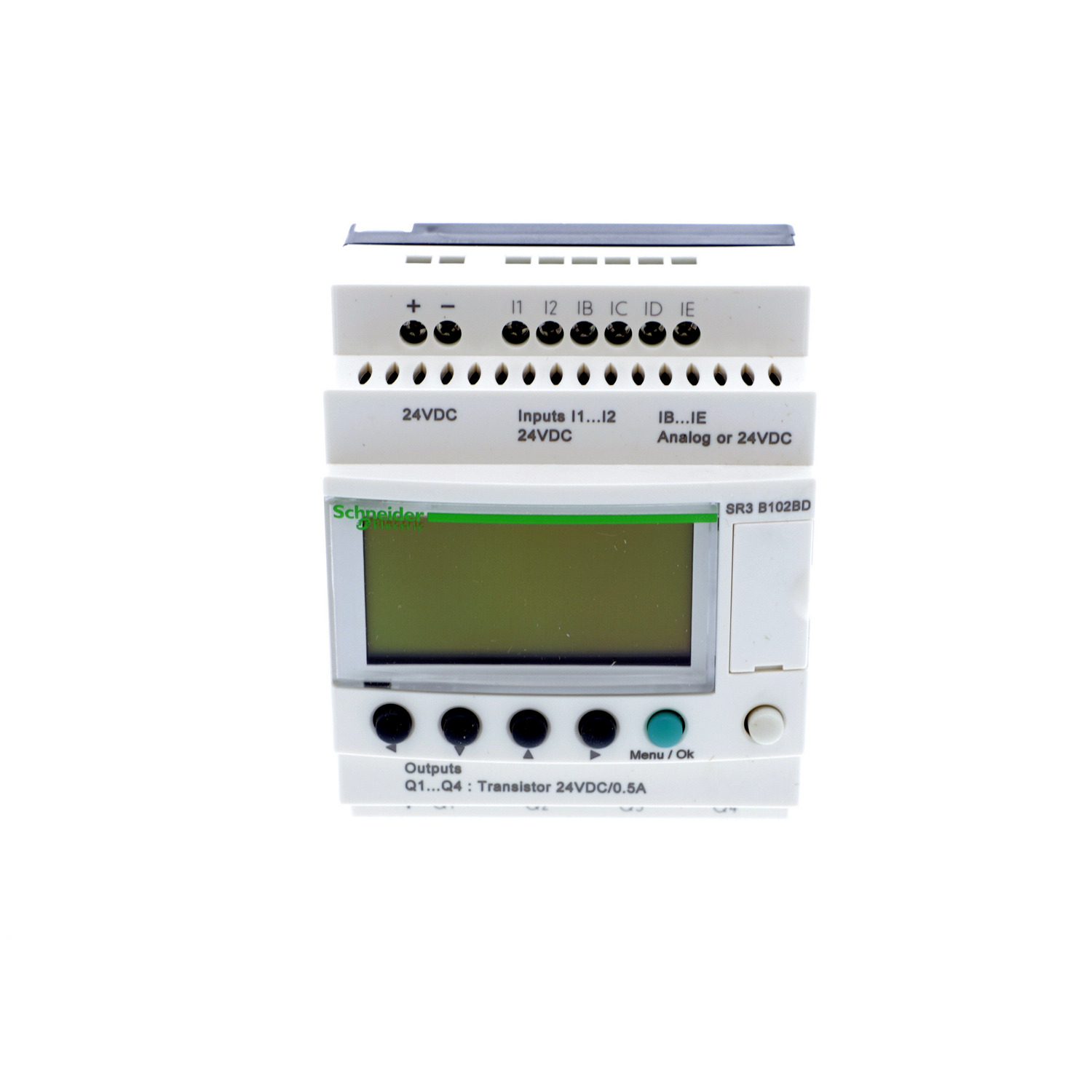

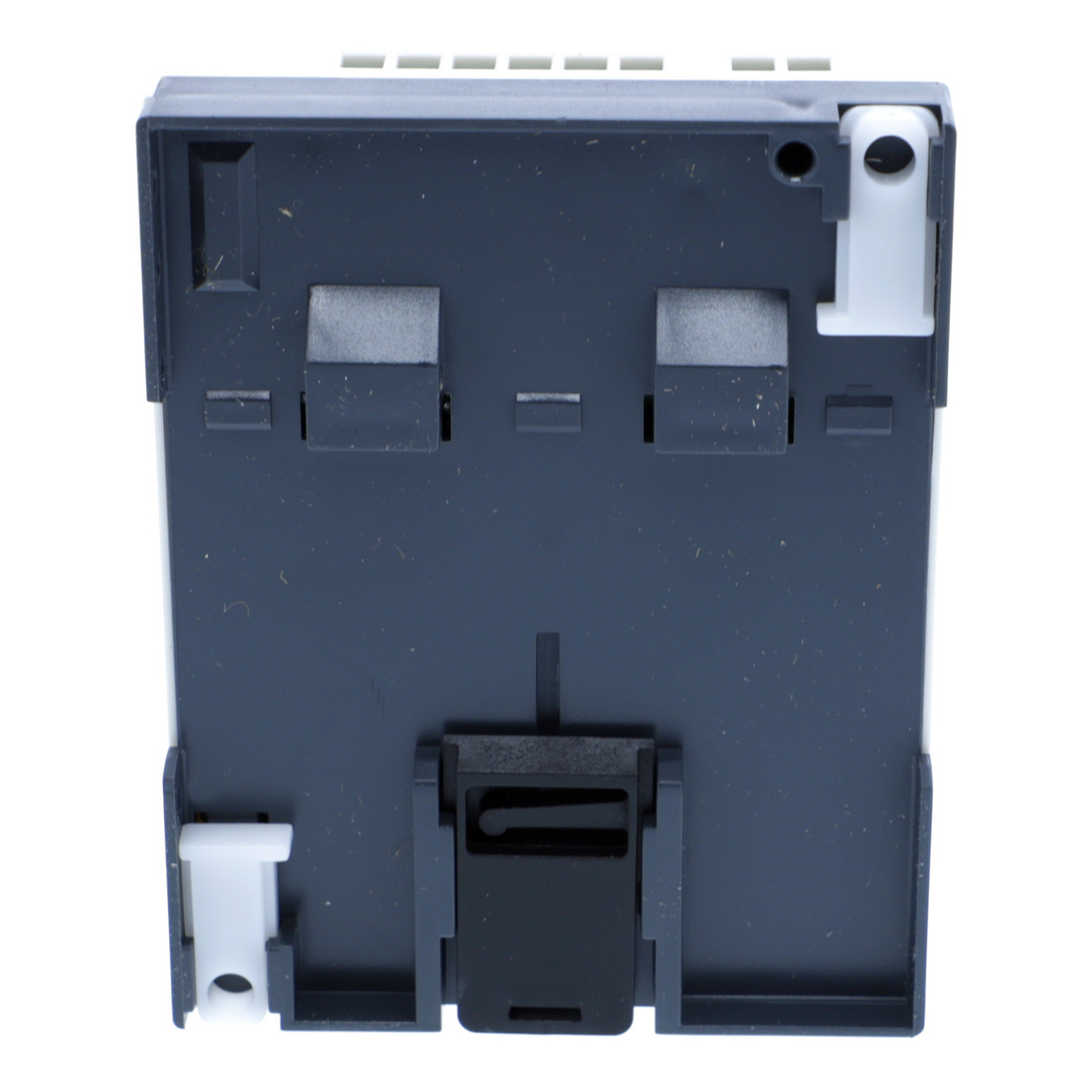

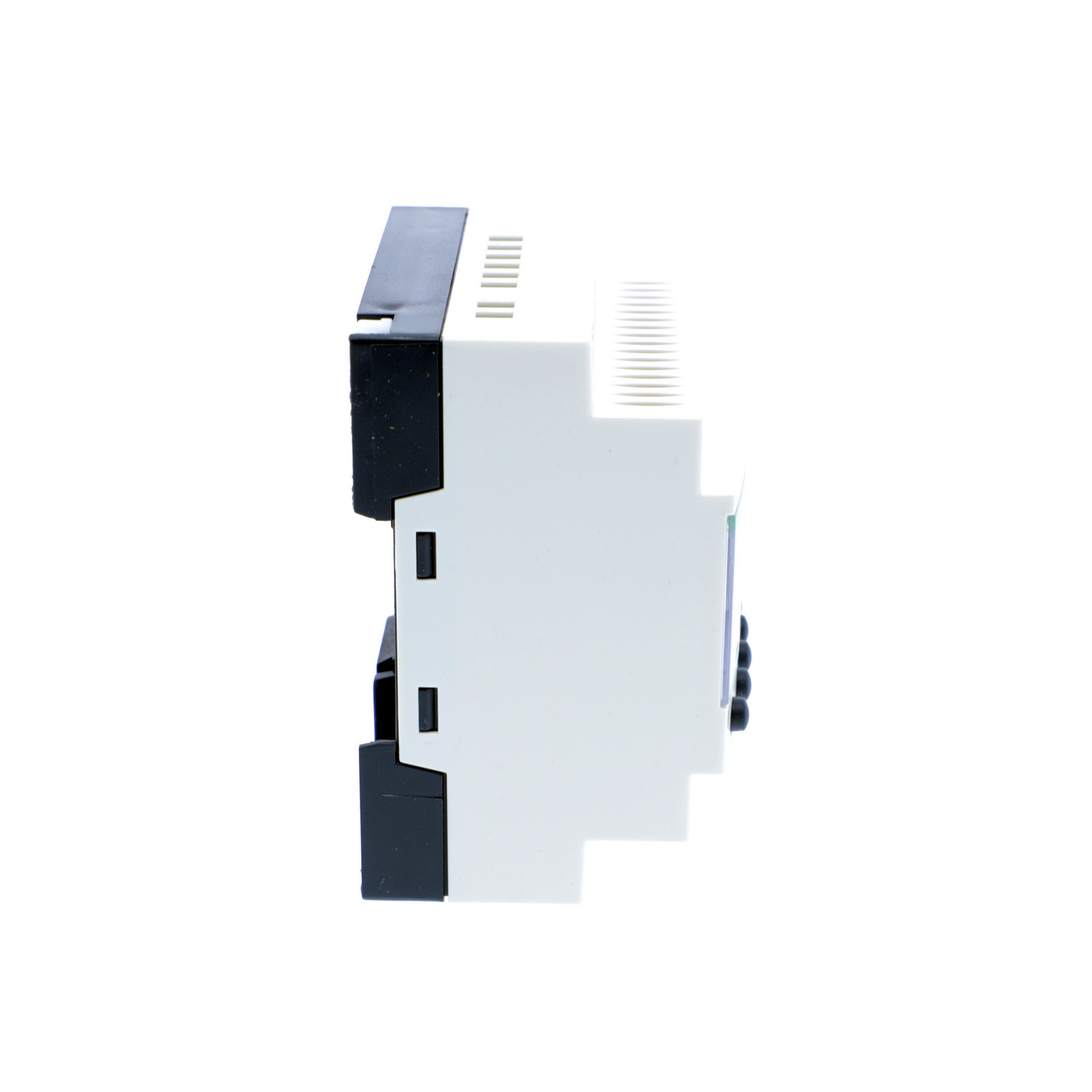

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B102BD

NEW added this week
₹26,216/pcincl. GST-1%
₹22,217 + 18% GST · MRP ₹26,480
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹26,216 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B102BD: Elume price today ₹26,216 per pc incl. GST, 1% below the ₹26,480 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹28,334₹27,345₹26,357₹25,369₹24,381₹26,480₹26,216
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹26,216
MRP
₹26,480
Lowest in view · 17 Oct
₹26,216
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹24,905/pc on this product

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 up to 40 I/Os. It is a modular smart relay with 6 digital inputs, 4 analog outputs, 4 relay outputs, and a display. It is a 24VDC modular smart relay. This modular smart relay provides a real alternative to solutions based on cabled logic or specific cards. It is equipped with a display and a clock. It is programmed with Zelio Soft 2 software. The programming language is FBD or LADDER. It is an P20 (terminal block) and IP40 (front panel) rated product. It weighs 0.22kg. This product is certified by GL, C-Tick, GOST, UL and CSA. It is compatible with memory cartridge, I/O extension modules and communication modules (GSM or UMTS modem, Modbus serial link, Ethernet Modbus/TCP). It is delivered in 1 package (PCE type). It mounts on a 35mm DIN rail. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards. Zelio Logic is simple to select, install, and program, and suitable for all your applications.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B102BD · SR3B102BD
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 60068-2-27 Ea
Net weight0.22 kg
BrandSchneider
Brand SKUSR3B102BD
ELINEPM2626C3R
Sold asPer pc
ClockWith
ChecksProgram memory on each power up
LSB value39 mV for analogue input circuit
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C · 6 s/month at 25 °C
Load current0.5…0.625 A transistor output
Local displayWith
Response time<= 1 ms (from state 0 to state 1) for transistor output · <= 1 ms (from state 1 to state 0) for transistor output
Output voltage24 V transistor output
Conversion timeSmart relay cycle time for analogue input circuit
Input impedance12 kOhm for IB...IG used as analogue input circuit · 12 kOhm for IB...IG used as discrete input circuit · 7.4 kOhm for I1...IA and IH...IR discrete input circuit
Repeat accuracy+/- 2 % at 55 °C for analogue input circuit
Conversion error+/- 5 % at 25 °C for analogue input circuit · +/- 6.2 % at 55 °C for analogue input circuit
Range of productZelio Logic
Number of outputs4 transistor
Counting frequency1 kHz for discrete input
Operating distance10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
Analogue input typeCommon mode
Discrete input typeResistive
Input compatibility3-wire proximity sensors PNP for discrete input
Overload protectionWith overload protection for transistor output
Analogue input range0...10 V · 0...24 V
Analogue input number4
Discrete input number6 conforming to IEC 61131-2 Type 1
Output voltage limits19.2...30 V DC (transistor output)
Supply voltage limits19.2…30 V
Discrete input current4 mA
Discrete input voltage24 V DC
Maximum supply current160 mA (with extensions) · 50 mA (without extension)
Overvoltage protectionWith overvoltage protection for transistor output
Power dissipation in W4 W without extension · 8 W with extensions
Temperature probe typeNTC 10k at 25 °C · NTC 1000k at 25 °C · KTY81 210/220/221/222/250 · Pt 500
[Ures] residual voltage2 V at state 1 transistor output
Short-circuit protectionWith transistor output
Analogue input resolution8 bits
Product or component typeModular smart relay
[Us] rated supply voltage24 V
Current state 0 guaranteed<= 0.5 mA (IB...IG used as discrete input circuit) · <= 0.75 mA (I1...IA and IH...IR discrete input circuit)
Current state 1 guaranteed>= 1.2 mA (IB...IG used as discrete input circuit) · >= 2.2 mA (I1...IA and IH...IR discrete input circuit)
Voltage state 0 guaranteed<= 5 V for I1...IA and IH...IR discrete input circuit · <= 5 V for IB...IG used as discrete input circuit
Voltage state 1 guaranteed>= 15 V for I1...IA and IH...IR discrete input circuit · >= 15 V for IB...IG used as discrete input circuit
Maximum permissible voltage30 V for analogue input circuit
Reverse polarity protectionWith
Number or control scheme lines0…500 with FBD programming · 0…240 with ladder programming
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
