Legrand DX3 RCCB · 2P (DP) · 25 A · 300 mA · Type A S · 411866411866↓ 31% off MRP1 / 3
BrandLegrand
CategorySwitchgear
SpecificationResidual current circuit breaker · 2P (DP) · 25 A · 300 mA · Type A S
Brand SKU411866
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
Legrand· In stock
Visit the Legrand store

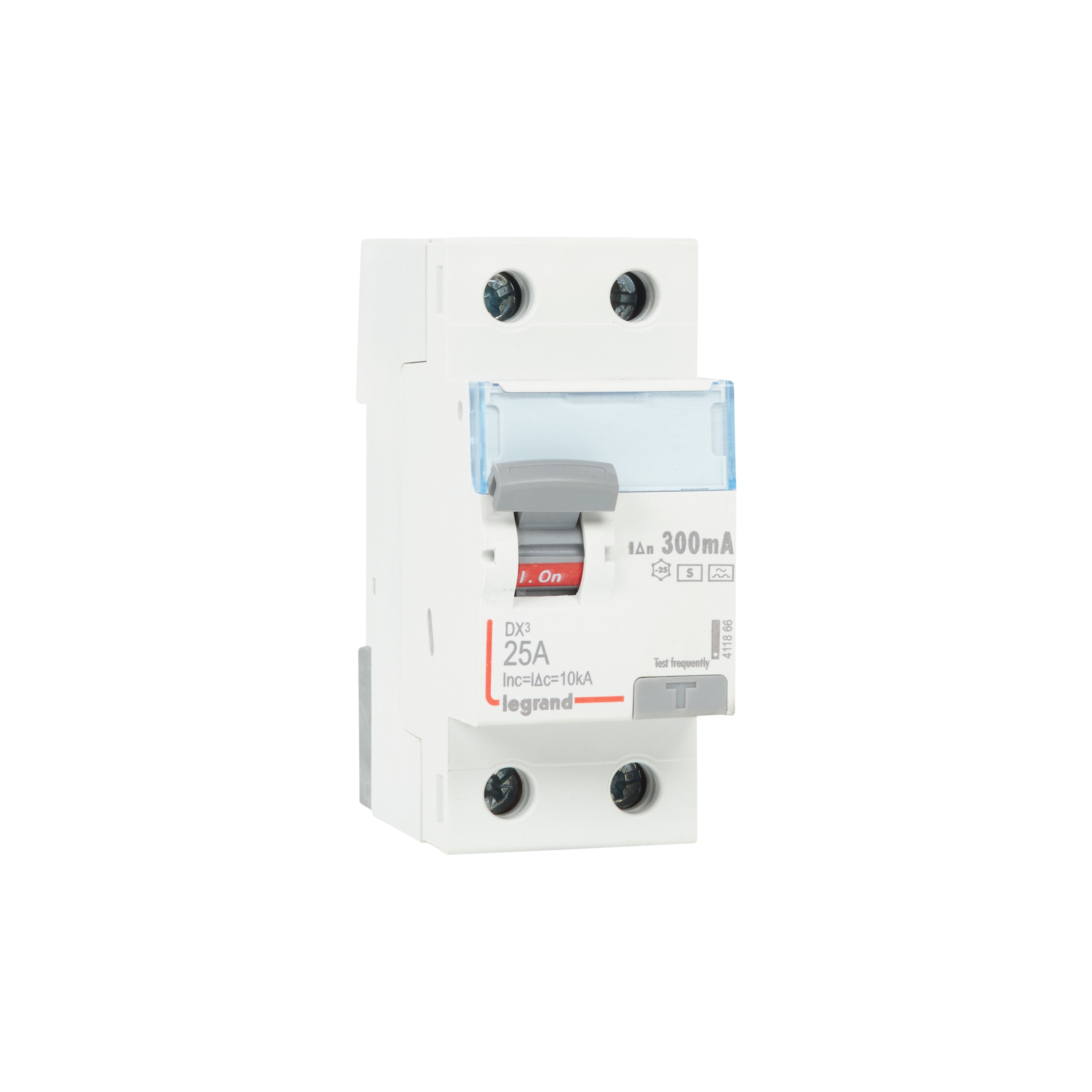

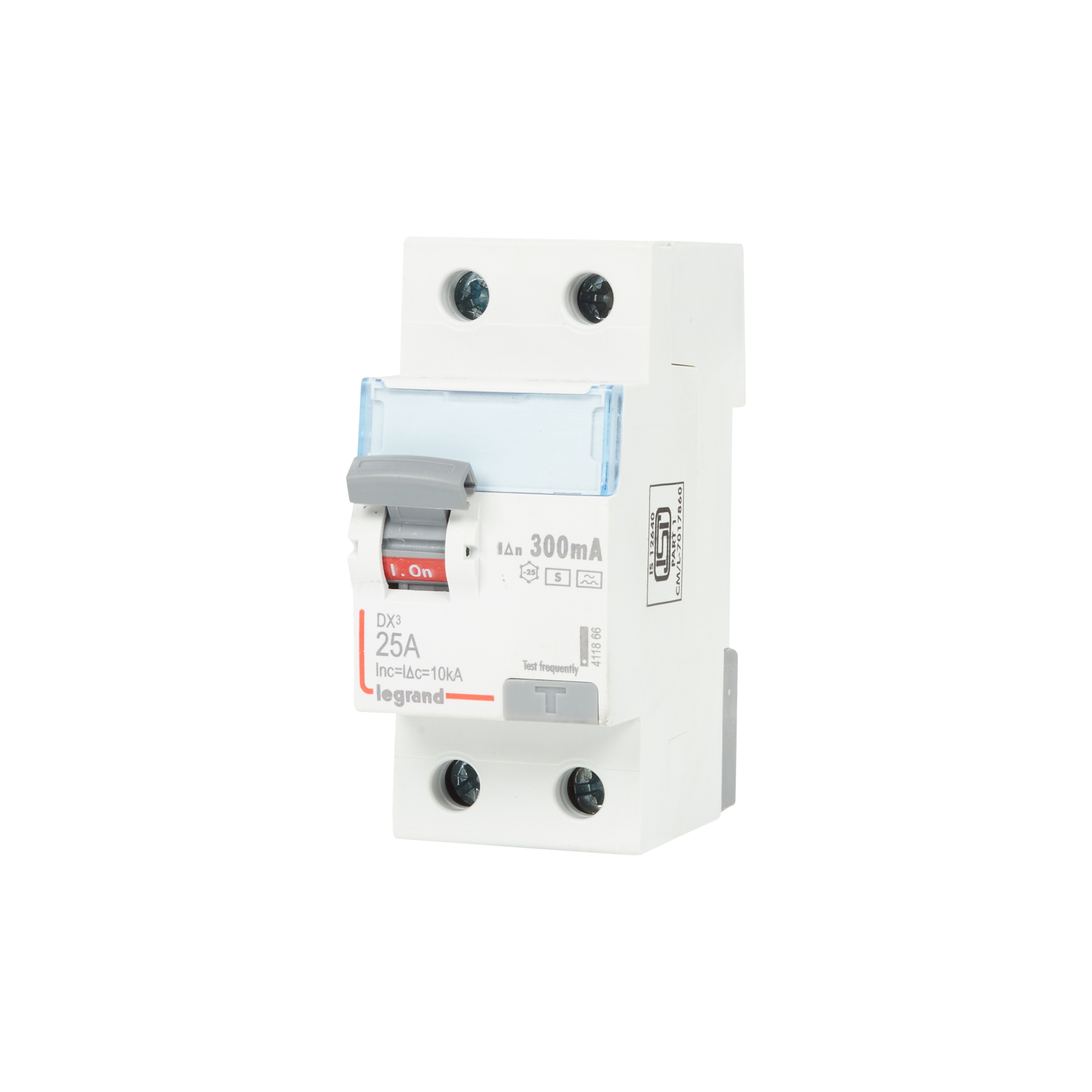

Legrand DX3 RCCB · 2P (DP) · 25 A · 300 mA · Type A S · 411866

₹7,827/pcincl. GST-31%
₹6,633 + 18% GST · MRP ₹11,323
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹7,827 /pc incl. GST
Free pan-India delivery

Legrand DX3 RCCB · 2P (DP) · 25 A · 300 mA · Type A S · 411866: Elume price today ₹7,827 per pc incl. GST, 31% below the ₹11,323 MRP. Today's price is the lowest of the last 30 days (high ₹7,828). The average price across the sellers we track is ₹6,325, ₹1,502 less than here. The lowest tracked seller lists it at ₹6,325, ₹1,502 below it (tell us and we match it).

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
24 Aug to 22 Nov
₹15,145₹12,815₹10,484₹8,154₹5,824₹11,323₹7,827₹6,325
24 Aug11 Sep29 Sep17 Oct4 Nov22 Nov
Elume today
₹7,827
Avg market price
₹6,325
MRP
₹11,323
Lowest in view · 7 Oct
₹6,262
Highest in view · 23 Oct
₹7,828
Same key specifications, different brands - matched on spec, never on looks. Tap a product to open it.Full comparison page →
Product
Type
Poles
Rating
Curve
Sensitivity
Price
RCCB · Type A
2P / 1P+N (single phase)
25 A
n/a
300 mA
₹6,633 +GST /pc
₹7,827 incl. GST
Viewing above ↑
RCCB
2P / 1P+N (single phase)
25 A
n/a
300 mA
₹2,522 +GST /pc
₹2,976 incl. GST
RCCB
2P / 1P+N (single phase)
25 A
n/a
300 mA
₹3,848 +GST /pc
₹4,541 incl. GST
RCCB · Type A
2P / 1P+N (single phase)
25 A
n/a
300 mA
₹4,751 +GST /pc
₹5,606 incl. GST
RCCB · Type A
2P / 1P+N (single phase)
25 A
n/a
300 mA
₹7,437 +GST /pc
₹8,776 incl. GST
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹7,436/pc on this product, applied automatically

Legrand DX3-DP 25A 300MA A-S TYPE DX3 RCCB

As published by Legrand. Verify critical parameters against the datasheet before specifying.
Legrand Legrand DX3 RCCB · 2P (DP) · 25 A · 300 mA · Type A S · 411866 · 411866
Device typeResidual current circuit breaker (RCCB)
SeriesDX3
Poles2P (DP)
Rated current25 A
Sensitivity (IΔn)300 mA
RCCB typeType A (S)
Warranty5 years if mounted inside Legrand DB
Country of originIndia
Current rating25 A
Sensitivity300 mA
Reference standardIS 12640-1 / IEC 61008
BrandLegrand
Brand SKU411866
ELINEM2K9P9HMH
Sold asPer pc
Product Code411866
Product featuresType:S Rated Current:25A No. of Poles:2P Rated Voltage:415V,A-S
Product Width (mm)35.6
Mechanism / AccessoriesMechanism
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
The letter after the sensitivity says which earth-fault currents the breaker can sense. Every type trips on a plain AC leak; the higher types also catch the leaks electronics produce. Same rating, different type, different price.
Type AC
Senses sinusoidal AC leakage only. Enough for lighting, geysers, heaters and plain socket circuits.
Type A
THIS UNIT
Senses AC and pulsating DC leakage, the kind inverter air conditioners, washing machines, UPS units, solar inverters and EV chargers produce. A Type AC unit can stay blind to those faults. Covers everything Type AC does. The safe default for a modern home.
Type A APR
Type A with high immunity to nuisance tripping: a short delay rides through lightning surges and switching transients. For circuits where a false trip costs more than the delay: servers, refrigeration, long cable runs.
Sensitivity is a separate choice: 30 mA protects people from shock; 100 mA and 300 mA units are for fire protection or as an upstream main. Type definitions per IEC/EN 61008 and 61009.
Other Legrand ranges and models in this category, closest in price to this one.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
Is 30mA or 100mA RCCB right for home?

For protecting people from shock, use 30mA on circuits feeding sockets, bathrooms, kitchens and outdoor points. 100mA or 300mA RCCBs are mainly for fire protection and are often used upstream as a main device, with 30mA protection on the final circuits.

Does an RCCB need an MCB with it?

Yes. An RCCB only detects earth leakage and does not protect against overload or short circuit, so it must be backed up by an MCB or fuse of a rating given in the manufacturer's data (RCCBs are covered by IS 12640 (Part 1)).

Why does my RCCB keep tripping?

Common causes are genuine leakage from a faulty appliance (often a geyser element, pump or washing machine), moisture in wiring, neutral of one circuit being shared with another, or many electronic loads adding up their small leakages. Switch off all MCBs and turn them on one by one to find the culprit circuit, and have an electrician test insulation; never bypass the RCCB.

What is the difference between Type AC and Type A RCCB?

Type AC detects only sinusoidal AC leakage, while Type A also detects pulsating DC leakage produced by electronic loads like inverter ACs, washing machines, induction cooktops and LED drivers. Type A is the safer choice for modern homes with many electronic appliances; EV chargers and VFDs may need Type B or a charger with built-in DC detection.

How often should I press the test button?

Manufacturers commonly recommend pressing the test button regularly, often once a month; check the interval in the product's instructions. The RCCB should trip immediately, and if it does not, have an electrician check and replace it.

What current rating RCCB do I need - 25A, 40A or 63A?

The RCCB's rated current should be equal to or higher than the MCB or main switch feeding it, because it must carry the full load current. Many Indian homes use 40A or 63A RCCBs at the incomer; for a single circuit, 25A is common.
