Schneider Harmony XAC XACA Control Station · IP65 · XACA681XACA681↓ 1% off MRP1 / 9
BrandSchneider
CategoryIndustrial Control
SpecificationIP65
Brand SKUXACA681
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XAC XACA Control Station · IP65 · XACA681

NEW added this week
₹16,671/pcincl. GST-1%
₹14,128 + 18% GST · MRP ₹16,840
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹16,671 /pc incl. GST
Free pan-India delivery

Schneider Harmony XAC XACA Control Station · IP65 · XACA681: Elume price today ₹16,671 per pc incl. GST, 1% below the ₹16,840 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹18,019₹17,390₹16,761₹16,133₹15,504₹16,840₹16,671
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹16,671
MRP
₹16,840
Lowest in view · 17 Oct
₹16,671
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹15,837/pc on this product

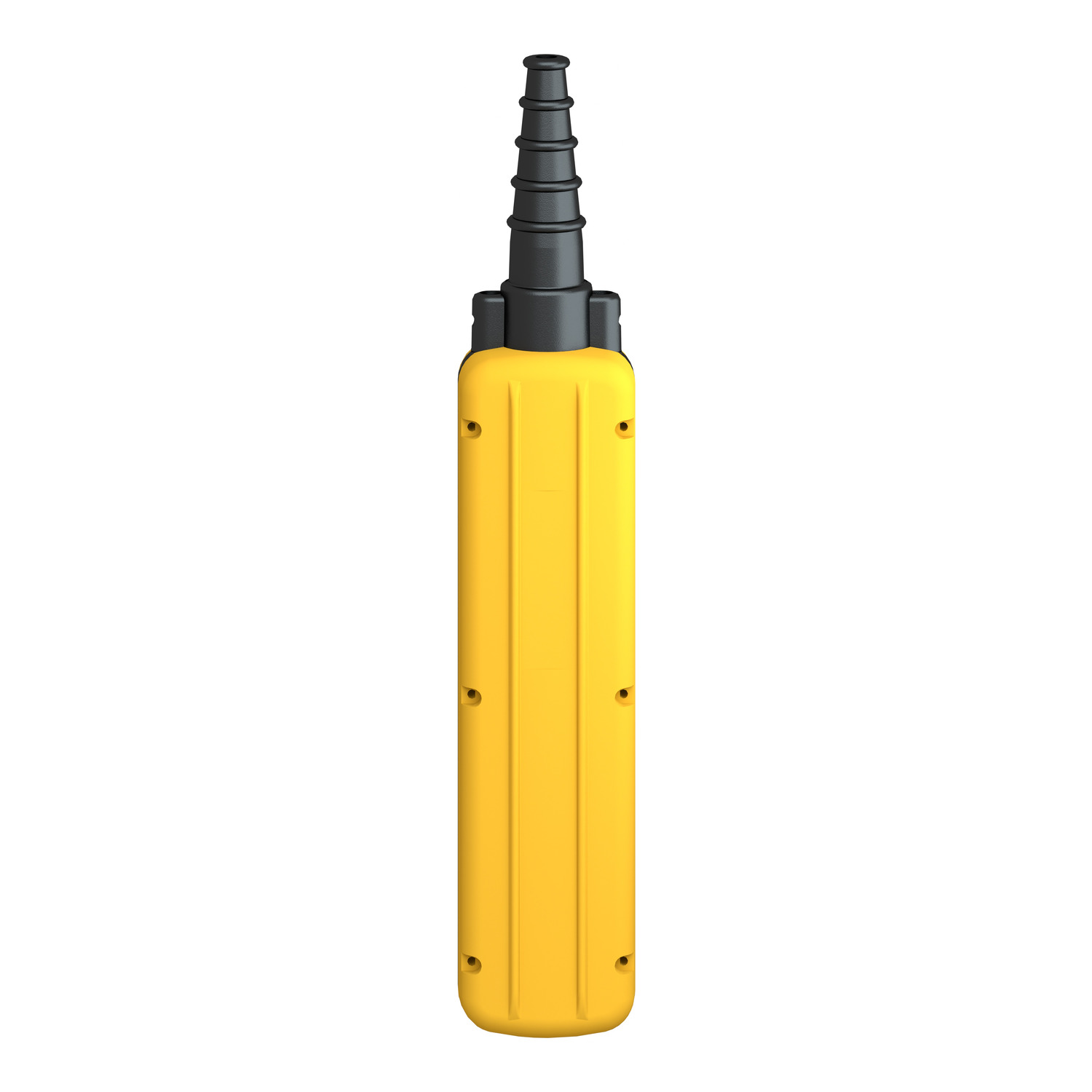

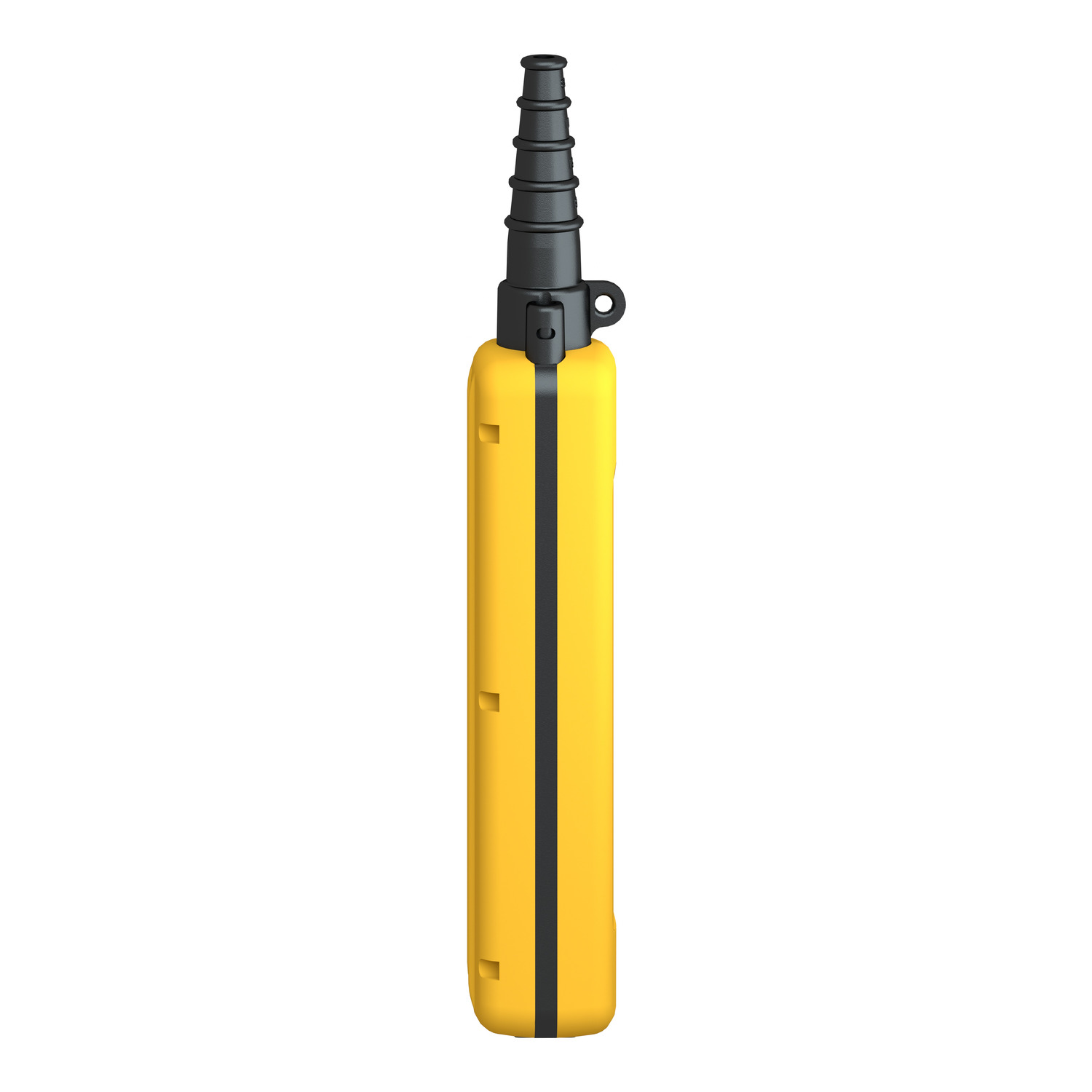

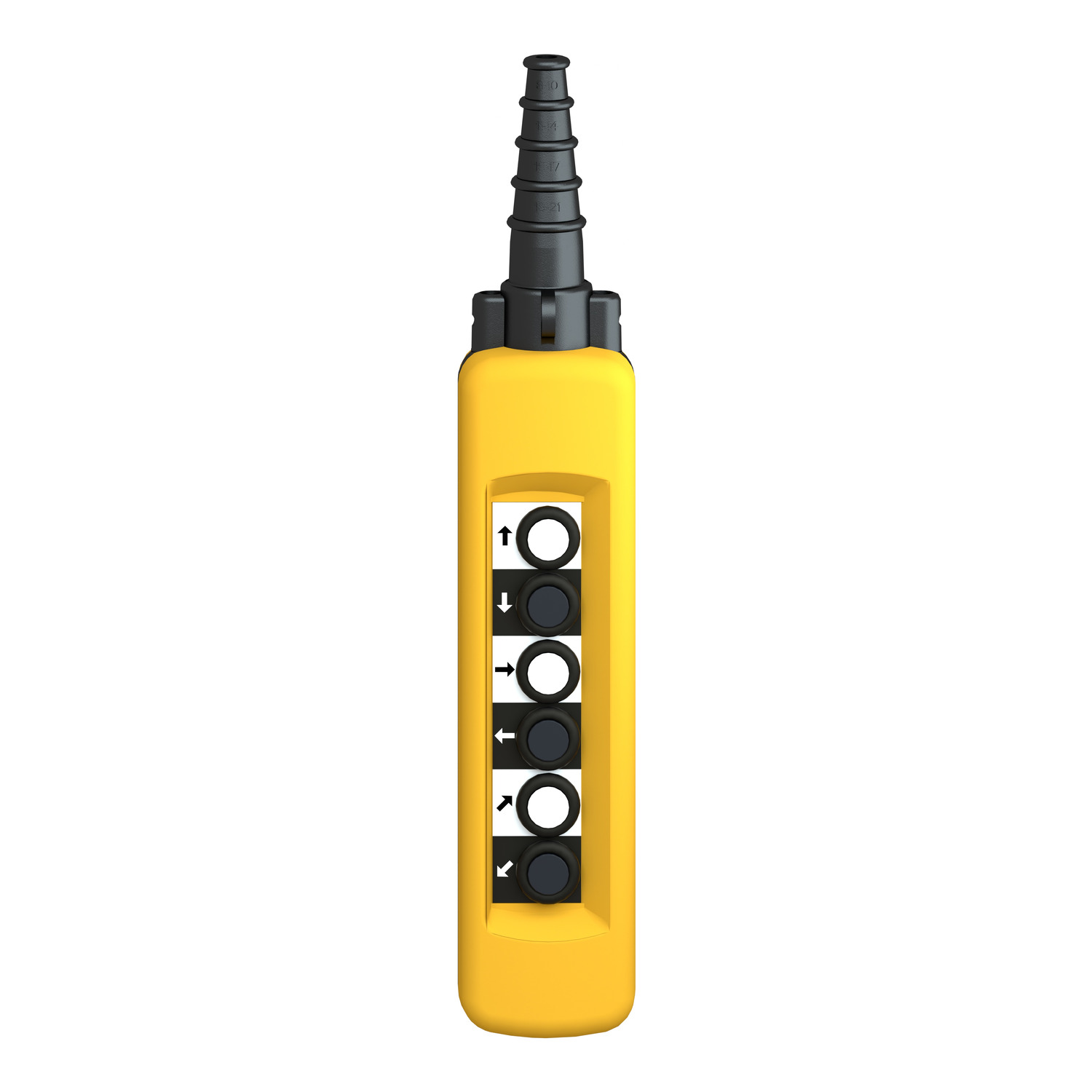

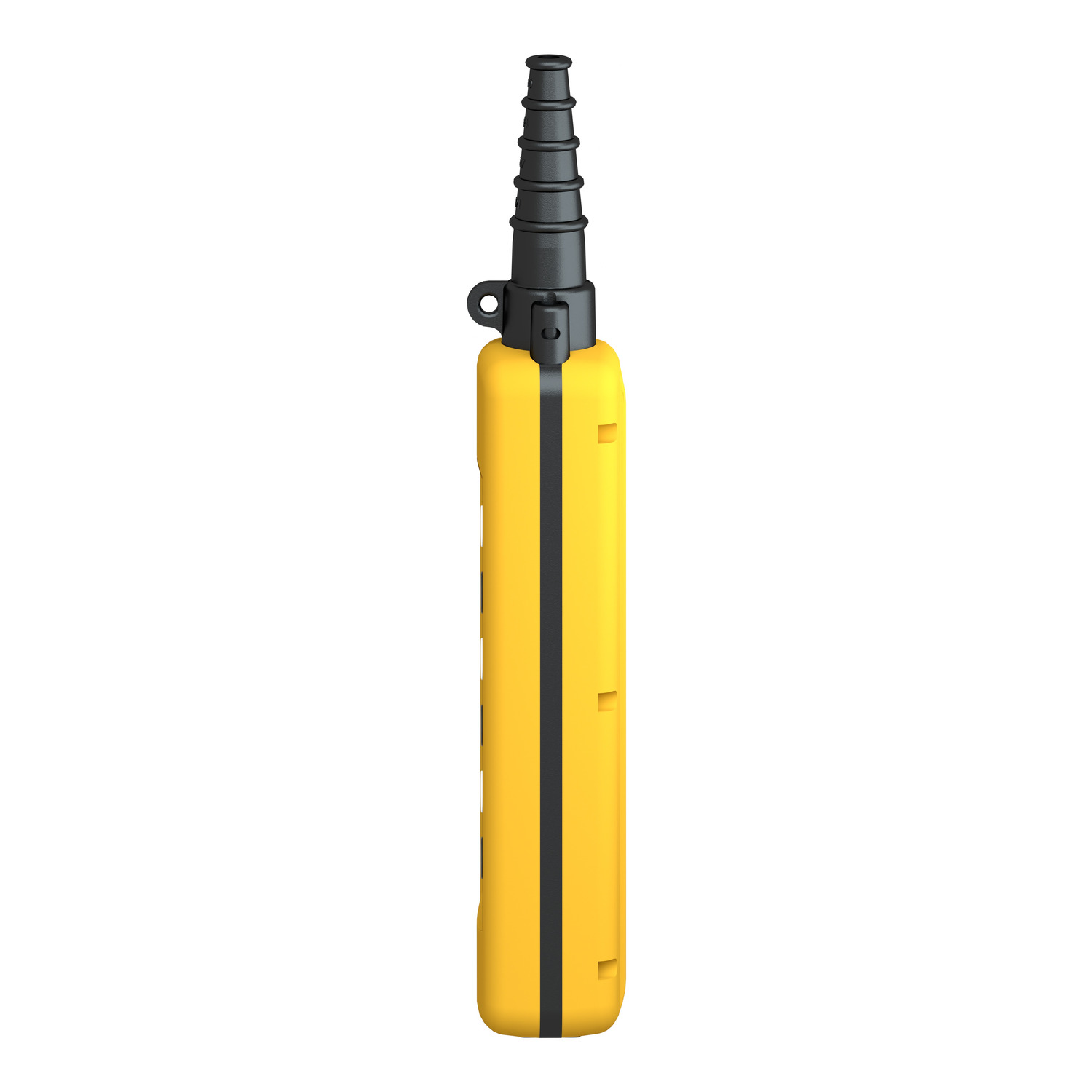

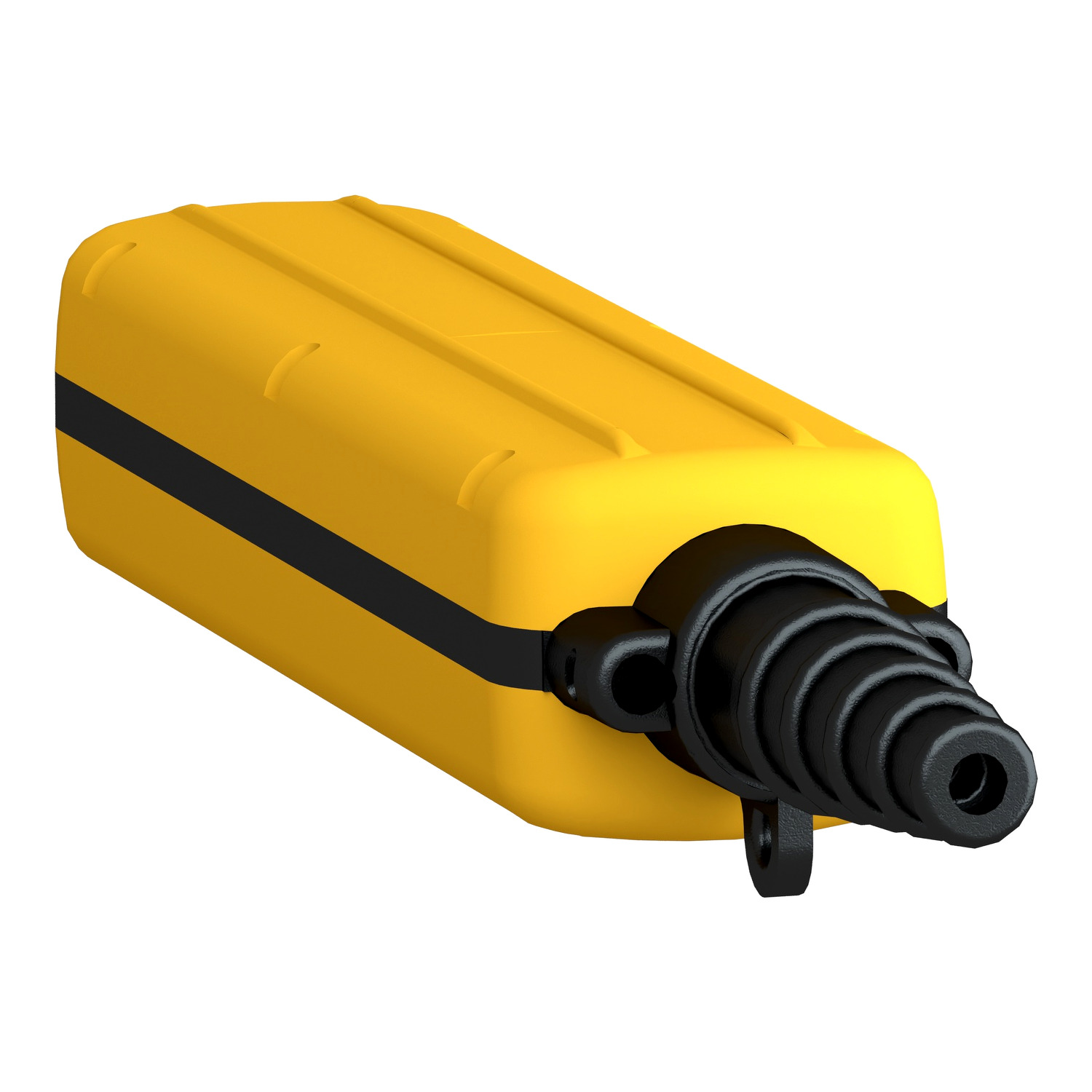

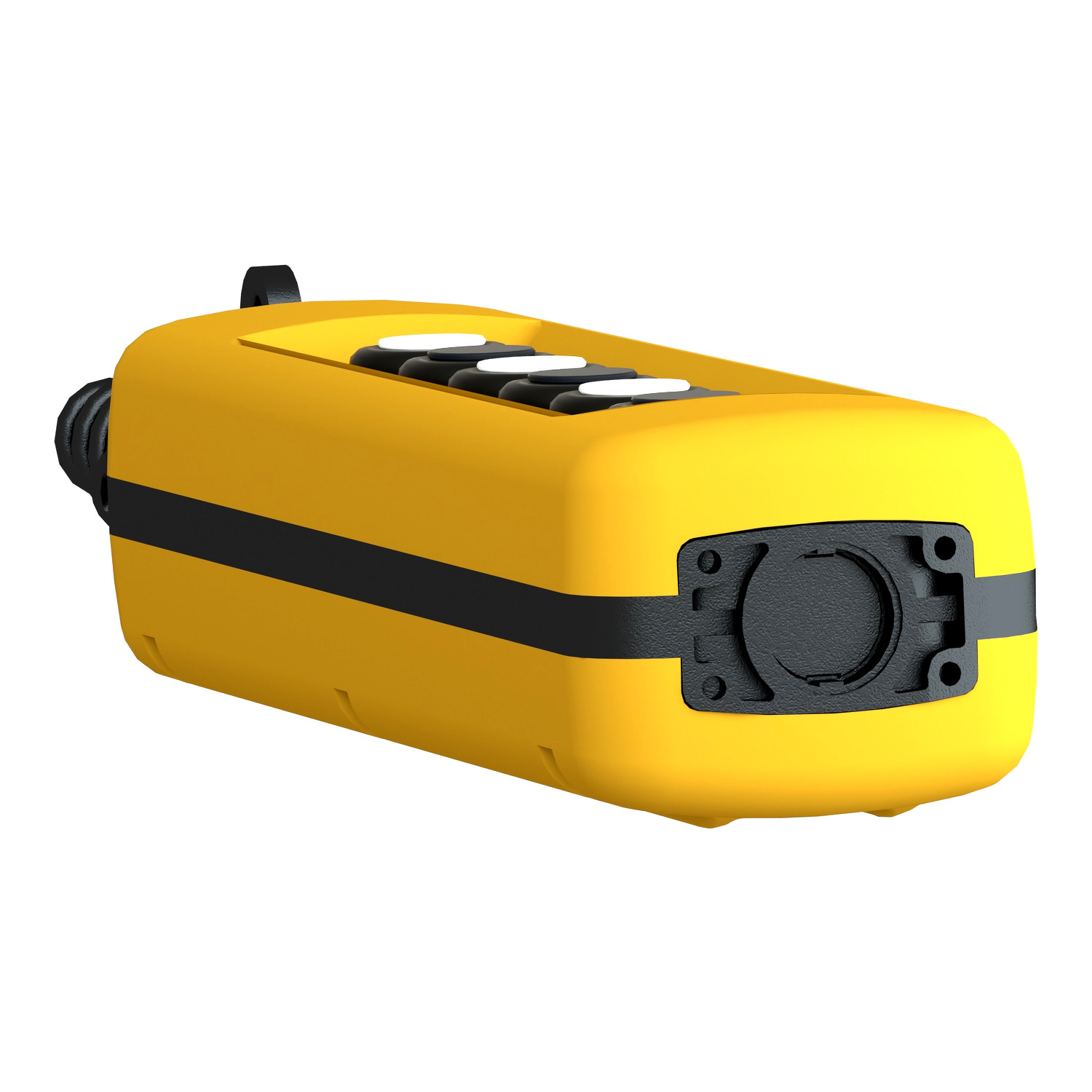

This Harmony XACA681 is a pendant control station with 6 push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XAC XACA Control Station · IP65 · XACA681 · XACA681
Ingress protectionIP65
Reference standardCSA C22.2 No 14
Net weight0.95 kg
BrandSchneider
Brand SKUXACA681
ELINEJRD67DHCM
Sold asPer pc
StandardsCSA C22.2 No 14
Cable entryRubber sleeve with stepped entry 8…26 mm
enclosure typeComplete ready for use
Operating force13 N push-button
Range of productHarmony XAC
Shock resistance100 gn conforming to IEC 60068-2-27
Contact operationSlow-break
Device short nameXACA
Enclosure materialPolypropylene
Control button typeFirst push-button 1 NC + 1 NO raise, slow
Terminal identifier(13-14)NO
Control station typeDouble insulated
Overvoltage categoryClass II conforming to IEC 61140
Protective treatmentTH
Vibration resistance15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Mechanical durability1000000 cycles
Product compatibilityZB2BE102 + ZB2BE101 for each direction
Control station colourYellow
Product certificationsCSA
Connections - terminalsScrew clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Electrical circuit typeControl circuit
IK degree of protectionIK08 conforming to IEC 62262
IP degree of protectionIP65 conforming to IEC 60529
Mechanical interlockingWith mechanical interlocking between pairs
Contact code designationQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Short-circuit protection10 A fuse protection by cartridge fuse type gG
Product or component typePendant control station
Control station applicationControl of single speed hoist motor
Control station composition6 push-buttons
Rated operational power in W40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
[Ui] rated insulation voltage500 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1(11-12)NC
Ambient air temperature for storage-40…70 °C
Maximum resistance across terminals25 MOhm
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current10 A
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
