Schneider Acti9 iPRI SPD · A9L16339A9L16339↓ 1% off MRP
BrandSchneider
CategorySwitchgear
SpecificationiPRI signal protection - 4 poles - 0.3A - 48 V
Brand SKUA9L16339
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 iPRI SPD · A9L16339

NEW added this week
₹29,782/pcincl. GST-1%
₹25,239 + 18% GST · MRP ₹30,083
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹29,782 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 iPRI SPD · A9L16339: Elume price today ₹29,782 per pc incl. GST, 1% below the ₹30,083 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹32,189₹31,066₹29,943₹28,820₹27,697₹30,083₹29,782
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹29,782
MRP
₹30,083
Lowest in view · 17 Oct
₹29,782
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹28,293/pc on this product

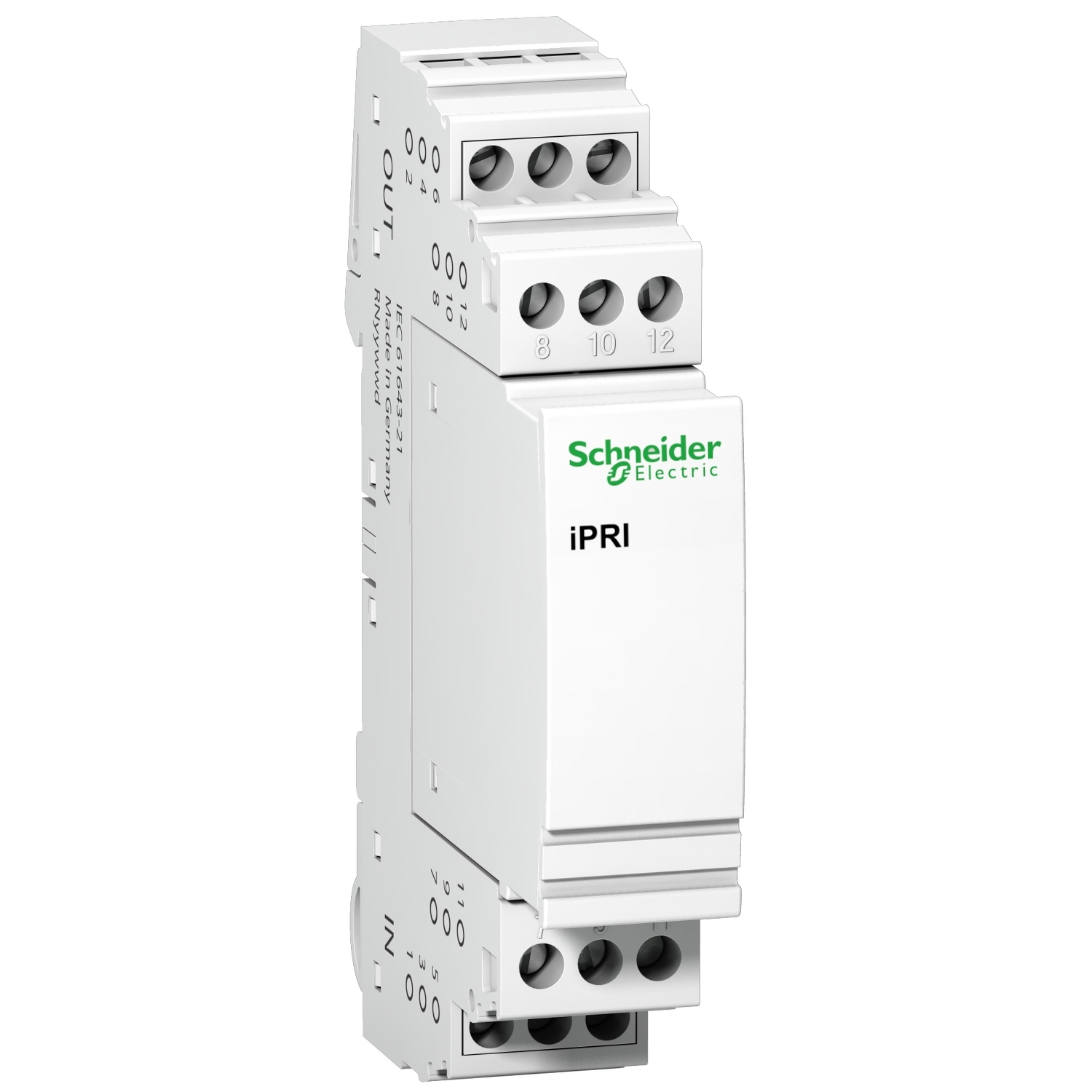

This Acti9 iPRI is a surge arrester protecting against overvoltage related to lightning strikes. It is an analogue telephone line protection. The iPRC surge arrester wired in series to the private installation input protects telephones, modems. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 37 VAC or 53VDC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 37VAC or 53VDC. The Up Voltage protection level is 70V in differential mode (between phase and neutral) and in common mode (between phase and earth). The Ue rated operational voltage is 48VDC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 90mm x (D) 66mm. The weight is 65g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iPRI SPD · A9L16339 · A9L16339
Rated current0.3 A
Ingress protectionIP40 (modular enclosure)· IP20
Reference standardIEC 61643-21
Net weight0.065 kg
ColourWhite
Device typeMiniature circuit breaker (MCB)
Current rating3 A
BrandSchneider
Brand SKUA9L16339
ELINEJHMJH33RK
Sold asPer pc
Depth66 mm
Width18 mm
Height90 mm
MaterialPA6
StandardsIEC 61643-21 · EN 61643-21
9 mm pitches2
Product nameActi9 iPRI
Mounting modeFixed
Response time< 1 ns
Local signallingelectrical
Mounting support35 mm symmetrical DIN rail
range of productActi9
Device short nameiPRI
Relative humidity5…90 %
Remote signallingWithout
Tightening torque0.8 N.m
Operating altitude2000 m
[In] rated current0.3 A at 45 °C
Surge arrester typeSignal protection
Output voltage limitsCommon mode: < 70 V at 1 kV/µs
Wire stripping length8 mm
[Iimp] impulse current70 A
Connections - terminalsScrew clamp terminal0.2…4 mm² rigid · Screw clamp terminal0.2…2.5 mm² flexible · Screw clamp terminal0.2…2.5 mm² flexible with ferrule
IK degree of protectionIK05 conforming to IEC 62262
IP degree of protectionIP40 (modular enclosure) conforming to IEC 60529 · IP20 conforming to IEC 60529
Nominal discharge currentCommon mode: 20 kA (L/PE)
Number of protected lines4
Product or component typeSurge arrester
Surge arrester technologyGDT
[I total] discharge current20 kA
[Ue] rated operational voltage48 V DC
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…60 °C
Maximum [Up] voltage protection levelCommon mode 70 V type 2 L/PE · Differential mode 70 V type 2 L/N
[Uc] maximum continuous operating voltageCommon mode: 37 V AC L/PE · Common mode: 53 V DC L/PE · Differential mode: 37 V AC L/N · Differential mode: 53 V DC L/N
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
