Schneider TeSys LR9D Thermal Overload Relay · 6.4…32 ALR9D32↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Brand SKULR9D32
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys LR9D Thermal Overload Relay · 6.4…32 A

Setting: 6.4…32 A
NEW added this week
₹26,191/pcincl. GST-1%
₹22,196 + 18% GST · MRP ₹26,456
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹26,191 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys LR9D Thermal Overload Relay · 6.4…32 A: Elume price today ₹26,191 per pc incl. GST, 1% below the ₹26,456 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹28,308₹27,320₹26,333₹25,345₹24,358₹26,456₹26,191
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹26,191
MRP
₹26,456
Lowest in view · 17 Oct
₹26,191
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹24,881/pc on this product

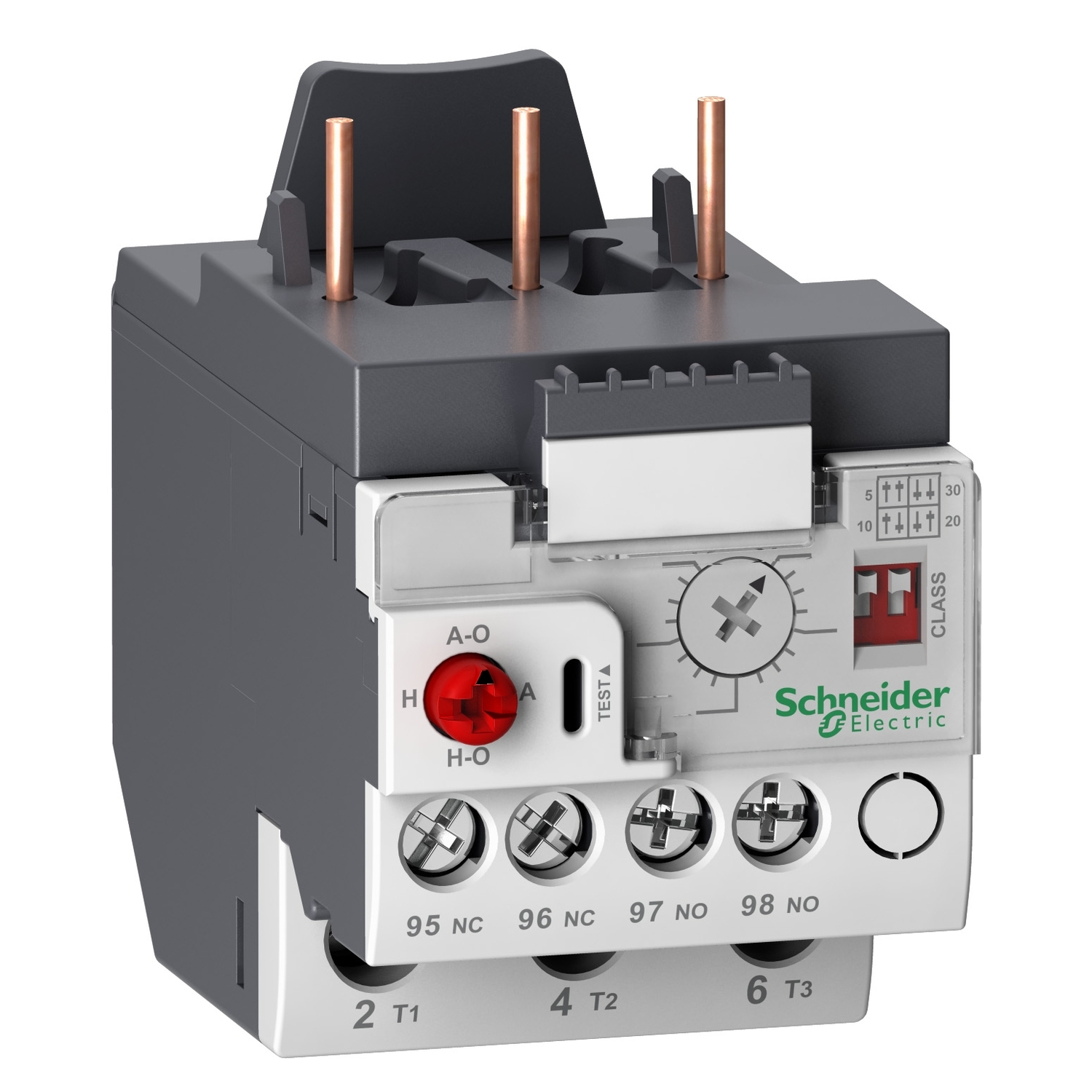

TeSys LR9D electronic overload relay, 32A/690V, thermal setting range 6.4-32A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 3-15kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LR9D Thermal Overload Relay · 6.4…32 A · LR9D32
Ingress protectionIP20 front face
Reference standardEN/IEC 60947-4-1
Net weight0.18 kg
BrandSchneider
Brand SKULR9D32
ELINEHHMD6HR93
Sold asPer pc
Depth79.9 mm
RangeTeSys
Width45 mm
Height72.5 mm
StandardsEN/IEC 60947-4-1 · EN/IEC 60947-5-1 · UL 60947-4-1 · UL 60947-5-1 · CSA C22.2 No 60947-4-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.4 · GB/T 14048.5
Time range1.5...4 min - automatic reset time
Control typeRed push-button: stop and manual reset · White 2 microswitches: adjustable trip class · Red knob: automatic reset · Grey dial: full-load current adjustment
Product nameTeSys LRD
Mounting supportUnder contactor · Plate, with specific accessories · Rail, with specific accessories
Device short nameLR9D
Relay applicationMotor protection
Tightening torqueControl circuit: 0.8 N.m on screw clamp terminals · Power circuit: 3.1 N.m on screw clamp terminals
Operating altitude2000 m without derating
Tripping threshold1.25 In conforming to IEC 60947-4-1
Dielectric strength6 kV 50 Hz conforming to IEC 60255-5
Mechanical robustnessVibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6 · Shocks 11 ms: 15 gn conforming to IEC 60068-2-7
Product compatibilityLC1D09 · LC1D25 · LC1D32 · LC1D38 · LC1D12 · LC1D18
Associated fuse rating5 A gG for signalling circuit · 5 A BS for signalling circuit
Power consumption in W300 mW
Product certificationsIECEE CB Scheme · UL · CSA · CCC
Thermal overload classClass 5…30
Connections - terminalsControl circuit: screw clamp terminals 1 cable 2.5 mm² - cable stiffness: solid or flexible - without cable end · Power circuit: screw clamp terminals 1 cable 16 mm² - cable stiffness: solid or flexible - without cable end
IP degree of protectionIP20 front face conforming to IEC 60529
Phase failure sensitivityPhase difference > 40% 3 s conforming to IEC 60947-4-1
Product or component typeElectronic thermal overload relay
Electromagnetic compatibilitySurge withstand: 2 kV common mode conforming to IEC 61000-4-5 · Resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2 · Immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3 · Immunity to fast transients: 2 kV conforming to IEC 61000-4-4
[Ui] rated insulation voltagePower circuit: 1000 V · Signalling circuit: 690 V
[Ue] rated operational voltage690 V for power circuit · 660 V for signalling circuit
Ambient air temperature for storage-55…80 °C
Thermal protection adjustment range6.4…32 A
Ambient air temperature for operation-25…70 °C conforming to IEC 60255-8
[Uimp] rated impulse withstand voltage6 kV
[Ith] conventional free air thermal current5 A for signalling circuit
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Other Schneider ranges and models in this category, closest in price to this one.
Is Schneider TeSys LR9D Thermal Overload Relay · 6.4…32 A genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
