Schneider Acti9 iATL24 Control And Indication Auxiliary · A9C15424A9C15424↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
SpecificationActi 9 iATL24 control and remote indication with Ti24 connector
Brand SKUA9C15424
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

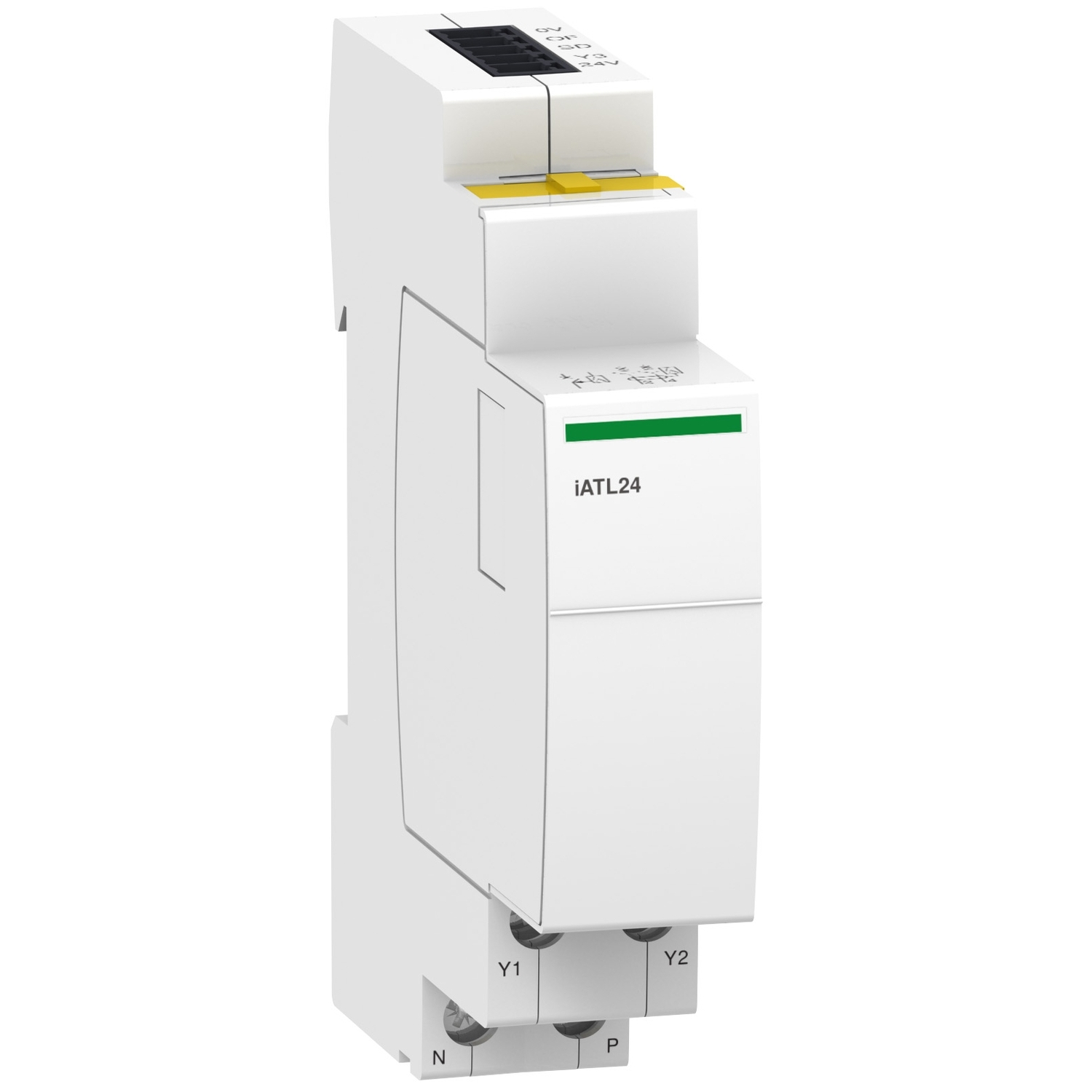

Schneider Acti9 iATL24 Control And Indication Auxiliary · A9C15424

NEW added this week
₹27,700/pcincl. GST-1%
₹23,475 + 18% GST · MRP ₹27,980
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹27,700 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 iATL24 Control And Indication Auxiliary · A9C15424: Elume price today ₹27,700 per pc incl. GST, 1% below the ₹27,980 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹29,939₹28,894₹27,850₹26,805₹25,761₹27,980₹27,700
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹27,700
MRP
₹27,980
Lowest in view · 17 Oct
₹27,700
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹26,315/pc on this product

This Acti9 iATL24 product is reliable control and remote indication with Ti24 connector auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with IEC 60947-1 appendix S.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iATL24 Control And Indication Auxiliary · A9C15424 · A9C15424
Ingress protectionIP20· IP40 (modular enclosure)
Reference standardIEC 60947-1 appendix S
coil voltage230 V AC 50/60 Hz impulse >= 200 ms
ColourWhite
BrandSchneider
Brand SKUA9C15424
ELINEC6R4JDH4R
Sold asPer pc
Depth68 mm
Width18 mm
Height81 mm
StandardsIEC 60947-1 appendix S
9 mm pitches2
Control typeRemote control
Mounting modeFixed, on the left of CT
Quality labelsCE
Tropicalisation2 conforming to IEC 60947-5-1
Mounting supportDIN rail
Pollution degree3 conforming to IEC 60439-1
range of productActi9
Device short nameiATL24
Relative humidity93 % at 40 °C conforming to IEC 60068-2
Tightening torquePower supply: 1 N.m bottom · Input: 1 N.m bottom
Range compatibilityActi9 iTL · Acti9 iTLi · Acti9 iTLs · Acti9 iTLc
Overvoltage categoryIV
Electrical durability250000 cycles conforming to IEC 60947-5-1
Product compatibilityActi 9 Smartlink · ITL (32 A) - 230/240 V 50 Hz · ITL (16 A) - 230/240 V 50 Hz
Wire stripping lengthPower supply: 9 mm for bottom connection · Input: 9 mm for bottom connection · Ti24 interface: 10 mm for top connection
Power consumption in W1 W
Undervoltage behaviourNo opening if loss of 24 V DC
Connections - terminalsPower supply: tunnel type terminals 1 cable(s) 0.5…10 mm² - rigid · Power supply: tunnel type terminals 1 cable(s) 0.5…6 mm² - flexible · Power supply: tunnel type terminals 1 cable(s) 0.5…4 mm² - flexible with ferrule · Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - rigid · Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible · Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm²
IP degree of protectionIP20 conforming to IEC 60529 · IP40 (modular enclosure) conforming to IEC 60529
Immunity to microbreaks10 ms
Product or component typeControl and indication auxiliary
[Us] rated supply voltage230 V AC at 50/60 Hz
Signalling circuit voltage24 V DC: +/- 20 % 0.002...0.1 A
Signal contacts composition1 NO
[Uc] control circuit voltage230 V AC 50/60 Hz impulse >= 200 ms · 24 V DC falling edge · 24 V DC rising edge
[Ui] rated insulation voltage250 V AC 50/60 Hz
Ambient air temperature for storage-40…80 °C
Ambient air temperature for operation-25…60 °C
[Uimp] rated impulse withstand voltage8 kV
Comb busbar and distribution block compatibilityBottom: YES · Top: NO
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
