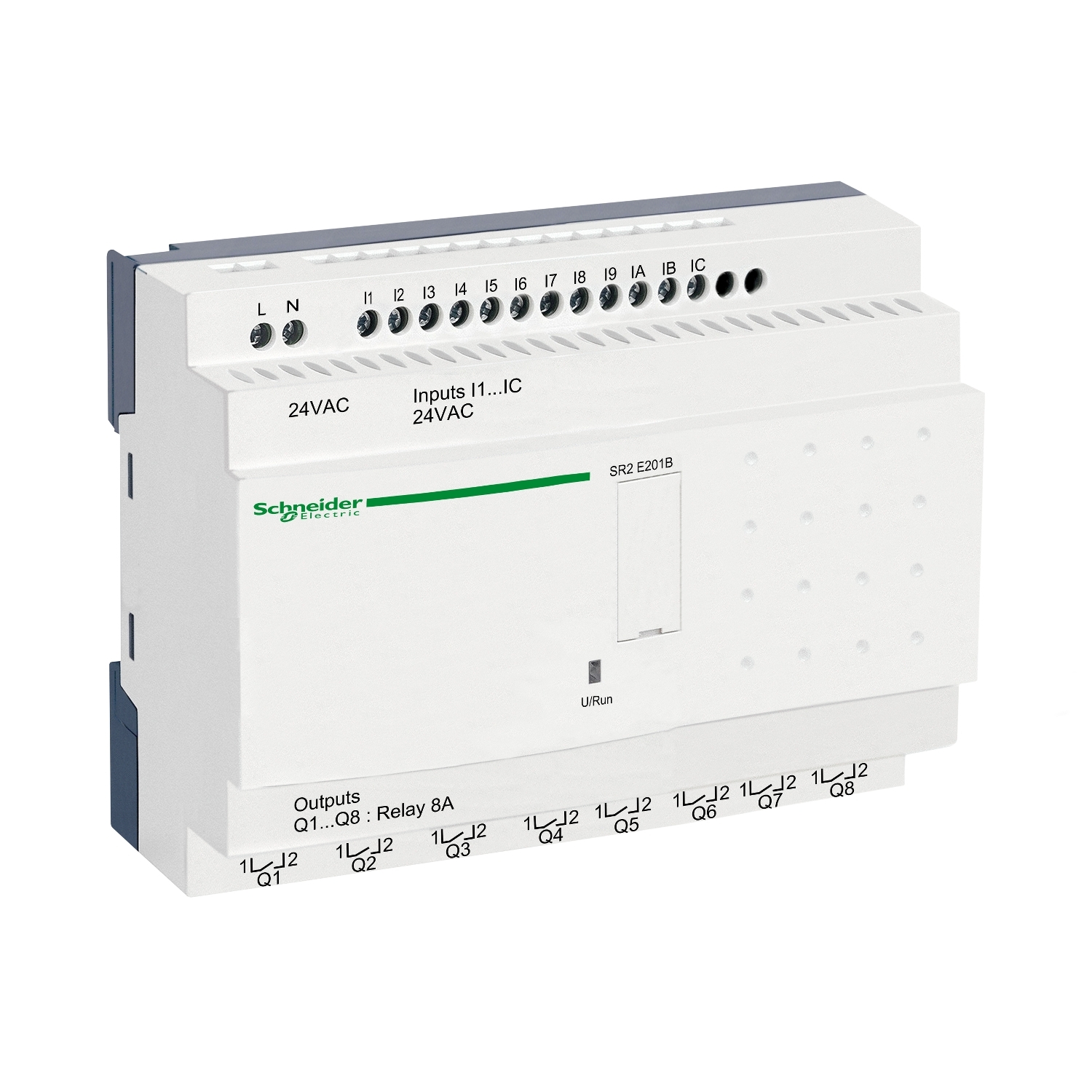

Schneider Zelio Logic Smart Relay · compact smart relay Zelio Logic · 20 I O · 24 V AC · clock · IP20 · SR2E201BSR2E201B↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Specificationcompact smart relay Zelio Logic · 20 I O · 24 V AC · clock · no display
Brand SKUSR2E201B
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Zelio Logic Smart Relay · compact smart relay Zelio Logic · 20 I O · 24 V AC · clock · IP20 · SR2E201B

NEW added this week
₹44,097/pcincl. GST-1%
₹37,370 + 18% GST · MRP ₹44,543
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹44,097 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Zelio Logic Smart Relay · compact smart relay Zelio Logic · 20 I O · 24 V AC · clock · IP20 · SR2E201B: Elume price today ₹44,097 per pc incl. GST, 1% below the ₹44,543 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹47,661₹45,998₹44,336₹42,673₹41,010₹44,543₹44,097
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹44,097
MRP
₹44,543
Lowest in view · 17 Oct
₹44,097
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹41,892/pc on this product

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 20 I/Os, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines. It is a module with rated supply voltage of 24V AC and cycle time of 6ms to 90ms. It offers 12 discrete inputs with voltage of 24V AC and 4 relay outputs with voltage range from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.35kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Smart Relay · compact smart relay Zelio Logic · 20 I O · 24 V AC · clock · IP20 · SR2E201B · SR2E201B
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 61000-4-12
Net weight0.35 kg
BrandSchneider
Brand SKUSR2E201B
ELINEF2FC7CK62
Sold asPer pc
ClockWith
ChecksProgram memory on each power up
StandardsIEC 61000-4-12 · IEC 61000-4-11 · IEC 61000-4-6 level 3 · IEC 61000-4-3 · IEC 61000-4-5 · IEC 60068-2-27 Ea · IEC 61000-4-2 level 3 · IEC 61000-4-4 level 3 · IEC 60068-2-6 Fc
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C · 6 s/month at 25 °C
Local displayWithout
Response time50 ms with ladder programming (from state 0 to state 1) for discrete input · 50 ms with ladder programming (from state 1 to state 0) for discrete input · 50...255 ms with FBD programming (from state 0 to state 1) for discrete input · 50...255 ms with FBD programming (from state 1 to state 0) for discrete input · 10 ms (from state 0 to state 1) for relay output · 5 ms (from state 1 to state 0) for
Input impedance4.6 kOhm for discrete input
Protection typeAgainst inversion of terminals (control instructions not executed)
Range of productZelio Logic
Supply frequency50/60 Hz
Isolation voltage1780 V
Number of outputs8 relay
Tightening torque0.5 N.m
Operating rate in Hz0.1 Hz (at Ie) for relay output · 10 Hz (no load) for relay output
Overvoltage categoryIII conforming to IEC 60664-1
Analogue input number0
Discrete input number12
Electrical durabilityAC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 · AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 · DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 · DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1
Mechanical durability10000000 cycles for relay output
Output voltage limits5...30 V DC (relay output) · 24...250 V AC
Supply voltage limits20.4…28.8 V
Discrete input current4.4 mA
Discrete input voltage24 V AC
Maximum supply current233 mA (without extension)
Output thermal current8 A for all 8 outputs for relay output
Product certificationsUL · CSA · C-Tick · GL · GOST
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid · Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid · Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid · Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end
IP degree of protectionIP20 (terminal block) conforming to IEC 60529 · IP40 (front panel) conforming to IEC 60529
Immunity to microbreaks10 ms repeated 20 times
Power consumption in VA6 VA without extension
Discrete input frequency47...53 Hz · 57...63 Hz
Switching capacity in mA>= 10 mA at 12 V (relay output)
Product or component typeCompact smart relay
[Us] rated supply voltage24 V AC
Current state 0 guaranteed<= 0.5 mA (discrete input)
Current state 1 guaranteed>= 2 mA (discrete input)
Voltage state 0 guaranteed<= 5 V for discrete input
Voltage state 1 guaranteed>= 14 V for discrete input
Environmental characteristicEMC directive conforming to IEC 61000-6-2 · EMC directive conforming to IEC 61000-6-3 · EMC directive conforming to IEC 61000-6-4 · EMC directive conforming to IEC 61131-2 zone B · Low voltage directive conforming to IEC 61131-2
Contacts type and compositionNO for relay output
Number or control scheme lines0…240 with ladder programming · 0…500 with FBD programming
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
