Schneider Acti9 iEM3235 Energy Meter · 5 A · Class 0.5S active energy · Class 0.5S active energyA9MEM3235↓ 1% off MRP1 / 2
BrandSchneider
CategoryIndustrial Control
Specification5 A · Class 0.5S active energy· Class 0.5S active energy· Class C · M-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds, insulation 3750 V
Brand SKUA9MEM3235
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

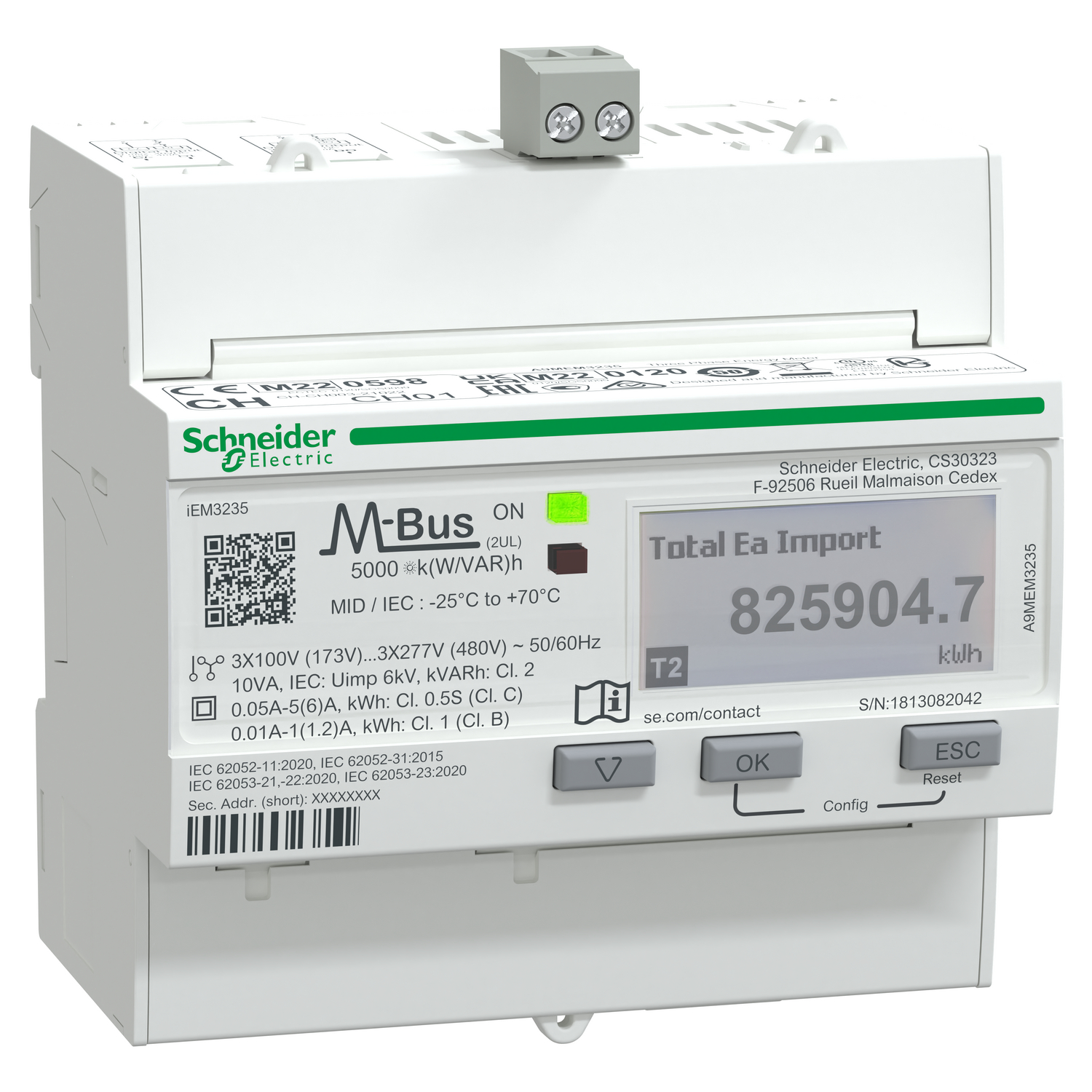

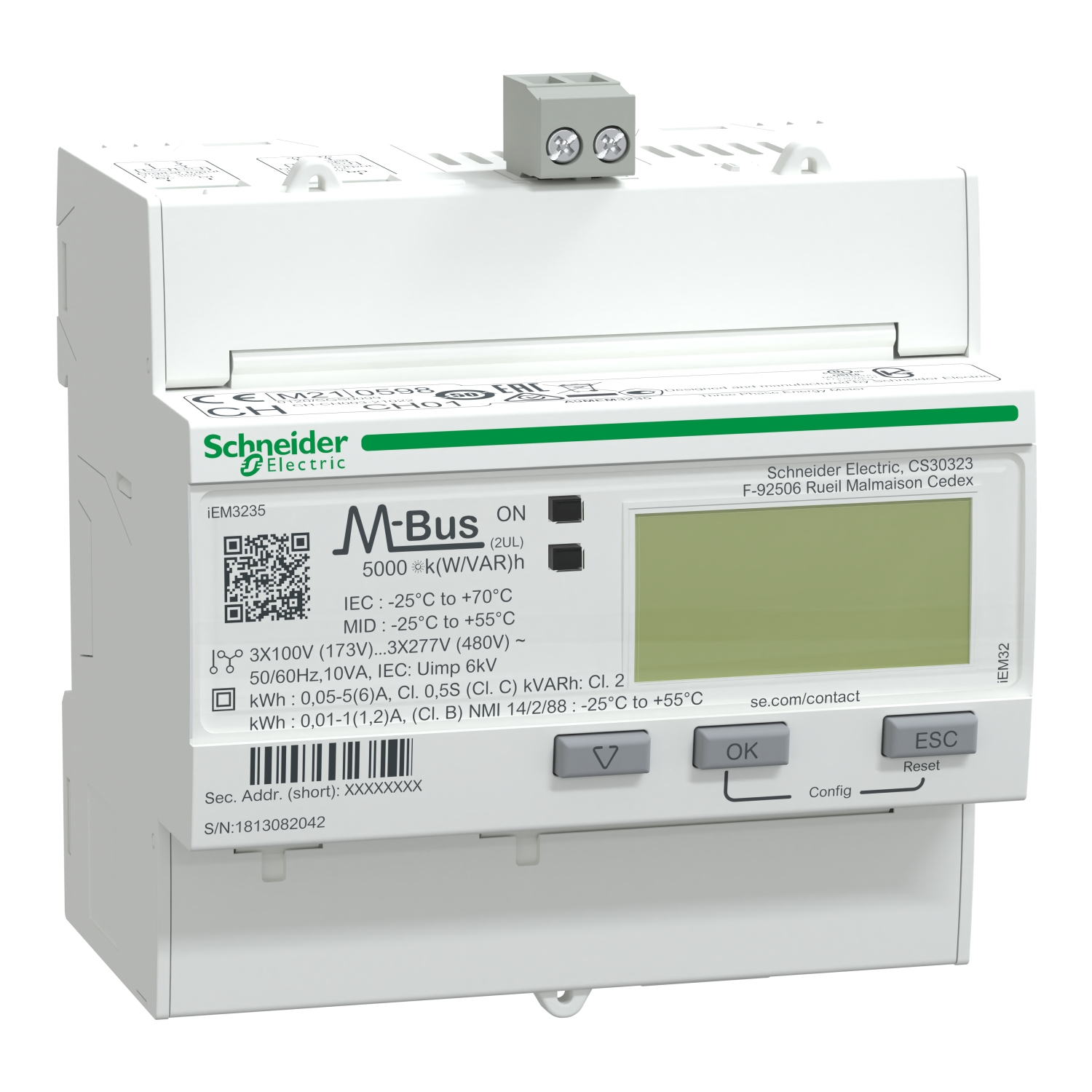

Schneider Acti9 iEM3235 Energy Meter · 5 A · Class 0.5S active energy · Class 0.5S active energy

NEW added this week
₹38,683/pcincl. GST-1%
₹32,782 + 18% GST · MRP ₹39,073
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹38,683 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 iEM3235 Energy Meter · 5 A · Class 0.5S active energy · Class 0.5S active energy: Elume price today ₹38,683 per pc incl. GST, 1% below the ₹39,073 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹41,808₹40,350₹38,892₹37,433₹35,975₹39,073₹38,683
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹38,683
MRP
₹39,073
Lowest in view · 17 Oct
₹38,683
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹36,749/pc on this product

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, Active Energy: class C per EN 50470-3 and Active Energy: class 0.5S per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is M-Bus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dim

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iEM3235 Energy Meter · 5 A · Class 0.5S active energy · Class 0.5S active energy · A9MEM3235
Poles3P+N
Rated current5 A
Ingress protectionIP40 front panel:· IP20 body:
Reference standardBS EN 61557-12:2021
ColourWhite
BrandSchneider
Brand SKUA9MEM3235
ELINE2C4J237F6
Sold asPer pc
Depth69 mm
RangeActi9
Width90 mm
Height95 mm
StandardsBS EN 61557-12:2021 · IEC 61557-12:2021 · EN 61557-12:2021 · BS EN 61326-1 · IEC 61326-1 · EN 61326-1 · BS EN 62052-11:2020 · IEC 62052-11:2020 · EN 62052-11:2020 · BS EN 62053-21 · IEC 62053-21 · EN 62053-21 · BS EN 62052-22 · IEC 62053-22:2020 · EN 62052-22 · BS EN 62052-23 · IEC 62053-23:2020 · EN 62052-23 · BS EN 62052-31:2015 · IEC 62052-31:2015 · EN 62052-31:2015 · BS EN 61010-1:2010 · EN 61
input typeCurrent transformer 1 A or 5 A
9 mm pitches10
Display typeLCD display
tariff inputTariff (4)
Metering typeActive, reactive, apparent energy (signed, four quadrant)
Mounting modeClip-on
Rated voltage100…277 V · 173…480 V
Sampling rate32 samples/cycle
Accuracy classClass 0.5S active energy conforming to IEC 62053-22 · Class 0.5S active energy conforming to IEC 61557-12 · Class C active energy conforming to EN 50470-3
Market segmentBuildings small building cost management: billing: main incomer · Buildings small building cost management: billing: sub feeder · Buildings small building cost management: billing: panelboard · Buildings medium building cost management: billing: main incomer · Buildings medium building cost management: billing: sub feeder · Buildings medium building cost management: billing: panelboard · Buildings
Output voltage5...40 V DC@50 mA
Technology typeElectronic
Local signallingGreen indicator light: power ON · Yellow flashing LED: accuracy checking · alarm: overload
Mounting supportDIN rail
Number of inputs1 digital 0...5 V/11...40 V 24 V DC
Pollution degree2
range of productActi9 iEM3000
Device short nameiEM3235
Network frequency60 Hz · 50 Hz
Number of outputs1 digital (static)
Poles description3P · 1P + N · 3P + N
Relative humidity5…95 % at 50 °C
Compatibility codeIEM3235
Device applicationSub billing · Partial meter · Multi-tariff
Operating altitude< 3000 m
[In] rated current5 A · 1 A
Measurement current1…32767000 mA
Type of measurementActive and reactive energy · Active and reactive power · Current · Voltage
Overvoltage categoryIII
Maximum value measured99999999 MWh
Product certificationsCE conforming to IEC 61010-1 (safety) · CE conforming to EN 61557-12 (power monitor) · CE conforming to EN/IEC 61326-1 (EMC) · UKCA conforming to BS EN 61010-1 (safety) · UKCA conforming to BS EN 61557-12 (power monitor) · UKCA conforming to BS EN 61326-1 (EMC) · CULus conforming to UL 61010-1 (safety) · CULus conforming to EN 61010-1 (safety) · EAC conforming to EN 50470-3 (sub-meter) · RCM confo
Connections - terminalsCurrent circuit: screw terminals 6 mm² cable(s) · Voltage circuit: screw terminals 2.5 mm² cable(s)
IP degree of protectionIP40 front panel: conforming to IEC 60529 · IP20 body: conforming to IEC 60529
Product or component typeEnergy meter
Communication port supportScrew terminal block: M-Bus
Communication port protocolM-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds, insulation 3750 V
Typical current consumptionCommunication M-bus: 2.3 mA at state 1
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…70 °C - IEC
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
