Schneider TeSys Component · TeSys Vario · emergency stop switch disconnector · 175 A · on doorVCF6↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Brand SKUVCF6
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider TeSys Component · TeSys Vario · emergency stop switch disconnector · 175 A · on door

NEW added this week
₹39,596/pcincl. GST-1%
₹33,556 + 18% GST · MRP ₹39,996
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹39,596 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys Component · TeSys Vario · emergency stop switch disconnector · 175 A · on door: Elume price today ₹39,596 per pc incl. GST, 1% below the ₹39,996 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹42,796₹41,303₹39,810₹38,317₹36,824₹39,996₹39,596
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹39,596
MRP
₹39,996
Lowest in view · 17 Oct
₹39,596
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹37,616/pc on this product

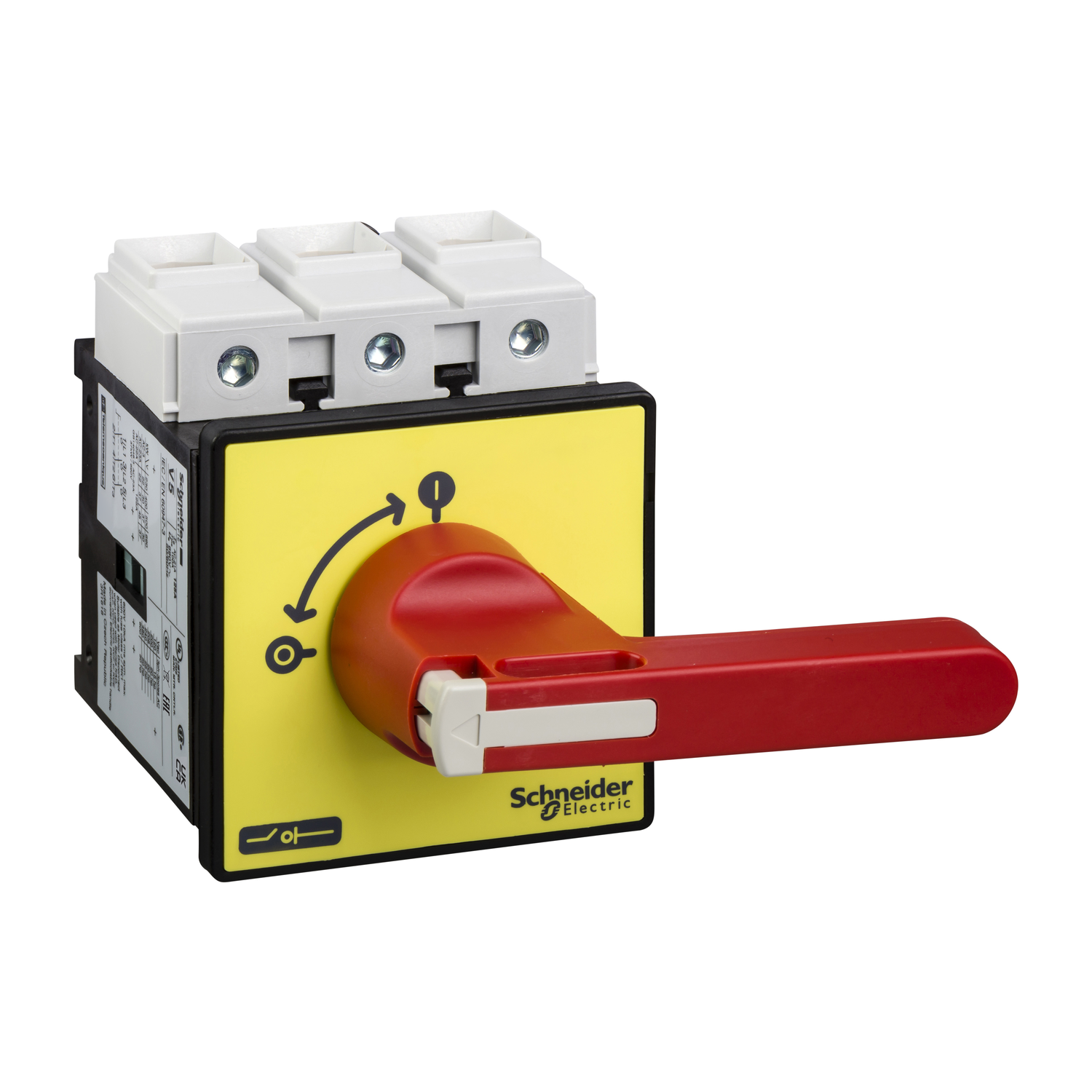

TeSys Vario switch disconnector for door mounting, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys Component · TeSys Vario · emergency stop switch disconnector · 175 A · on door · VCF6
Reference standardIEC 60947-3
BrandSchneider
Brand SKUVCF6
ELINE7K2PJP773
Sold asPer pc
RangeTeSys
Width90 mm
Height125 mm
Marking0 - 1
StandardsIEC 60947-3
Control TypeRotary handle
Handle ColorRed
Network TypeAC · DC
Product NameTeSys VARIO
Product TypeEmergency stop switch disconnector
Base Dimension90 x 90 mm
Product Weight1.2 kg
Fire Resistance960 °C conforming to IEC 60695-2-1
Mounting MethodBy 4 screws for handle
Number of Poles3P
Mounting SupportHandle: door · Switch: door
Breaking Capacity1400 A at 400 V (AC-21A) · 1400 A at 400 V (AC-22A) · 1400 A at 400 V (AC-23A)
Device Short NameVCF
Performance LevelHigh performance
Tightening TorquePower circuit: 22.6 N.m - on screw clamp terminals
Device CompositionHandle · Switch
Degree of ProtectionIP20 conforming to IEC 60529 · IP65
Protective TreatmentTC
Electrical Durability30000 cycles AC-21 · 30000 cycles DC-1...5
Mechanical Durability30000 cycles
Mechanical RobustnessVibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 · Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Product CertificationsGL · UL · CSA · CCC · UKCA
IEC Terminal ConnectionPower circuit: screw clamp terminals95 mm² - solid · Power circuit: screw clamp terminals70 mm² - flexible - with cable end
Intermittent Duty Class30
Handle Front Plate ColorYellow
Making Capacity ( I Rms)1750 A at 400 V AC-21A · 1750 A at 400 V AC-22A · 1750 A at 400 V AC-23A
Rotary Handle Padlocking1 to 3 padlocks 4…8 mm
Suitability for IsolationYes
Contact Type and Composition3 NO
Rotary Handle Mounting StyleDirect
[Ie] Rated Operational Current83 A AC-23 Ue: 400 V
IEC Rated Operational Power in W30 kW at 230...240 V (AC-3) · 37 kW at 400...415 V (AC-3) · 37 kW at 690 V (AC-3) · 45 kW at 500 V (AC-3) · 45 kW at 690 V (AC-23A) · 55 kW at 500 V (AC-23A) · 30 kW at 230...240 V (AC-23A) · 45 kW at 400...415 V (AC-23A)
[Ue] IEC Rated Operational Voltage690 V AC 50/60 Hz
Ambient Air Temperature for Operation-20…50 °C
[Uimp] Rated Impulse Withstand Voltage8 kV
Rated Conditional Short Circuit Current10 kA at 400 V - associated fuse 200 A aM · 10 kA at 400 V - associated fuse 200 A gG
[Icw] Rated Short Time Withstand Current2100 A at 400 V duration: 1 s
[Icm] Rated Short Circuit Making Capacity2.8 kA at 400 V at Ipeak
[Ith] Conventional Free Air Thermal Current175 A
[Ithe] Conventional Enclosed Thermal Current140 A
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
