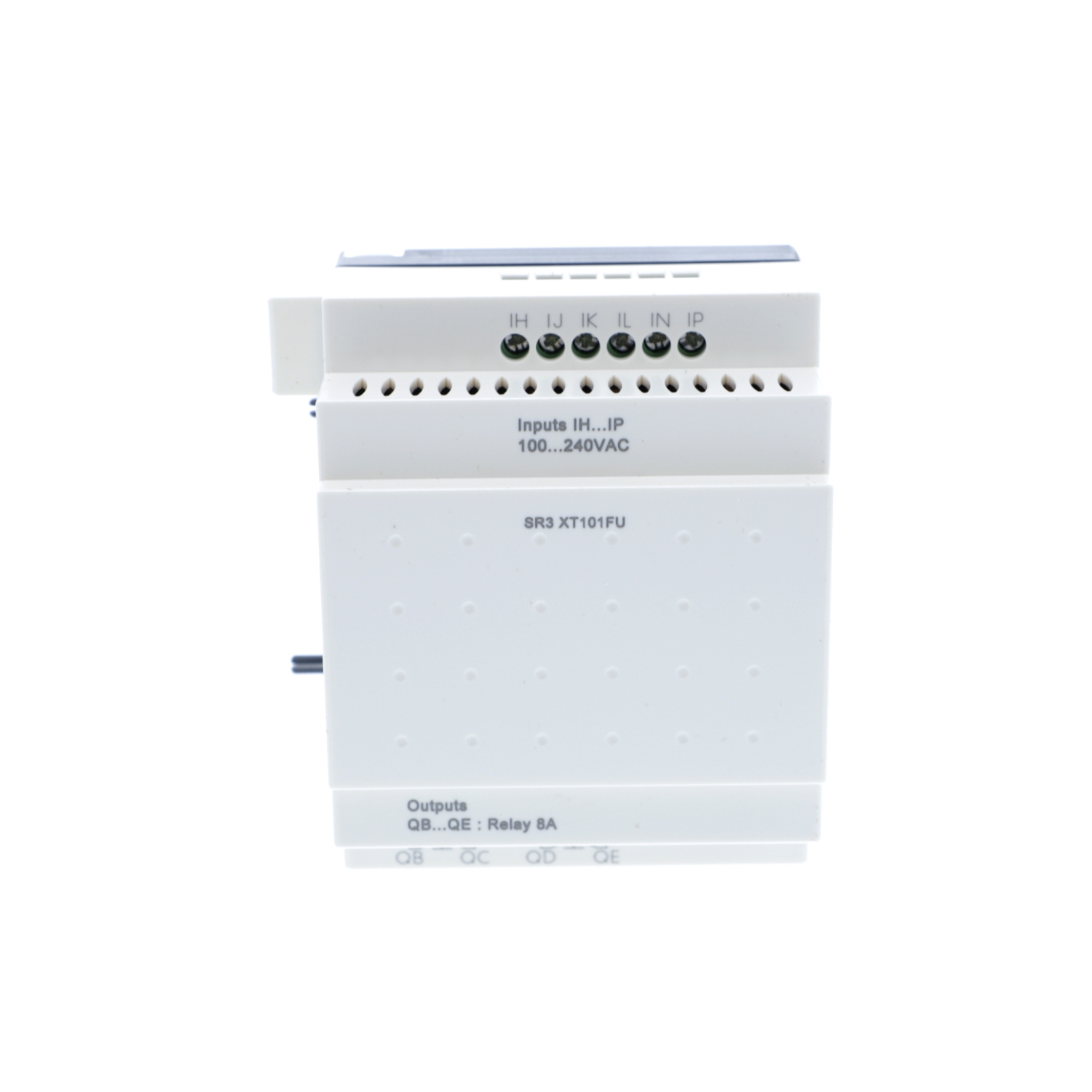

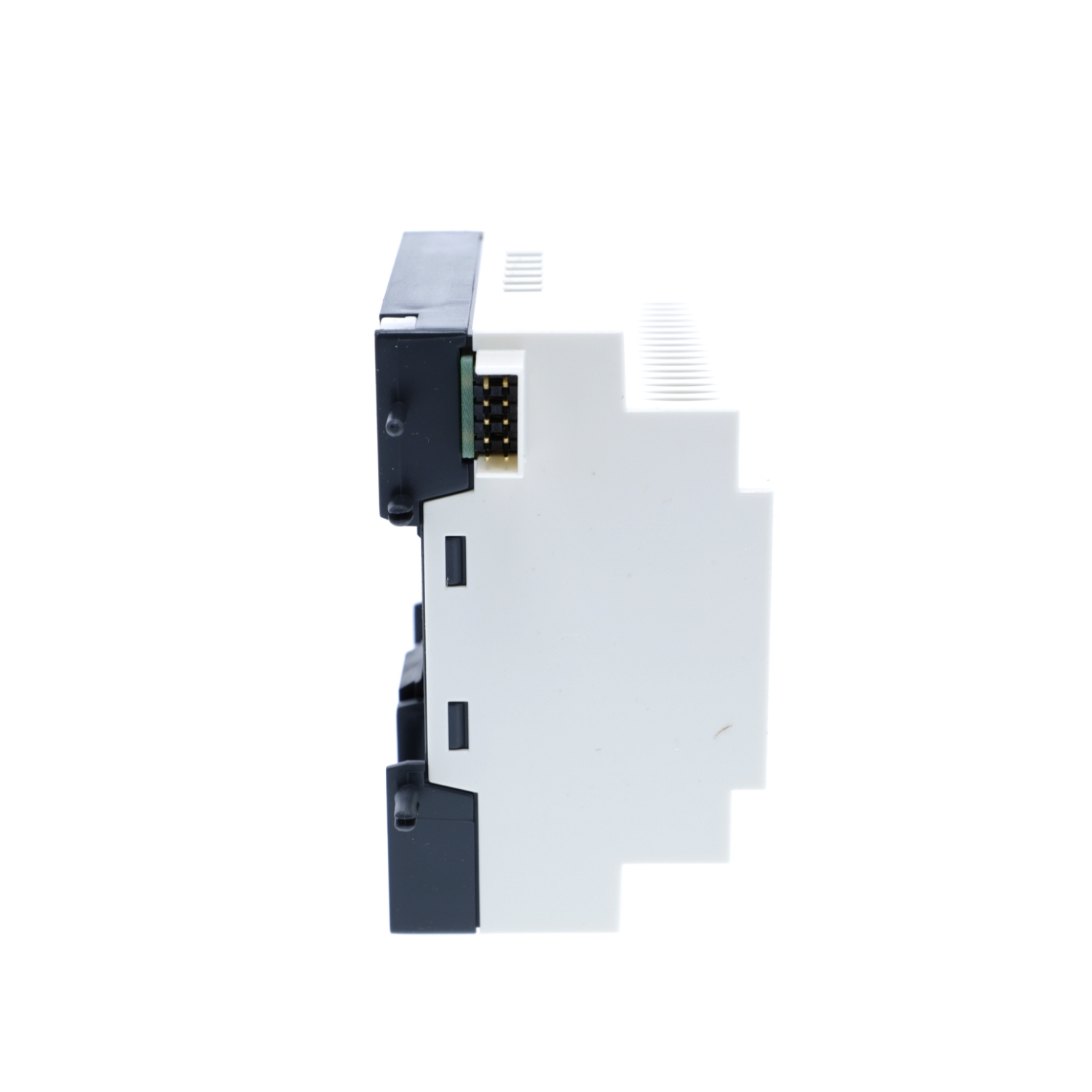

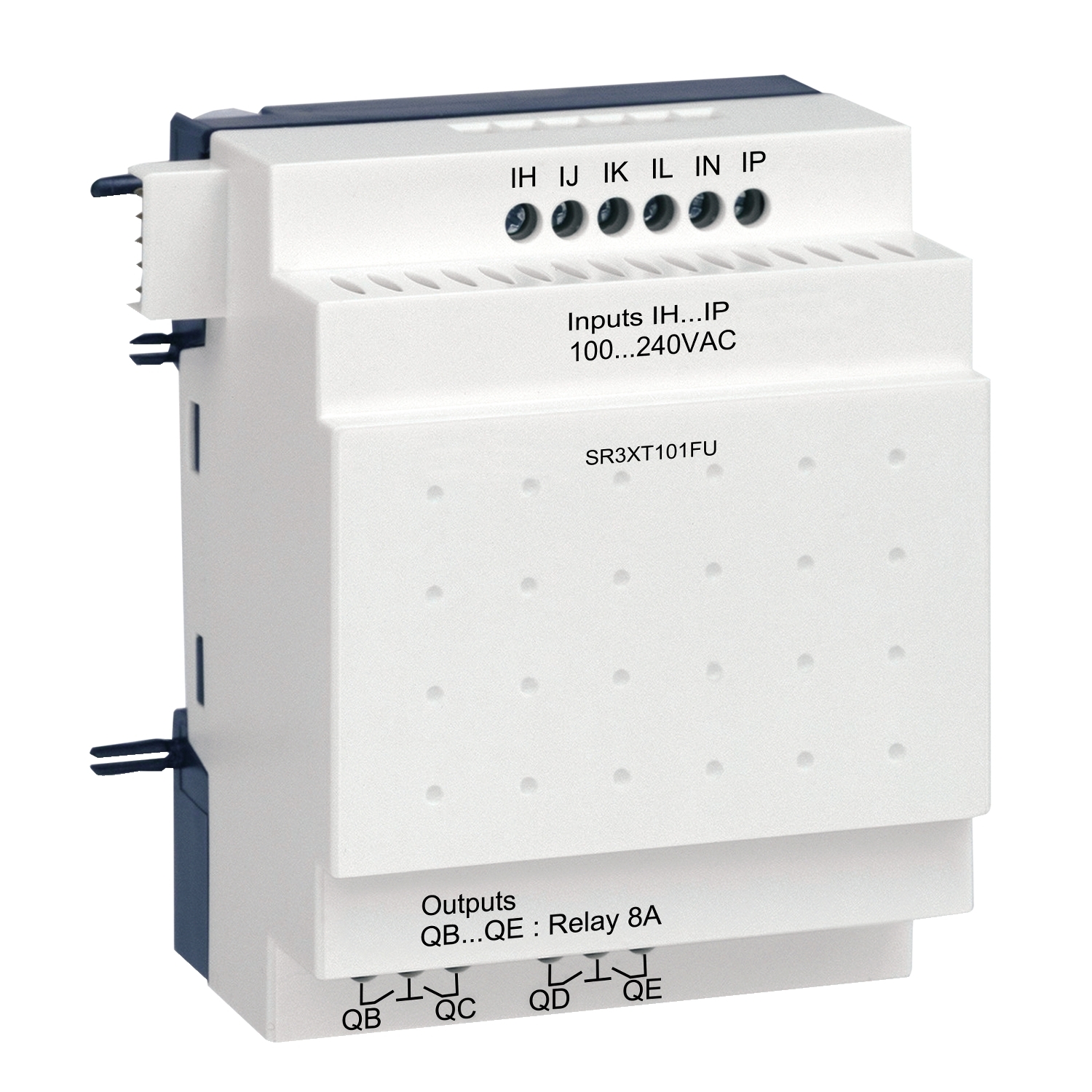

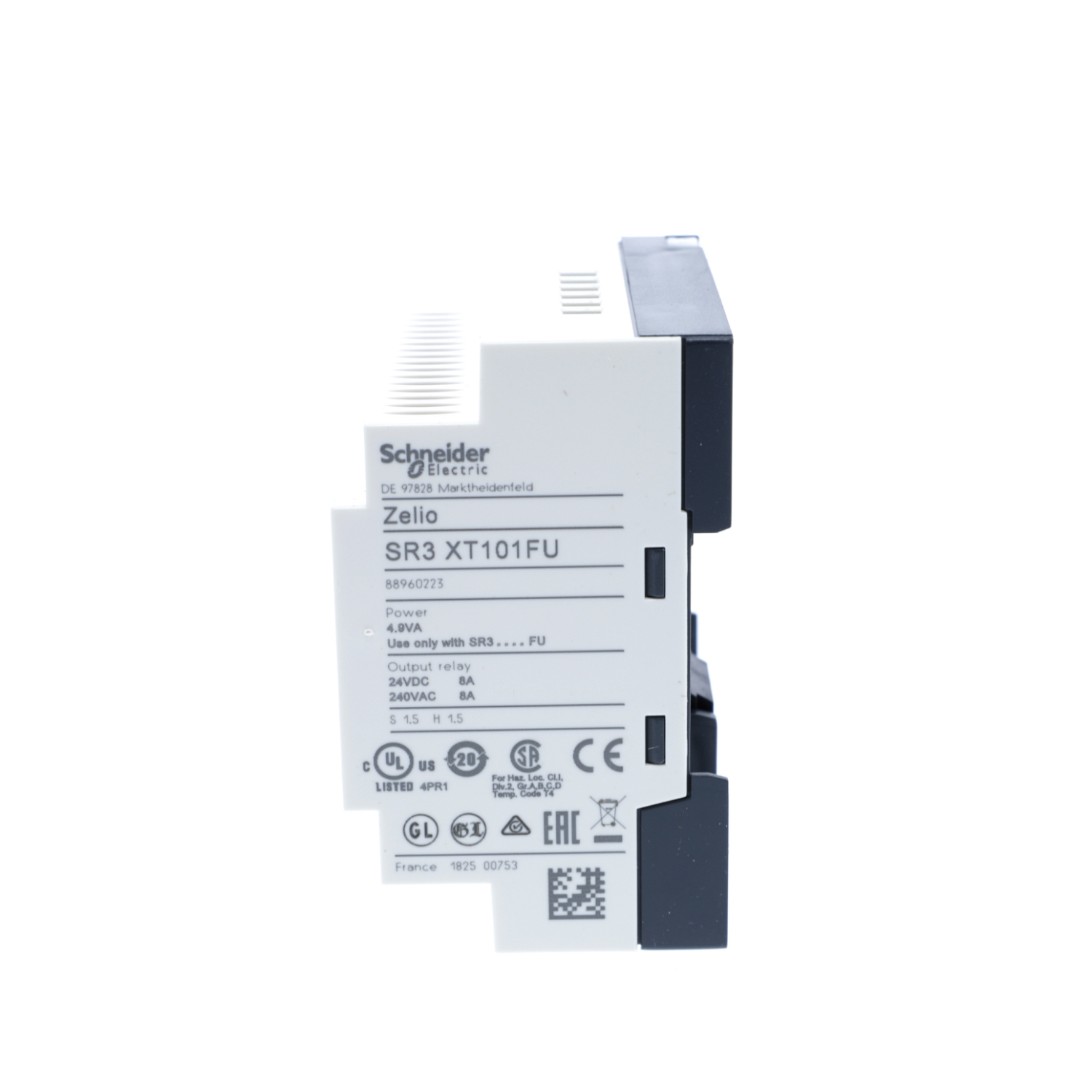

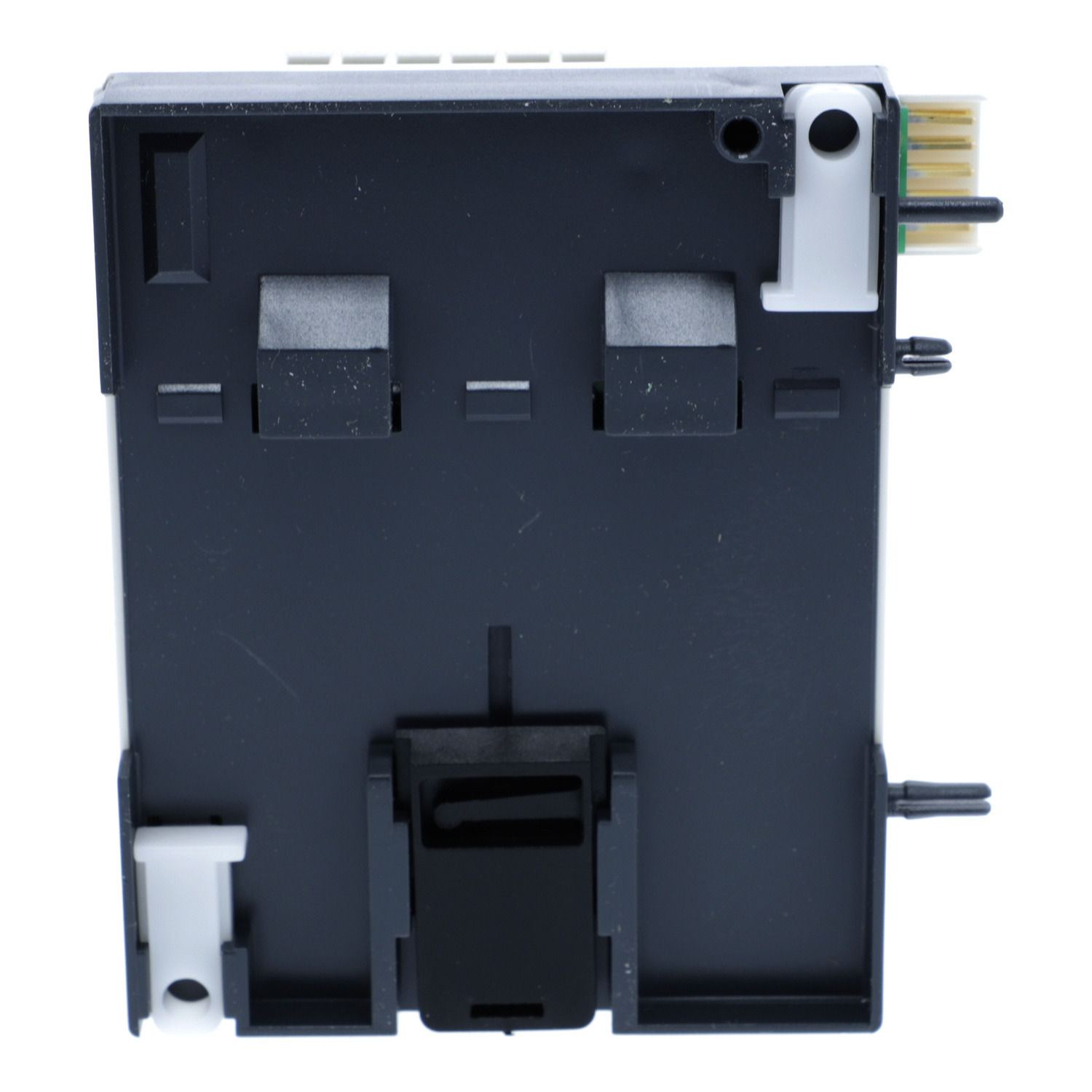

Schneider Zelio Logic Discrete I/O Extension Module · 10 I O · 100..240 V AC · for Zelio LogicSR3XT101FU↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Brand SKUSR3XT101FU
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Zelio Logic Discrete I/O Extension Module · 10 I O · 100..240 V AC · for Zelio Logic

NEW added this week
₹15,126/pcincl. GST-1%
₹12,819 + 18% GST · MRP ₹15,279
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹15,126 /pc incl. GST
Free pan-India delivery

Schneider Zelio Logic Discrete I/O Extension Module · 10 I O · 100..240 V AC · for Zelio Logic: Elume price today ₹15,126 per pc incl. GST, 1% below the ₹15,279 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹16,349₹15,778₹15,208₹14,638₹14,067₹15,279₹15,126
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹15,126
MRP
₹15,279
Lowest in view · 17 Oct
₹15,126
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹14,370/pc on this product

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The discrete I/O extension module provides 6 inputs and 4 relay outputs. It is an extension module with a rated supply voltage of 100 to 240V AC and a discrete input current of 0.6mA. It offers normally opened contacts for relay output, checks program memory on each power up and 120 with ladder programming number or control scheme lines. It is furnished with screw terminal for electrical connections. It offers long mechanical life, the mechanical durability is about 10 million cycles for relay output and 10 years of backup time at 25°C. It is an IP20 and IP40 rated product. It weighs 0.2kg. This product meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 61000-4-4 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a rea

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Discrete I/O Extension Module · 10 I O · 100..240 V AC · for Zelio Logic · SR3XT101FU
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 60068-2-27 Ea
Net weight0.2 kg
BrandSchneider
Brand SKUSR3XT101FU
ELINEDF94G44MK
Sold asPer pc
ChecksProgram memory on each power up
StandardsIEC 60068-2-27 Ea · IEC 61000-4-12 · IEC 61000-4-3 · IEC 61000-4-2 level 3 · IEC 61000-4-5 · IEC 61000-4-6 level 3 · IEC 60068-2-6 Fc · IEC 61000-4-11 · IEC 61000-4-4 level 3
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C
Response time50 ms with ladder programming (from state 0 to state 1) for discrete input · 50 ms with ladder programming (from state 1 to state 0) for discrete input · 50...255 ms with FBD programming (from state 0 to state 1) for discrete input · 50...255 ms with FBD programming (from state 1 to state 0) for discrete input · 10 ms (from state 0 to state 1) for relay output · 5 ms (from state 1 to state 0) for
Input impedance350 kOhm for discrete input
Pollution degree2 conforming to IEC 61131-2
Range of productZelio Logic
Supply frequency50/60 Hz
Number of outputs4 relay
Relative humidity95 % without condensation or dripping water
Tightening torque0.5 N.m
Operating altitude2000 m
Operating rate in Hz0.1 Hz (at Ie) for relay output · 10 Hz (no load) for relay output
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number6
Electrical durabilityAC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 · AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 · DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 · DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
Mechanical durability10000000 cycles for relay output
Output voltage limits5...30 V DC (relay output) · 24...250 V AC
Supply voltage limits85…264 V
Discrete input current0.6 mA
Discrete input voltage100...240 V AC
Output thermal current8 A for all 4 outputs for relay output
Product certificationsGOST · UL · CSA · C-Tick · GL
Connections - terminalsScrew terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end · Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid · Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid
IP degree of protectionIP20 (terminal block) conforming to IEC 60529 · IP40 (front panel) conforming to IEC 60529
Discrete input frequency47...53 Hz · 57...63 Hz
Switching capacity in mA>= 10 mA at 12 V (relay output)
Product or component typeDiscrete I/O extension module
[Us] rated supply voltage100...240 V AC
Current state 0 guaranteed<= 0.5 mA (discrete input)
Current state 1 guaranteed>= 0.17 mA (discrete input)
Maximum altitude transport3048 m
Voltage state 0 guaranteed<= 40 V for discrete input
Voltage state 1 guaranteed>= 79 V for discrete input
Reverse polarity protectionWith
Environmental characteristicEMC directive conforming to IEC 61000-6-2 · EMC directive conforming to IEC 61000-6-3 · EMC directive conforming to IEC 61000-6-4 · EMC directive conforming to IEC 61131-2 zone B · Low voltage directive conforming to IEC 61131-2
Contacts type and compositionNO for relay output
Disturbance radiated/conductedClass B conforming to EN 55022-11 group 1
Number or control scheme lines120 with ladder programming
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 · -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
