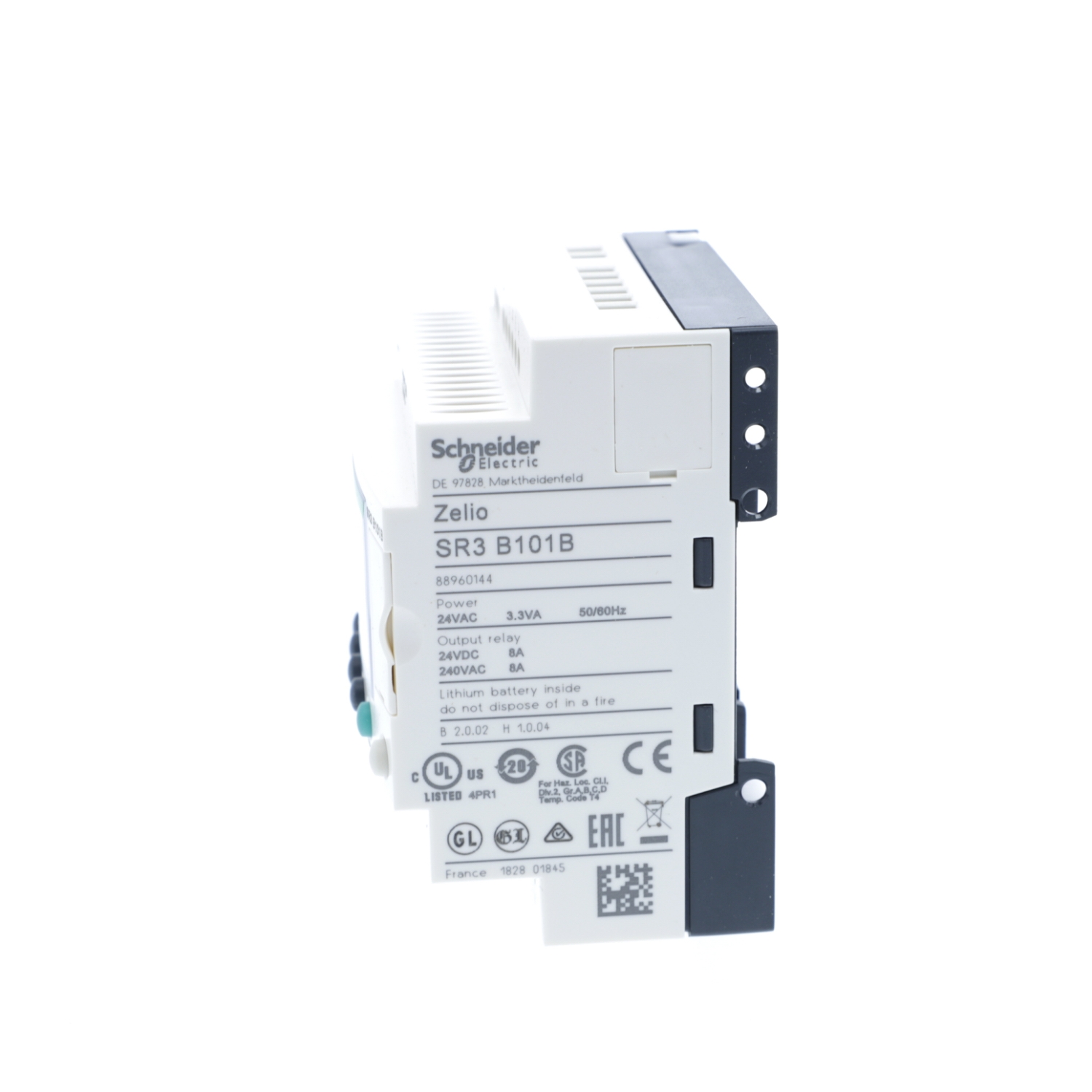

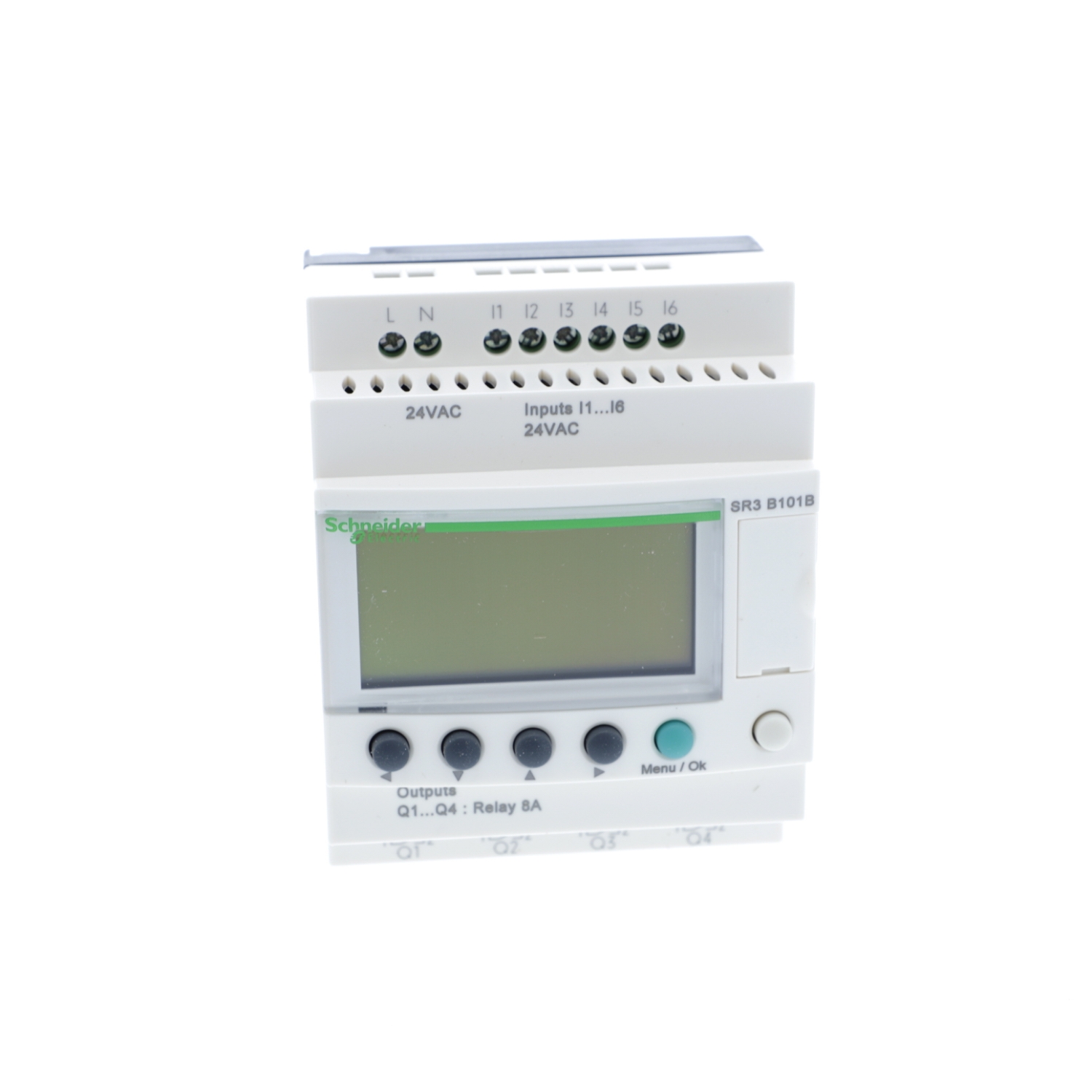

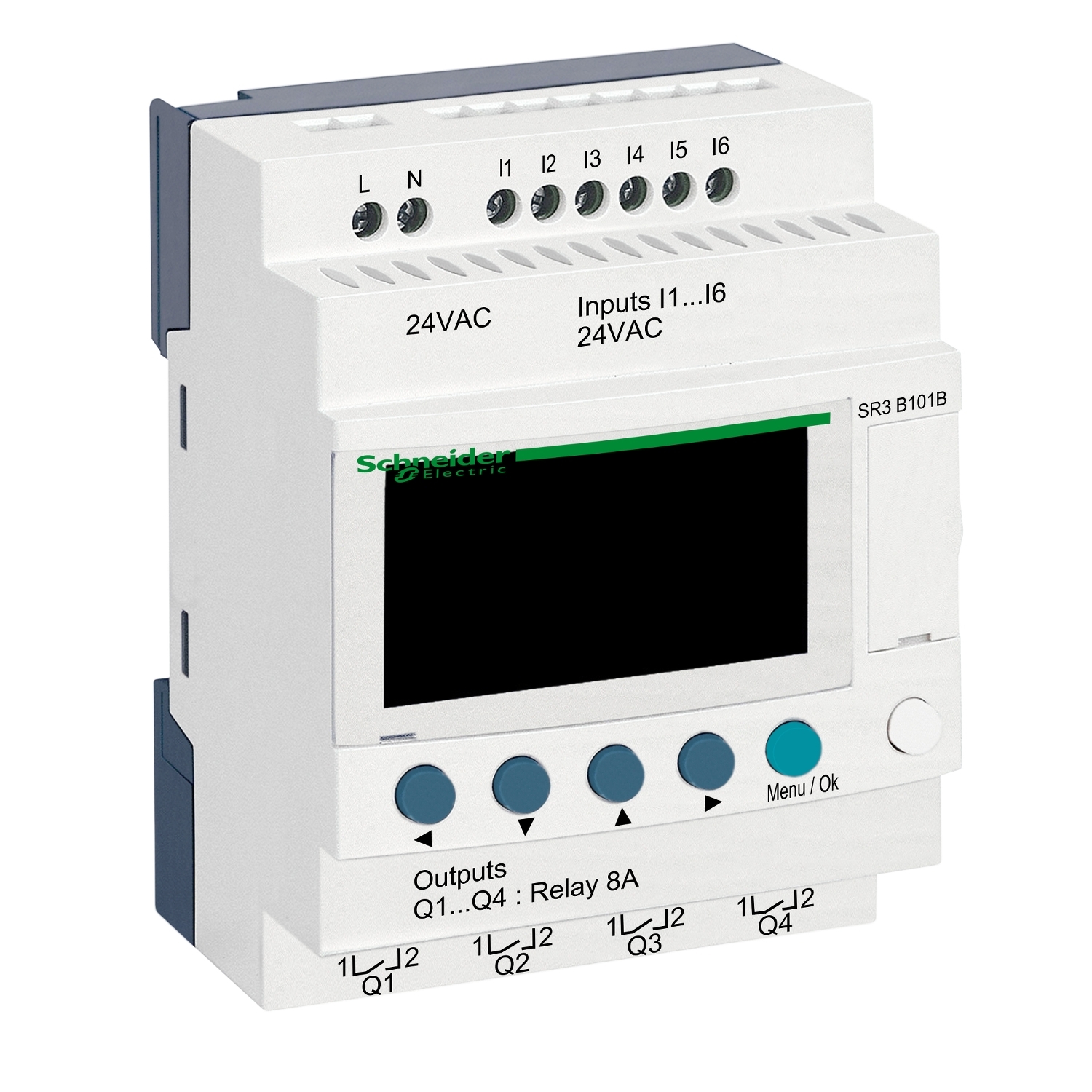

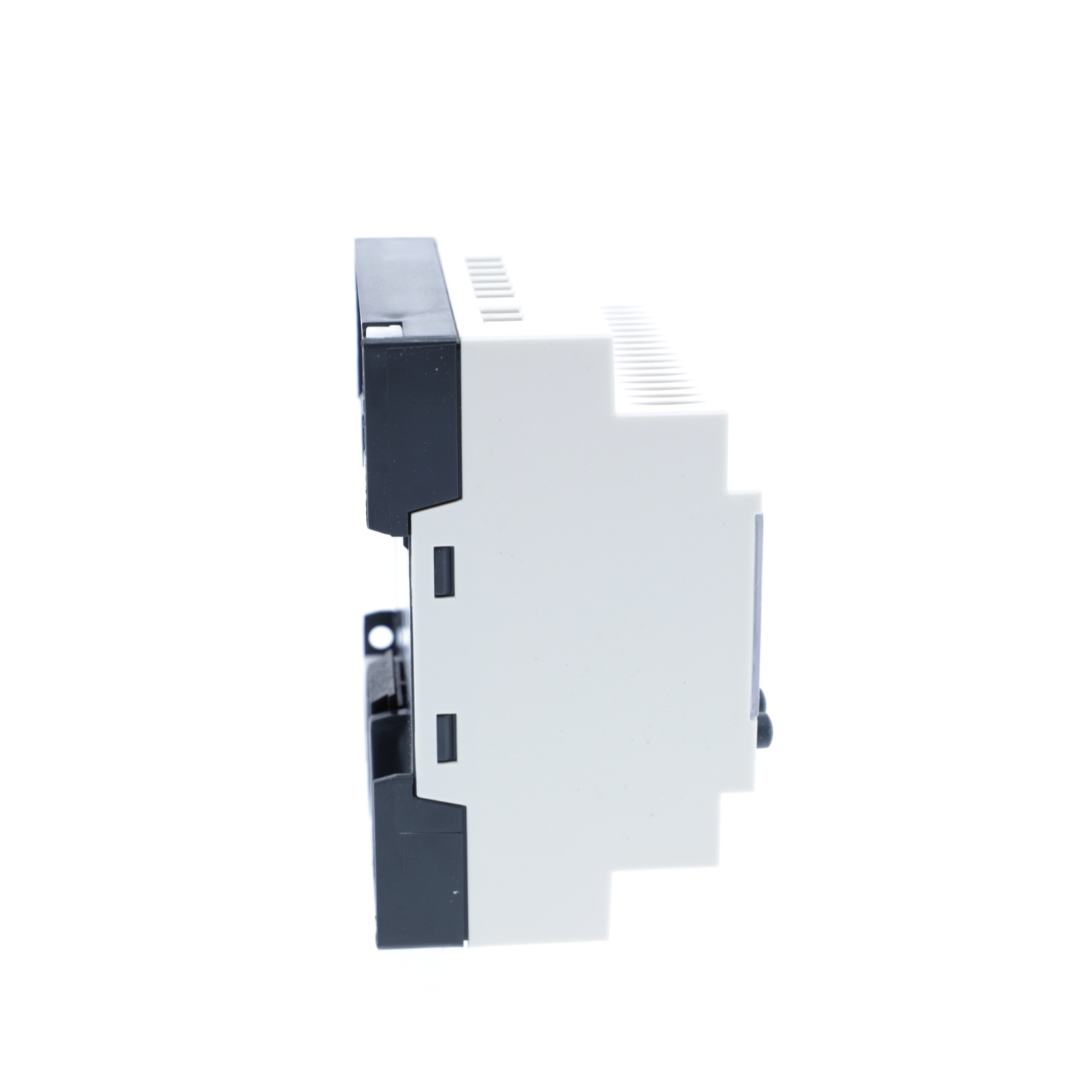

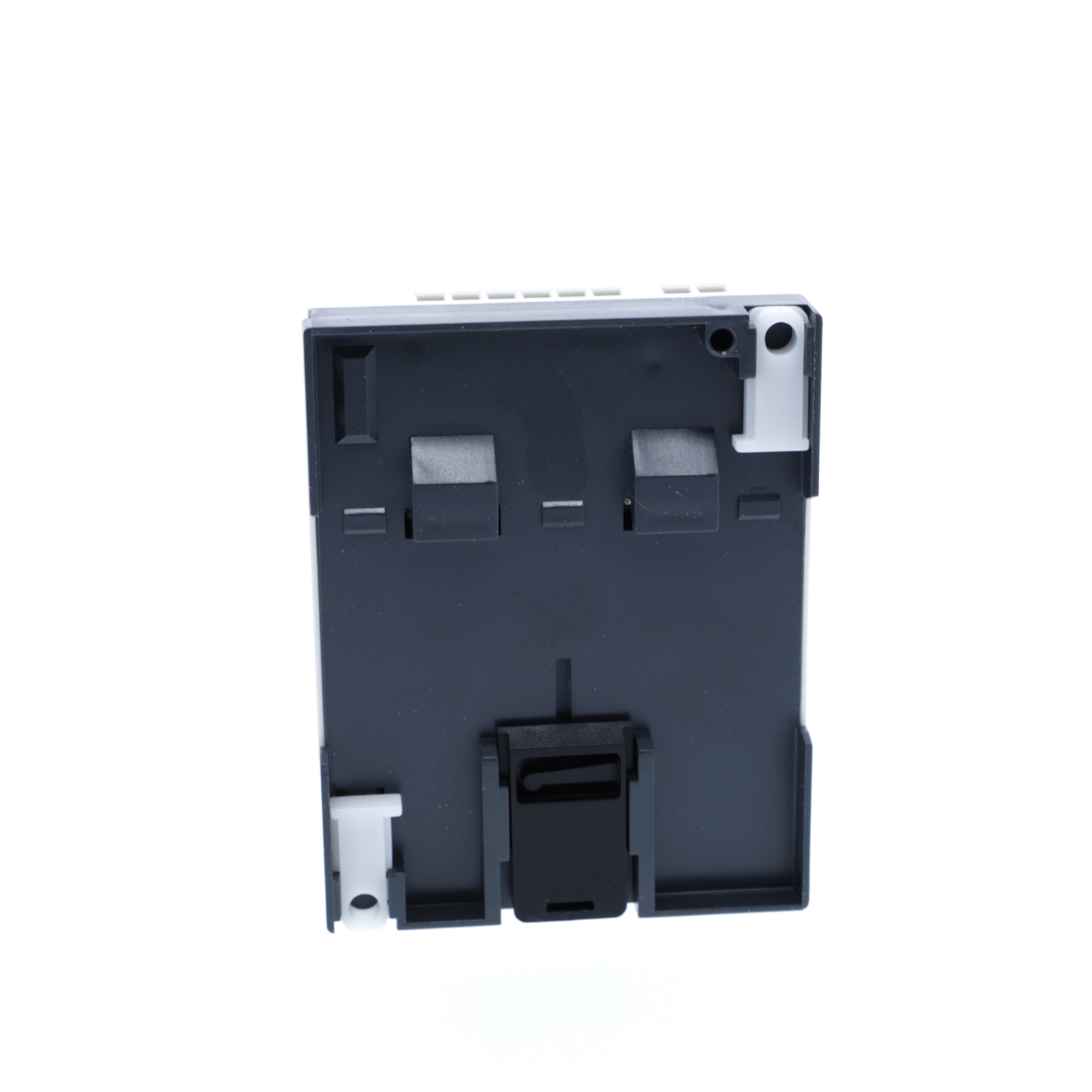

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V AC · clock · displaySR3B101B↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Brand SKUSR3B101B
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V AC · clock · display

NEW added this week
₹32,451/pcincl. GST-1%
₹27,501 + 18% GST · MRP ₹32,779
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹32,451 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V AC · clock · display: Elume price today ₹32,451 per pc incl. GST, 1% below the ₹32,779 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹35,074₹33,850₹32,626₹31,403₹30,179₹32,779₹32,451
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹32,451
MRP
₹32,779
Lowest in view · 17 Oct
₹32,451
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹30,828/pc on this product

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 4 relay outputs with normally opened contact and 6 discrete inputs. It is a smart relay with a rated supply voltage of 24V, a maximum supply current of 160mA (without extension) and a power consumption of 4VA without extension. It is an IP20 and IP40 rated product. It weighs 0.25kg. This product meets EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-11, EN/IEC 61000-4-3 and EN/IEC 60068-2-27 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LA

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V AC · clock · display · SR3B101B
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 61000-4-2 level 3
Net weight0.25 kg
BrandSchneider
Brand SKUSR3B101B
ELINEC72CDRD7D
Sold asPer pc
ClockWith
ChecksProgram memory on each power up
StandardsIEC 61000-4-2 level 3 · IEC 61000-4-5 · IEC 61000-4-12 · IEC 61000-4-4 level 3 · IEC 60068-2-6 Fc · IEC 61000-4-6 level 3 · IEC 61000-4-11 · IEC 61000-4-3 · IEC 60068-2-27 Ea
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C · 6 s/month at 25 °C
Local displayWith
Response time50 ms with ladder programming (from state 0 to state 1) for discrete input · 50 ms with ladder programming (from state 1 to state 0) for discrete input · 50...255 ms with FBD programming (from state 0 to state 1) for discrete input · 50...255 ms with FBD programming (from state 1 to state 0) for discrete input · 10 ms (from state 0 to state 1) for relay output · 5 ms (from state 1 to state 0) for
Input impedance4.6 kOhm for discrete input
Protection typeAgainst inversion of terminals (control instructions not executed)
Range of productZelio Logic
Supply frequency50/60 Hz
Isolation voltage1780 V
Number of outputs4 relay
Tightening torque0.5 N.m
Operating rate in Hz0.1 Hz (at Ie) for relay output · 10 Hz (no load) for relay output
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number6
Electrical durabilityAC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 · AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 · DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 · DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1
Mechanical durability10000000 cycles for relay output
Output voltage limits5...30 V DC (relay output) · 24...250 V AC
Supply voltage limits20.4…28.8 V
Discrete input current4.4 mA
Discrete input voltage24 V AC
Maximum supply current160 mA (without extension) · 280 mA (with extensions)
Output thermal current8 A for all 4 outputs for relay output
Product certificationsGL · UL · C-Tick · CSA · GOST
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid · Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid · Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid · Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end
IP degree of protectionIP20 (terminal block) conforming to IEC 60529 · IP40 (front panel) conforming to IEC 60529
Immunity to microbreaks10 ms repeated 20 times
Power consumption in VA4 VA without extension · 7.5 VA with extensions
Discrete input frequency57...63 Hz · 47...53 Hz
Switching capacity in mA>= 10 mA at 12 V (relay output)
Product or component typeModular smart relay
[Us] rated supply voltage24 V
Current state 0 guaranteed<= 0.5 mA (discrete input)
Current state 1 guaranteed>= 2 mA (discrete input)
Voltage state 0 guaranteed<= 5 V for discrete input
Voltage state 1 guaranteed>= 14 V for discrete input
Environmental characteristicEMC directive conforming to IEC 61000-6-2 · EMC directive conforming to IEC 61000-6-3 · EMC directive conforming to IEC 61000-6-4 · EMC directive conforming to IEC 61131-2 zone B · Low voltage directive conforming to IEC 61131-2
Contacts type and compositionNO for relay output
Disturbance radiated/conductedClass B conforming to EN 55022-11 group 1
Number or control scheme lines0…500 with FBD programming · 0…240 with ladder programming
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
