Schneider Acti9 iACT24 Control And Indication Auxiliary · Acti 9 iACTA9C15924↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
Brand SKUA9C15924
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 iACT24 Control And Indication Auxiliary · Acti 9 iACT

NEW added this week
₹36,978/pcincl. GST-1%
₹31,337 + 18% GST · MRP ₹37,352
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹36,978 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 iACT24 Control And Indication Auxiliary · Acti 9 iACT: Elume price today ₹36,978 per pc incl. GST, 1% below the ₹37,352 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹39,967₹38,572₹37,178₹35,784₹34,390₹37,352₹36,978
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹36,978
MRP
₹37,352
Lowest in view · 17 Oct
₹36,978
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹35,129/pc on this product

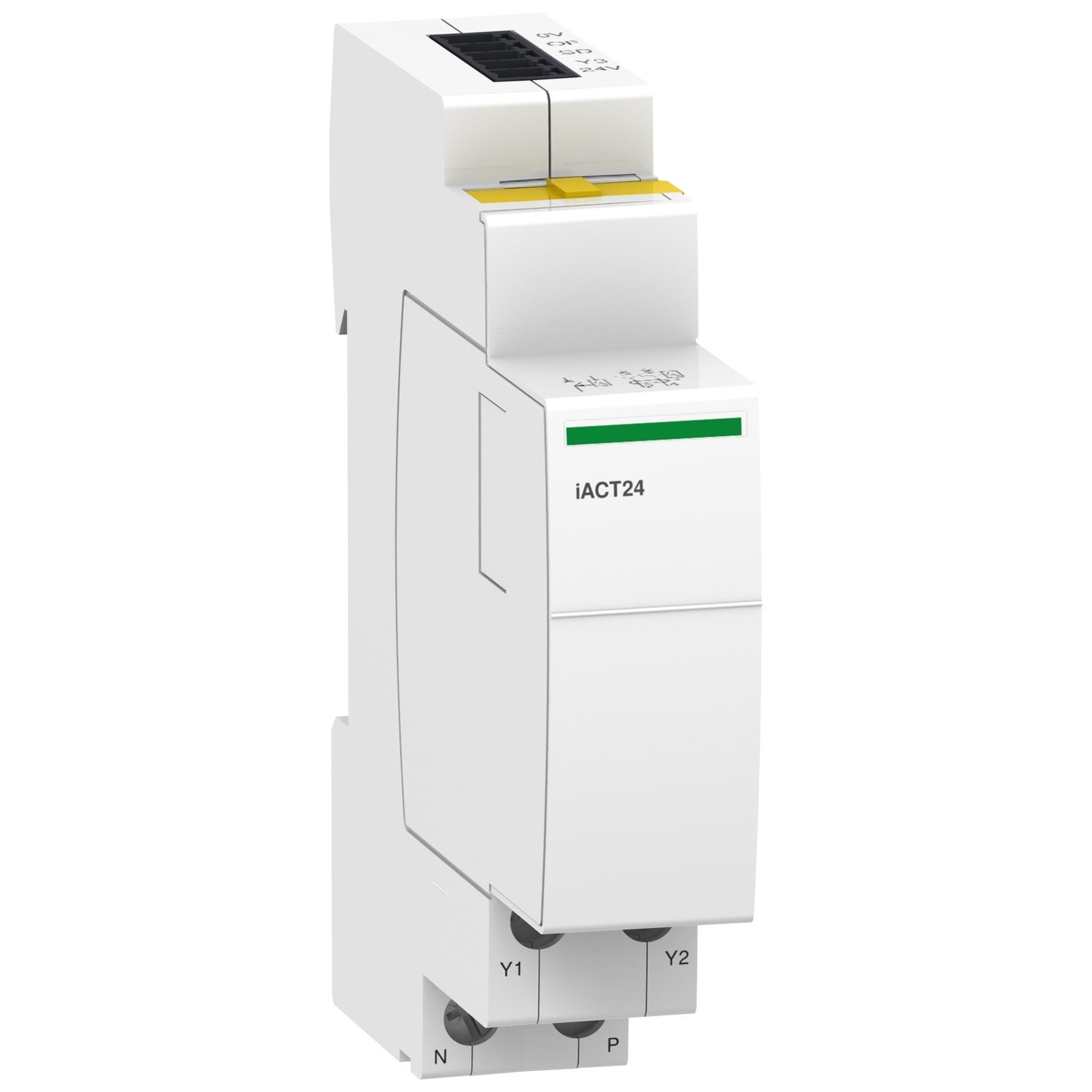

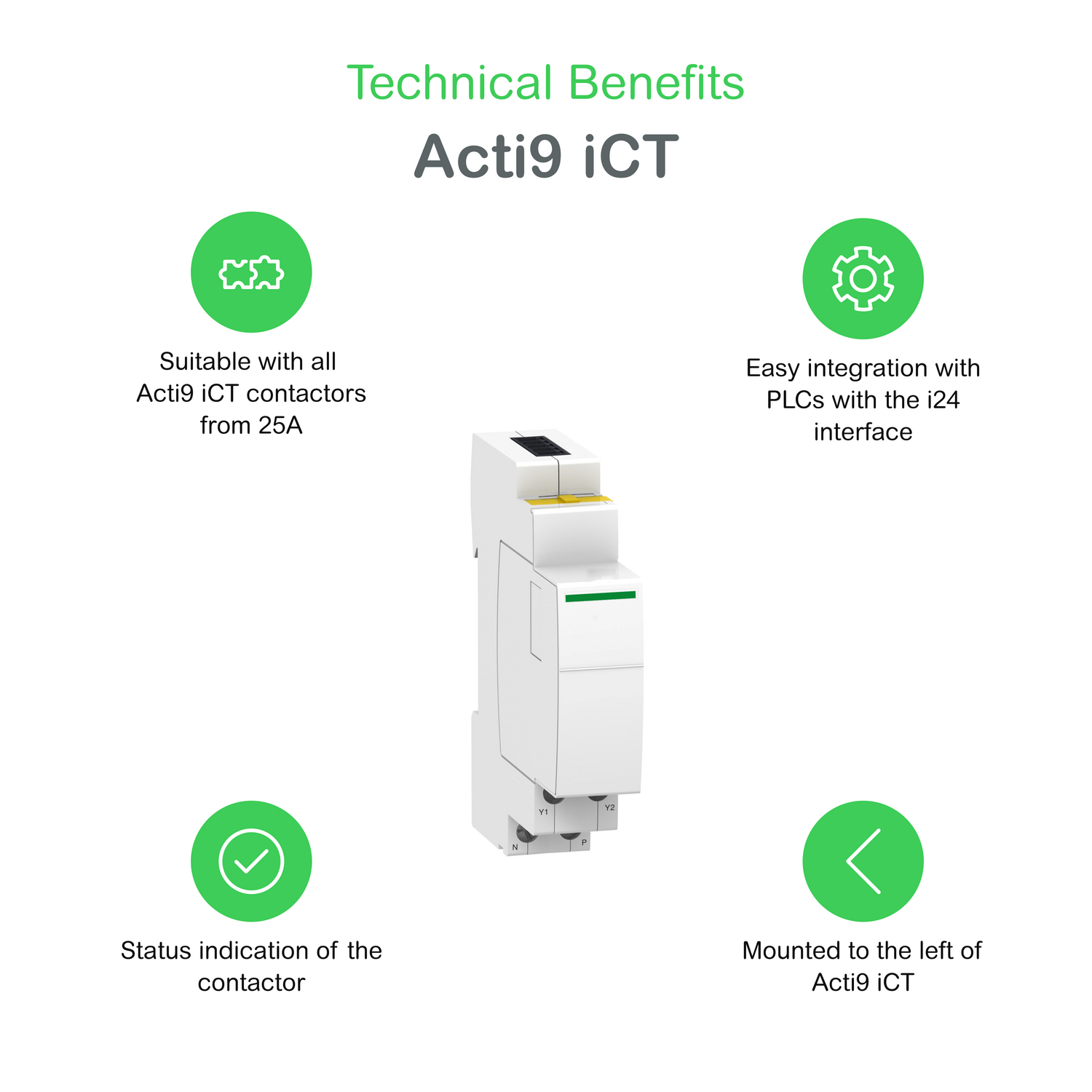

This Acti9 iACT24 is reliable control and indication auxiliary. It has 1 normally open signal contact. Control voltage is 24VDC and 230V AC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Mechanical endurance goes up to 250000 cycles. This product is compliant with IEC/EN 60947-5-1.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iACT24 Control And Indication Auxiliary · Acti 9 iACT · A9C15924
Ingress protectionIP20· IP40 (modular enclosure)
Reference standardIEC 60947-1 annex S
coil voltage230 V AC 50/60 Hz maintained >= 200 ms
ColourWhite
Device typeMiniature circuit breaker (MCB)
BrandSchneider
Brand SKUA9C15924
ELINE9C26376HF
Sold asPer pc
Depth68 mm
RangeActi9
Width18 mm
Height81 mm
StandardsIEC 60947-1 annex S
9 mm pitches2
Control typeRemote control
Mounting modeFixed, on the left of CT
Market segmentResidential · Small commercial
Quality labelsCE
Tropicalisation2 conforming to IEC 60947-5-1
Mounting supportDIN rail
Pollution degree3 conforming to IEC 60439-1
Device short nameiACT24
Relative humidity93 % at 40 °C conforming to IEC 60068-2
Tightening torqueControl circuit: 1 N.m bottom · Auxiliary supply: 1 N.m bottom
Compatibility codeIACT24
Overvoltage categoryIII
Electrical durability250000 cycles conforming to IEC 60947-5-1
Product compatibilityICT 230/240 V 50 Hz · With PLC · ICT 220 V 50 Hz · Acti 9 Smartlink · ICT 220/240 V 50 Hz
Wire stripping lengthControl circuit: 10 mm for bottom connection · Auxiliary supply: 10 mm for bottom connection · Control circuit: 10 mm for top connection
Undervoltage behaviourNo opening if loss of 24 V DC
Connections - terminalsControl circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible · Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid · Auxiliary supply: tunnel type terminals 2 cable(s) 2.5 mm² flexible · Auxiliary supply: tunnel type terminals 2 cable(s) 1.5 mm² rigid · Control circuit: spring-loaded terminal Ti24 2 cable(s) 0.25…0.75 mm² flexible · Control circuit: spring-loaded terminal Ti24 1
IP degree of protectionIP20 conforming to IEC 60529 · IP40 (modular enclosure) conforming to IEC 60529
Immunity to microbreaks10 ms
Product or component typeControl and indication auxiliary
[Us] rated supply voltage230 V AC at 50/60 Hz
Signalling circuit voltage24 V DC: - 20...20 % 0.002...0.1 A
Signal contacts composition1 NO
[Uc] control circuit voltage230 V AC 50/60 Hz maintained >= 200 ms · 24 V DC falling edge · 24 V DC rising edge
[Ui] rated insulation voltage440 V
Ambient air temperature for storage-40…80 °C
Ambient air temperature for operation-25…60 °C
[Uimp] rated impulse withstand voltage4 kV
Comb busbar and distribution block compatibilityBottom: YES · Top: NO
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
