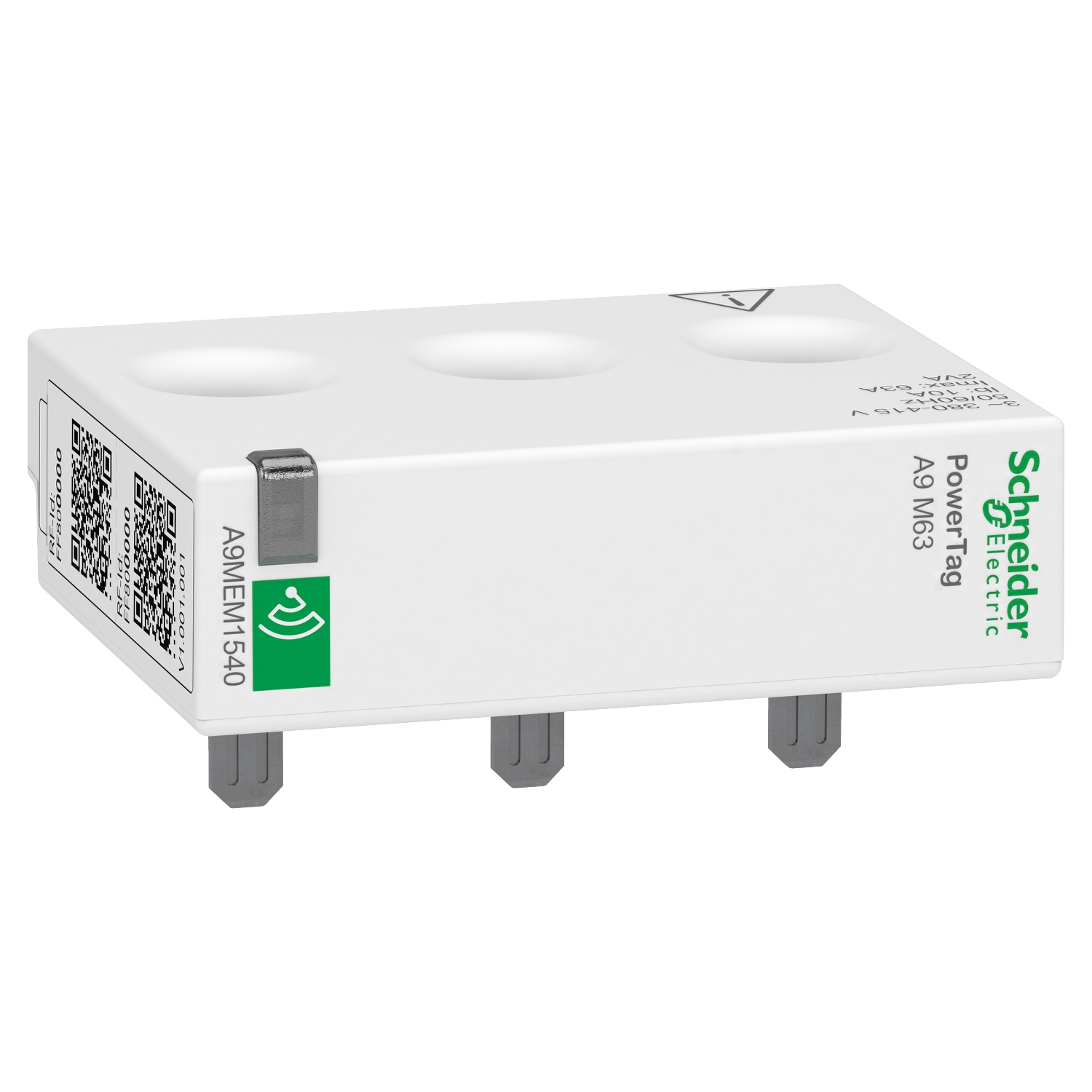

Schneider PowerLogic PowerTag A9 M63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1540A9MEM1540↓ 1% off MRP1 / 2
BrandSchneider
CategoryIndustrial Control
SpecificationClass 1 current· Class 0.5 voltage· Class 1 active power· Class 1 active energy· Class 1 power factor
Brand SKUA9MEM1540
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider PowerLogic PowerTag A9 M63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1540

NEW added this week
₹29,848/pcincl. GST-1%
₹25,295 + 18% GST · MRP ₹30,149
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹29,848 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider PowerLogic PowerTag A9 M63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1540: Elume price today ₹29,848 per pc incl. GST, 1% below the ₹30,149 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹32,259₹31,134₹30,009₹28,884₹27,759₹30,149₹29,848
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹29,848
MRP
₹30,149
Lowest in view · 17 Oct
₹29,848
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹28,356/pc on this product

This PowerTag Energy M63 3P is a wireless communication energy sensor. It is dedicated to Acti9 and Multi9 3P Monoconnect devices with 18mm pitch between phase and neutral, rating less than or equal 63A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy 63A complies with IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The Performance category is Class 1. The Imax Maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A. The Ist Starting current is 40mA. The Un rated voltage is Phase-to-phase 380VAC to 415VAC +/- 20%. The maximum consumption is below or equal to 2VA. It can be either mounted on the top or the bottom of the protective device. The product color is white (RAL9003). The weight is 28g. The degree of protection is IP20 and IK05 The opera

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider PowerLogic PowerTag A9 M63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1540 · A9MEM1540
Ingress protectionIP20
Reference standardIEC 61557-12
ColourWhite (RAL 9003)
Net weight0.028 kg
BrandSchneider
Brand SKUA9MEM1540
ELINE933R6FGJG
Sold asPer pc

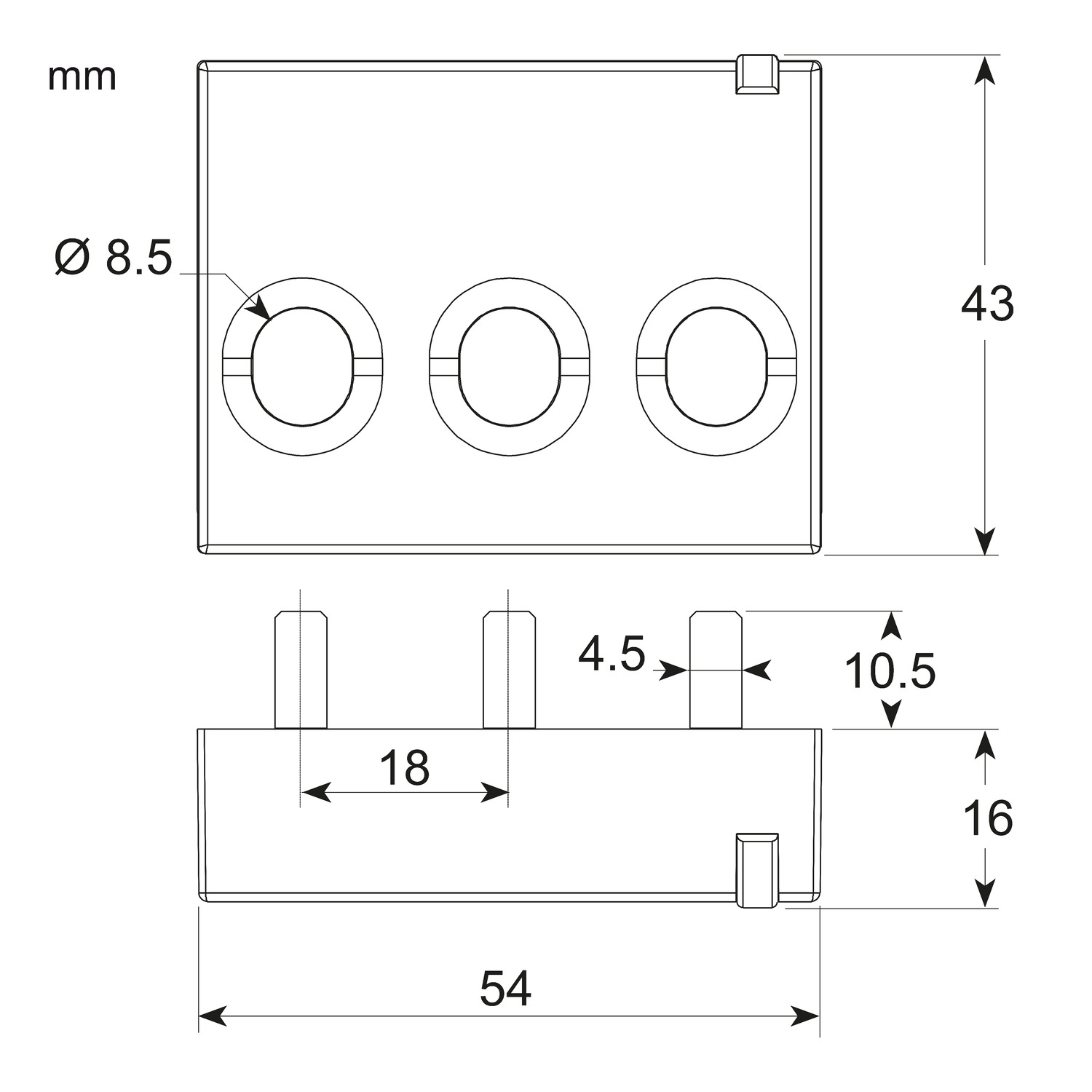

Depth43 mm
Poles3P
Width54 mm
Height16.5 mm
StandardsIEC 61557-12 · IEC 61010-1 · IEC 61010-2-030 · IEC 61326-1 · ETSI EN 300 328 · ETSI EN 301 489-1
Directives2014/53/EU - radio equipment directive
ApplicationBuildings: breaker voltage monitoring · Buildings: cost allocation · Buildings: overload alarm
Form factorMonoconnect
Product namePowerTag A9 M63
Mounting modeBy screws (terminals)
Accuracy classClass 1 current conforming to IEC 61557-12 · Class 0.5 voltage conforming to IEC 61557-12 · Class 1 active power conforming to IEC 61557-12 · Class 1 active energy conforming to IEC 61557-12 · Class 1 power factor conforming to IEC 61557-12
Emission power10 mW
Quality labelsCE
supply voltage380...415 V AC, +/- 20 %, between phases
Event managementVoltage loss with measured current at voltage loss
Mounting supportOn circuit breaker
Pollution degree3
Range of productPowerLogic
Starting current40 mA
Mounting locationTop or bottom
Network frequency50 Hz · 60 Hz
Compatibility codePowerTag A9 M63
Operating altitude0...2000 m
Saturation current130 A
[Ib] Basic current10 A
Cable cross section1 rigid cable 1.5…16 mm² · 2 stranded cable 1.5…2.5 mm² · 2 rigid cable 1.5…2.5 mm² · 1 stranded cable 1.5…16 mm²
Product destinationSwitchboard
Range compatibilityActi9 Acti9 iKQE RCBO · Multi9 Multi9 C60 · Multi9 Multi9 ID · Multi9 Multi9 C32N · Multi9 Multi9 C65 · Acti9 Acti9 iID · Acti9 Acti9 iID K · Acti9 Acti9 iK60 · Acti9 Acti9 iKQ · Acti9 Acti9 K60 · Acti9 Acti9 Reflex iC60 · Acti9 Acti9 iC65 · Acti9 Acti9 DT60 · Acti9 Acti9 iC60 single terminal
Type of measurementActive power · Current · Voltage · Power factor · Active energy
Measurement categoryCategory III conforming to IEC 61010-2-030
Overvoltage categoryIII conforming to IEC 61010-1
Maximum current [Imax]63 A
Product certificationsIEC · DNV Marine
IK degree of protectionIK05
IP degree of protectionIP20 conforming to IEC 60529
Maximum power consumption2 VA
Product or component typeEnergy sensor
Concentrator compatibilityEcoStruxure Panel Server Entry · EcoStruxure Panel Server Universal · EcoStruxure Panel Server Advanced · Wiser hub generation 2 · Acti9 Smartlink SI B · Acti9 Smartlink SI D · Acti9 PowerTag Link · Acti9 PowerTag Link HD
Transmission support mediumRadio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
Product specific applicationCircuit monitoring · Cost allocation · Load monitoring · Overload alarm · Energy management
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…60 °C
Electrical connection (voltage sensing & power supply)Connector tooth
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
